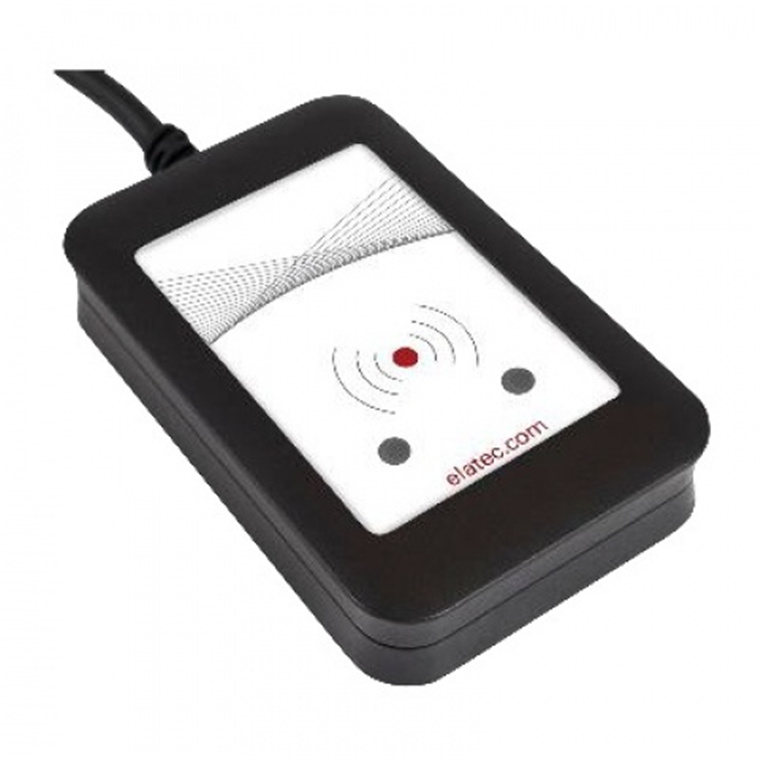

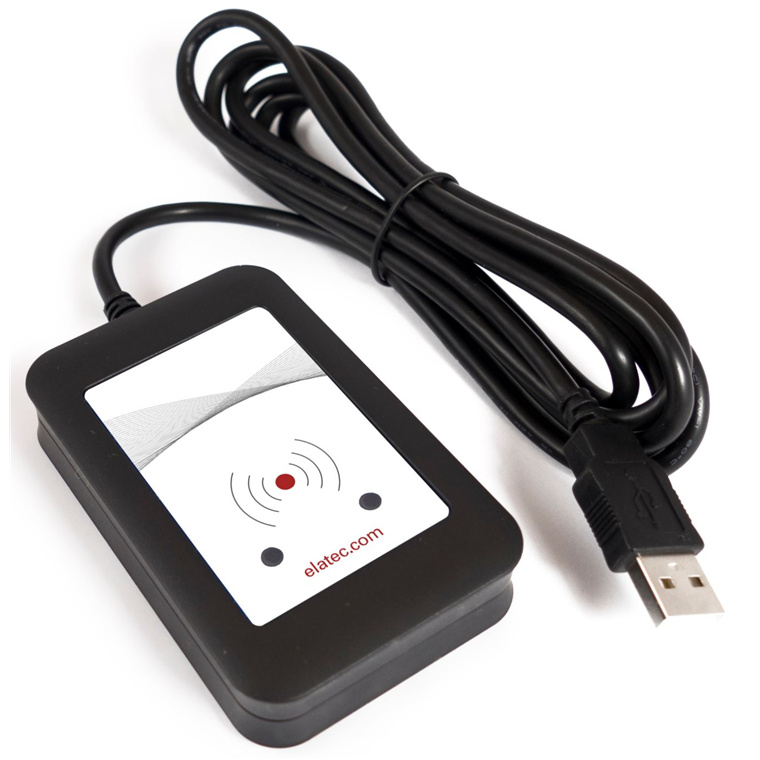

ELATEC TWN4 Desktop 13.56/NFC Multi -Reader Black V2
- Brand: ELATEC
- MPN: T4BT-FB2BEL6-P
- Part #: POSELT1001

Product URL: https://www.pbtech.com/au/product/POSELT1001/ELATEC-TWN4-Desktop-1356NFC-Multi--Reader-Black-V2
Features
Elatec's TWN4 family of transponder readers and writers allows users to read and write to almost any 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC). The TWN4 MultiTech 2 reader has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands.
-powerful SDK for writing apps which are executed directly on the reader
-firmware update in the field possible
-onboard 18 kB flash storage, e.g. for storing user accessible non-volatile data
-direct chip-commands support
-two onboard SAM sockets (Secure Access Module)
-CCID and PC/SC 2.01
-4 GPIOs
-supports quick centralized (re)configuration over network and over wireless interface with TWN4 CONFIG Card
-3D construction data (STEP) available on request
Specifications
FREQUENCY
125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)
ANTENNA
Integrated
HOUSING
Material: ABS UL94-V0
DIMENSIONS (L X W X H)
Desktop Reader: 88 mm x 56 mm x 18 mm / 3.5 inch x 2.2 inch x 0.7 inch
OEM Board: 76 mm x 49 mm x 9 mm / 3.0 inch x 1.9 inch x 0.4 inch
POWER SUPPLY
4.3 V - 5.5 V via USB or RS-232; RS232 requires 5 V external power supply; via connector CNB 3.3 V +/- 5%
RELATIVE HUMIDITY
5% to 95% non-condensing
READ- / WRITE DISTANCE
LF and HF: Up to 100 mm / 4 inch, depending on environment and transponder
TRANSMISSION SPEED
Host: USB Full speed (12 Mbit/s), RS-232: up to 115.200 baud; HF Air: up to 848 kbit/s
OPERATING MODES (USB)
USB keyboard emulation - USB virtual COM port - CCID / PC/SC 2.01
MTBF
500,000 hours
WEIGHT
Approx. 20 g (without housing)
