Arduino A000062 DUE Board

PB Tech price
PB Tech price
AUD $ 65 .01
$ 65 .01

Out of stock

Arduino A000062 DUE Board

  • Brand: Arduino
  • MPN: 2250861
  • Part #: SEVARD0004
  • UPC:
PB Tech price
AUD $ 65 .01 $ 65 .01


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
  • Brand: Arduino
  • MPN: 2250861
  • Part #: SEVARD0004
  • UPC:

Case Colour

N/A

Memory Size

N/A

PSU Colour

N/A

Features

Product Overview

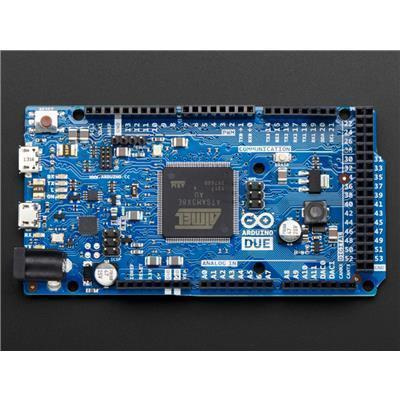

The Arduino Due development board is based on the Atmel AT91SAM3X8E ARM Cortex-M3 microcontroller. It is the first Arduino board based on a 32bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84MHz clock, an USB OTG capable connection, two DAC (digital to analog), two TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. The board contains everything needed to support the microcontroller, simply connect it to a computer with a micro USB cable or power it with a AC to DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. The Arduino Due can be powered via the USB connector or with an external power supply. The power source is selected automatically.

 - Input voltage (recommended) range from 7V to 12V
 - 3.3V operating voltage
 - 96KB of SRAM
 - 130mA of total DC output current per I/O lines
 - Input voltage (limit) range from 6V to 20V
 - The Arduino Due can be programmed with the Arduino software
 - The maximum length and width of the Arduino Due PCB are 4inch and 2.1inch respectively
 - 1.0 pinout
 - A DMA controller, that can relieve the CPU from doing memory intensive tasks
 - 512KB of flash memory for code

The Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

Product Information

 - Silicon Manufacturer: Atmel
 - Core Architecture: ARM
 - Core Sub-Architecture: Cortex-M3
 - Silicon Core Number: AT91SAM3X8E
 - Silicon Family Name: AT91SAM3xxx
 - Kit Contents: DUE Evaluation Board for AT91SAM3X8E
 - Features: AT91SAM3X8E MCU, 54 3.3V I/O, 12 Analogue Inputs, 4 UARTs, 2 DAC Outputs, 2 USBs

Technical Data Sheet (346.12KB) EN

Specifications

Manufacturer Part No:
2250861
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
SEVARD0004
Product Model:
A000062
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Delivery & Pick-up

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

Delivery Estimates

The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.

Overseas Shipments

If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To return a product to PB Tech, please complete our request a return form.

Or view our returns policy for more information.

Arduino A000062 DUE Board

  • Brand: Arduino
  • MPN: 2250861
  • Part #: SEVARD0004
AUD $65.01

Date Created: 08:08, 21-09-2025
Product URL: https://www.pbtech.com/product/SEVARD0004/Arduino-A000062-DUE-Board

Features

Product Overview

The Arduino Due development board is based on the Atmel AT91SAM3X8E ARM Cortex-M3 microcontroller. It is the first Arduino board based on a 32bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84MHz clock, an USB OTG capable connection, two DAC (digital to analog), two TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. The board contains everything needed to support the microcontroller, simply connect it to a computer with a micro USB cable or power it with a AC to DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. The Arduino Due can be powered via the USB connector or with an external power supply. The power source is selected automatically.

 - Input voltage (recommended) range from 7V to 12V
 - 3.3V operating voltage
 - 96KB of SRAM
 - 130mA of total DC output current per I/O lines
 - Input voltage (limit) range from 6V to 20V
 - The Arduino Due can be programmed with the Arduino software
 - The maximum length and width of the Arduino Due PCB are 4inch and 2.1inch respectively
 - 1.0 pinout
 - A DMA controller, that can relieve the CPU from doing memory intensive tasks
 - 512KB of flash memory for code

The Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

Product Information

 - Silicon Manufacturer: Atmel
 - Core Architecture: ARM
 - Core Sub-Architecture: Cortex-M3
 - Silicon Core Number: AT91SAM3X8E
 - Silicon Family Name: AT91SAM3xxx
 - Kit Contents: DUE Evaluation Board for AT91SAM3X8E
 - Features: AT91SAM3X8E MCU, 54 3.3V I/O, 12 Analogue Inputs, 4 UARTs, 2 DAC Outputs, 2 USBs

Technical Data Sheet (346.12KB) EN
