Arduino A000062 DUE Board

PB Tech price
PB Tech price
$ 65 .01
 +GST
$ 71 .51
 inc GST

Out of stock

Arduino A000062 DUE Board

  • Brand: Arduino
  • MPN: 2250861
  • Part #: SEVARD0004
  • UPC:
PB Tech price
$ 65 .01 $ 71 .51
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
  • Brand: Arduino
  • MPN: 2250861
  • Part #: SEVARD0004
  • UPC:

Case Colour

N/A

Memory Size

N/A

PSU Colour

N/A

Features

Product Overview

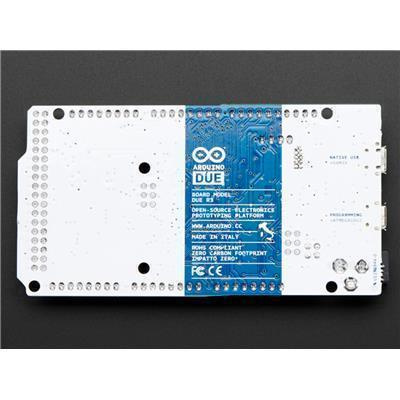

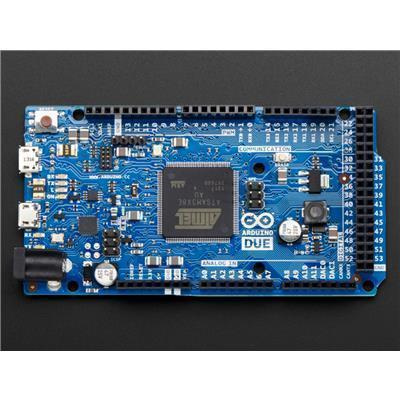

The Arduino Due development board is based on the Atmel AT91SAM3X8E ARM Cortex-M3 microcontroller. It is the first Arduino board based on a 32bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84MHz clock, an USB OTG capable connection, two DAC (digital to analog), two TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. The board contains everything needed to support the microcontroller, simply connect it to a computer with a micro USB cable or power it with a AC to DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout. The Arduino Due can be powered via the USB connector or with an external power supply. The power source is selected automatically.

 - Input voltage (recommended) range from 7V to 12V
 - 3.3V operating voltage
 - 96KB of SRAM
 - 130mA of total DC output current per I/O lines
 - Input voltage (limit) range from 6V to 20V
 - The Arduino Due can be programmed with the Arduino software
 - The maximum length and width of the Arduino Due PCB are 4inch and 2.1inch respectively
 - 1.0 pinout
 - A DMA controller, that can relieve the CPU from doing memory intensive tasks
 - 512KB of flash memory for code

The Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

Product Information

 - Silicon Manufacturer: Atmel
 - Core Architecture: ARM
 - Core Sub-Architecture: Cortex-M3
 - Silicon Core Number: AT91SAM3X8E
 - Silicon Family Name: AT91SAM3xxx
 - Kit Contents: DUE Evaluation Board for AT91SAM3X8E
 - Features: AT91SAM3X8E MCU, 54 3.3V I/O, 12 Analogue Inputs, 4 UARTs, 2 DAC Outputs, 2 USBs

Technical Data Sheet (346.12KB) EN

Specifications

Manufacturer Part No:
2250861
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
SEVARD0004
Product Model:
A000062
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
