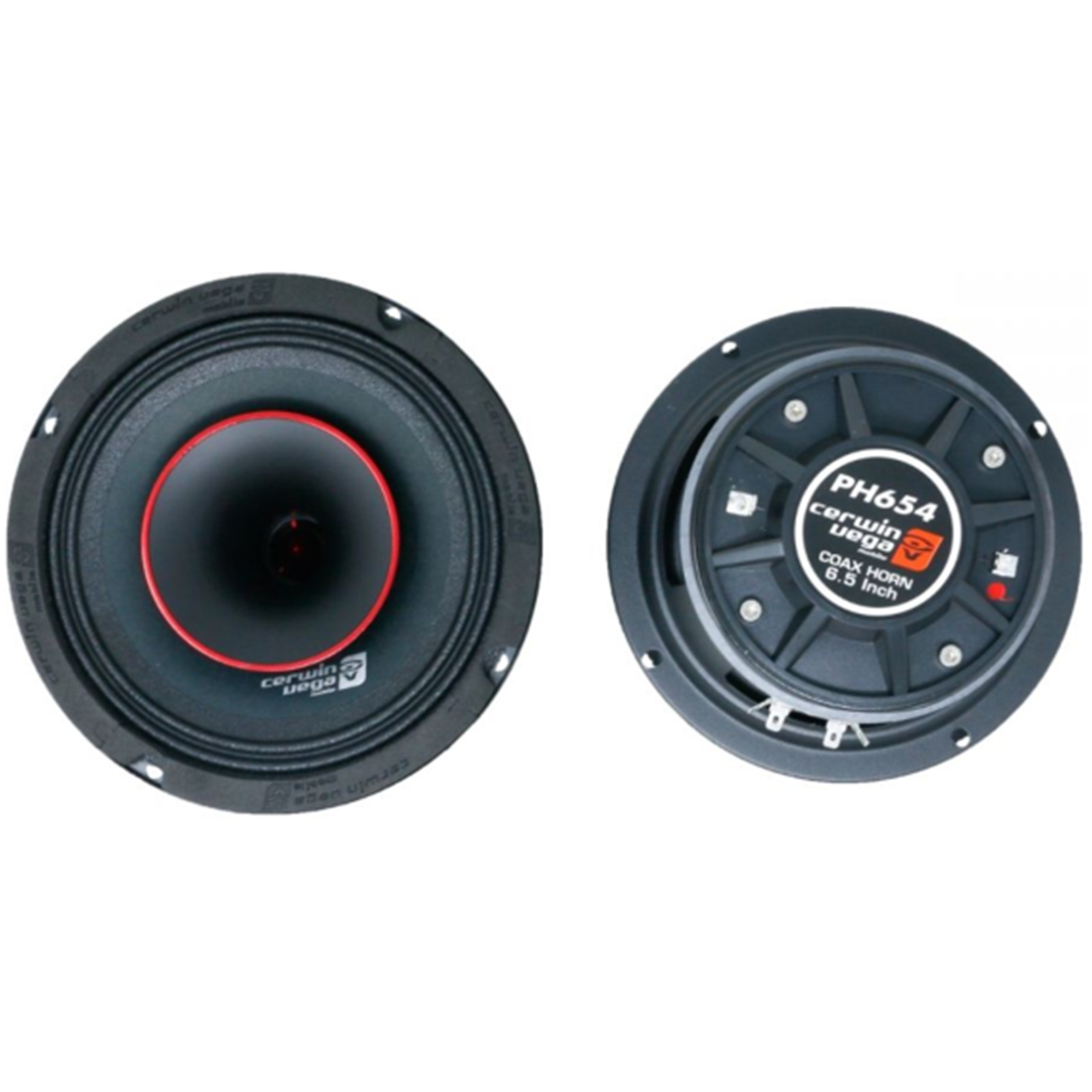

Cerwin-Vega PH654 6.5" Speakers 300W Pair Pro Full Range CO-AX Horn
Cerwin-Vega PH654 6.5" Speakers 300W Pair Pro Full Range CO-AX Horn
- Brand: Cerwin-Vega
- MPN: PH654
- Part #: AUDCWV1029
- UPC:
View all shipping info
- Brand: Cerwin-Vega
- MPN: PH654
- Part #: AUDCWV1029
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Speakers





Cerwin-Vega PH654 6.5" Speakers 300W Pair Pro Full Range CO-AX Horn
- Brand: Cerwin-Vega
- MPN: PH654
- Part #: AUDCWV1029

Product URL: https://www.pbtech.com/au/product/AUDCWV1029/Cerwin-Vega-PH654-65-Speakers-300W-Pair-Pro-Full-R?qr=popular_related_products
Features
- 6.5" PRO Full-Range Co-Ax Horn Speaker, Pair
- Ferrite Strontium High Temp Magnet Structure
- Heavy Duty Stamped Steel Basket
- Advanced Voice Coil Heat Sink Design for better Heat Dissipation
- 1.5" Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0" Single Layer High Temp Voice Coil with Voice Coil former for the Tweeter
- 12dB 2nd Order Filter Crossover for better Protection of the Tweeter
Specifications
Nominal Impedance (ohms)
N/A
Frequency Response (Hz)
110Hz -18Khz
Voice Coil Diameter (inch/mm)
1.5"
Power Handling Watts (RMS/Peak)
150W RMS/300 MAX
Fs-Free Air Resonance (Hz)
105.2
Qts
0.61
Vas.Cu.ft. (Liter)
6.4
Sensitivity (1W/1M)
101dB
Mounting Diameter (inch/mm)
5.67 (144)
Mounting Depth
3.09 (78.5)
Xmax - Inch(mm)
1.0
