Nakamichi NA3600M 6.7 Double Din, DVD, Bluetooth Multi-Media Receiver
- Brand: Nakamichi
- MPN: NA3600M
- Part #: CARNKM1002

Product URL: https://www.pbtech.com/au/product/CARNKM1002/Nakamichi-NA3600M-67-Double-Din-DVD-Bluetooth-Mult?qr=popular_related_products
Features

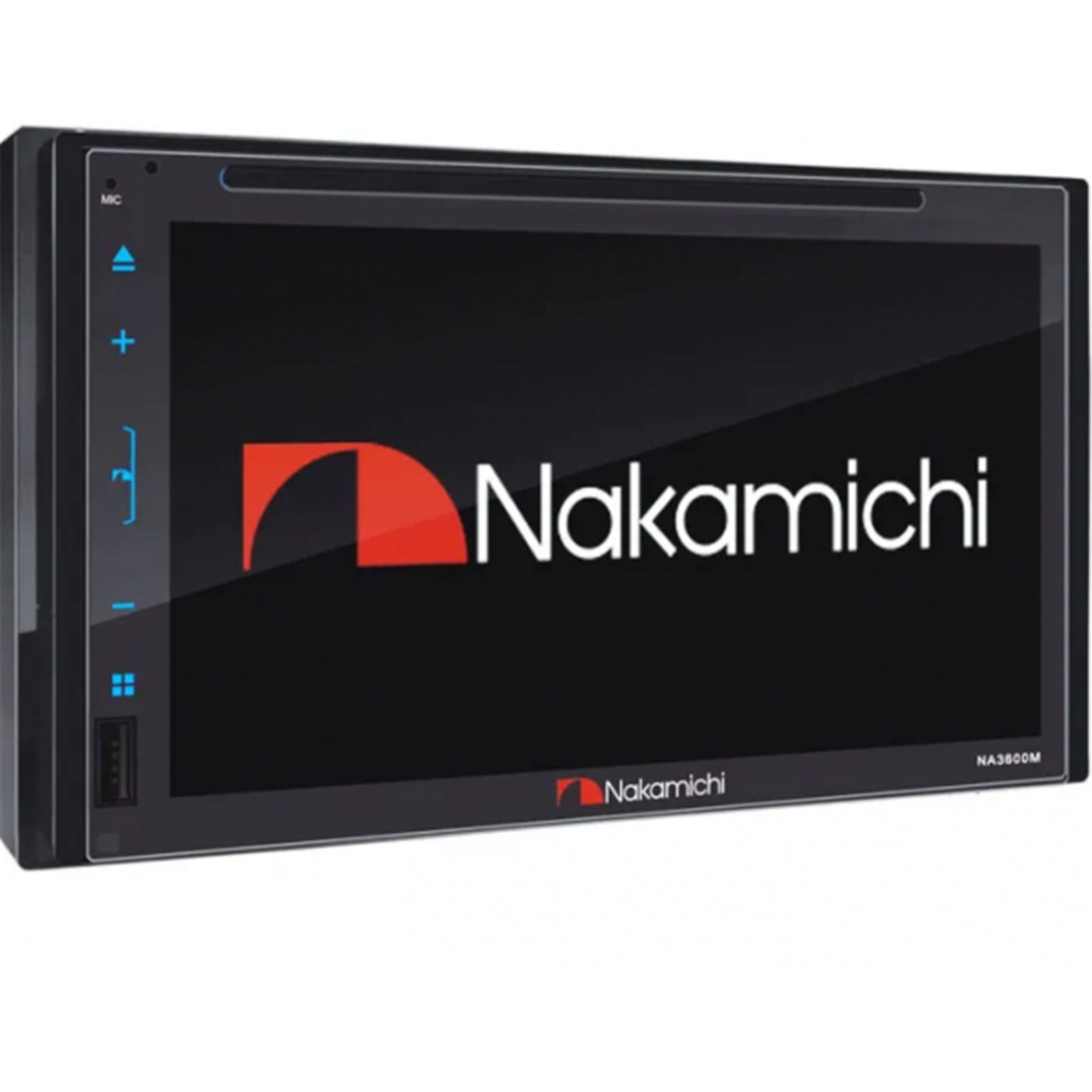

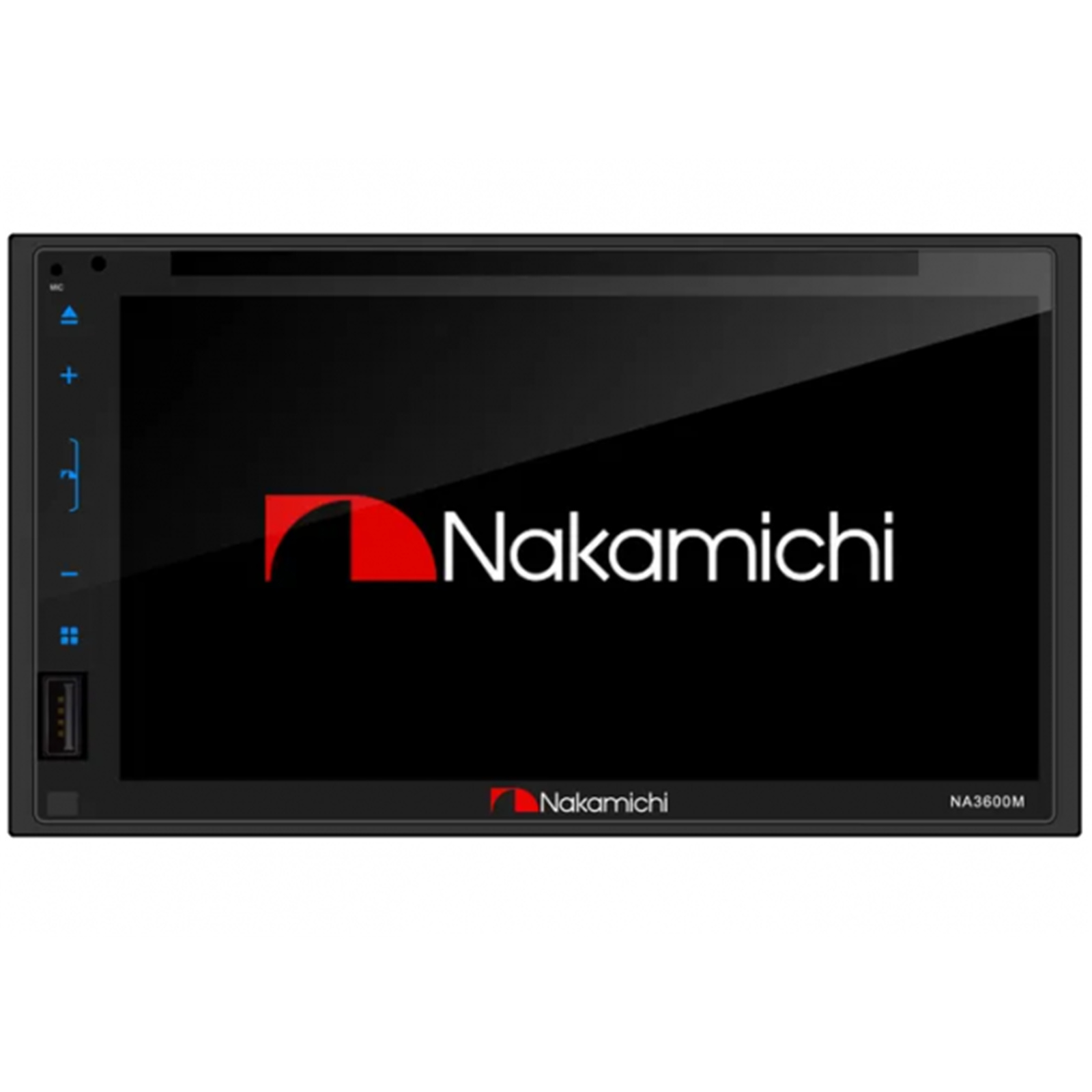

Nakamichi NA3600M, our DVD 2 DIN receiver with build in Android mirrorlink for ease of access with your mobile phone and is compatible with a wide array of CD and DVD formats such as DVD/VCD/MP3/MP4/CD-R/CD-RW/DIVX.
Supports both FM/AM radio channels as well as RDS for receiving important traffic updates while you are on the road.
Of course, not forgetting Bluetooth input, for hands free calling, as well as streaming your high resolution music files through to your vehicle's sound system.
Built in 10 band EQ adjustment and preset EQs lets you adjust the sound to match your style of music, so you'll never sound out of tune.
Features
- 2-DIN 6.75" full glass capacitive screen with DVD player
- Compatible with DVD/ VCD/ MP3/ MP4/ CD-R/ CD-RW/ DIVX
- Built-in Bluetooth, support A2DP Bluetooth music
- Touch screen with GUI (Graphic User Interface)
- Support USB for music, image and video files
- Built-in radio receiver, support RDS receiver
- Built-in amplifier, maximum power 4x50W
- Support certain Android phone Mirrorlink
- Support 1080P video playback
- With wireless remote control
- Support rear MIC interface
- Support 1A phone charging
- Front-view camera input
- Rear-view camera input
- 4V FL/ FR/ RL/ RR preoutput
- 3V subwoofer output
- Two video output
- One A/V input
- Resolution: 800x480
- Operated power: DC 10.8V-16V
- Product size: 178*100*152mm
Install Notes
- If using ISO adapters & SWC, the SWC wires need to be moved over into ISO adapter
- You may need a USB Extension Cable if using rear USB (charging only) as cable is short
- The radio Auto Antenna wire can also be used as an Amp Turn on wire
- Default Bluetooth device name is NA3600M and code is 0000
- You need to switch to R-Mic in the unit settings if using an external microphone
- USB port is not compatible with iPod/iPhone/Android devices. However, you may still be able to connect your device via rear A/V in or Bluetooth
Specifications
General
Screen Size
6.75"
FM Frequency Range
87.5-108.0MHZ
Bluetooth Format
HFP/HSP/A2DP/AVRCP
Size(WxHxD)
178x100x152mm
Net Weight
1.92kg
Display
Brightness
400cd/m2
Key Illumination Color
Blue
Audio
Max Power
4x50W
RMS Power
4x25W
Pre-output
4V
EQ
10 band
Preset EQ
Standard/Classic/Rock/Pop/Jazz/Electric/Custom
Power Requirement
12V DC Negative Ground (11V-16V acceptable)
FM Tuning Range
87.5 - 108.0 MHz (NZ frequency)
AM Tuning Range
531 - 1,602 kHz (NZ frequency)
Speaker Output
50W x 4 (4O)
Speaker Impedance
4O (4-8O acceptable)
