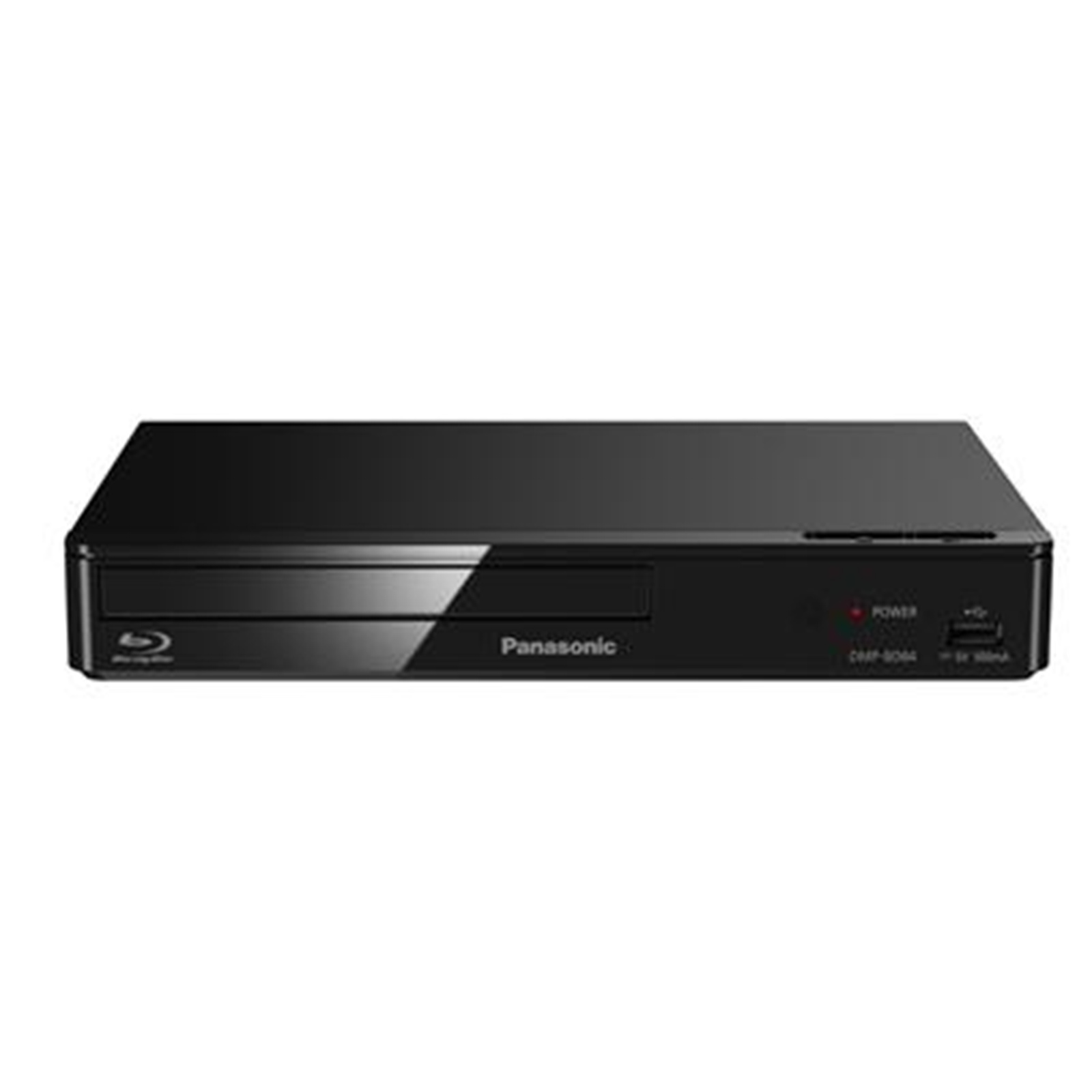

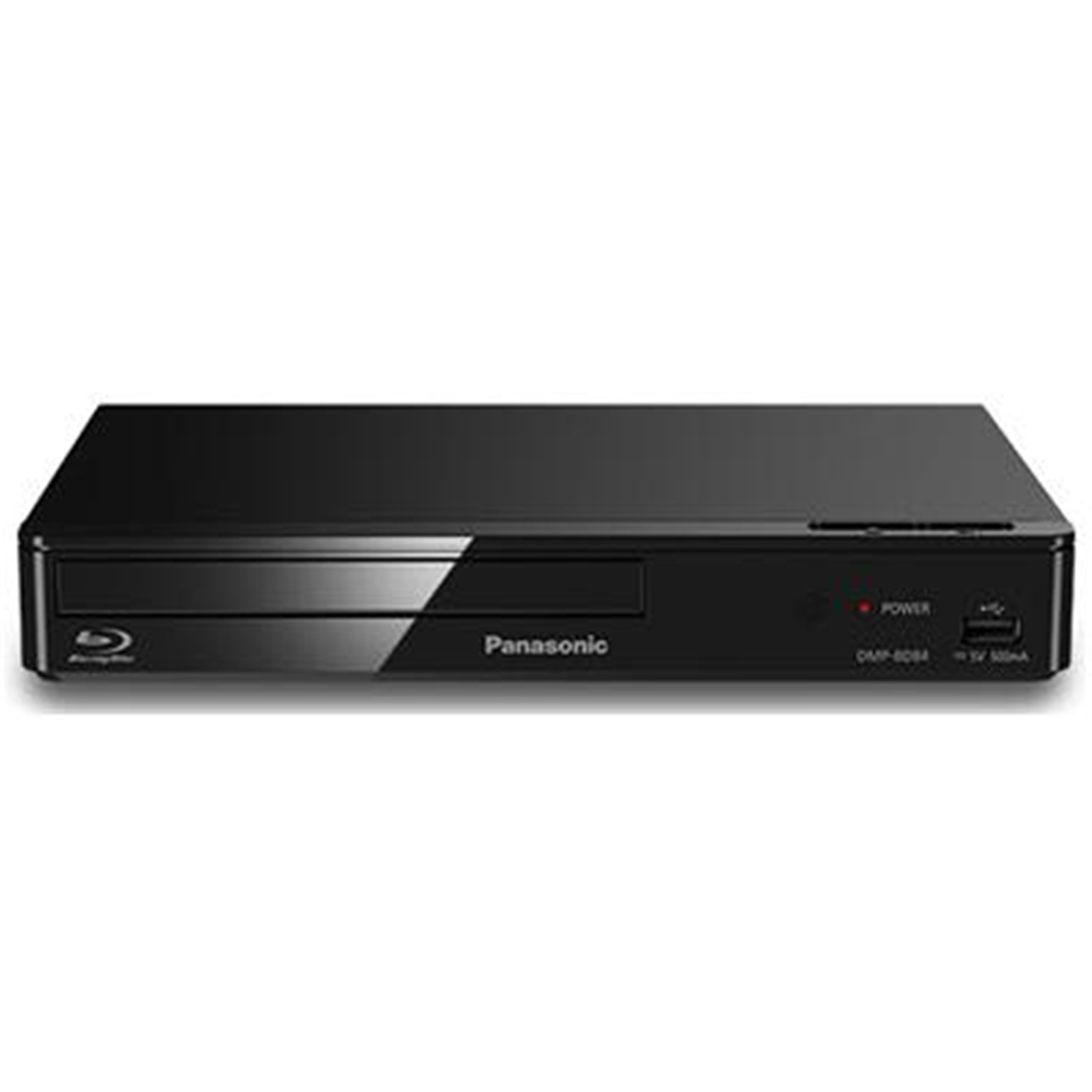

Panasonic DMP-BD84GN-K Blu-Ray Player

BD-ROM

BD-Video

Yes

BD-RE/ BD-RE DL (Ver.3)

BDAV/ BDMV/ JPEG/ MPO/ FLAC/ WAV/ AAC/ WMA/ MP3/ ALAC/ DSD

Yes*2

BD-R/ BD-R DL (Ver.2)

BDAV/ BDMV/ Xvid/ MKV/ FLAC/ WAV/ AAC/ WMA/ MP3/ ALAC/ DSD

Yes

DVD

DVD-Video

Yes

DVD-R*1/ DVD-R DL*1/ DVD-RW*1

DVD-Video/ DVD Video Recording

Yes*1

AVCHD

Yes*1

Xvid/ MKV/ FLAC/ WAV/ WMA/ AAC/ MP3/ ALAC/ DSD/ JPEG/ MPO

Yes (DVD-R/ DVD-R DL)*2

+R*1/ +R DL*1/ +RW*1

Video/ AVCHD

Yes

CD, CD-R/ -RW

CD-DA

Yes

Xvid/ MKV/ FLAC/ WAV/ WMA/ AAC/ MP3/ ALAC/ JPEG/ MPO

Yes (CD-R/ -RW)*2

AUDIO SYSTEM

Dolby Digital/ TrueHD

Yes Decode (2ch) and Bitstream Output

Dolby Digital Plus

Yes Decode (2ch) and Bitstream Output

DTS-HD Master Audio / DTS-HD High Resolution Audio

Yes Decode and Bitstream Output

FLAC

Yes (192kHz/24bit (5.1ch))

WAV

Yes (192kHz/32bit (2ch))

ALAC

Yes (192kHz/24bit (2ch))

DSD (DFF,DSF)

Yes (2.8MHz(2ch/ 5.1ch), 5.6MHz(2ch only))

USB

Slot

Yes

Front

For Playback

USB Standard

USB 2.0 High Speed

Xvid/ MKV/ MP4/ MPEG-2/ FLAC/ WAV/ WMA/ AAC/ MP3/ ALAC/ DSD/ JPEG/ MPO

Yes*2

HIGH QUALITY PICTURE

Deep Colour

Yes

x.v.Colour

Yes*5

EASY OPERATION

Quick Start Mode

Yes

HDMI-CEC

Yes

Stylish GUI/ Wallpaper

Yes/ yes

SMART NETWORKING

Internet Apps

Yes (Simple)*7

External HDD Playback

Yes*8

BD-Live™

YesTM9

TERMINAL

HDMI Output

Yes

LAN (Ethernet) Terminal

Yes (for BD-LiveTM*9, Internet Apps(Simple)*7 and Firmware Update)

OTHERS

Video System

PAL/ NTSC

HDMI Cable Included

Yes

Power Consumption

Power Supply

AC 220-240V, 50Hz

Normal Use

11W

Standby(Quick Start Off)

0.5W

Standby(Quick Start On)

3.5W

DIMENSIONS, WEIGHT

Dimensions (W x H x D)

245 x 38.5 x 175 mm

Weight

0.8 kg

Remarks

NOTE

*1 Discs recorded and finalized on recording devices.
*2 Except MPO.
*3 To enjoy 4K Upscaling playback you will also need a 4K/UHD TV.
*4 Only BD-Video 24p content can be up-converted for 4K2K resolution.
*5 This function is effective only when reproducing AVCHD data recorded with x.v.Colour technology.
The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.
*6 Compatible with AndroidTM devices, Ver. 4.2 and above and Miracast certified.
For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device.
*7 Requires broadband Internet service.
*8 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported.
Playback is not possible with some external hard disk drives.
*9 To enjoy content, you will need to insert a USB flash drive (1GB or more of free space/ sold separately). Requires broadband Internet service.
*10 Excluding the projecting parts and the pedestal.
Specifications are subject to change without notice. All numbers given here are approximate.
Please note this Blu-Ray Player is designed to play Region B Blu-Rays only.
