StarTech.com SV431DPDDUA2 4 Port Dual DisplayPort KVM Switch - DisplayPort 1.2 KVM - 4K 60Hz

PB Tech price
PB Tech price
$ 1,245 .43
 +GST
$ 1,369 .97
 inc GST
$1,245.43  +GST
$1,369.97

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

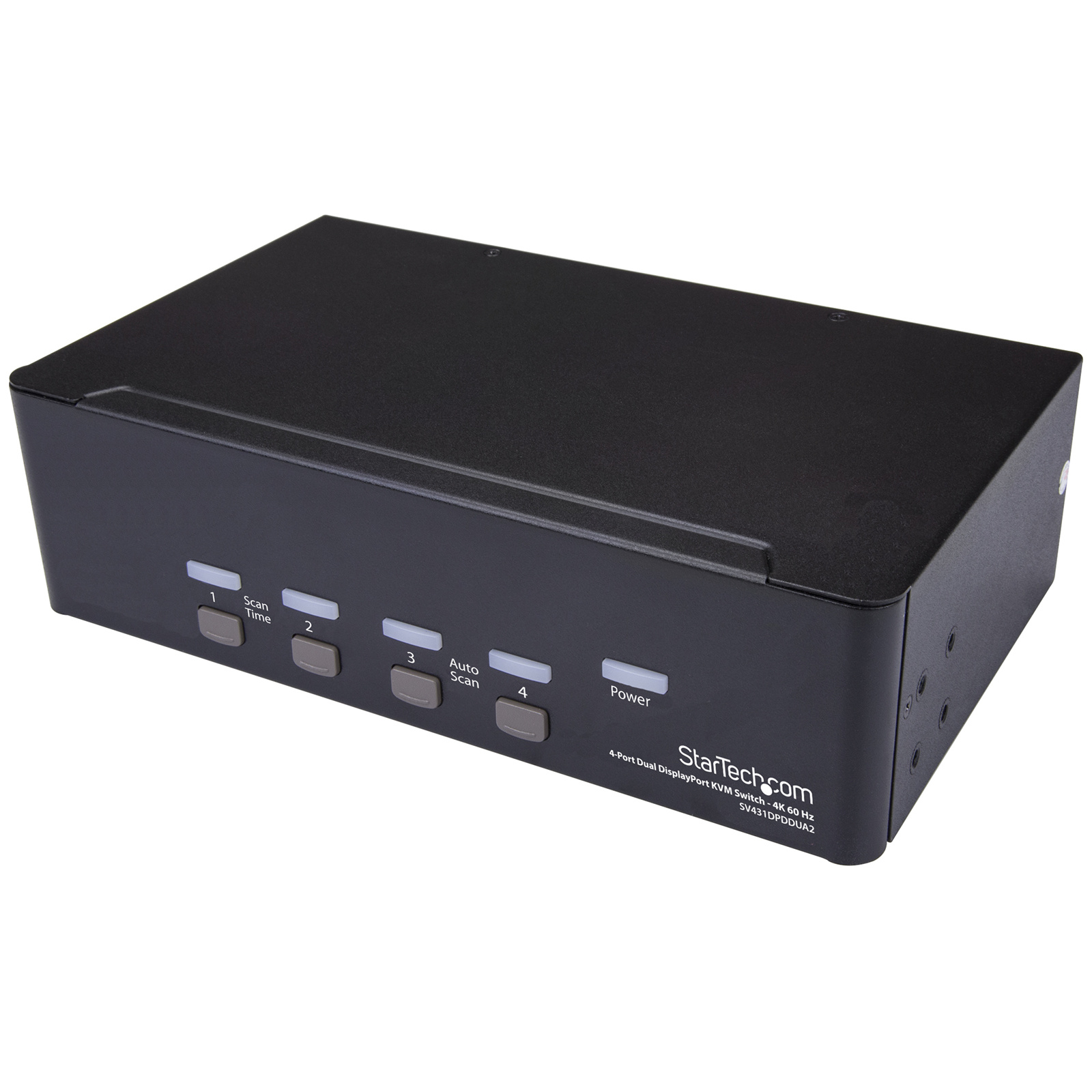

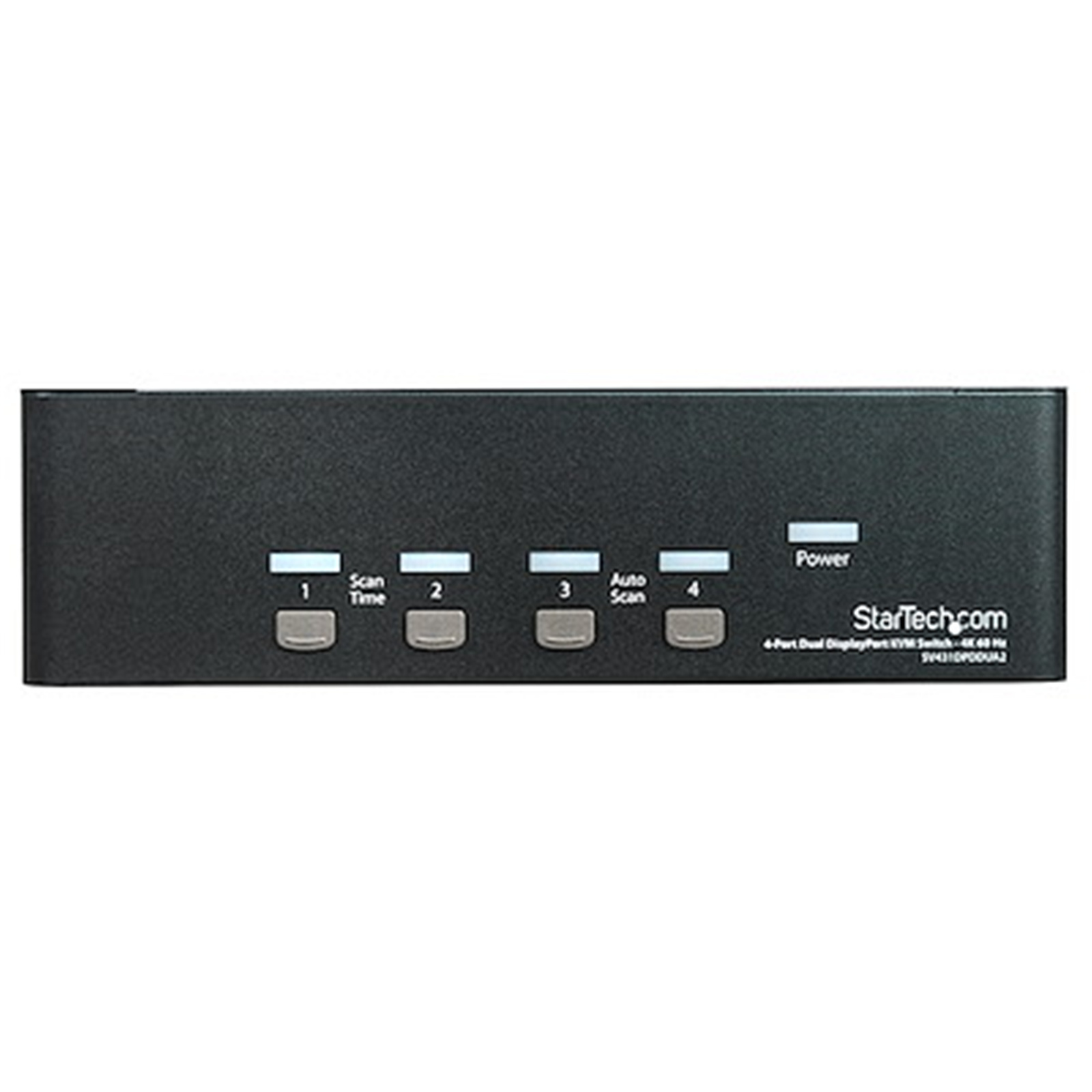

StarTech.com SV431DPDDUA2 4 Port Dual DisplayPort KVM Switch - DisplayPort 1.2 KVM - 4K 60Hz

  • Brand: StarTech.com
  • MPN: SV431DPDDUA2
  • Part #: KVMSTT4157163
  • UPC: 065030867863
CLEARANCE
PB Tech price
$ 1,245 .43 $ 1,369 .97
 +GST  inc GST
Hurry, only 1 unit left!


Delivery: Order now and it ships on 09 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,245.43  +GST
$1,369.97

Features

https://www.startech.com/en-nz/server-management/sv431dpddua2

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

Maximize productivity with dual video

With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Convenient multimedia and peripheral sharing

The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.

The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.

  • Maximum productivity with dual-display, multi-computer access
  • Full multimedia control with separate 3.5 mm microphone and speaker support
  • Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
  • Share your USB peripheral devices with built-in 2-port USB hub
  • Access computers easily with hotkey and push-button switching

Specifications

HARDWARE

Audio Yes
Cables Included No
Daisy-Chain No
KVM Ports 4
Number of Monitors Supported 2
PC Interface USB
PC Video Type DisplayPort
Rack-Mountable Yes
U Height 2U

PERFORMANCE

Aspect Ratio 16:9
Auto Scan 3, 8, 15 & 30 seconds
DVI Support No
Hot-Key Selection Yes
IP Control No
Maximum Data Transfer Rate 500 Mbps (USB 2.0)
Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @ 60hz
Maximum Number of Users 1
MTBF 142000 hours
On-Screen Display No
Port Selection Support Push Button and Hotkeys
Supported Resolutions 1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1600
3840 x 2160 (4K)@ 60hz
Wide Screen Supported Yes

CONNECTOR(S)

Console Interface(s) 2 - 3.5 mm Mini-Jack (3 Position) Female
2 - DisplayPort (20 pin) Female
2 - USB Type-A (4 pin) USB 2.0 Female
2 - USB Type-A (4 pin; HID Port) USB 1.1 Female

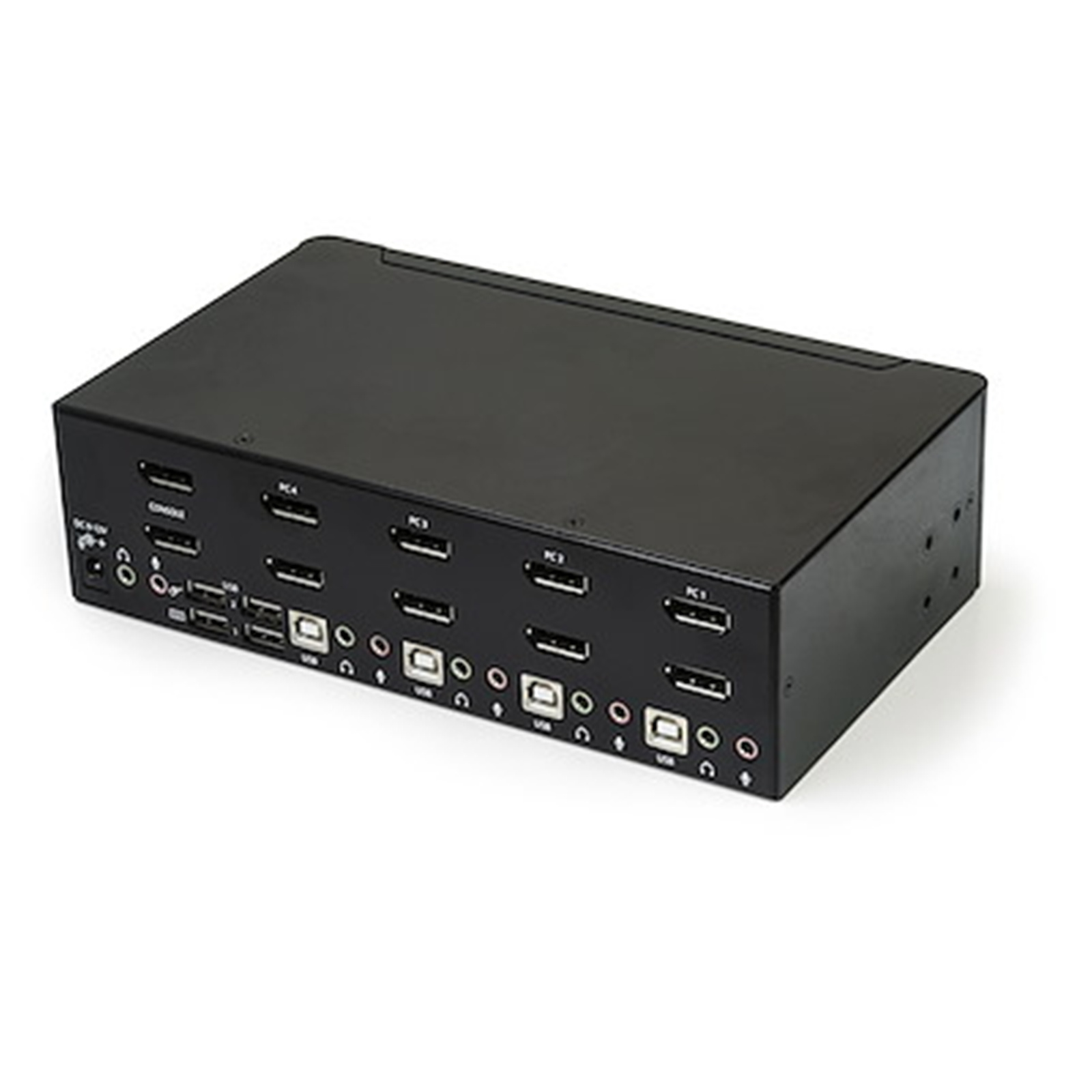

Host Connectors 2 - USB B (4 pin) Female
4 - DisplayPort (20 pin) Female
8 - 3.5 mm Mini-Jack (3 Position) Female

INDICATORS

LED Indicators 1 - Power
4 - Green - Online indicator (One LED per port)
4 - Red - Select indicator (One LED per port)

POWER

Center Tip Polarity Positive
Input Current 0.6 A
Input Voltage 100 - 240 AC
Output Current 1.5 A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 18 W
Power Source AC Adapter Included

ENVIRONMENTAL

Humidity 0% - 80%
Operating Temperature 0? - 40?
Storage Temperature -10? - 60?

PHYSICAL CHARACTERISTICS

Color Black
Enclosure Type Steel
Product Height 2.5 in [6.3 cm]
Product Length 5 in [12.7 cm]
Product Width 8.5 in [21.6 cm]
Weight of Product 2.7 lb [1.2 kg]

PACKAGING INFORMATION

Package Height 3.4 in [87 mm]
Package Length 11.7 in [29.7 cm]
Package Width 9.6 in [24.3 cm]
Shipping (Package) Weight 3.9 lb [1.8 kg]

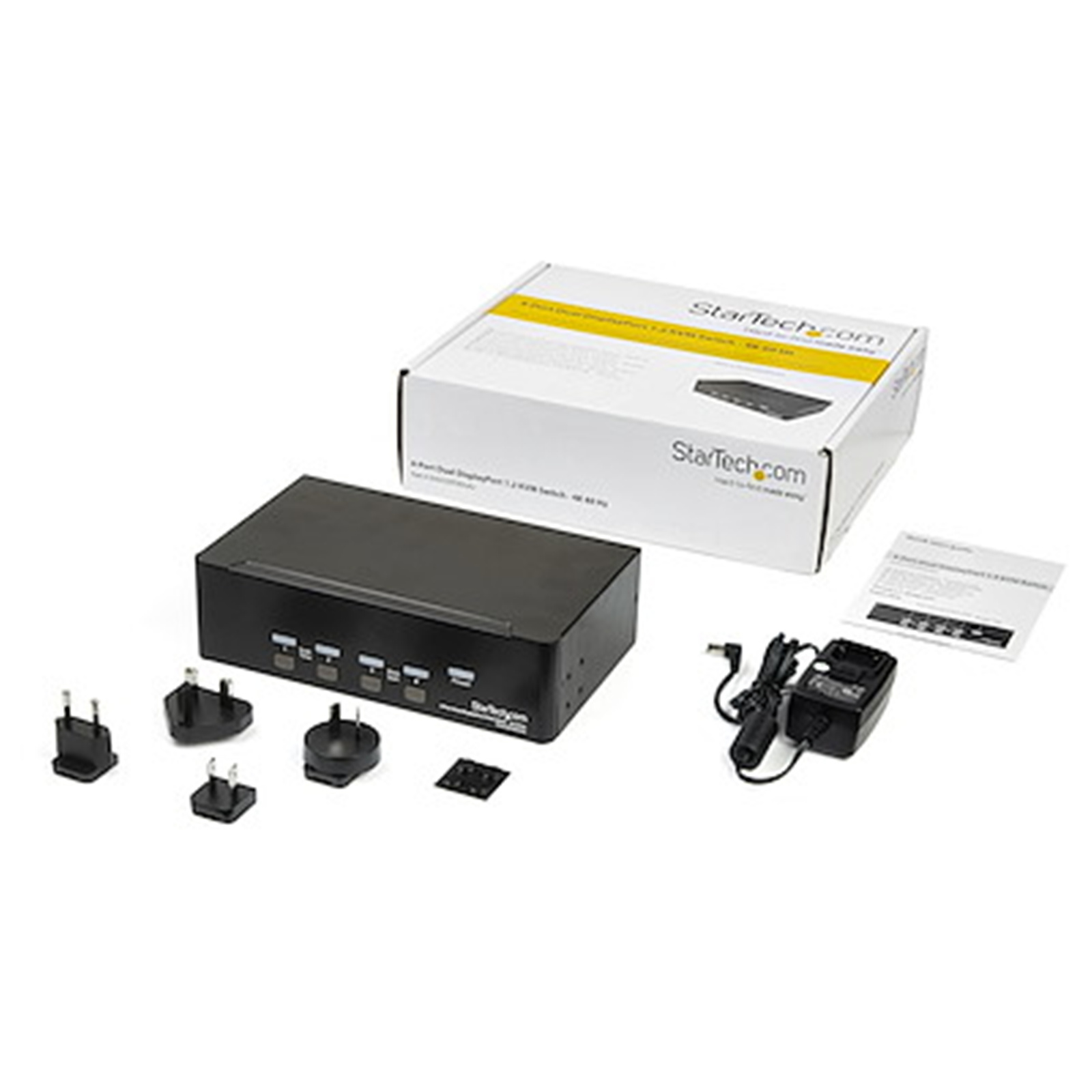

WHAT'S IN THE BOX

Included in Package 1 - KVM switch
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - quick start guide
4 - rubber feet
