StarTech.com RKCONS1708K 8 Port Rackmount KVM Console w/ 1.8m Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
- Brand: StarTech.com
- MPN: RKCONS1708K
- Part #: KVMSTT4400775
- UPC:065030872485

Product URL: https://www.pbtech.com/au/product/KVMSTT4400775/StarTechcom-RKCONS1708K-8-Port-Rackmount-KVM-Conso?qr=popular_related_products
Features
Providing centralized control of up to eight servers, this 8-port rackmount KVM console?gives you?easy access?to your?systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution?

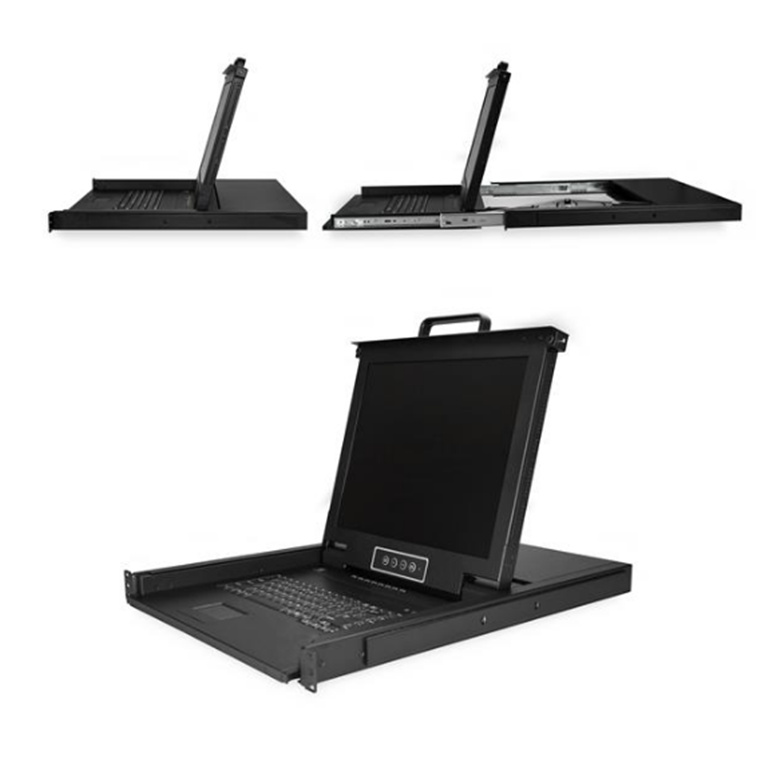

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This?8-port?KVM console?comes with everything?you need to set up right out of the box:?
- 8 VGA KVM Cables
- Mounting Rails
- M5 Cage Nuts and Screws
- Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space.
Application
- Control a single system, or dozens of KVM-connected computers
- Improve the internal space efficiency of your server cabinet
- Manage cabinet-mounted servers and KVM switches
Specifications
Hardware
Audio No
Cables Included Yes
Daisy-Chain No
Display Size 17in
Front Door Key Lock No
KVM Ports 8
Number of Monitors Supported 1
Panel Type Active Matrix TFT LCD
PC Interface USB
PC Video Type VGA
Rack-Mountable Yes
U Height 1U
Performance
Aspect Ratio 5:4
Brightness 250 cd/m²
Color Depth 8-bit, 16.7M colors
Contrast Ratio 1000:1
IP Control No
Maximum Analog Resolutions 1280 x 1024
Maximum Number of Users 1
MTBF 50, 000 Hrs
On-Screen Display Yes
Pixel Pitch Support 0.264 x 0.264 mm
Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display)
Response Time 5ms
Supported Resolutions Resolutions up to 1280 x 1024 @ 60Hz
Viewing Angle 170° (H), 160° (V)
Connectors
Console Interface(s) 1 - VGA (15 pin, High Density D-Sub) Female Output
2 - USB Type-A (4 pin) USB 2.0 Female Input
2 - PS/2 (6 pin, Mini-DIN) Female Input
Host Connectors 8 - VGA (15 pin, High Density D-Sub) Female Input
Other Interface(s) 1 - 15 Pin High Density D-Sub Female Input
Indicators
LED Indicators 8 - Green/Red - Online/Selected LED
Power
Input Current 1.5A
Input Voltage 100 - 240 AC
Power Consumption (In Watts) 13W
Power Source International Power Cords
Environmental
Humidity 10 ~ 80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)]
Physical Characteristics
Cable Length 6 ft
Color Black
Material Steel
Maximum Mounting Depth 35.4 in [90 cm]
Minimum Mounting Depth 22 in [56 cm]
Product Height 1.7 in [4.3 cm]
Product Length 20.7 in [52.6 cm]
Product Width 17.6 in [44.8 cm]
Weight of Product 29.4 lb [13.3 kg]
