Kingston 64GB DDR5-6400MT/s ECC Registered RDIMM CL52 2Rx 4
For AMD Threadripper 7000, 9000 series
Kingston 64GB DDR5-6400MT/s ECC Registered RDIMM CL52 2Rx 4
For AMD Threadripper 7000, 9000 series
- Brand: Kingston
- MPN: KSM64R52BD4-64MD
- Part #: MEMKIN6377378
- UPC: 740617347128
View all shipping info
- Brand: Kingston
- MPN: KSM64R52BD4-64MD
- Part #: MEMKIN6377378
- UPC: 740617347128
COMBO DEALS: Frequently Bought Together






$36.16 +GST
$39.78
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Device Specific RAM





Kingston 64GB DDR5-6400MT/s ECC Registered RDIMM CL52 2Rx 4 For AMD Threadripper 7000, 9000 series
- Brand: Kingston
- MPN: KSM64R52BD4-64MD
- Part #: MEMKIN6377378
- UPC:740617347128

Product URL: https://www.pbtech.com/au/product/MEMKIN6377378/Kingston-64GB-DDR5-6400MTs-ECC-Registered-RDIMM-CL?qr=popular_related_products
Features
KSM64R52BD4-64MD - 64GB 2Rx4 8G x 80-Bit - PC5-6400 CL52 Registered EC8 288-Pin DIMM

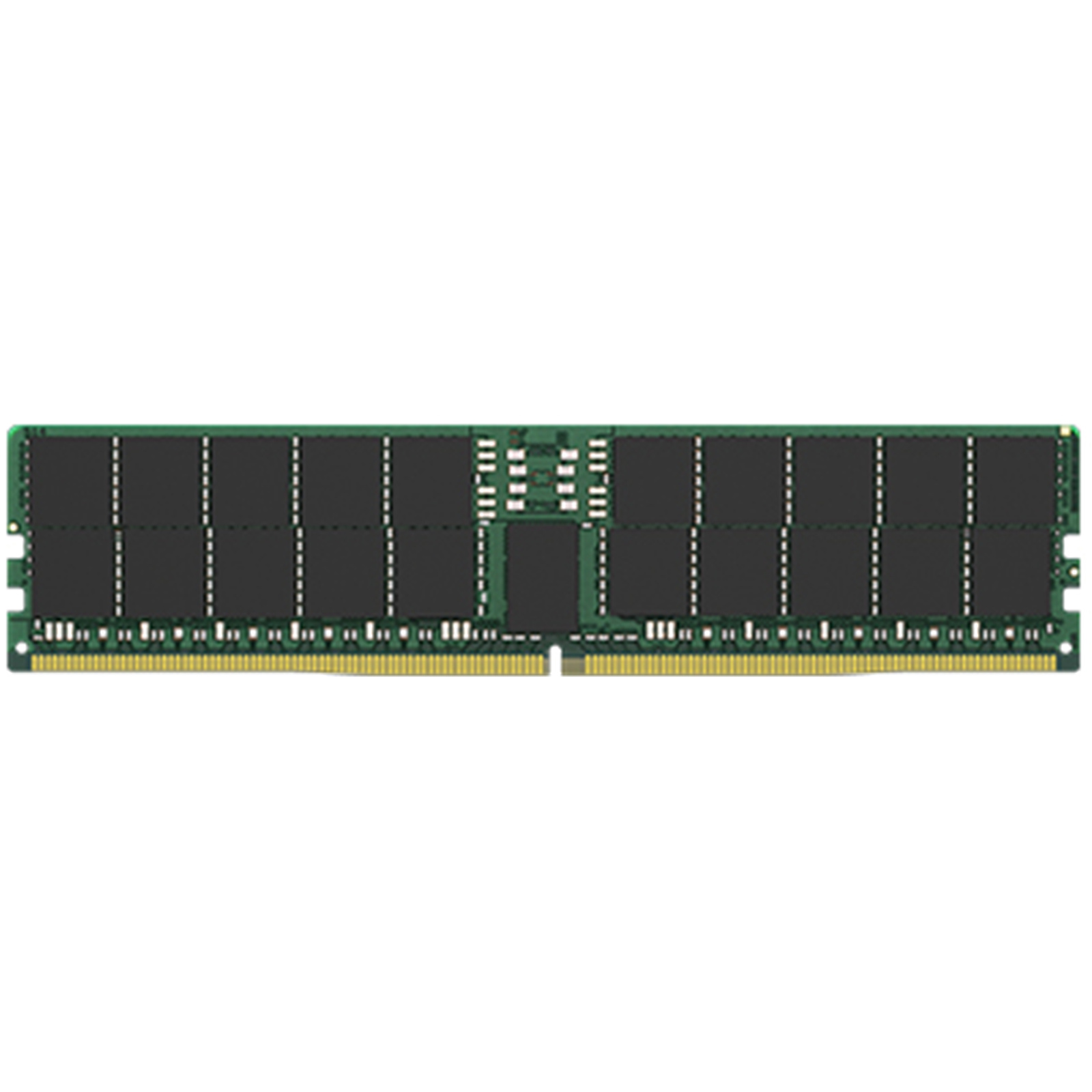

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
Capacity
64GB
Chip Organisation
X4
Ranking
2R
DRAM Density
16Gbit
CL(IDD)
52 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Row Precharge Time (tRPmin)
16ns(min.)
UL Rating
94 V - 0
Operating Temperature
0°C to +95°C
Storage Temperature
-55°C to +100°C
