Kingston 32GB DDR5-6400MT/s ECC Registered RDIMM CL52 2Rx 8
For AMD Threadripper 7000, 9000 series
Kingston 32GB DDR5-6400MT/s ECC Registered RDIMM CL52 2Rx 8
For AMD Threadripper 7000, 9000 series
- Brand: Kingston
- MPN: KSM64R52BD8-32MD
- Part #: MEMKIN6377380
- UPC: 740617347111
View all shipping info
- Brand: Kingston
- MPN: KSM64R52BD8-32MD
- Part #: MEMKIN6377380
- UPC: 740617347111
COMBO DEALS: Frequently Bought Together






$36.16 +GST
$39.78
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Device Specific RAM





Kingston 32GB DDR5-6400MT/s ECC Registered RDIMM CL52 2Rx 8 For AMD Threadripper 7000, 9000 series
- Brand: Kingston
- MPN: KSM64R52BD8-32MD
- Part #: MEMKIN6377380
- UPC:740617347111

Product URL: https://www.pbtech.com/au/product/MEMKIN6377380/Kingston-32GB-DDR5-6400MTs-ECC-Registered-RDIMM-CL?qr=popular_related_products
Features

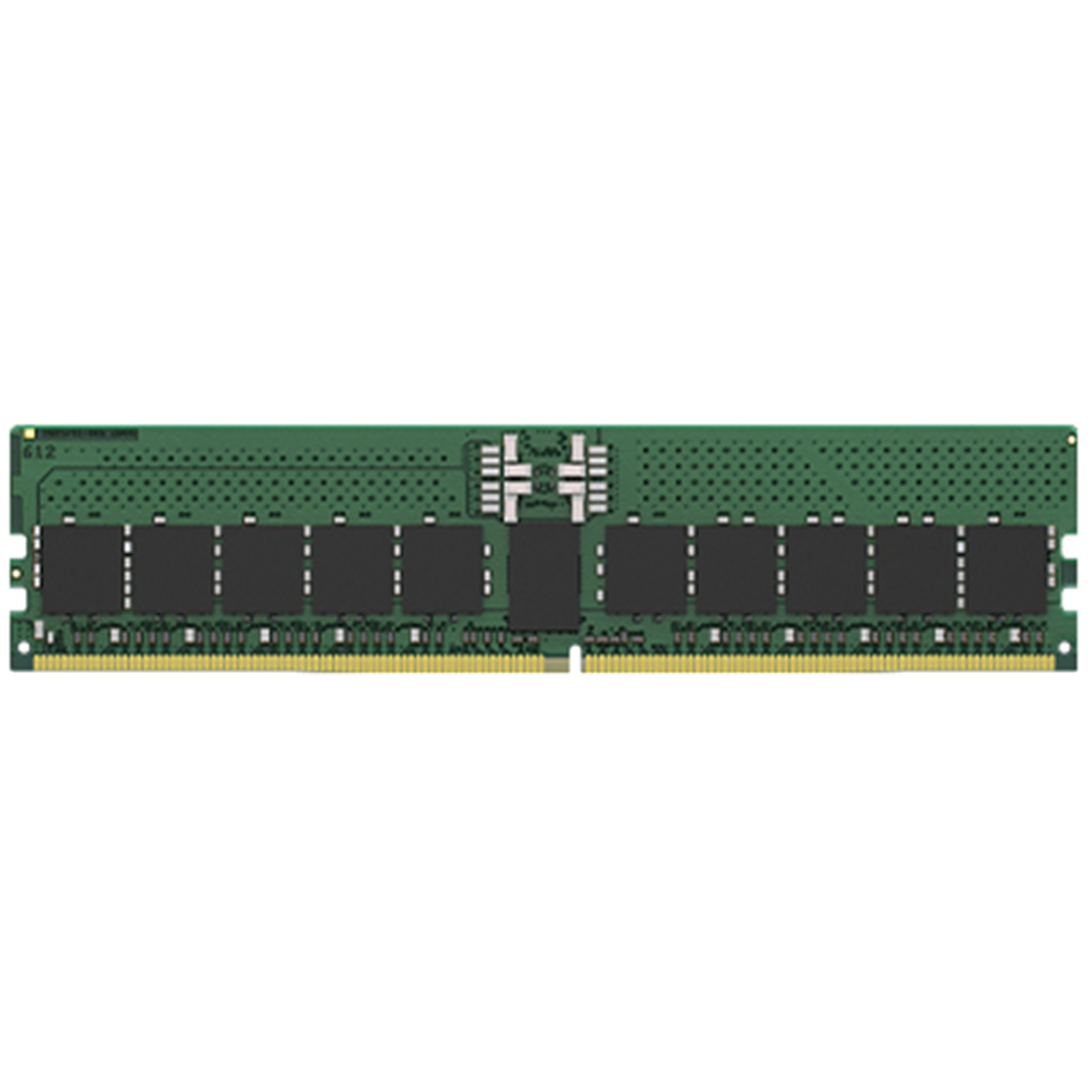

KSM64R52BD8-32MD - 32GB 2Rx8 4G x 80-Bit - PC5-6400 CL52 Registered EC8 288-Pin DIMM
Kingston's KSM64R52BD8-32MD is a 4G x 80-bit (32GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
Capacity
32GB
Chip Organisation
X8
Ranking
2R
DRAM Density
16Gbit
CL(IDD)
52 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Row Precharge Time (tRPmin)
16ns(min.)
UL Rating
94 V - 0
Operating Temperature
0°C to +95°C
Storage Temperature
-55°C to +100°C
