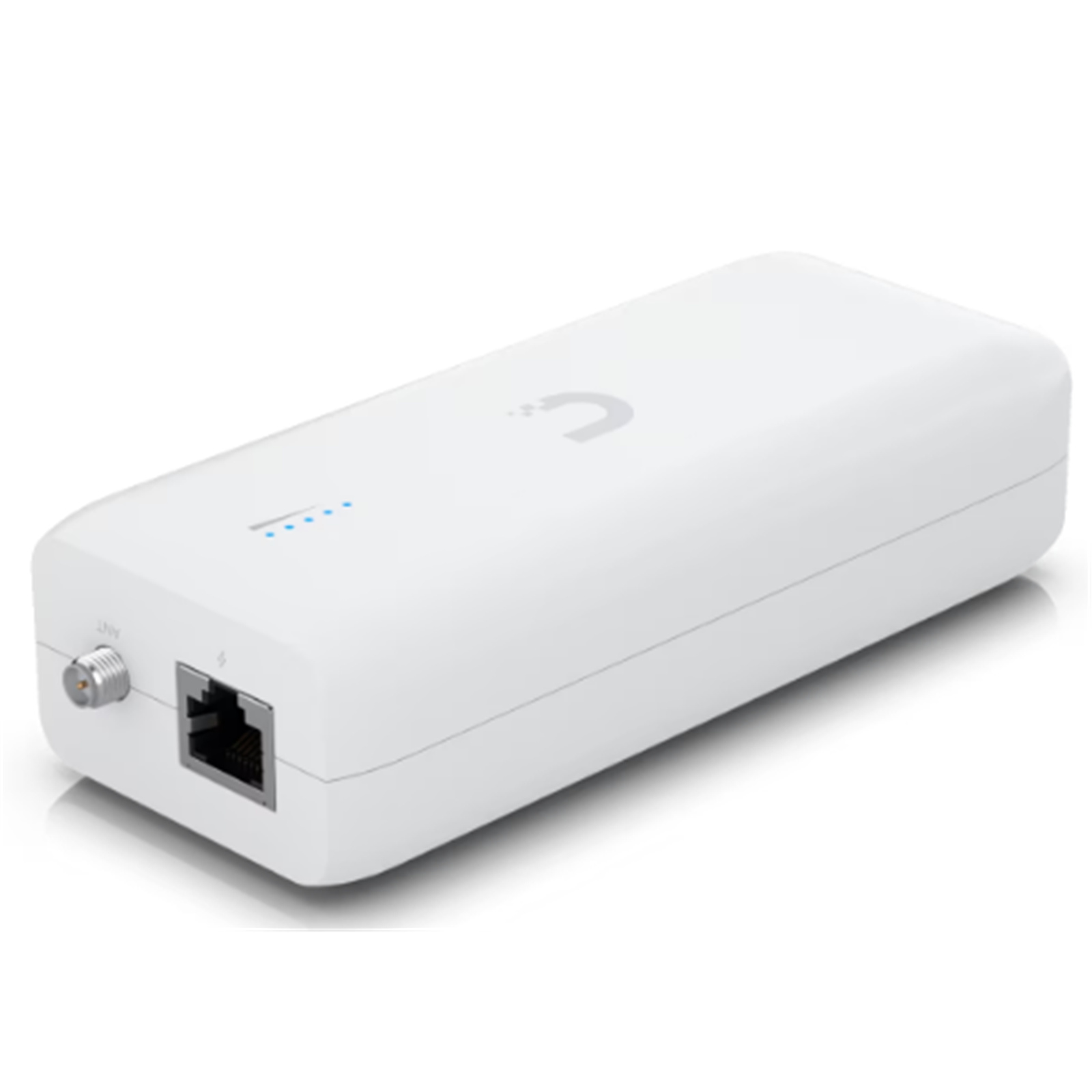

Ubiquiti Unifi UDB 5GHz 867Mbps Wireless Bridging PoE Adapter with Integrated UniFi WiFi Auto-Link
Ubiquiti Unifi UDB 5GHz 867Mbps Wireless Bridging PoE Adapter with Integrated UniFi WiFi Auto-Link
- Brand: Ubiquiti
- MPN: UDB
- Part #: NAPUBI5408
- UPC: 810084698204
View all shipping info
- Brand: Ubiquiti
- MPN: UDB
- Part #: NAPUBI5408
- UPC: 810084698204
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PTP/PTMP Access Points





Ubiquiti Unifi UDB 5GHz 867Mbps Wireless Bridging PoE Adapter with Integrated UniFi WiFi Auto-Link
- Brand: Ubiquiti
- MPN: UDB
- Part #: NAPUBI5408
- UPC:810084698204

Product URL: https://www.pbtech.com/au/product/NAPUBI5408/Ubiquiti-Unifi-UDB-5GHz-867Mbps-Wireless-Bridging?qr=popular_related_products
Features
Specifications
Performance
MIMO
5 GHz
2 x 2
Max. Data Rate
5 GHz
866.7 Mbps (BW80)
Antenna Gain
5 GHz
Internal antenna: 5 dBi
External omni antenna: 4 dB
Max. TX Power
5 GHz
21 dBm
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA2 AES (Always On)
Hardware
Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)
Supported Voltage Range
100-240V AC
Networking Interface
(1) GbE RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Weight
200 g (7.1 oz)
Mount Material
Polycarbonate
Enclosure Material
Polycarbonate
Button
(1) Factory-reset
LEDs
System
(4) Blue: signal
(1) White/blue: indicator
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Operating Frequency
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide:
5150 - 5875 MHz
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
