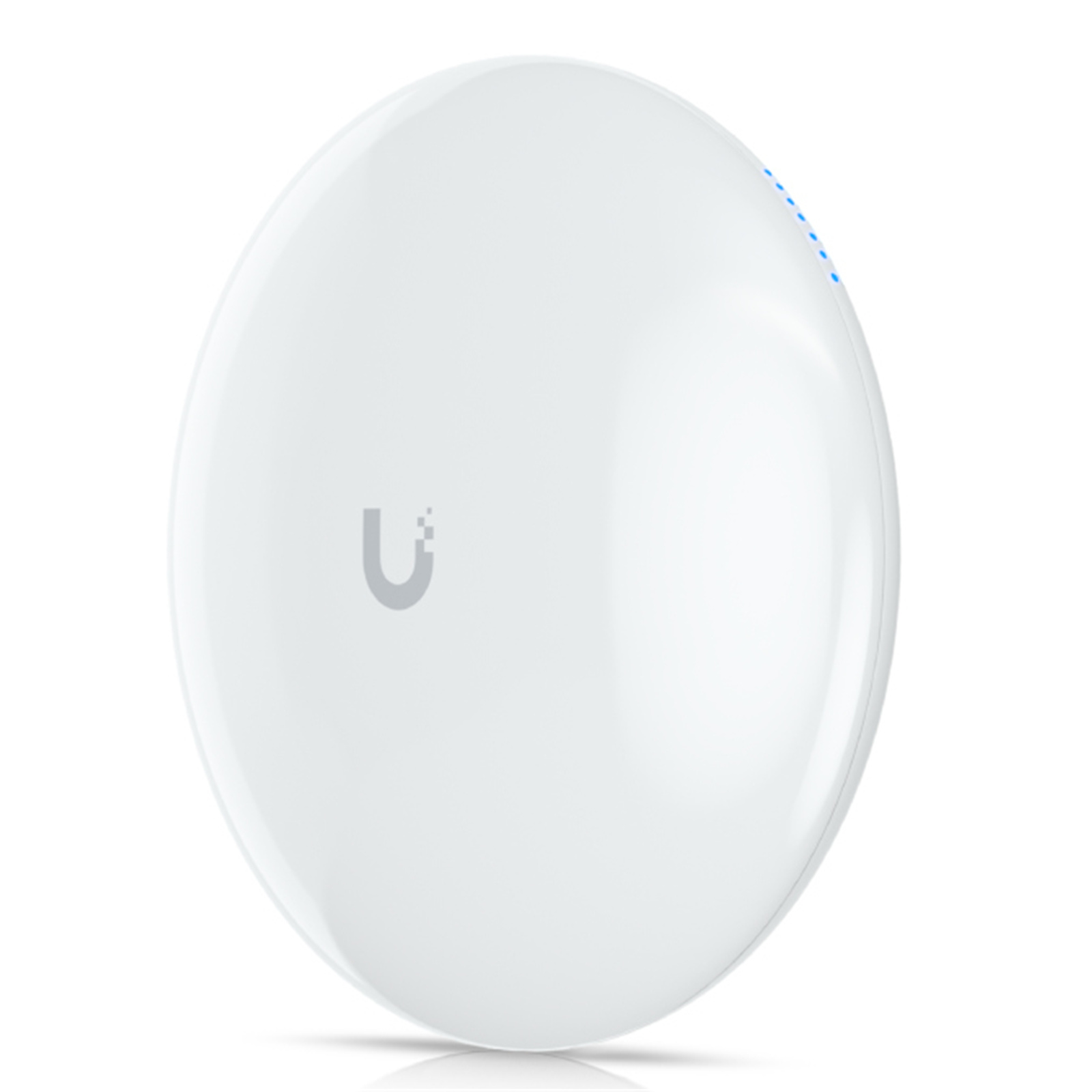

Ubiquiti Unifi UDB-Pro 5GHz 867Mbps 5km Wireless Bridging with PoE Output (Support seamlessly uplinks to UniFi WiFi)
Ubiquiti Unifi UDB-Pro 5GHz 867Mbps 5km Wireless Bridging with PoE Output (Support seamlessly uplinks to UniFi WiFi)
- Brand: Ubiquiti
- MPN: UDB-Pro
- Part #: NAPUBI5409
- UPC: 810084698013
View all shipping info
- Brand: Ubiquiti
- MPN: UDB-Pro
- Part #: NAPUBI5409
- UPC: 810084698013
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PTP/PTMP Access Points





Ubiquiti Unifi UDB-Pro 5GHz 867Mbps 5km Wireless Bridging with PoE Output (Support seamlessly uplinks to UniFi WiFi)
- Brand: Ubiquiti
- MPN: UDB-Pro
- Part #: NAPUBI5409
- UPC:810084698013

Product URL: https://www.pbtech.com/au/product/NAPUBI5409/Ubiquiti-Unifi-UDB-Pro-5GHz-867Mbps-5km-Wireless-B?qr=popular_related_products
Features
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*
- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit
Specifications
Mechanical
Dimensions
Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
Weight
Without mount: 431 g (1 lb)
With mount: 515 g (1.1 lb)
Enclosure material
UV-resistant polycarbonate
Mount material
UV-stabilized polycarbonate, stainless steel
Pole mount diameter
20-53.1 mm (0.8-2.1") on pipe outer diameter
Wind loading
69 N at 200 km/h (15.5 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Networking interface
(2) GbE RJ45 ports
Management interface
Ethernet
WiFi
PoE interface
(1) PoE in (PoE output not used)
(1) Passive PoE output
Power method
PoE
PoE+ (Required for PoE output)
Power supply
UniFi PoE switch
48V, 0.32A PoE adapter (Included)
Supported volatage range
42.5-57V DC
Max. power consumption
9W
Antenna Internal
Range
5+ km
LEDs
Power, Ethernet, (4) signal strength
Button
Factory reset
Mounting
Pole (Included)
Ambient operating temperature
-40 to 60° C (-40 to 140° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/n/ac
Wireless security
WPA2 AES (Always On)
Channel bandwidth
20/40/80 MHz
Max. conducted TX power
25 dBm (Combined)
