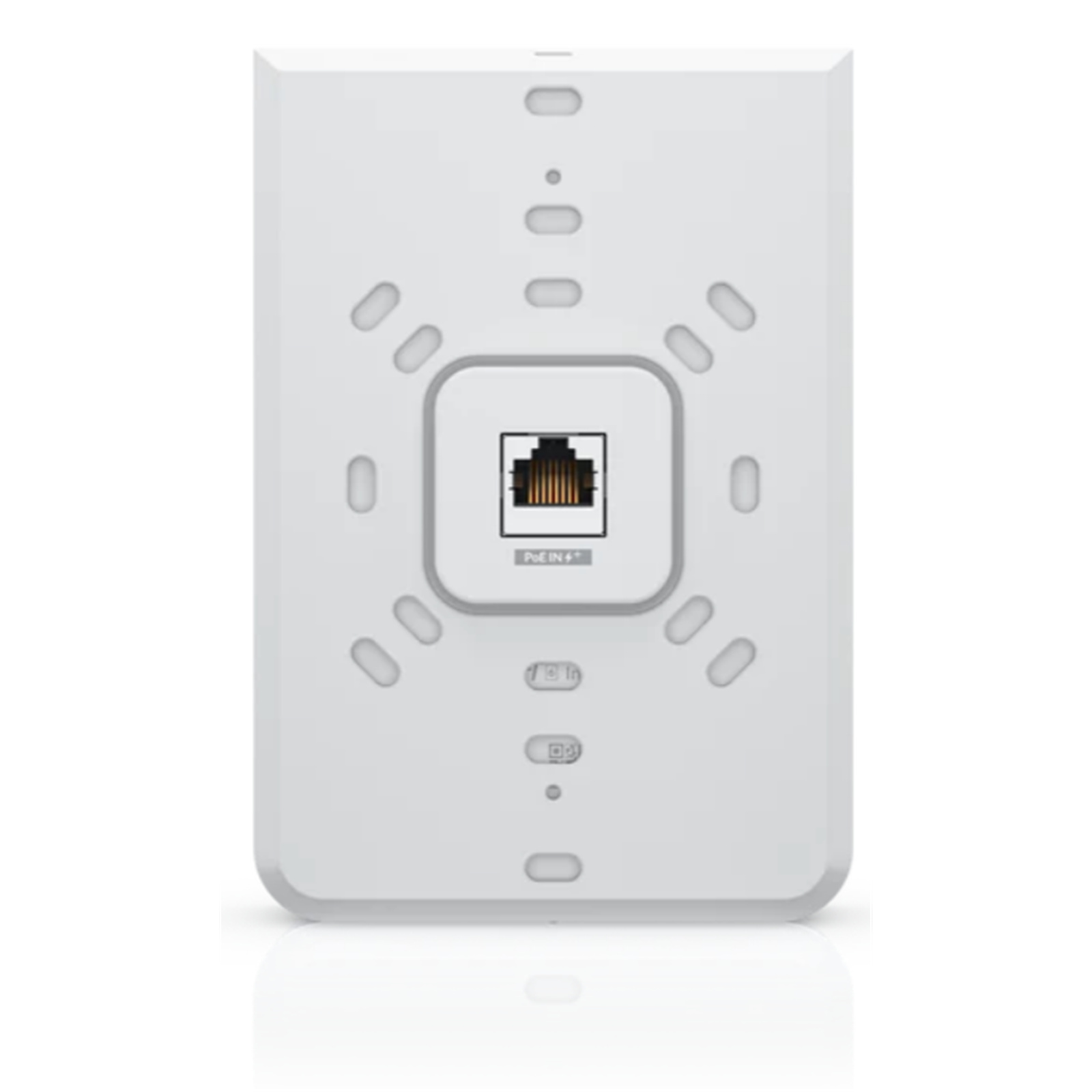

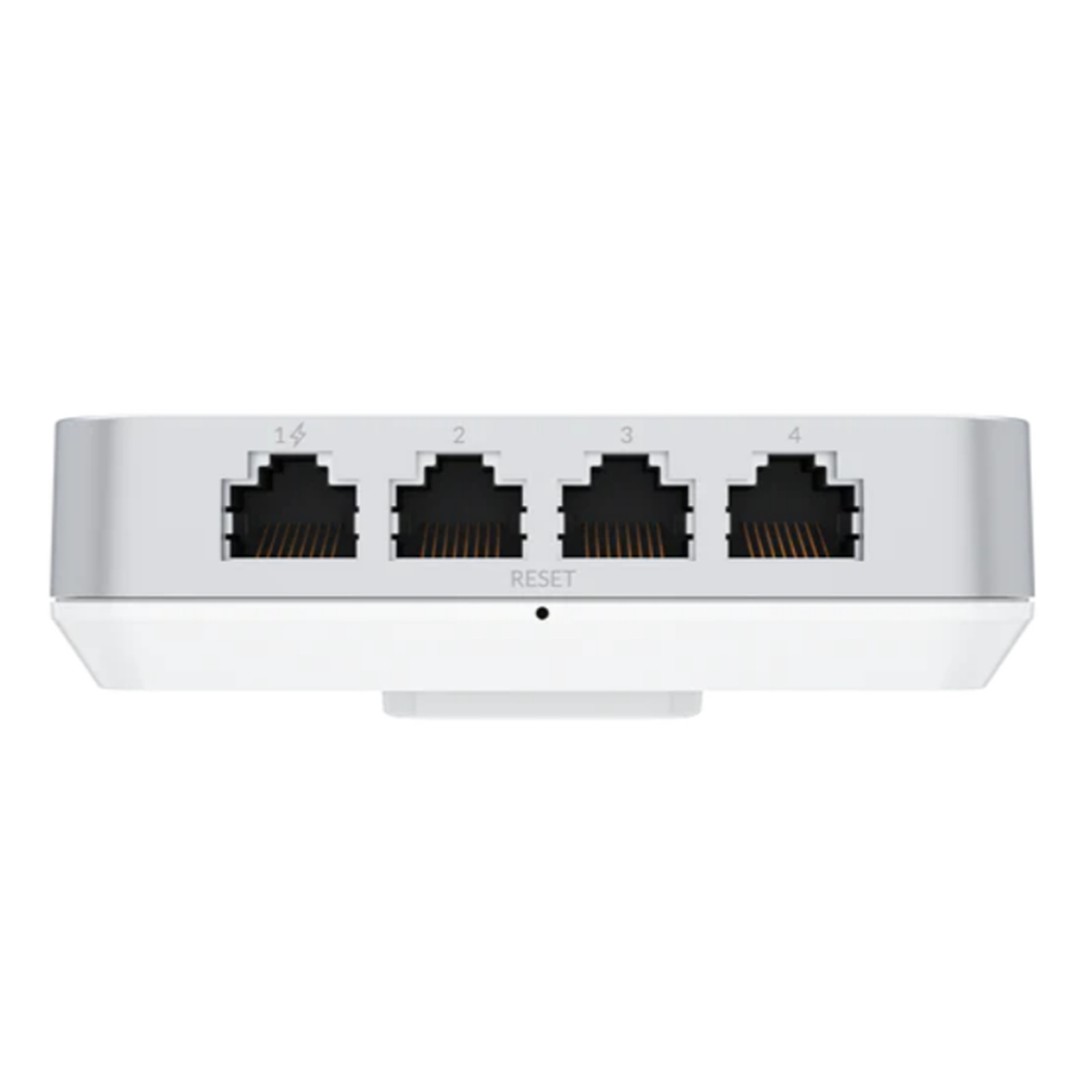

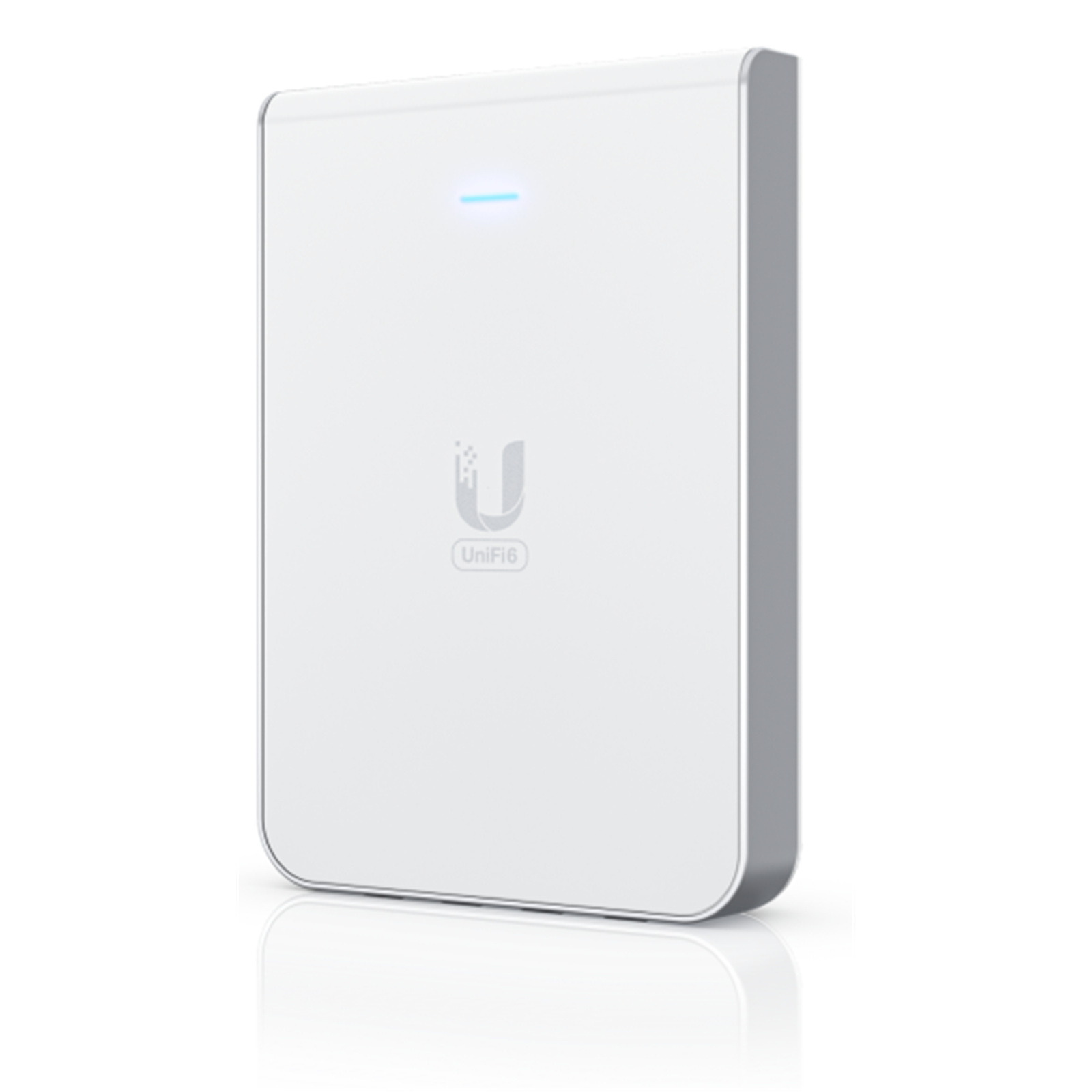

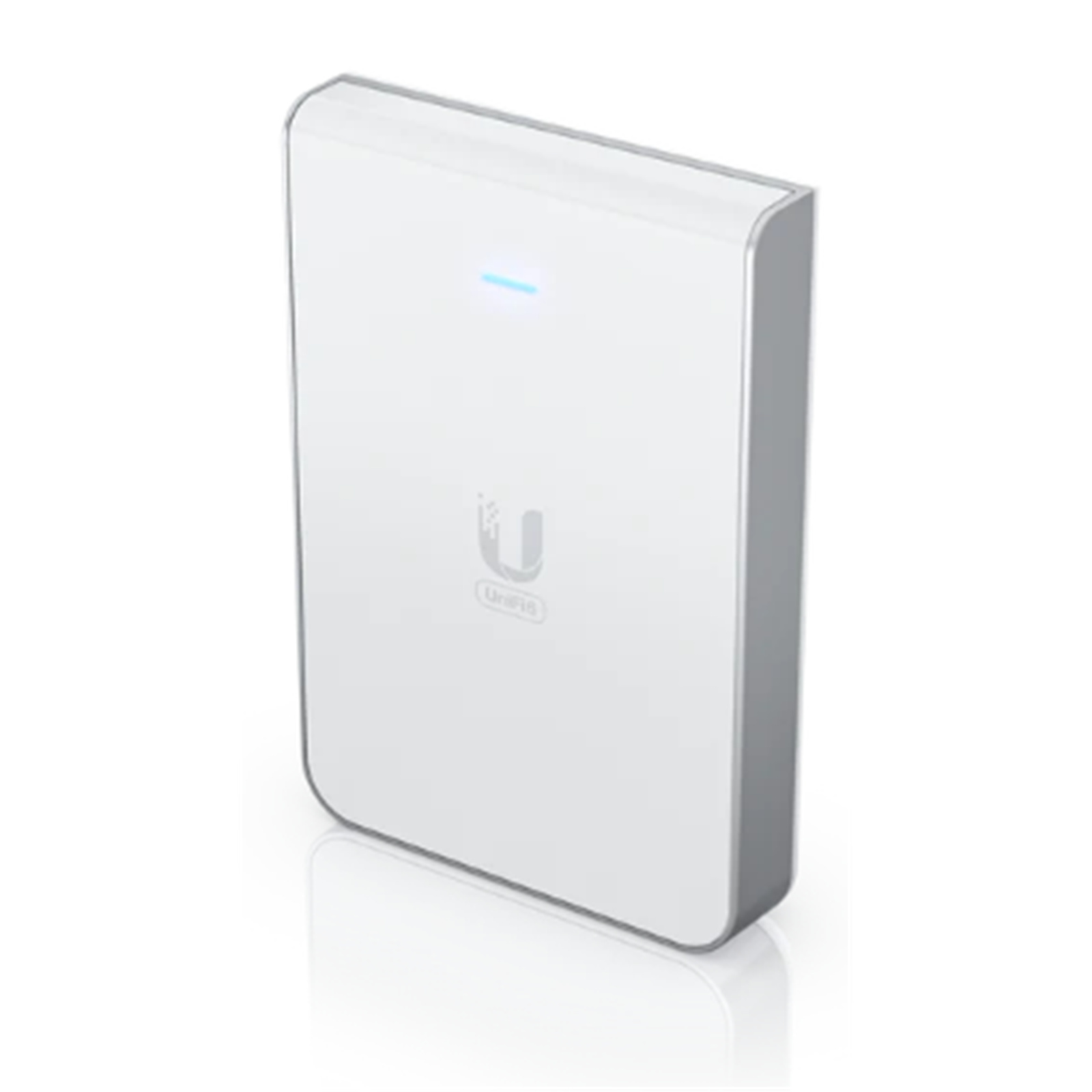

Ubiquiti UniFi U6-IW (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 1GbE x5 (PoE+ 13W+)
Ubiquiti UniFi U6-IW (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 1GbE x5 (PoE+ 13W+)
- Brand: Ubiquiti
- MPN: U6-IW
- Part #: NAPUBI65302
- UPC: 810010077493
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Purchased one of these for my frustrated father who knew little about WiFi but knew his wasn't working as it should. Turned off WiFi on his ISP-supplied router, grabbed a PoE injec ...view more"
"Perfect for our needs, attached to the back of a TV mount, gives strong Wi-Fi, and connects the TV, couldn't ask for a better solution."
"Bought as a replacement for my Dream Router wifi when I upgraded to a UDM Pro. It's definitely not as powerful and you do need to feed a cable through the wall as the socket is dir ...view more"
COMBO DEALS: Buy Together and SAVE!







Ubiquiti UniFi Protect UVC-G5-Flex 4MP/2K Compact PoE Camera (White) 2K 30FPS / Viewing Angle - 120...
$234.11 +GST
$257.52


$62.26 +GST
$68.49
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Indoor Access Points





Ubiquiti UniFi U6-IW (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 1GbE x5 (PoE+ 13W+)
- Brand: Ubiquiti
- MPN: U6-IW
- Part #: NAPUBI65302
- UPC:810010077493

Product URL: https://www.pbtech.com/au/product/NAPUBI65302/Ubiquiti-UniFi-U6-IW-AX5400-Dual-Band-6-Stream-Wi?qr=similar-w
Features
Wall-mounted WiFi 6 access point with a built-in PoE switch.
- WiFi 6 support (2.4/5 GHz bands)
- 5.3 Gbps aggregate throughput rate
- (1) GbE RJ45 port (PoE In)
- (4) GbE RJ45 ports, including one that supports PoE output*
Specifications
Mechanical
Dimensions
139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight
460 g (1.01 lb)
Enclosure materials
Plastic, aluminum
Mount material
Aluminum
Hardware
Management interfaces
Ethernet
Bluetooth
Networking interfaces
(1) Data-in: 1GbE RJ45 port
(4) Data-out: 1GbE RJ45 ports
PoE interfaces
(1) PoE in (PoE output not used)
(1) PoE out (requires a PoE+ switch)
Button
Factory reset
LED
White/blue
Power method
PoE
Power supply
UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Max. power consumption
Excluding PoE output: 13.5W
Max PoE wattage per port by PSE
15.4W*
Mechanical
Dimensions
139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight
460 g (1.01 lb)
Enclosure materials
Plastic, aluminum
Mount material
Aluminum
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Zero-wait DFS
Yes
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
