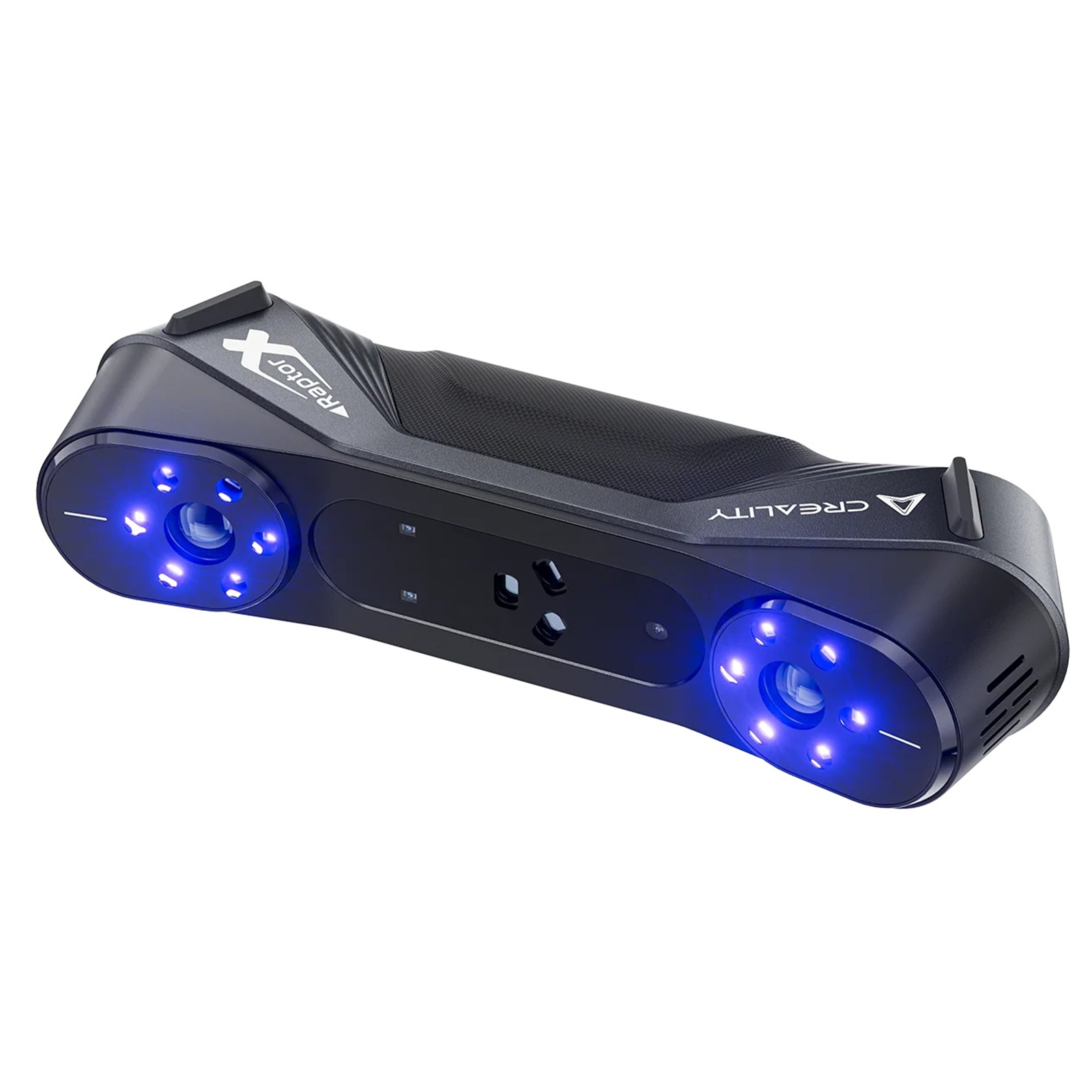

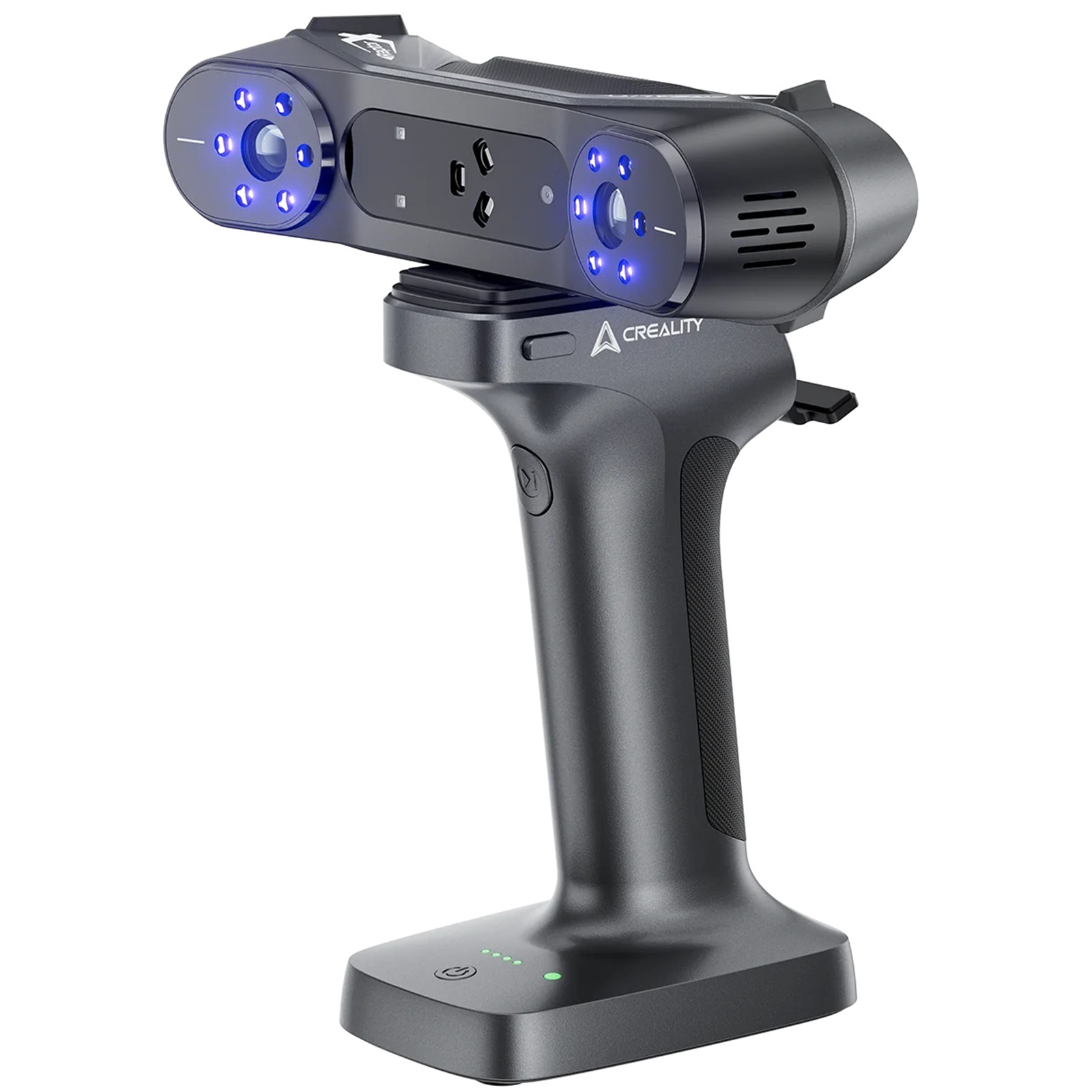

Creality CR-Scan Raptor X 3D Scanner

Creality RaptorX

World's 1st Wireless Hybrid Blue Laser & NIR Scanner

- 34+7 Blue Laser Lines
- Portable Wireless Scanner
- Metrology-grade Accuracy up to 0.02mm
- Objects between 5-4000mm
- Fast Wi-Fi 6 Data Transmission

34+7 Blue Laser Lines Efficiency and Details

34 cross laser lines for scanning medium to large objects quickly , with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning , improves both the efficiency and details of 3D Scanning.

34 Cross Laser Lines - High Efficiency, Reliable, Accurate

Easily and Quickly Scan Medium to Large Objects with reliable accuracy.Scanning a whole car in One Go.
The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

High-quality 1,020,000 points/s Fast Scan Speed

The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.

7 Laser Lines for Partial HD Scanning

Each laser line is as fine as 0.1mm, capturing sharper edges and richer details . Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.

Volumetric Accuracy

0.02mm+0.06mm/m

High-speed Scanning Beyond Your Imagination

- Laser Line Scanning: Achieve scan frame rates of up to 60fps
- Infrared Structured Light Scanning: Scan at frame rates of up to 30fps

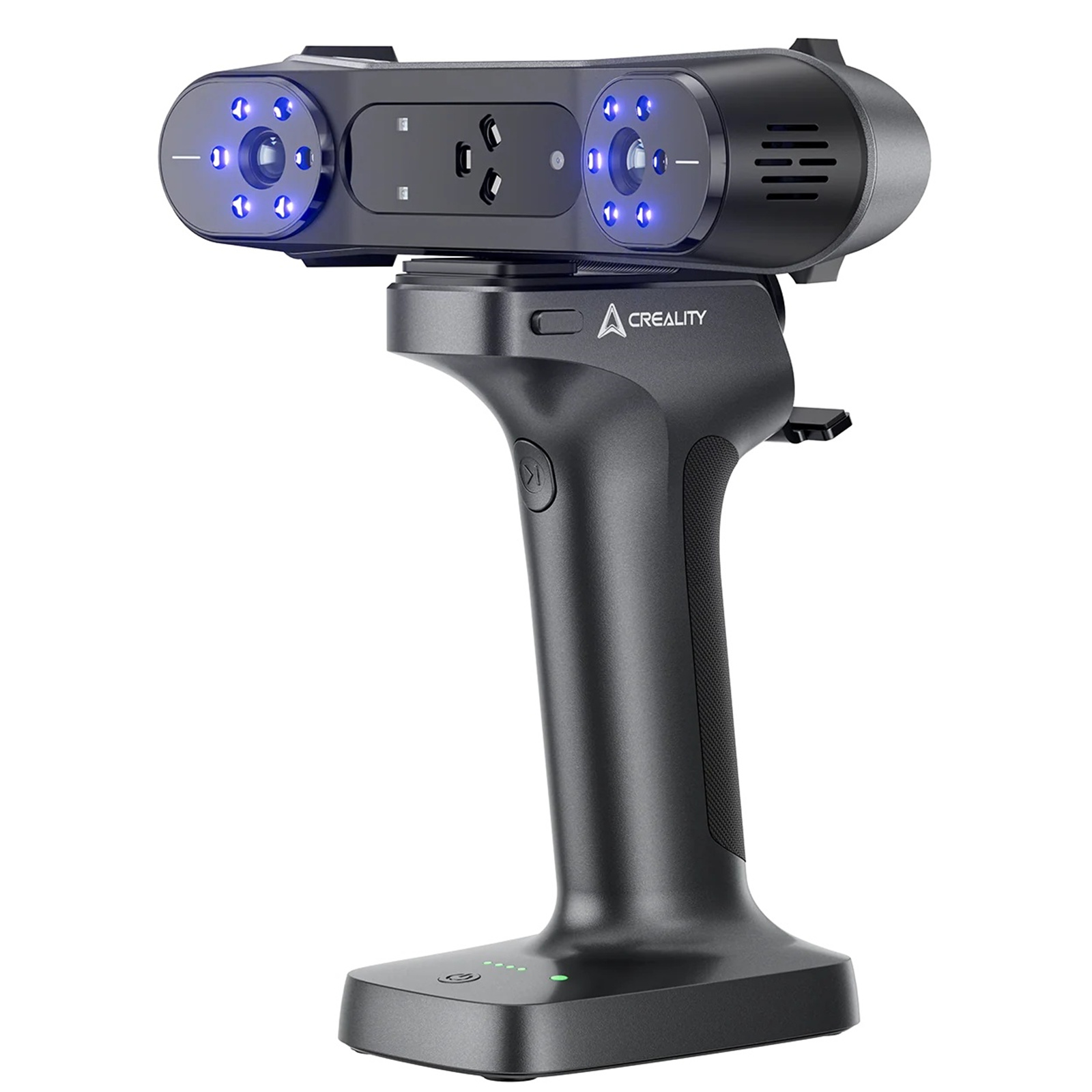

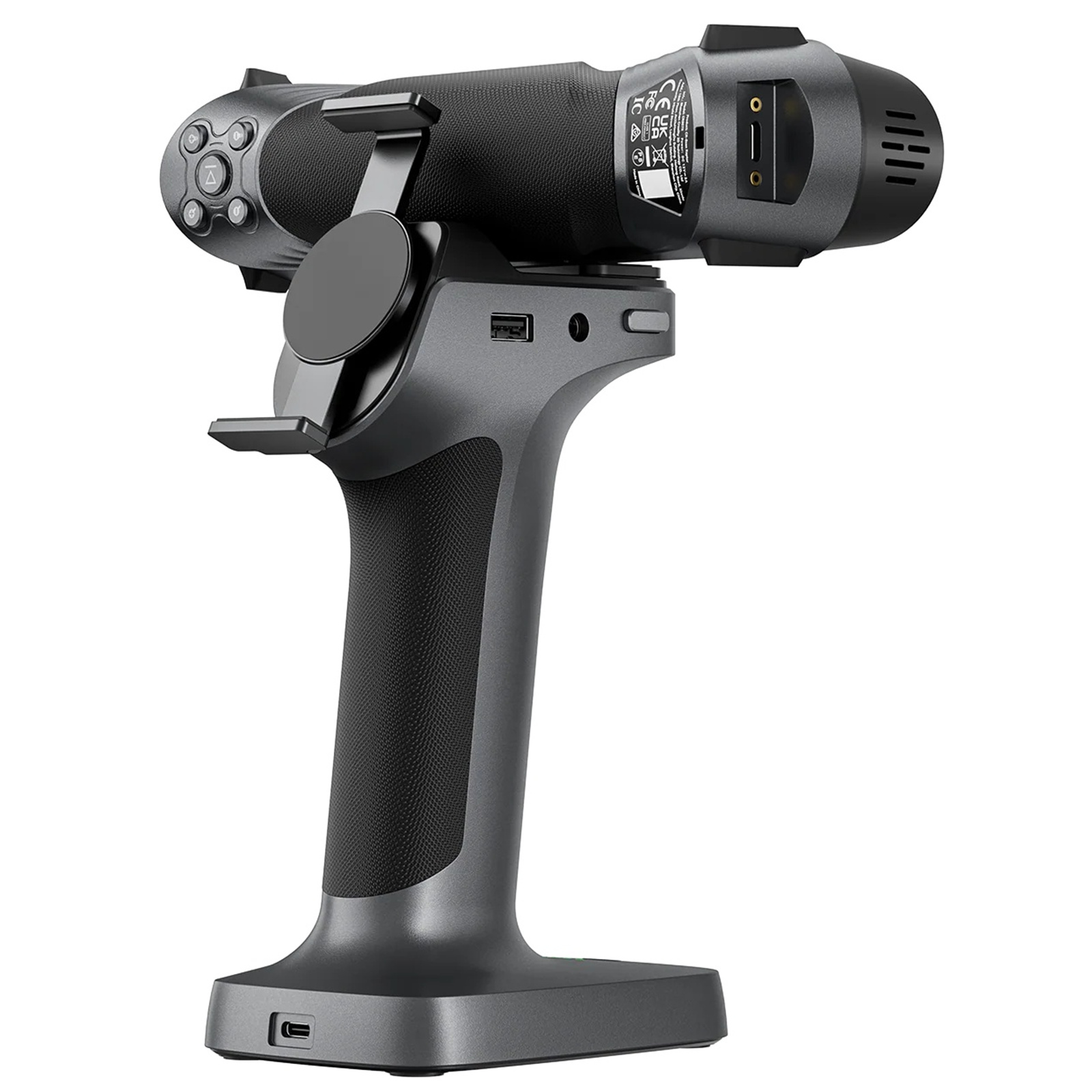

Portable Wireless Scanner

RaptorX features a wireless handle seamless data transmission, redefining portability in blue laser 3D scanning.

*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

Wi-Fi 6 AX6000 Fast Data Transmission

Equipped With advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.

- Low latency: 10ms
- Transmission rate: 4.7Gbps

Large Capacity & Fast Charging

Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).

NIR Structured Light Scanning

Equipped with One-Shot 3D imaging technology, the Creality RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

High Performance Structure, Details Revealed

Advanced temperature compensation algorithm, it can improve temperature stability and ensure accuracy.

- 2.3 Million Pixel 3D Imaging Camera
- Low distortion lens, less than 5‰
- 20mm large depth of field lens
- 9-elements glass lens
- Metal lens barrel and holder

Objects between 0.2-157"/ 5-4000mm

Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5 mm³-4000*4000*4000 mm³. Effortlessly scanning engineering parts, molds, human bodies, automobile components, and more.

Laser Line Scanning
Minimum scan size: 5*5*5 mm³, Maximum scan size: 4000*4000*4000 mm³.

NIR Structured Light Scanning
Scanning objects ranging from 150*150*150mm³-2000*2000*2000mm³.

Wider Applications, Better Performance

- Outdoor Scanning: Blue Laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
- Scan without Sprays: With strong material adaptability, you can scan black/metal objects without sprays.
- Ant: Equipped with One-Shot 3D imaging technology,RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

24-bit Full-Color Scanning

Lightweight and Portable

Weighs only 405g

New Intuitive Software with Powerful Features

CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.

*Note: In December. 2024, RaptorX connection to smart phone compatibility will be supported.

Seamless Integration to Inspection, Design, 3D Printing Softwares

The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.

- Geomagic Control X
- Creality Print
