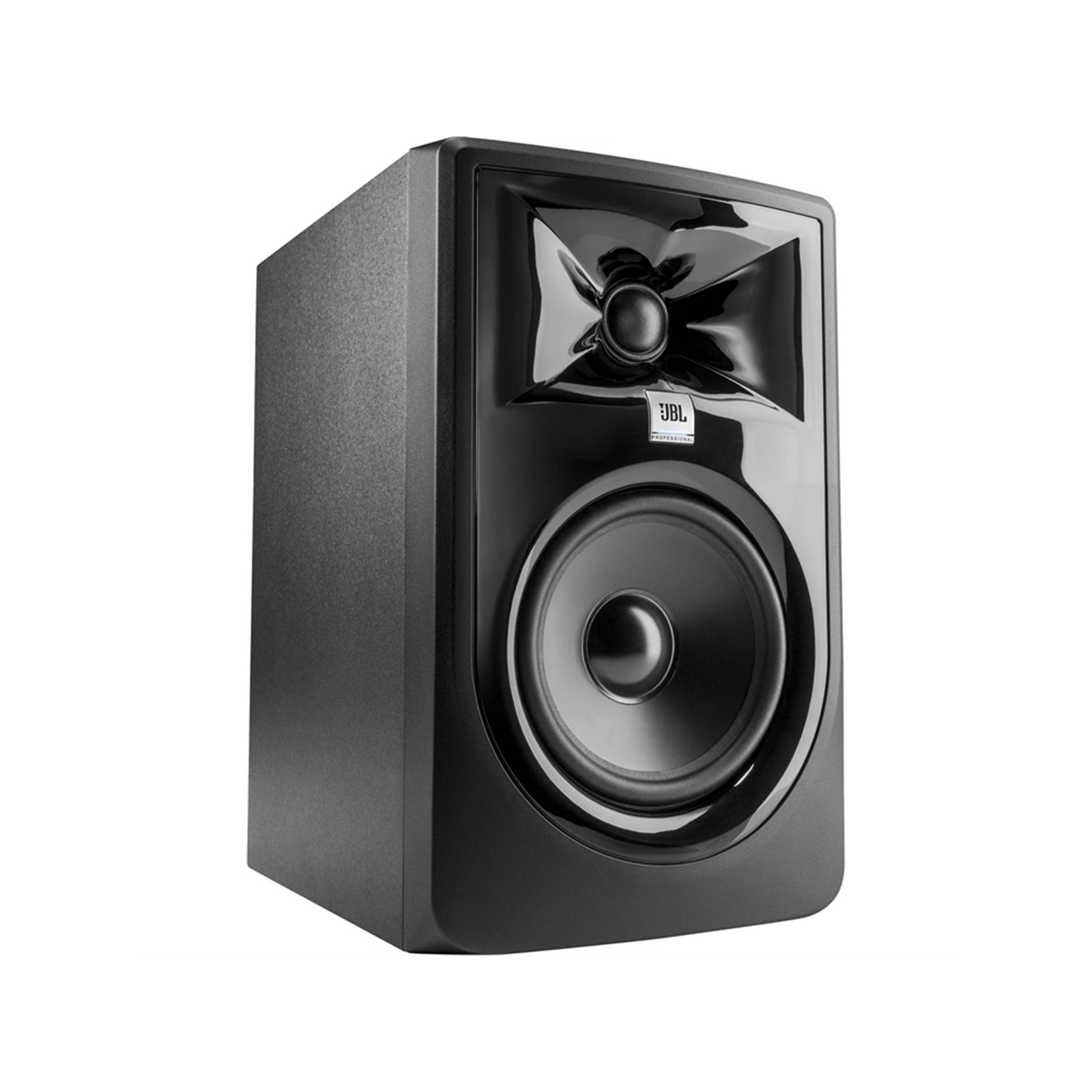

JBL PRO 305PMKII 5IN 2-WAY POWERED STUDIO MONITOR
- Brand: JBL PRO
- MPN: 305PMKII
- Part #: SPKJBL1096

Product URL: https://www.pbtech.com/au/product/SPKJBL1096/JBL-PRO-305PMKII-5IN-2-WAY-POWERED-STUDIO-MONITOR?qr=popular_related_products
Features
Powered 5" (12.7 cm) Two-Way Studio Monitor
The next-generation JBL 305P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and, sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Patented Image Control Waveguide
For detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers
For optimized transient response and improved linearity
New Boundary EQ settings
Compensate for low frequency variants introduced by the environment
3 position HF Trim Switch
Adjusts high-frequency output to room acoustics or personal preferences
Patented SLip Stream low-frequency port
For superior bass performance at all playback levels
Dual integratred, custom Class-D amplifiers
Provide 82 watts of power for high output and dynamic range
Flexible connectivity
With balanced XLR and 1/4'' TRS inputs, +4dBu/-10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linerar Spatial Reference design criteria
For outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test
Ensures years of reliability
Sleek, modern design
Provides a visual upgrade to any studio
Specifications
General
LF Driver Size
127 mm (5")
HF Driver Size
25 mm (1")
HF Driver Type
Soft dome
Crossover
1725Hz 4th order acoustic Linkwitz-Riley
Power Configuration
Bi-amplified
HF Driver Power Amp
41 W Class D
LF Driver Power Amp
41 W Class D
Frequency Response
49Hz - 20kHz (±3dB)
Frequency Range
43Hz - 20kHz (-10dB)
Low Frequency Extension
43Hz (-10dB)
Maximum Continuous SPL
94dB
Maximum Peak SPL
108dB
Maximum Peak Input Level
+6dBV / +20.3dBu (-10dBV / +4dBu)
System Distortion Criteria
<10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria
0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio
75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Pattern
120° x 90° (horizontal x vertical)
HF Trim Control
-2dB, 0dB, +2dB
Boundary EQ
LF Shelf @ 50Hz
AC Input Voltage
100 - 240VAC (±10%), 50 / 60Hz
Dimensions
Height
298 mm (11.7")
Width
185 mm (7.3")
Depth
231 mm (9.1")
Net Weight
4.73 kg (10.43 lbs)
Design
Enclosure Type
Ported
Enclosure Construction
15mm MDF
Enclosure Finish
Matte black PVC
Baffle Construction
Injection-molded structural ABS
Audio Input
Analog Input Types
1 x XLR female, 1 x TRS female, balanced
Input Sensitivity
92dB / 1m (-10dBV Input)
What's in the box?
Contains
1 x 305P MkII studio monitor
1 x Power cord
1 x Quick setup guide
4 x Peel-off rubber pads
