Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE Switch (52W) - 1GbE x4, 1GbE PoE+ x4
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE Switch (52W) - 1GbE x4, 1GbE PoE+ x4
- Brand: Ubiquiti
- MPN: USW-Lite-8-POE
- Part #: SWHUBI808052
- UPC: 810010071101
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Perfect little switch to add to your Unifi network. Plug it in, the controllers sees it and asks if you want to add it, all done."
"As you might expect, easy to adopt and manage in the unifi UI. Small footprint and great wall mount (included)."
"Really easy to set up and configure.. especially with Ubiquiti APs"
COMBO DEALS: Frequently Bought Together







$45.00 +GST
$49.50


Raspberry Pi 5 8GB LPDDR4 2.4GHz Quad-Core ARM Cortex-A76 - Dual 4K Displays - LPDDR4X-4267 SDRAM -...
$129.08 +GST
$141.99


Ubiquiti NanoStation Loco5AC Outdoor airMAX ac CPE 5GHz, 450+ Mbps, 10+ km, 1 x Gigabit Ethernet...
$78.13 +GST
$85.94
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE Switch (52W) - 1GbE x4, 1GbE PoE+ x4
- Brand: Ubiquiti
- MPN: USW-Lite-8-POE
- Part #: SWHUBI808052
- UPC:810010071101

Product URL: https://www.pbtech.com/au/product/SWHUBI808052/Ubiquiti-UniFi-USW-Lite-8-POE-8-Port-Gigabit-L2-Ma?qr=popular_related_products
Features

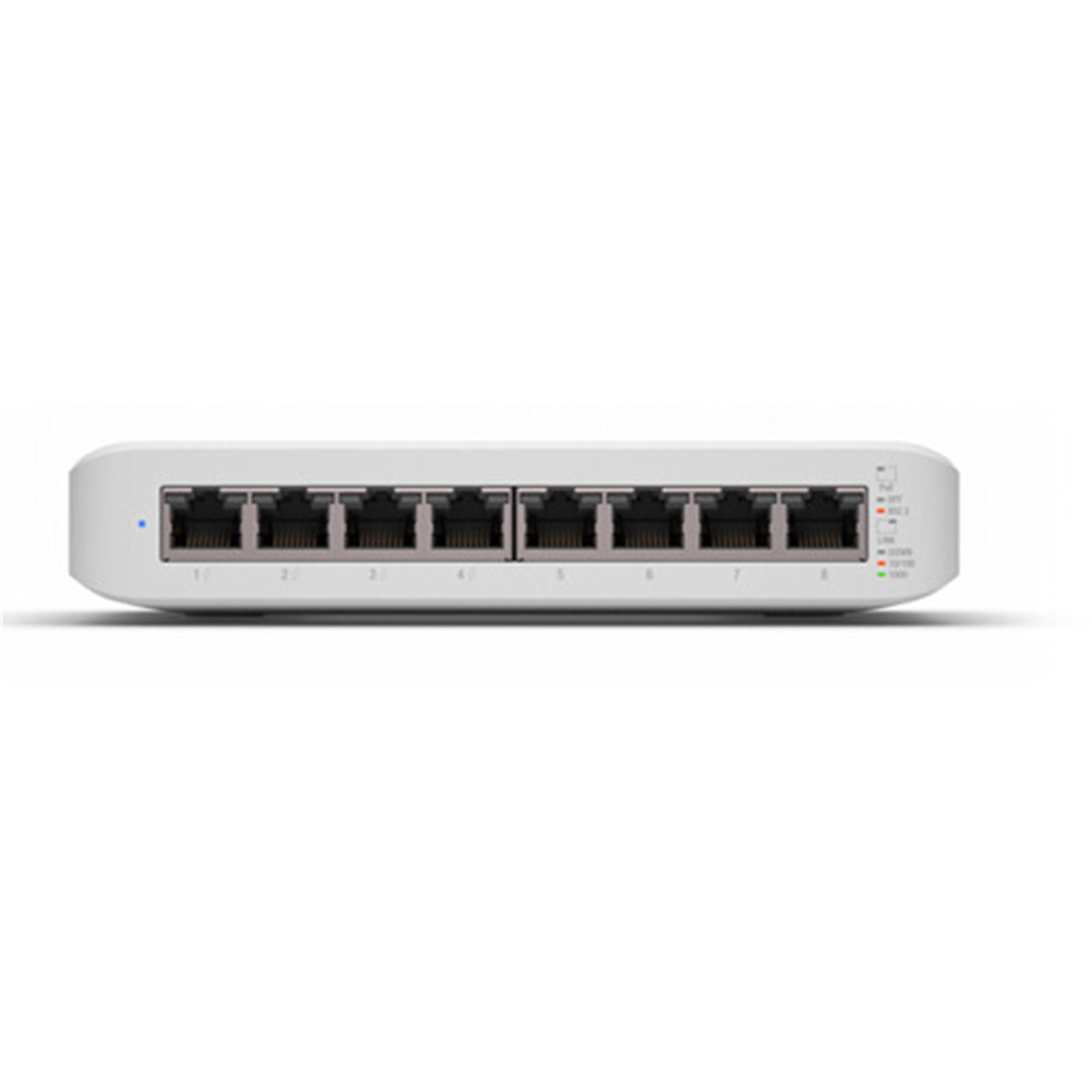

UniFi Switch Lite 8 PoE
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter
- Wall-mountable (Kit included)
Works with UniFi Network Controller
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Specifications
Mechanical
Dimensions
99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
Weight
450 g (15.87 oz)
Hardware
Total Non-Blocking Line Rate
8 Gbps
Max. Power Consumption
8W
Power Method
54VDC, 1.1A Power Adapter
Power Supply
External 54V/60W Power Adapter
Supported Voltage Range
DC 50V to 57V
Networking Interfaces
(8) 10/100/1000 Mbps Ethernet RJ45 Ports
PoE Interfaces
(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface
Ethernet In-Band
Max. PoE+ Wattage per Port by PSE
30W
Modes
SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature
-15 to 40° C (5 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
LEDs
System
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
Green: 1G, Amber: 10/100 Mbps
PoE
Amber: IEEE 802.3af/at
