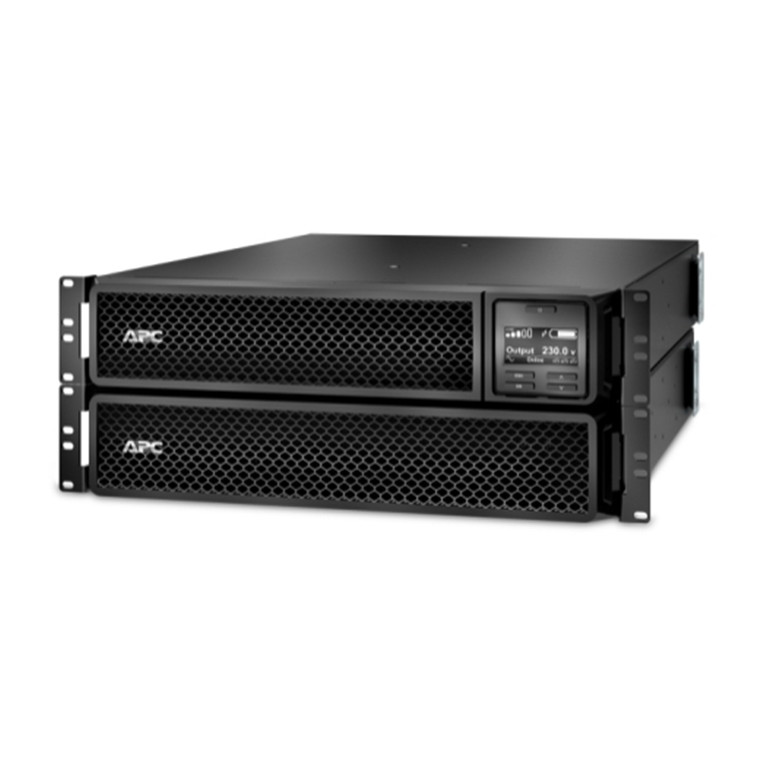

APC Smart-UPS SRT 2200VA RM 230V Network Card
APC Smart-UPS SRT 2200VA RM 230V Network Card
- Brand: APC
- MPN: SRT2200RMXLI-NC
- Part #: UPSAPC022202
- UPC:
View all shipping info
- Brand: APC
- MPN: SRT2200RMXLI-NC
- Part #: UPSAPC022202
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - On-Line





APC Smart-UPS SRT 2200VA RM 230V Network Card
- Brand: APC
- MPN: SRT2200RMXLI-NC
- Part #: UPSAPC022202

Product URL: https://www.pbtech.com/au/product/UPSAPC022202/APC-Smart-UPS-SRT-2200VA-RM-230V-Network-Card?qr=popular_related_products
Features
Availability
Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime - Allows additional run time to be quickly added as needed.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
SmartSlot - Customize UPS capabilities with management cards.
LED status indicators - Quickly understand unit and power status with visual indicators.
InfraStruXure Manager Compatible - Enables centralized management via the APC InfraStruXure Manager.
Serial connectivity - Provides management of the UPS via a serial port.
Network manageable - Provides remote power management of the UPS over the network.
Protection
Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction - Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible - Ensures clean, uninterrupted power to protected equipment when generator power is used.
Cold-start capable - Provides temporary battery power when the utility power is out.
Frequency and voltage regulation - Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Adaptability
Plug-and-Play external batteries - Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware - Install maintenance releases of firmware remotely using FTP.
Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Serviceability
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification - Warns when a battery is not available to provide backup power.
Predictive failure notification. - Provides early-warning fault analysis ensuring proactive component replacement.
User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Audible alarms - Provides notification of changing utility power and UPS power conditions
Specifications
Output
Max Configurable Power (Watts)
1.98kWatts / 2.2kVA
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Built-in bypass
Input
Input frequency
40 - 70 Hz Auto-sensing
Input voltage range for main operations
100 - 275 Adjustable (half load), 160 - 275V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
1
Typical recharge time
3hour(s)
Nominal Battery Voltage
72 V
Replacement Battery
APCRBC141
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
122Watts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
367
Communications & Management

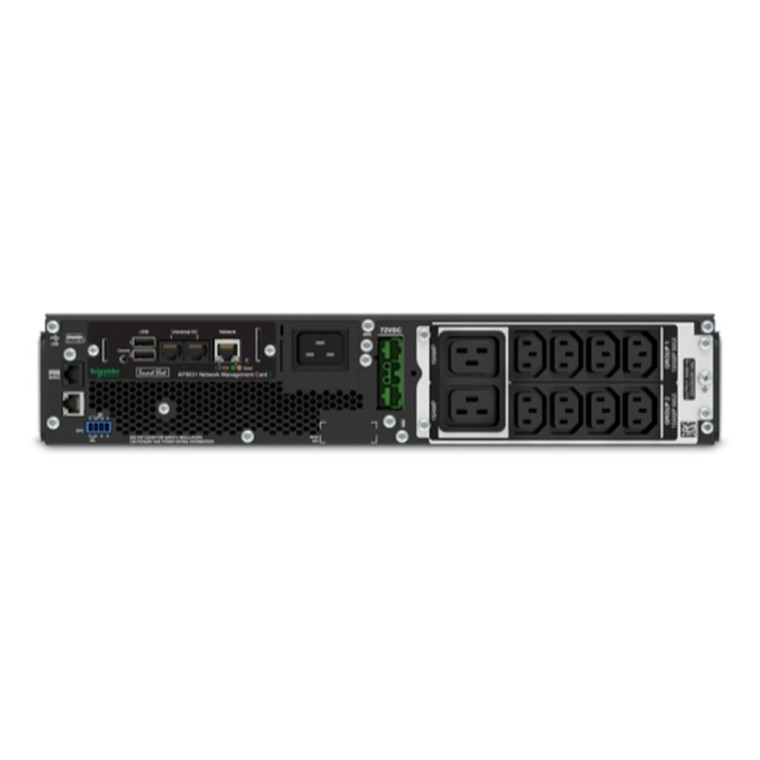

Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
Multifunction LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
340Joules
Physical
Maximum Height
85MM, 8.5CM
Maximum Width
432MM, 43.2CM
Maximum Depth
584MM, 58.4CM
Net Weight
25.0KG
Shipping weight
34.02KG
Shipping Height
246MM, 24.6CM
Shipping Width
599MM, 59.9CM
Shipping Depth
810MM, 81.0CM
Color
Black
Units per Pallet
12.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3048meters
Storage Temperature
-20 - 50 °C
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
535.0BTU/hr
Protection Class
IP20
