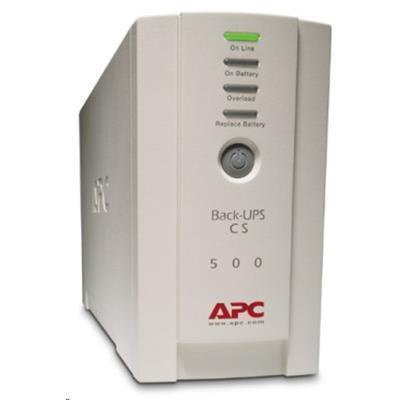

APC BK500EI 500VA UPS CS TOWER 3 battery USB/Serial w/Audible Alarms USB Connectivity, 2 Years Warranty
APC BK500EI 500VA UPS CS TOWER 3 battery USB/Serial w/Audible Alarms USB Connectivity, 2 Years Warranty
- Brand: APC
- MPN: BK500EI
- Part #: UPSAPC1161
- UPC: 731304016359
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"2 day delivery in the middle of Level 4 COVID lockdown. Pretty good going. Thanks"
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular UPS - Offline / Standby





APC BK500EI 500VA UPS CS TOWER 3 battery USB/Serial w/Audible Alarms USB Connectivity, 2 Years Warranty
- Brand: APC
- MPN: BK500EI
- Part #: UPSAPC1161
- UPC:731304016359

Product URL: https://www.pbtech.com/au/product/UPSAPC1161/APC-BK500EI-500VA-UPS-CS-TOWER-3-battery-USBSerial?qr=popular_related_products
Features
USB connectivity Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity Provides management of the UPS via a serial port.
Back-UPS Features & Benefits
- Protection from surges, spikes and even lightning is guaranteed!
- Instead of a hard to find fuse, there is a push-button circuit breaker for easy recovery from an overload or short circuit.
- Audible alarms - Proactively notifies you of changing UPS and utility power conditions.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Transformer Block Spacing - Designed to allow the use of up to two transformer block plugs without blocking access to other receptacles.
- APC Back-UPS,300 Watts /500 VA,Input 230V /Output 230V, Interface Port USB
Specifications
Output
Output Power Capacity
300 Watts / 500 VA
Max Configurable Power
300 Watts / 500 VA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 63 Hz
Topology
Standby
Waveform Type
Stepped approximation to a sinewave

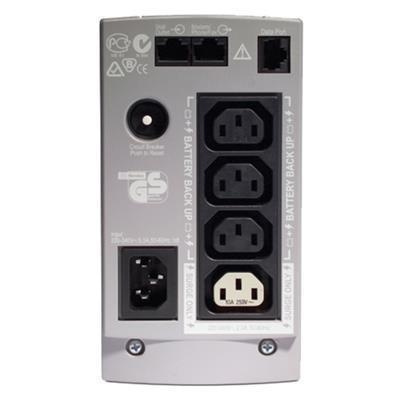

Output Connections
(1) IEC 320 C13 (Surge Protection) IEC 320 C13
(3) IEC 320 C13 (Battery Backup) IEC 320 C13
(2) IEC Jumpers (Surge Protection)
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320-C14 inlet
Cord Length
1.83 meters
Input voltage range for main operations
180 - 266V
Input voltage adjustable range for mains operation
160 - 300V
Maximum Input Current
7A
Input Breaker Capacity
7.0 A
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement Battery
RBC2, RBC2J
RBCT Quantity
1
Energy Use/Efficiency
Load Efficiency
25% 96.2%
50% 97.7%
75% 98.1%
100% 98.2%
Communications & Management
Interface Port(s)
USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
310 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
Maximum Height
165.00 mm
Maximum Width
91.00 mm
Maximum Depth
284.00 mm
Net Weight
6.32 KG
Shipping Weight
7.05 KG
Shipping Height
178.00 mm
Shipping Width
241.00 mm
Shipping Depth
368.00 mm
Master Carton Units
2.00
Color
Beige
SCC Codes
107 31304 01635 6
Units per Pallet
70.00
Environmental
Operating Environment
0 - 40 C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
40.00 dBA
Online Thermal Dissipation
24.00 BTU/hr
Conformance
Regulatory Approvals
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Standard Warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Includes:
CD with software, Documentation CD, Qty 1 - Detachable 1.2 m IEC power cord, Qty 1 - Detachable 1.8 m IEC power cord, Telephone Cable, USB cable, Warranty card
