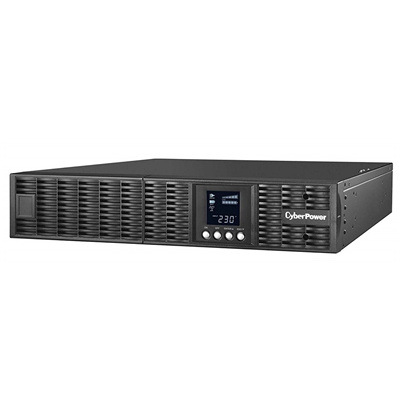

CyberPower OLS1000ERT2UA Online S Series 2000VA/1800W RACK UPS

General

Phase

Single Phase

UPS Topology

Online Double Conversion

Energy Saving Technology

Online ECO Mode Efficiency > 95%

Active PFC Compatibility

Yes

Input

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230 ± 10%

Input Voltage Range ( Vac )

160 ~ 300

Adjustable Voltage Range ( Vac )

0~50% Load for 110 ~ 300 Vac
0~60% Load for 120 ~ 300 Vac
0~80% Load for 140 ~ 300 Vac
0~100% Load for 160 ~ 300 Vac

Input Frequency ( Hz )

50 ± 10
60 ± 10

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

4.5

Input Power Factor

0.98

Input Connector Type

IEC C14

Detachable Power Cord Plug Type

Schuko x 1

Power Cord Length (ft.)

5.9

Power Cord Length (m.)

1.8

Output

Capacity (VA)

1000

Capacity (Watts)

900

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) ( Vac )

208 ± 1%
220 ± 1%
230 ± 1%
240 ± 1%

Output Voltage Setting

Configurable

On Battery Frequency ( Hz )

50 ± 0.5%
60 ± 0.5%

Output Frequency Setting

Configurable

Power Factor

0.9

ECO Mode Voltage Tolerance

± 15 %

Overload Protection

Internal Current Limiting , Circuit Breaker , Fuse

Overload Protection (Line Mode)

110~120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode)

110~120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode)

>130% Load Immediately

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD<3%

Harmonic Distortion (Non-linear Load)

THD<5%

Internal Bypass

Automatic Bypass , Manual Bypass

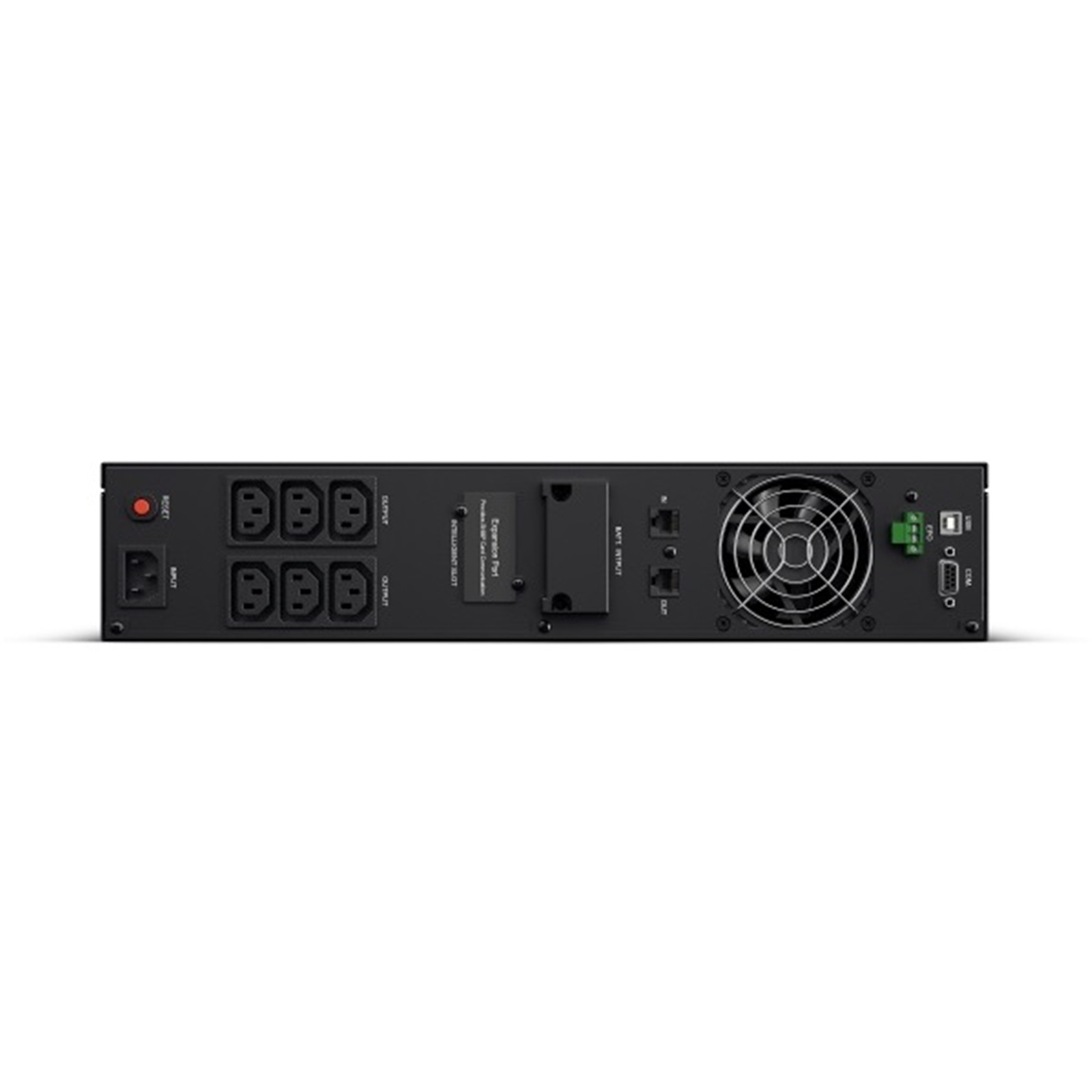

Outlet(s) - Total

6

Outlet Type

IEC C13 x 6

Outlet(s) - Battery & Surge Protected

6

Typical Transfer Time ( ms )

0

Battery

Runtime at Half Load ( min )

15

Runtime at Full Load ( min )

5

Typical Recharge Time ( Hours )

5

Maximum Charging Current ( A )

1

Start On Battery

Yes

Smart Battery Management (SBM)

Yes

User-replaceable

Yes

Hot-swappable

Yes

Battery Type

Sealed Lead-acid

Replacement Battery Pack

RBP0066

RBP Quantity ( pcs )

1

Battery Quantity (Each RBP) ( pcs )

3

Battery Voltage (Each RBP) ( V )

36

Single Battery Capacity ( AH )

12 V 7 AH

Extended Battery Module (EBM)

BPSE36V45ART2U

Max. EBM Quantity ( pcs )

3

Surge protection & filtering

Surge Suppression ( Joules )

440

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

Management & communications

LCD Panel

Yes

LCD Information Display

Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log

LCD Setting & Control

Mode Setting , Alarm Setting , Input & Output , Battery Setting

HID Compliant USB Port(s)

1

Serial Port

RS232

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery

Management Cable ( pcs )

Power Cord x2 , USB Cable x1 , Phone Line x1

Power Management Software

PowerPanel® Business

SNMP/HTTP Remote Monitoring

Yes - with optional RMCARD205

Physical

Form Factor

Rack/Tower

Enclosure Construction

Metal

Color

Black

Rackmount Rail

Yes

Physical size - UPS module

Dimensions (WxHxD) (in.)

17.24 x 3.46 x 16.93

Dimensions (WxHxD) (mm.)

438 x 88 x 430

Weight (lbs.)

29.1

Weight (kg.)

13.2

Installed Rack Height ( U )

2

Shipping dimensions

Dimensions (WxHxD) (in.)

21.65 x 9.09 x 22.28

Dimensions (WxHxD) (mm.)

550 x 231 x 566

Weight (lbs.)

44.75

Weight (kg.)

20.3

Enviromental

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

20 ~ 90

Operating Elevation ( feet/meters )

0-5,000 feet (0-1,500 meters)

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

10 ~ 90

Storage Elevation ( feet/meters )

0-5,000 feet (0-1,500 meters)

Online Thermal Dissipation ( BTU/hr )

342

Audible Noise at 1.5M from Surface of Unit ( dBA )

45

Certifications

Certifications

CE , EAC , LOA

RoHS

Yes
