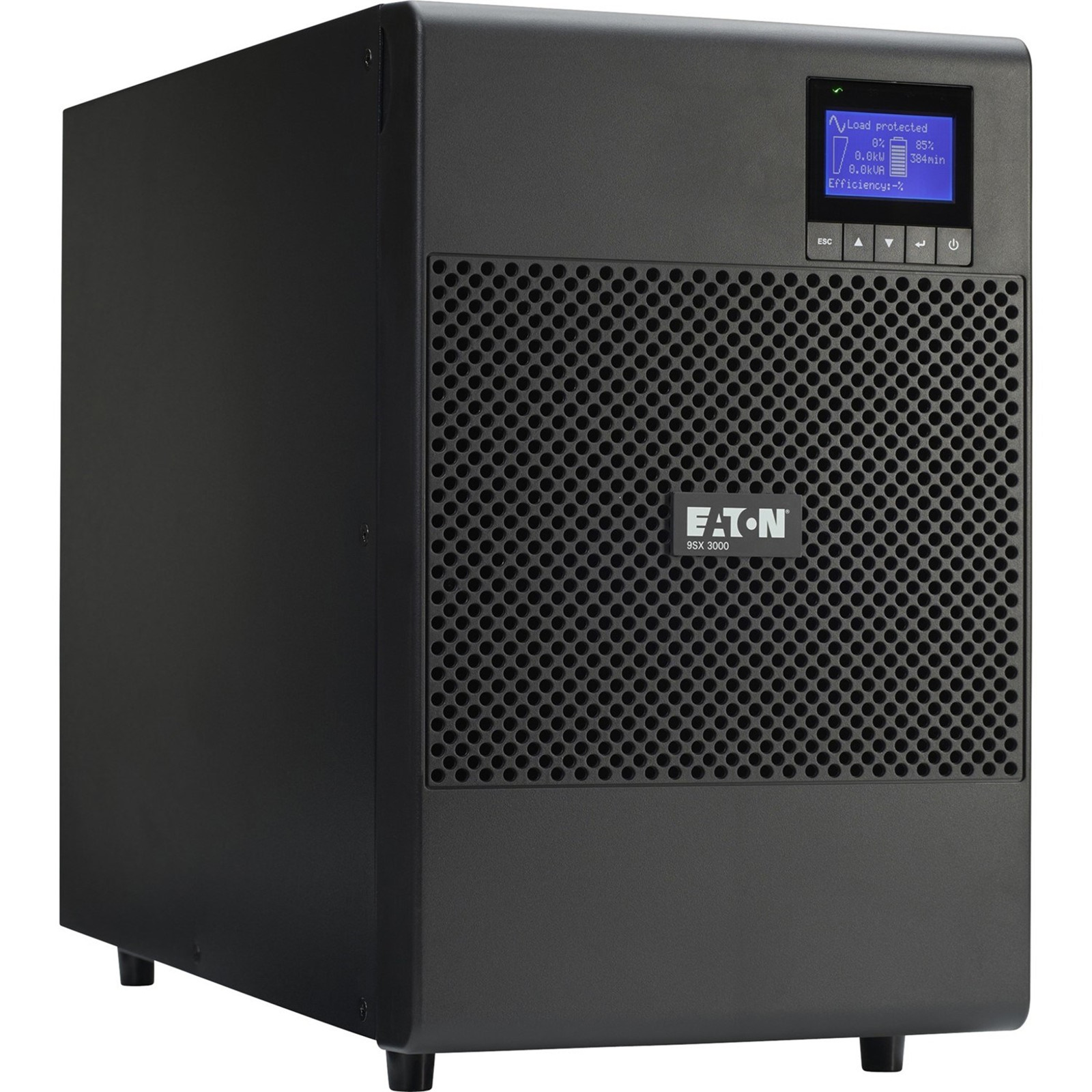

Eaton 9SX 3000VA/ 2700W On Line Tower UPS
- Brand: Eaton
- MPN: 9SX3000I-AU
- Part #: UPSPWR793000

Product URL: https://www.pbtech.com/au/product/UPSPWR793000/Eaton-9SX-3000VA-2700W-On-Line-Tower-UPS?qr=popular_related_products
Features
Specifications
General
Topology
On-line double conversion with PFC (Power Factor Correction) system
Configuration
Tower
Part Number
9SX3000I-AU
Rating (VA/Watts)
3000/2700
Dimensions (H x W x D, mm)
346 x 214 x 412
Electrical Input
Connection
(1) IEC-320-C20
Input Voltage Range
200-276V without derating (up to 140-276V with derating)
Nominal Voltage
200/208/220/230/240V
Frequency
50/60 Hz autoselection
Frequency Range
40-70 Hz
Electrical Output
Output Receptacles
(1) IEC-320-C19
(5) Aust. 16A
Output Frequency
50/60 Hz autoselect, frequency converter as standard
Battery
Battery Management
ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability
EBM
Communications
User Interface
Multilingual graphical LCD display
Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot
1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise
<45dB
Operating Temperature
0 to 40°C continuous
Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals
CE /CB report (TUV) / cULus / EAC / RCM
