StarTech.com ICUSB422IS 1 Port USB to Serial RS422/485 Adapter
- Brand: StarTech.com
- MPN: ICUSB422IS
- Part #: ADPSTT1599753
- UPC:065030830683

Product URL: https://www.pbtech.com/au/product/ADPSTT1599753/StarTechcom-ICUSB422IS-1-Port-USB-to-Serial-RS4224
Features
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Supports RS-485 and RS-422 serial interfaces via DB9 or Terminal Block connections for versatile connection options
- Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment
- Rugged, USB Bus powered enclosure requiring no external power adapter for simple integration into harsh industrial environments
Specifications
Bus Type
USB 2.0
Chipset ID
FTDI - FT232RL
Interface
Serial
Port Style
External Hub
Ports
1
Performance
Data Bits
7, 8
FIFO
256 Bytes
Isolation
2500 Vrms
Max Baud Rate
921.6 Kbps
Parity
Even, Odd, Mark, Space, None
Serial Protocol
RS-422/485
Stop Bits
1, 2
Surge Protection
500W
Connector(s)
Connector Type(s)
1 - USB B (4 pin) Female
External Ports
1 - DB-9 (9 pin, D-Sub) Male
1 - Terminal Block (5 Wire)
Software
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Power
Input Current
200mA
Input Voltage
5 DC
Power Source
USB-Powered
Environmental
Humidity
5~95% RH
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Cable Length
6 ft [1.8 m]
Color
Black
Enclosure
Type Steel

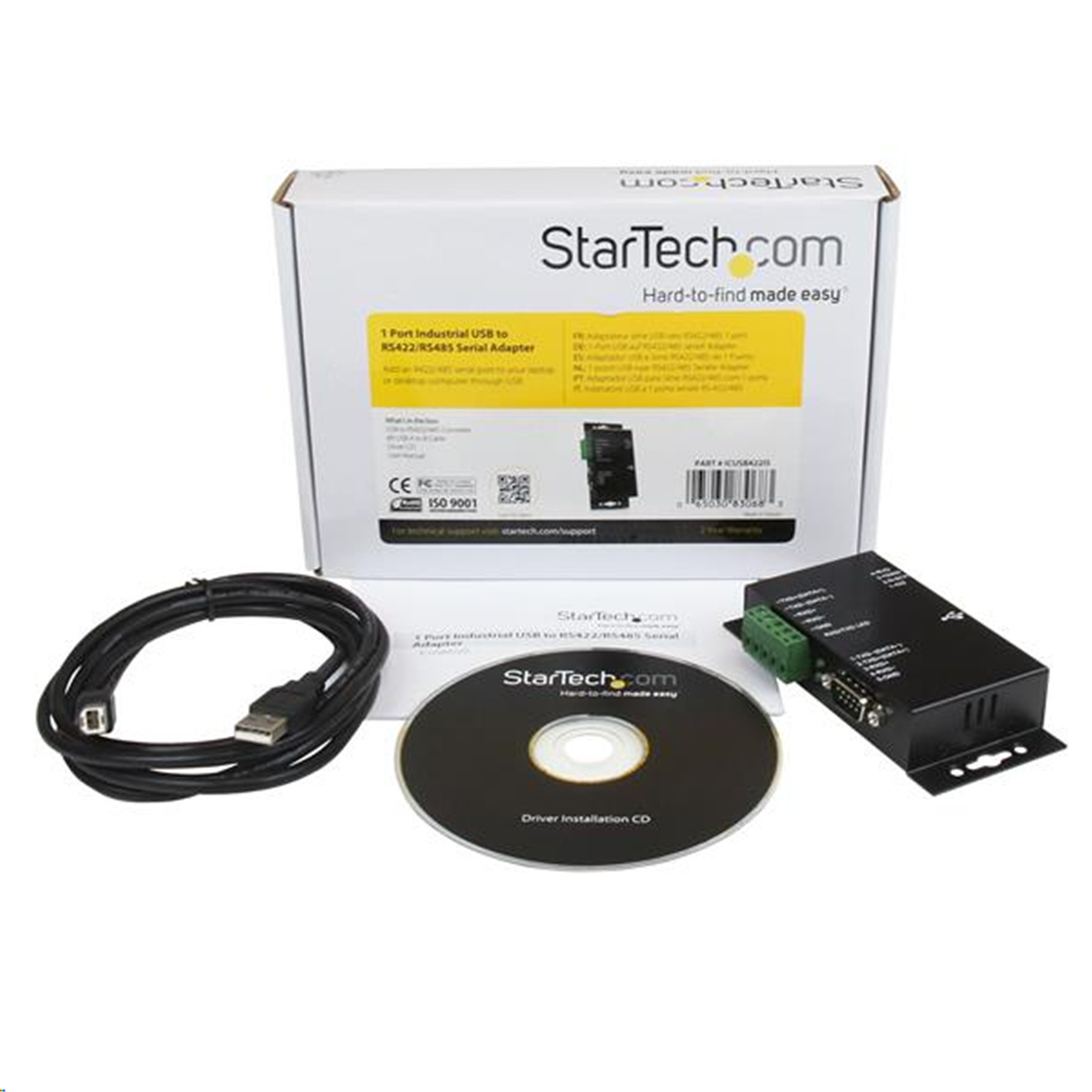

Included in Package
1 - USB to RS422/485 Converter
1 - 6ft USB A to B Cable
1 - Driver CD
1 - User Manual
