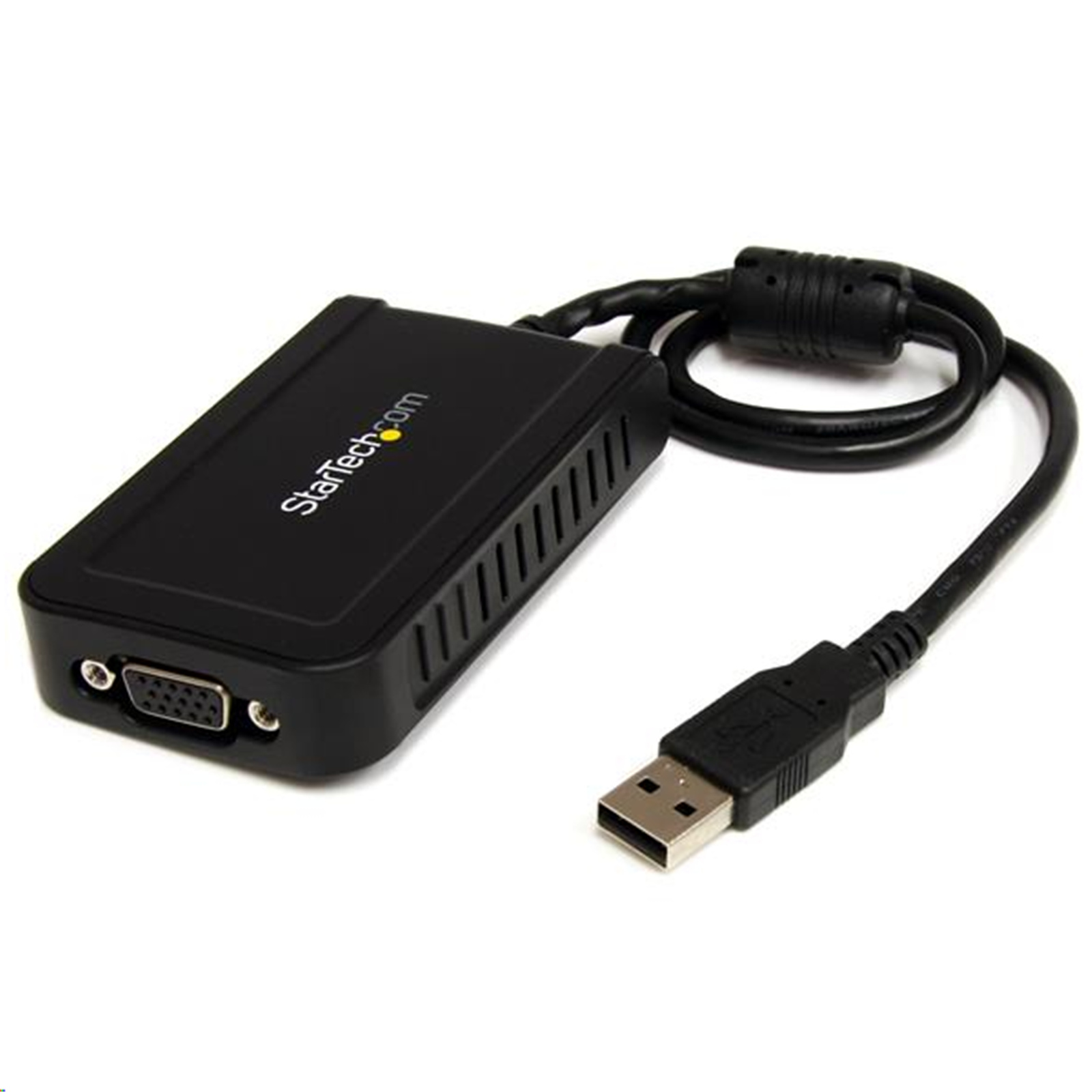

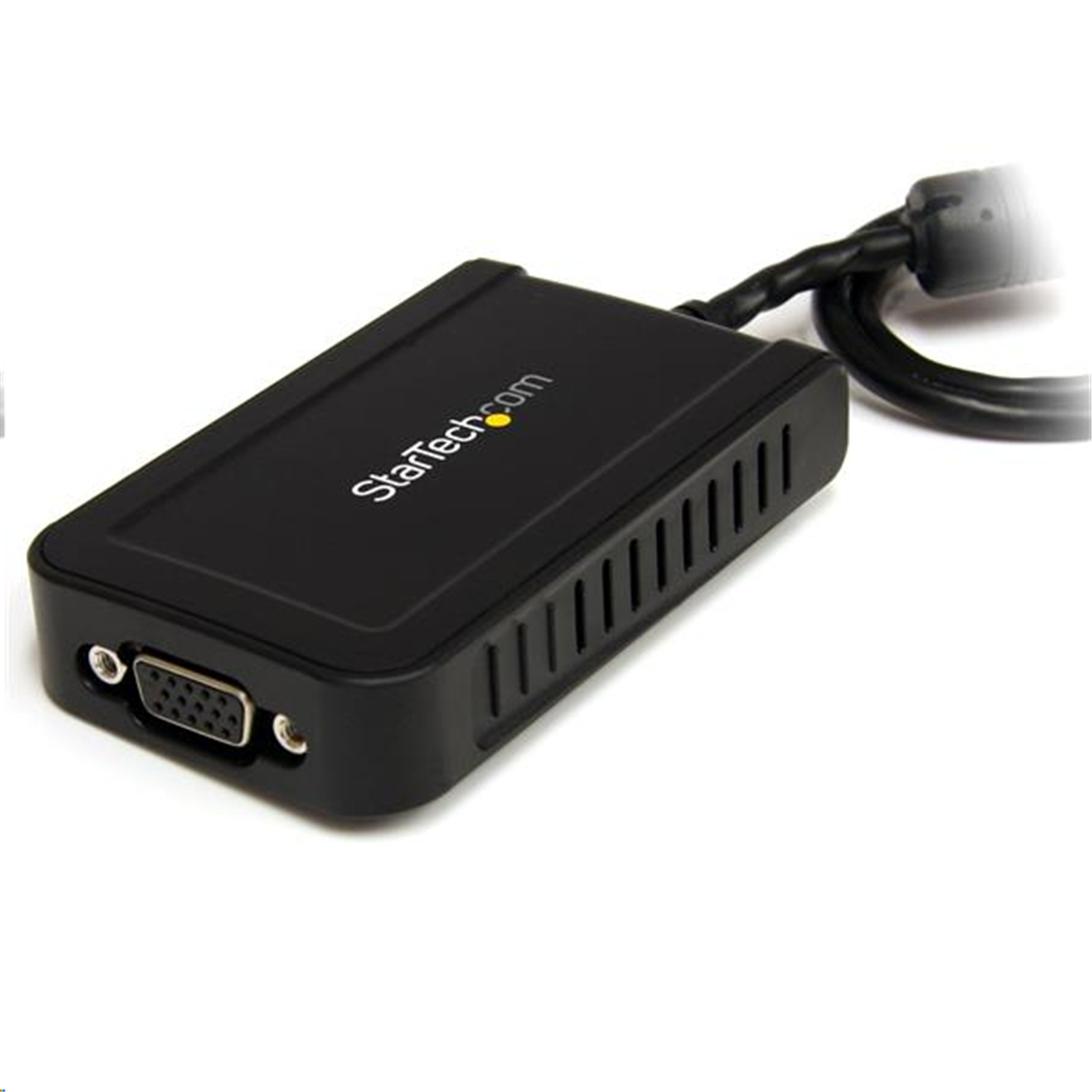

StarTech.com USB2VGAE3 USB to VGA External Video Card 1920 x1200
StarTech.com USB2VGAE3 USB to VGA External Video Card 1920 x1200
- Brand: StarTech.com
- MPN: USB2VGAE3
- Part #: ADPSTT1823001
- UPC: 065030844178
View all shipping info
- Brand: StarTech.com
- MPN: USB2VGAE3
- Part #: ADPSTT1823001
- UPC: 065030844178
What PB Tech customers are saying about this product...
See More Reviews"Even though you need to download a diver for this item. It'll work smoothly after that. Easy to set up as well!"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular VGA Adapters





StarTech.com USB2VGAE3 USB to VGA External Video Card 1920 x1200
- Brand: StarTech.com
- MPN: USB2VGAE3
- Part #: ADPSTT1823001
- UPC:065030844178

Product URL: https://www.pbtech.com/au/product/ADPSTT1823001/StarTechcom-USB2VGAE3-USB-to-VGA-External-Video-Ca?is-review=1
Features

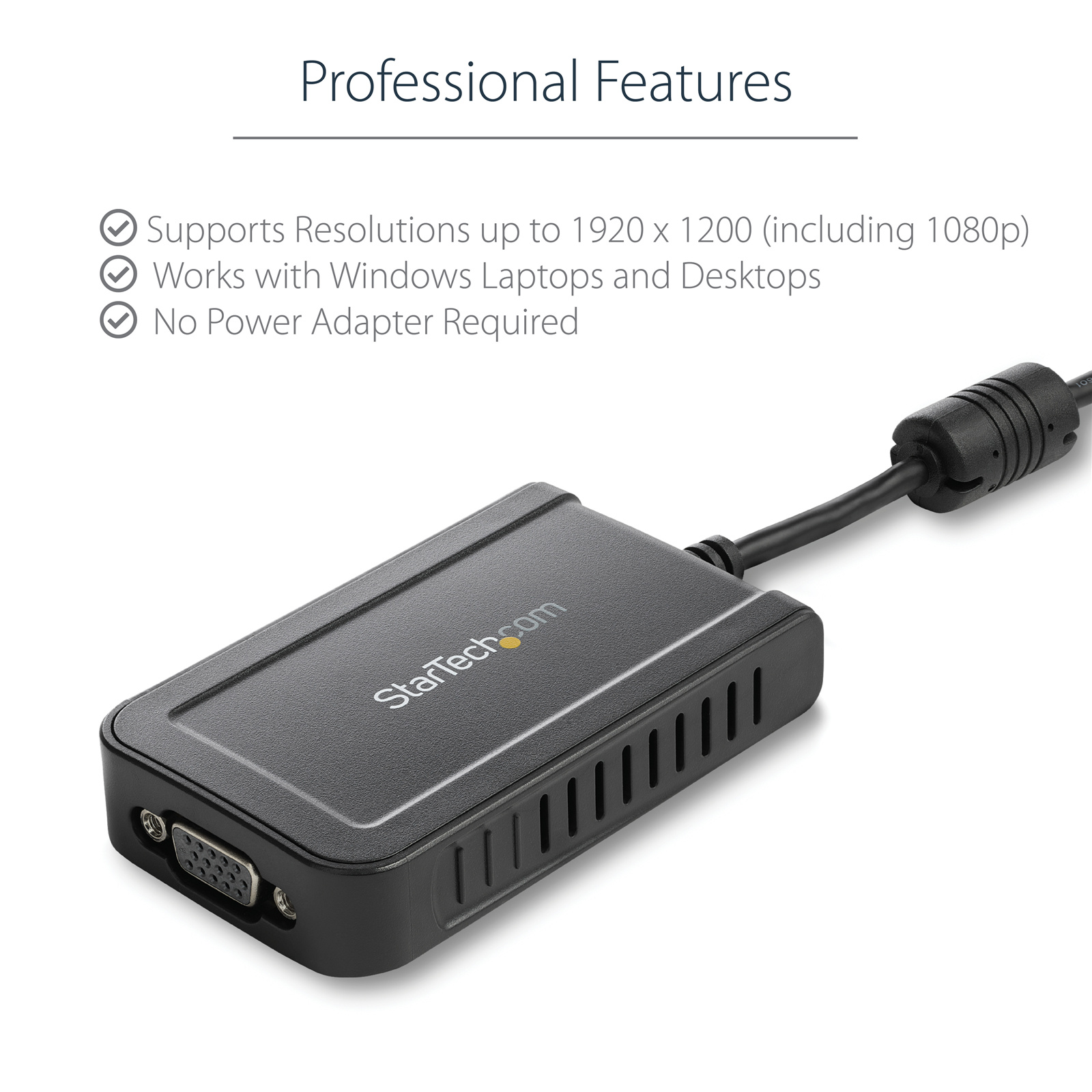

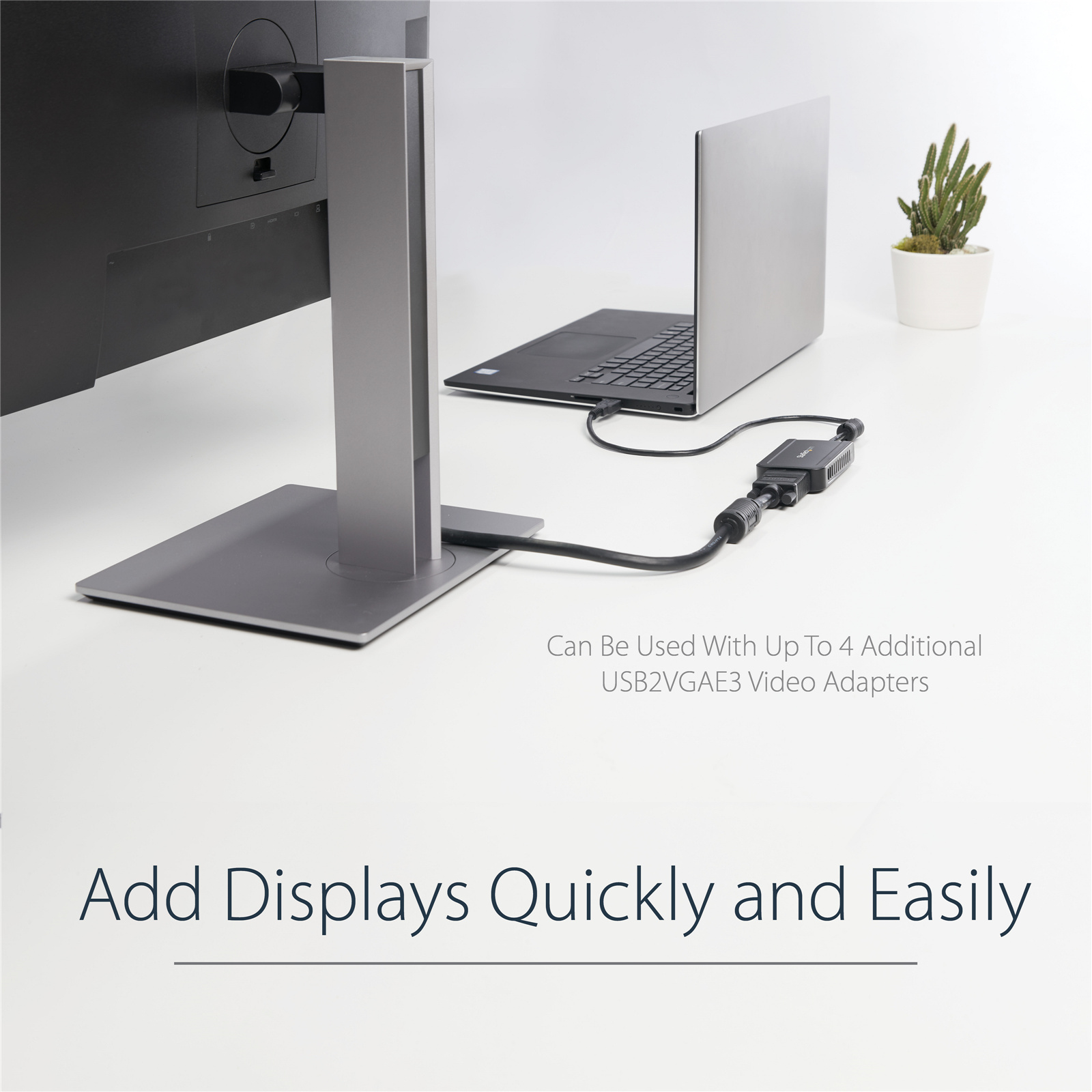

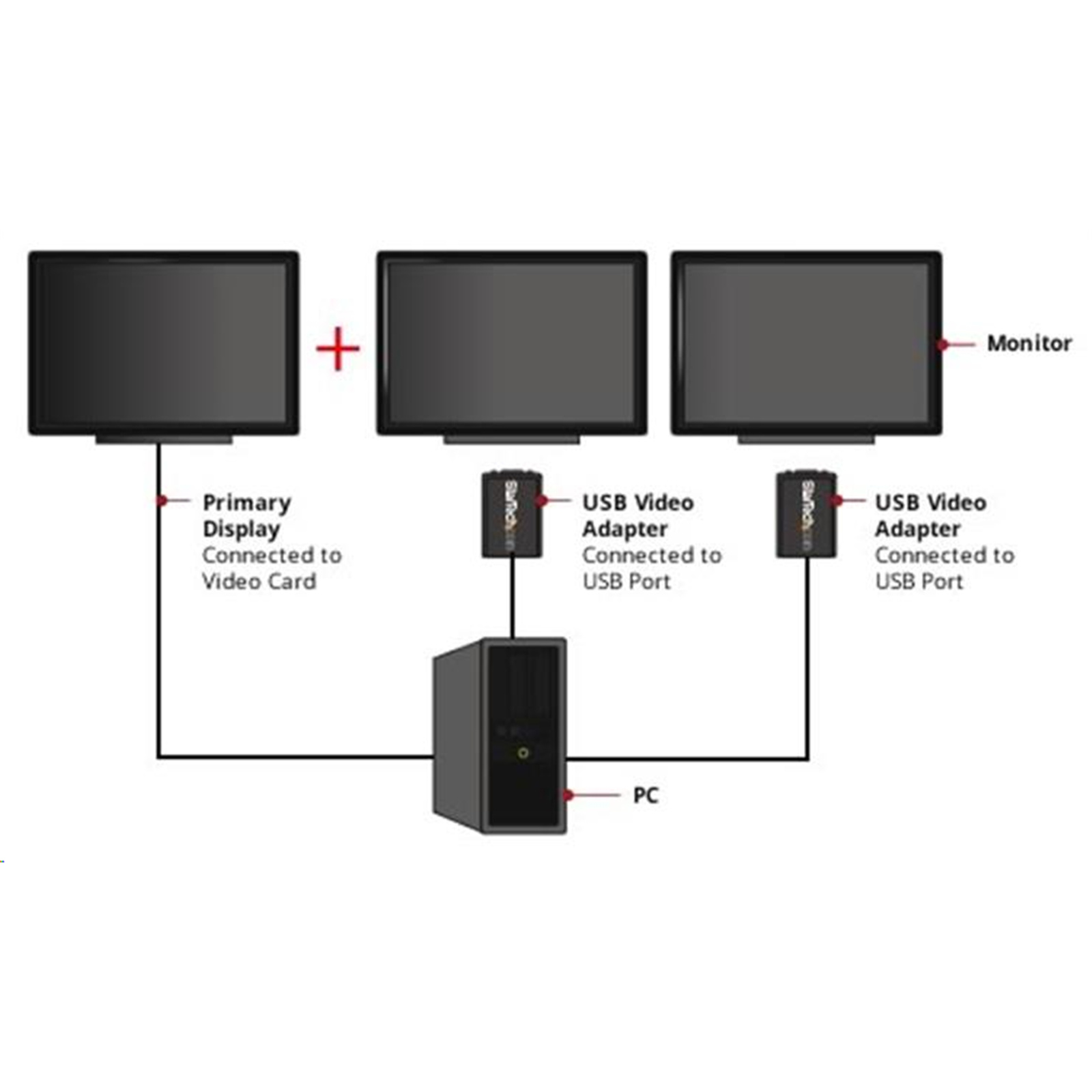

The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port. A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace. This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
The StarTech.com Advantage
- Compact, USB-powered adapter provides the easiest way add secondary or multiple high-resolution displays to your PC
- Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system
- The ability to use multiple adapters (up to five) provides a scalable display configuration for future expansion
Specifications
Hardware
Chipset ID
MCT T2-285A
Industry Standards
USB 2.0 Compliant
Memory
32MB DDR SDRAM
USB Pass-Through
No
Performance
General Specifications
This USB video adapter uses a Trigger family chipset. If you're connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
MTBF
200,000 Hrs
Supported Resolutions
Widescreen(16/32 bit):
1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720
Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
Wide Screen Supported
Yes
Connector(s)
Connector A

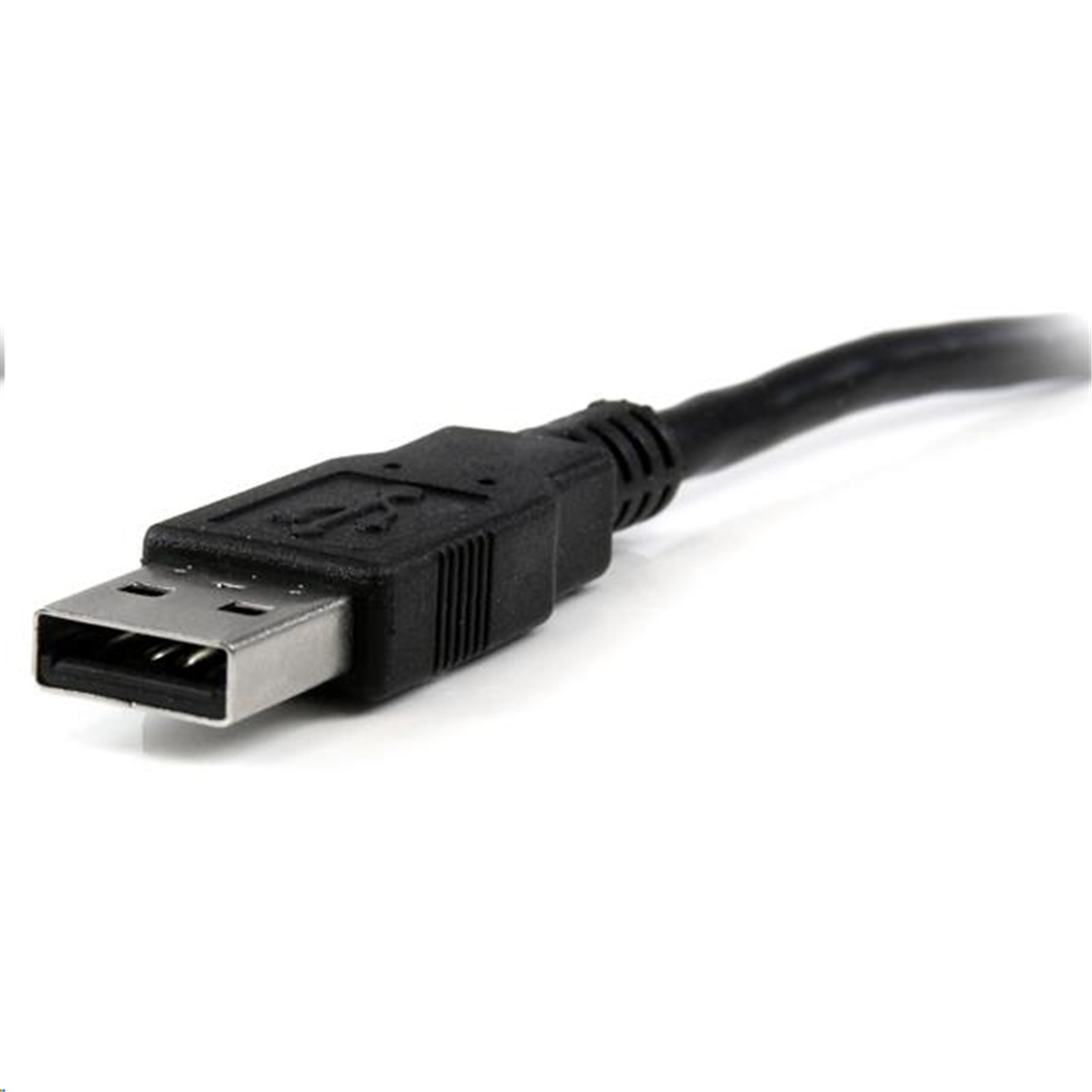

1 - USB Type-A (4 pin) USB 2.0 Male Input
Connector B

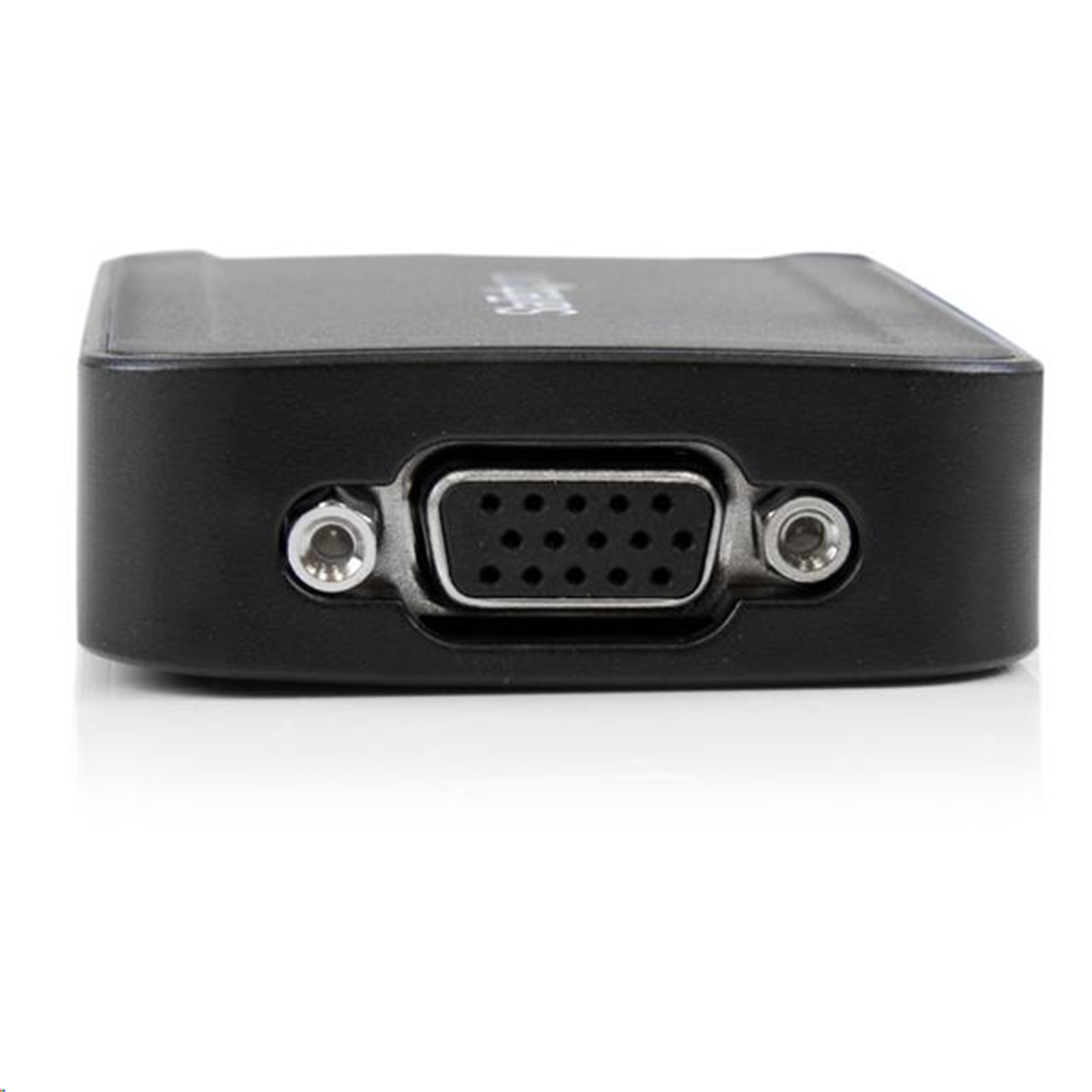

1 - VGA (15 pin, High Density D-Sub) Female Output
Software
OS Compatibility
Windows® 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes / Requirements
System and Cable Requirements
One available USB 2.0 port
Environmental
Humidity
0~95% RH Non-condensing
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-25°C to 75°C (32°F to 167°F)

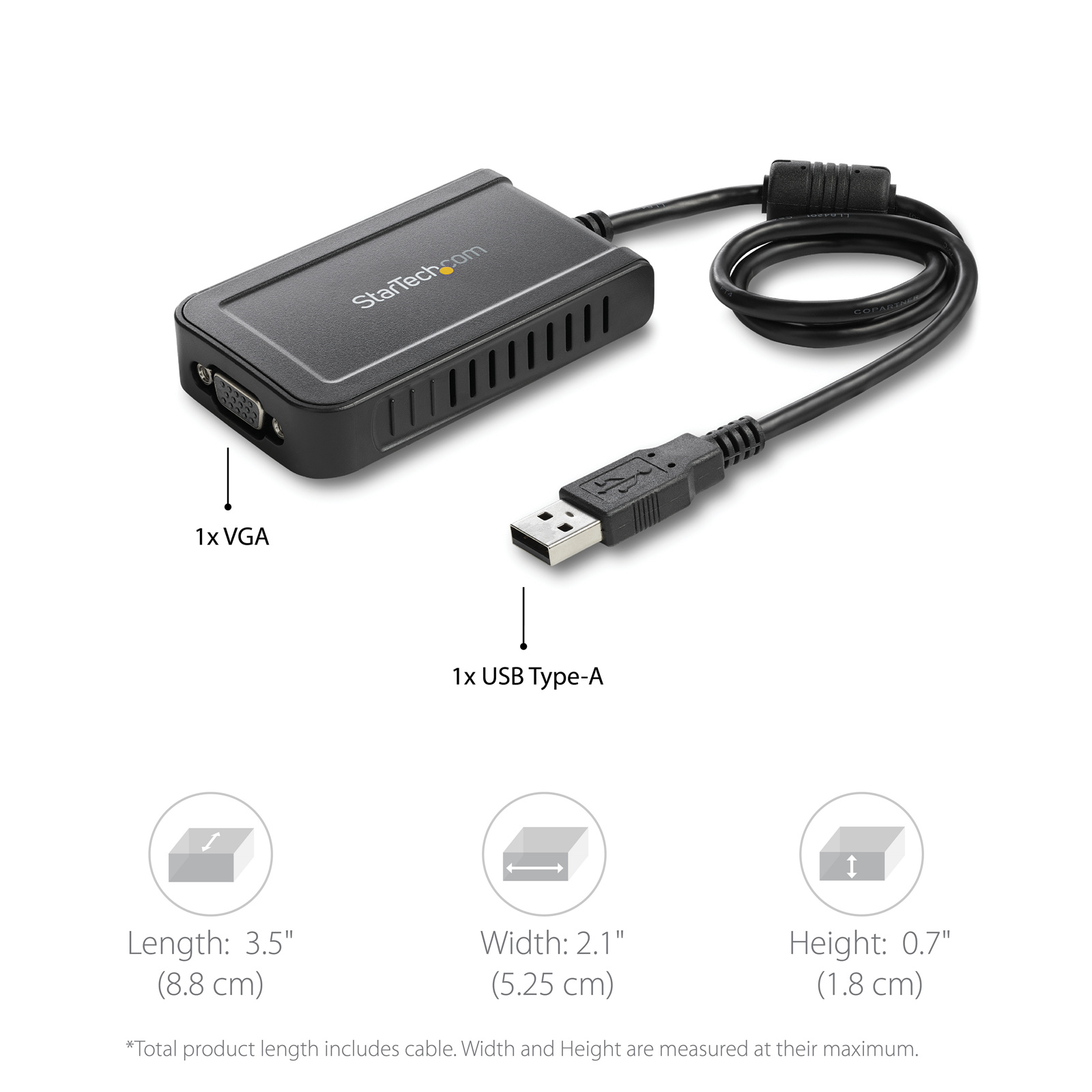

Physical Characteristics
Cable Length
19.7 in [500 mm]
Color
Gray
Product Height
0.7 in [18 mm]
Product Length
3.5 in [88 mm]
Product Weight
3.4 oz [96 g]
Product Width
2.1 in [52.5 mm]

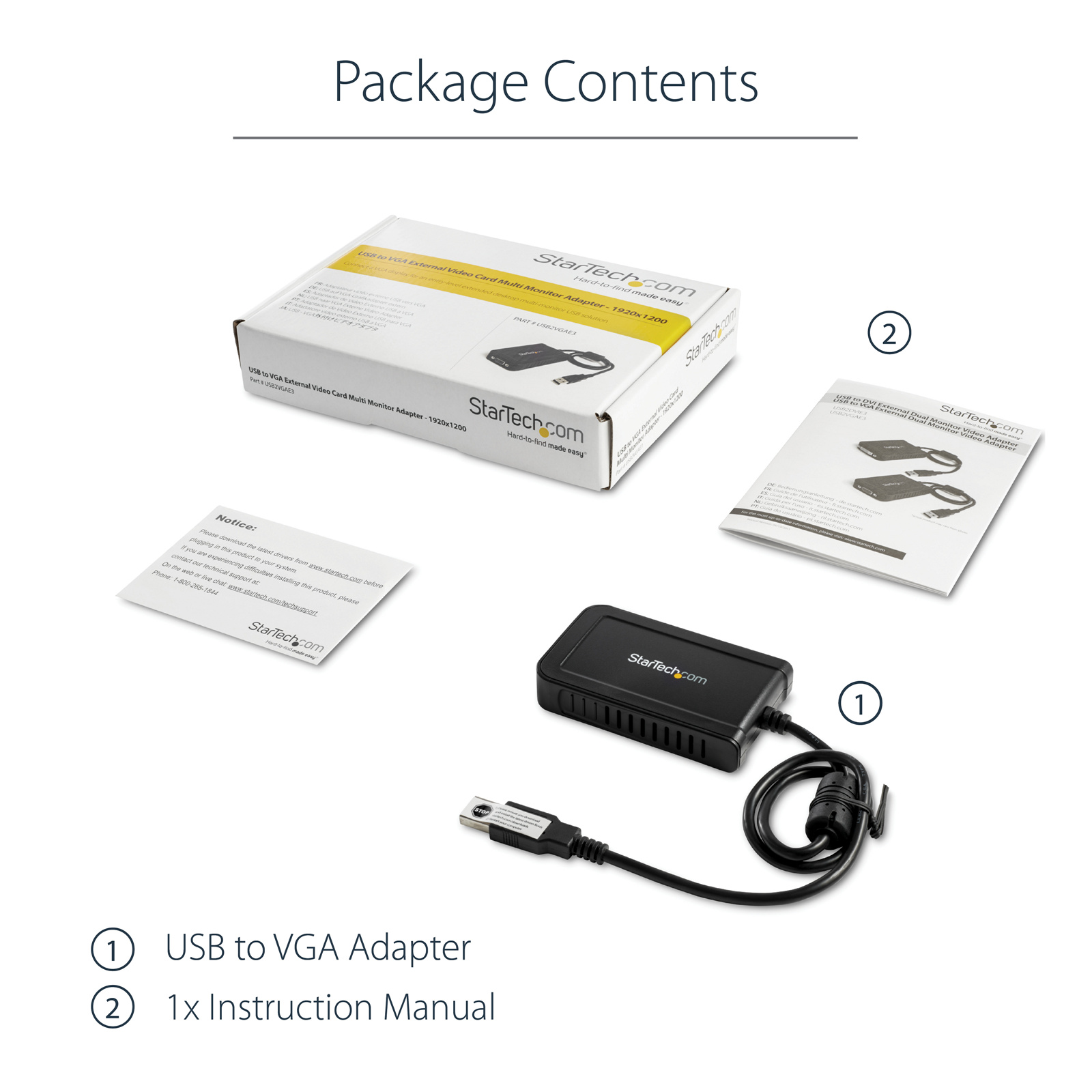

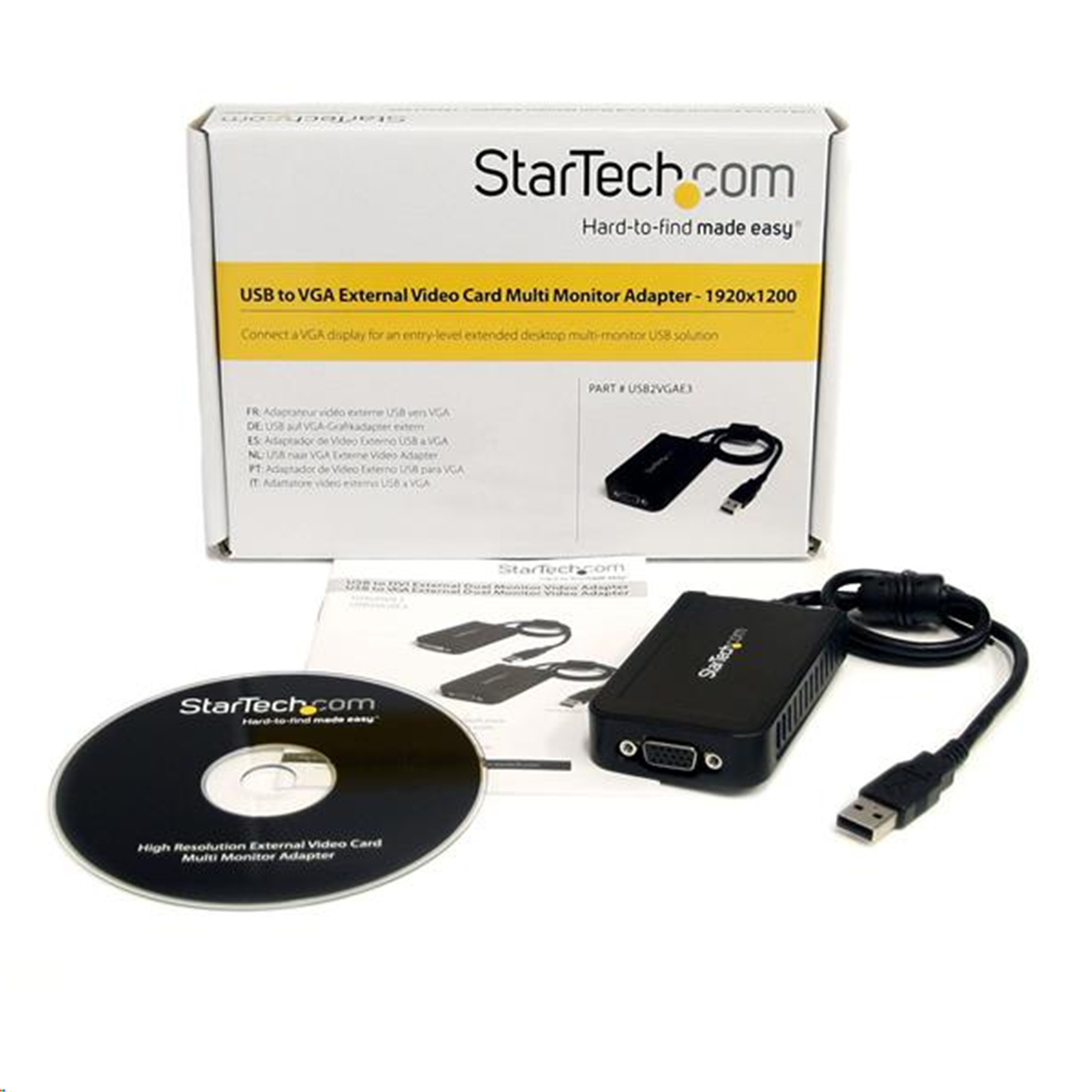

Included in Package
1 - USB to VGA Adapter
1 - Driver and Software CD
1 - Instruction Manual
