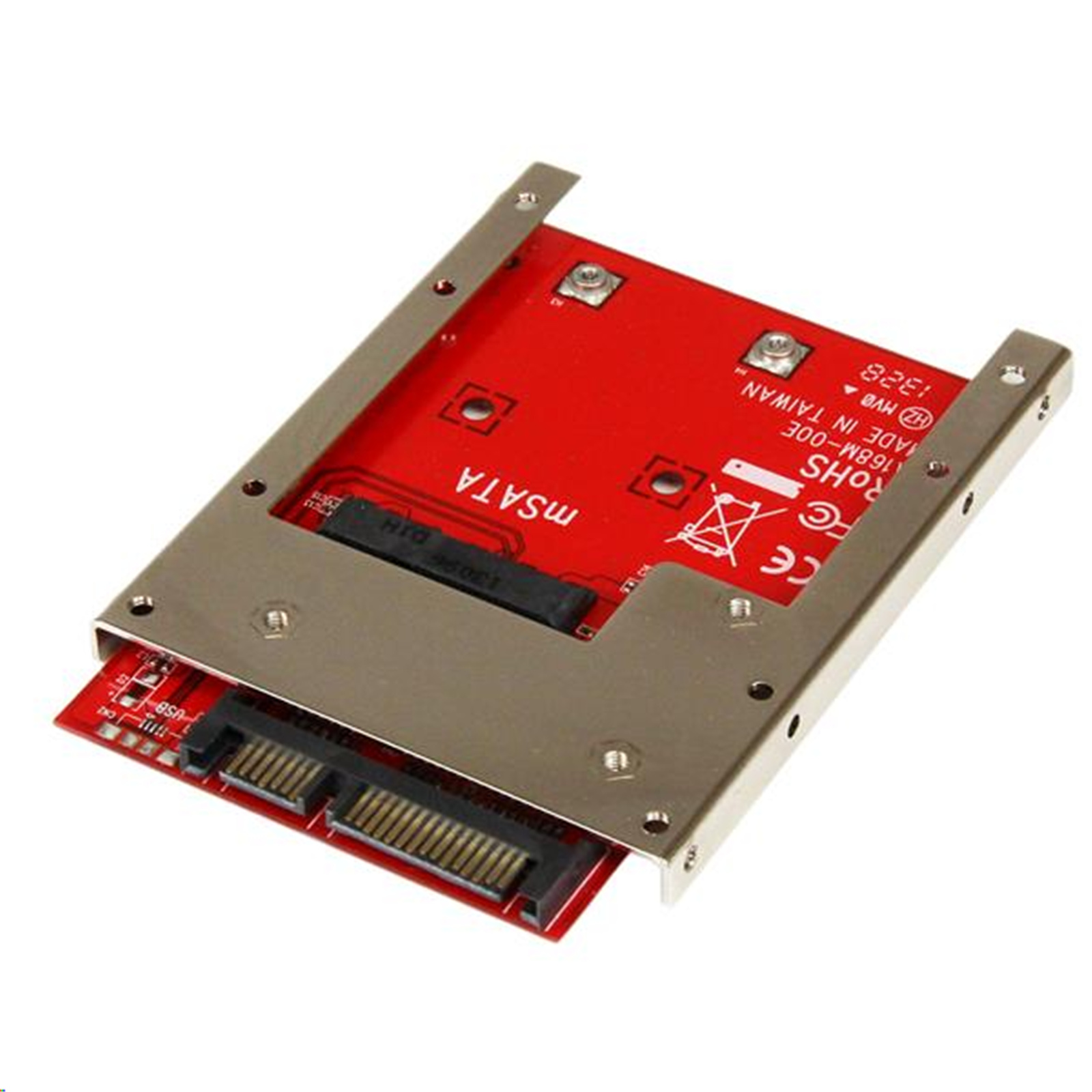

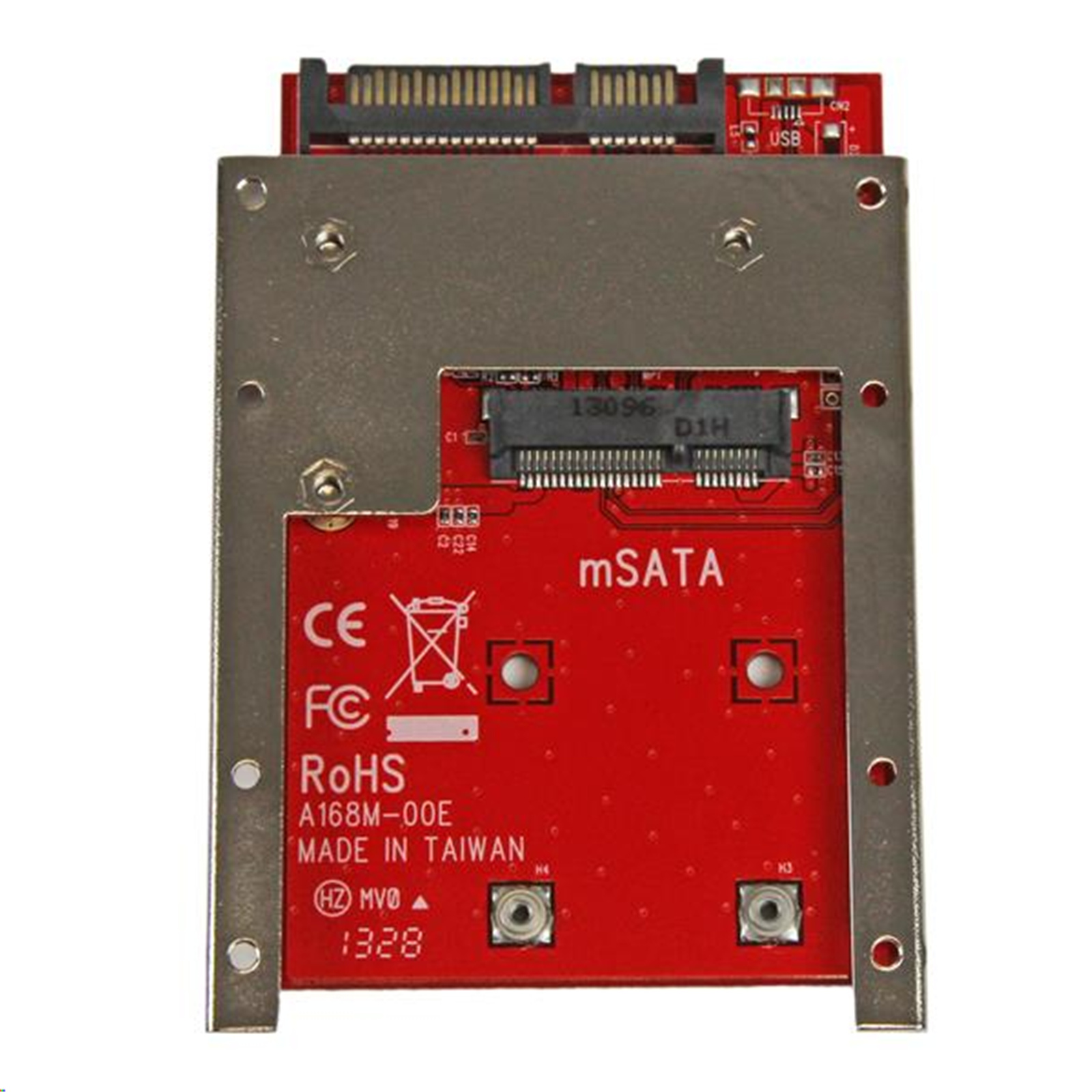

StarTech.com SAT32MSAT257 mSATA SSD to 2.5IN SATA Adapter Converter
StarTech.com SAT32MSAT257 mSATA SSD to 2.5IN SATA Adapter Converter
- Brand: StarTech.com
- MPN: SAT32MSAT257
- Part #: ADPSTT2590169
- UPC: 065030855624
View all shipping info
- Brand: StarTech.com
- MPN: SAT32MSAT257
- Part #: ADPSTT2590169
- UPC: 065030855624
What PB Tech customers are saying about this product...
See More Reviews"Can't fault design, functionality, or build quality but price seems a bit expensive for an adaptor"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Adapters





StarTech.com SAT32MSAT257 mSATA SSD to 2.5IN SATA Adapter Converter
- Brand: StarTech.com
- MPN: SAT32MSAT257
- Part #: ADPSTT2590169
- UPC:065030855624

Product URL: https://www.pbtech.com/au/product/ADPSTT2590169/StarTechcom-SAT32MSAT257-mSATA-SSD-to-25IN-SATA-Ad?is-review=1
Features
Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5" SATA application, with the SAT32MSAT257 mSATA to SATA adapter. Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives. Help protect the health of your drive with an open frame design ensuring maximum heat dissipation. The SAT32MSAT257 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
- Maximize system speed by adding SSD performance
- Help prevent your drive from failure, with open frame aluminum housing providing excellent heat dissipation
- Reduce overall power consumption, with a high efficiency mSATA SSD
Specifications
Compatible Drive Types
mSATA (Mini SATA)
Drive Installation
Fixed
Interface
SATA
Number of Drives
1
Performance
Hot Swap Capability
No
Maximum Data Transfer Rate
6 Gbps
Type and Rate
SATA III (6 Gbps)
Connector(s)
Drive Connectors
1 - mSATA (52 pin, Mini SATA) Receptacle
Host Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle
Software
OS Compatibility
OS independent; No software or drivers required
Environmental
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Product Height
0.3 in [7 mm]
Product Length
3.9 in [100 mm]
Product Weight
1.7 oz [48 g]
Product Width
2.8 in [70 mm]

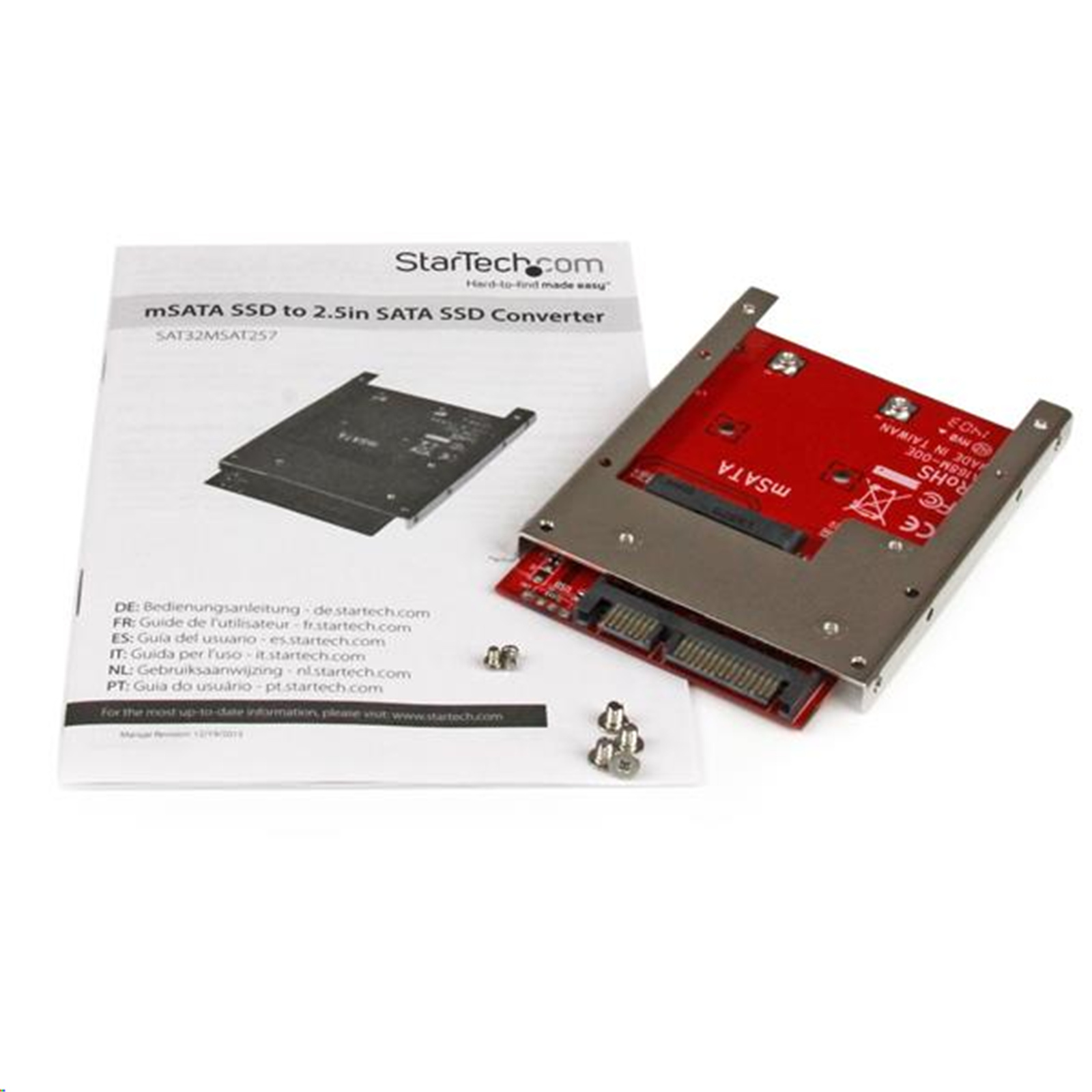

Included in Package
1 - mSATA SSD to 2.5in SATA SSD Converter
1 - Mounting kit (2x drive mounting screws, 4x adapter mounting screws)
1 - Installation manual
