StarTech.com MSTMDP123DP 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP

Normally $99.61

Normally $109.57

$ 97 .74

+GST

$ 107 .51

inc GST

StarTech.com MSTMDP123DP 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP

Brand: StarTech.com
MPN: MSTMDP123DP
Part #: ADPSTT2639115
UPC: 065030851879

Normally $109.57

PB Tech price

$ 107 .51

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 29 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: StarTech.com
MPN: MSTMDP123DP
Part #: ADPSTT2639115
UPC: 065030851879

Be the first to review this product

Input Connector

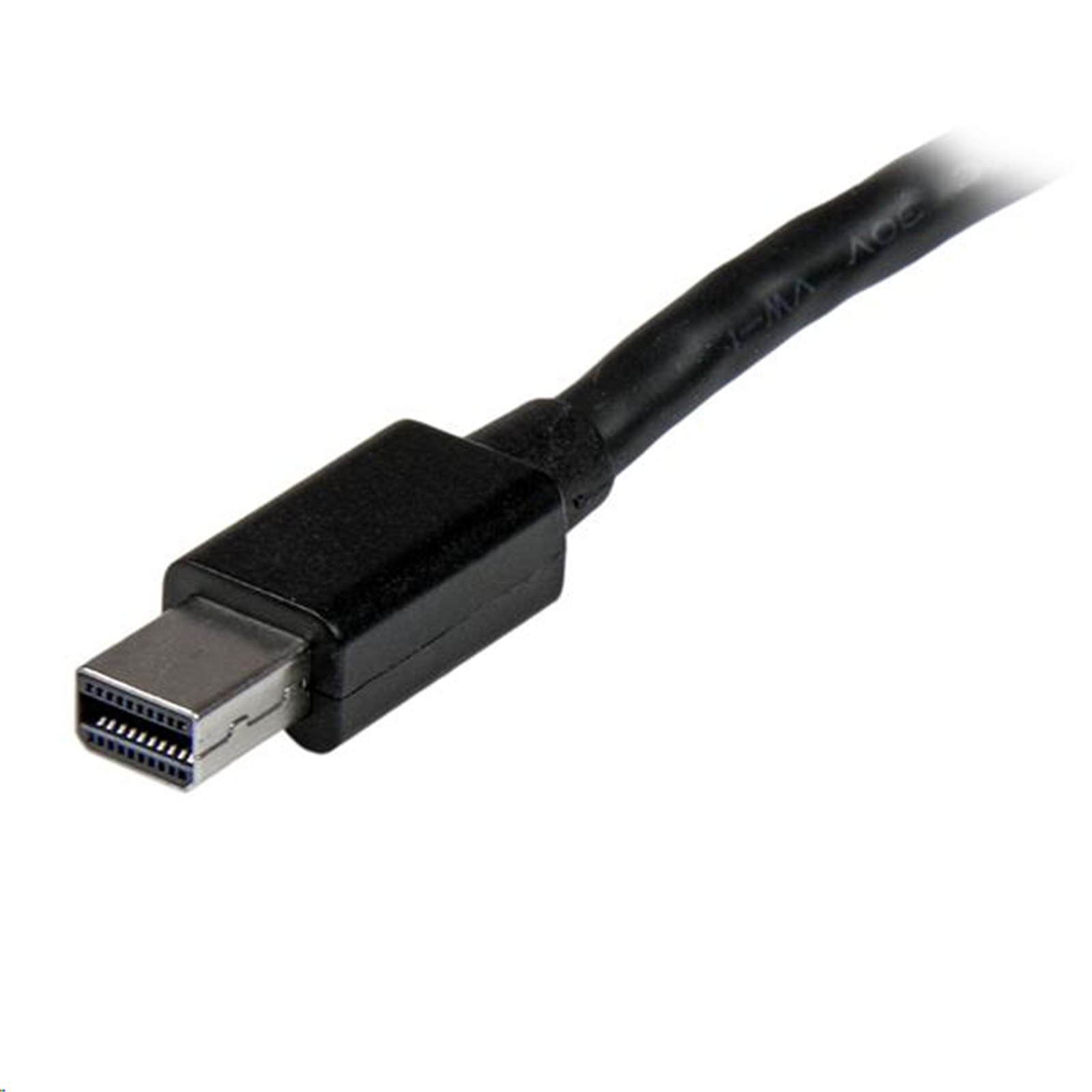

Mini DisplayPort (Male)

Output Connector

3x DisplayPort (Female)

Returns & Warranty Bulk Quote Print Page

Features

https://www.startech.com/nz/AV/display-and-video-adapters/Displayport-Adapters/Mini-DisplayPort-Triple-Head-DisplayPort-Multi-Monitor-MST-Hub~MSTMDP123DP

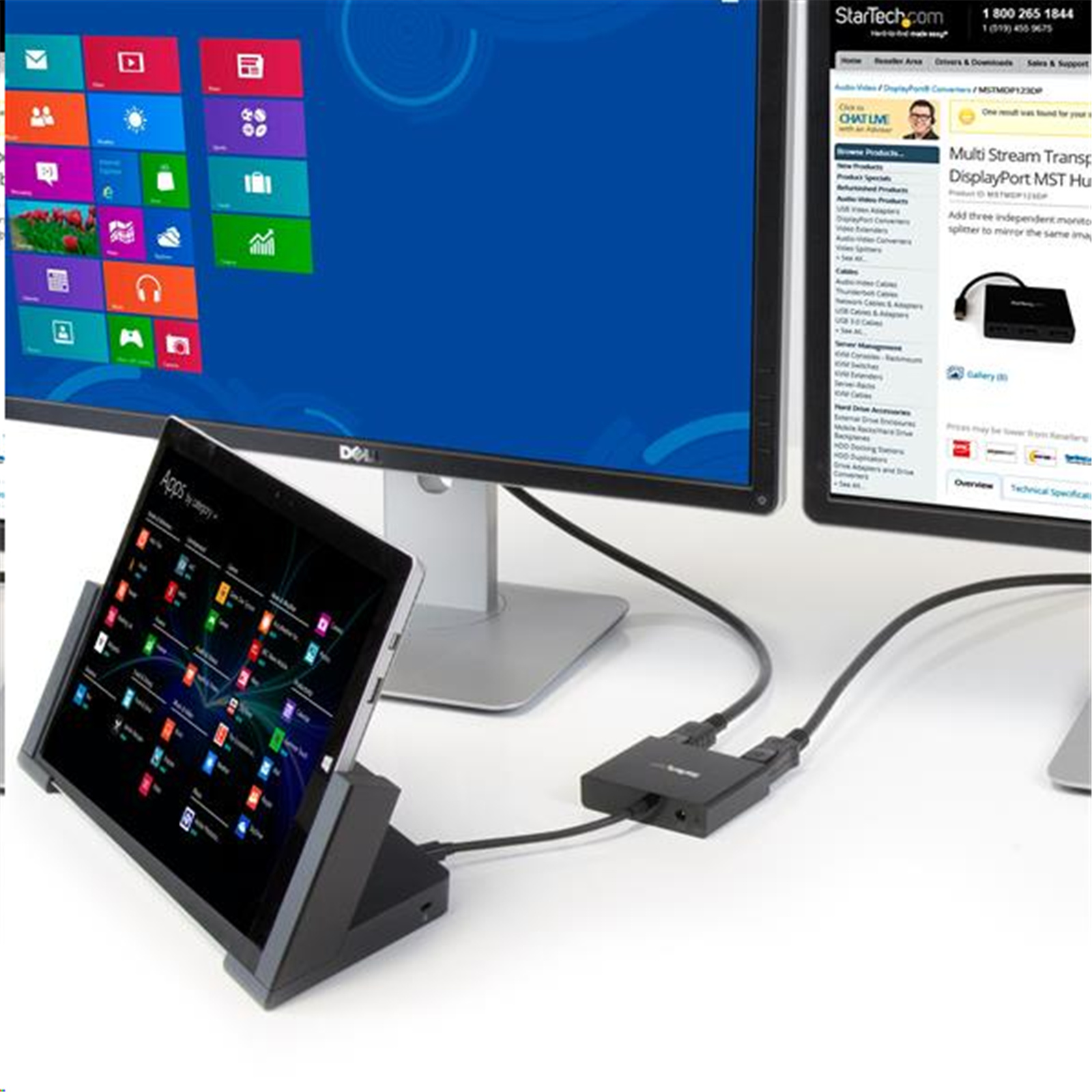

This MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.

Increase your productivity with multiple monitors

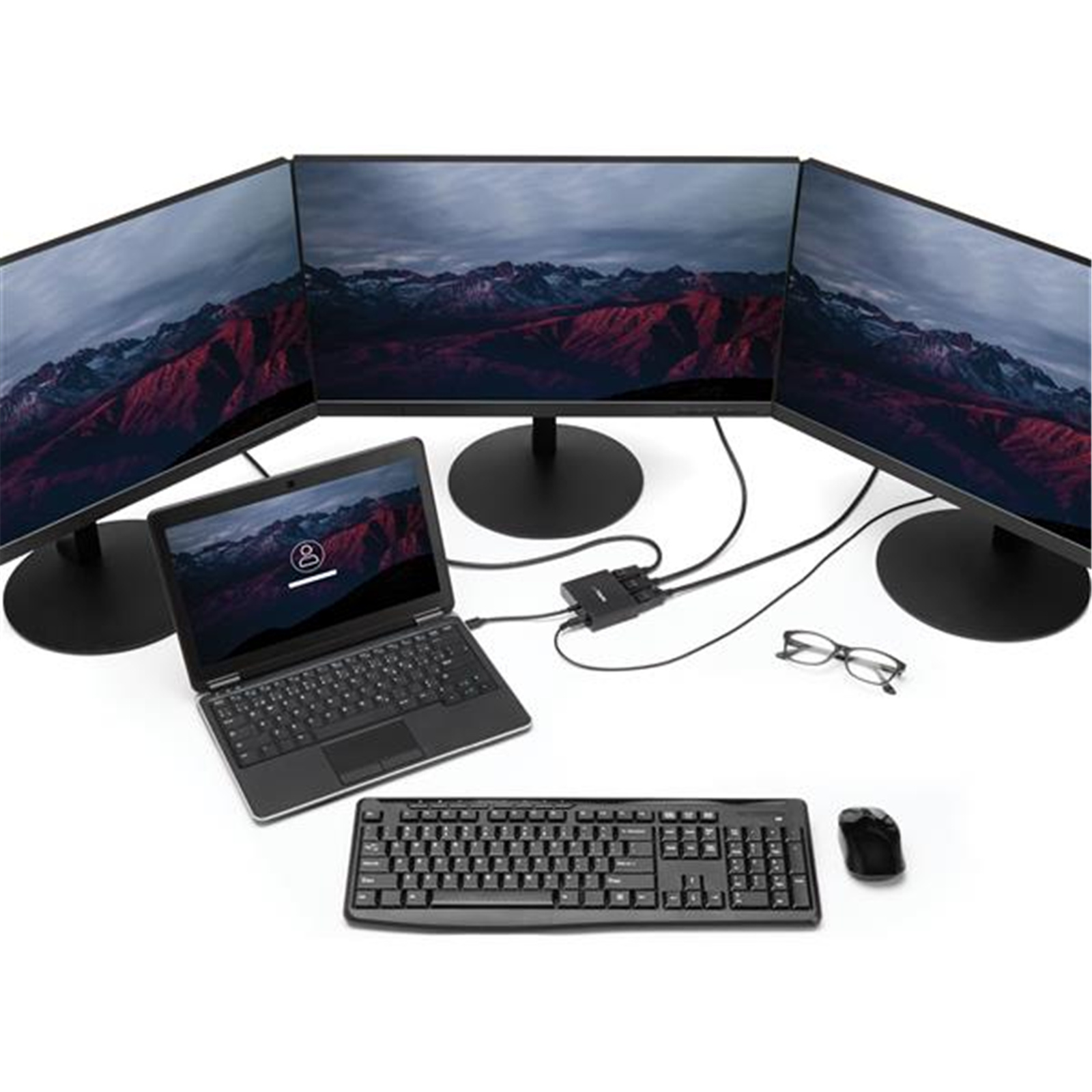

The newest generations of laptops are more portable than ever, unfortunately this means you're left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won't drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Works with any monitor, television or projector

With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Specifications

Hardware

Audio
Yes
Chipset ID
STDP4320
Converter Type
MST Hub
Output Signal
DisplayPort
Ports
3

Performance

Maximum Digital Resolutions
Up to 4K
Supported Resolutions
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.
Average resolution bandwidth allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Wide Screen Supported
Yes

Connector(s)

Connector A
1 - Mini-DisplayPort (20 pin) Male
Connector B
3 - DisplayPort (20 pin) Latching Female

Software

OS Compatibility
Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)

Special Notes / Requirements

Note
DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
When using a DisplayPort 1.1 video card the MSTMDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply
Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.

Power

Center Tip Polarity
Positive
Input Current
0.5 A
Input Voltage
110V-240V AC
Output Current
3A
Output Voltage
5 DC
Plug Type
N
Power Consumption (In Watts)
15
Power Source
AC Adapter Included

Environmental

Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)

Physical Characteristics

Colour Black
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 7.9 in [200 mm]
Product Weight 3.4 oz [95 g]
Product Width 3.1 in [78 mm]

Packaging Information

Shipping (Package) Weight
1.3 lb [0.6 kg]

What's in the Box

Included in Package
1 - Mini DisplayPort to DisplayPort MST Hub
1 - Universal Power Adapter (NA/EU/UK/AUS)
1 - Instruction Manual

Manufacturer Part No:

MSTMDP123DP

Brand:

StarTech.com

Product Type:

UPC

065030851879

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

ADPSTT2639115

Product Model:

MSTMDP123DP

Warranty: 24 months *
