StarTech.com PEX8S952 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART
Out of stock
StarTech.com PEX8S952 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART
- Brand: StarTech.com
- MPN: PEX8S952
- Part #: ADPSTT2902520
- UPC: 065030834438
View all shipping info
- Brand: StarTech.com
- MPN: PEX8S952
- Part #: ADPSTT2902520
- UPC: 065030834438
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Adapters





StarTech.com PEX8S952 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART
- Brand: StarTech.com
- MPN: PEX8S952
- Part #: ADPSTT2902520
- UPC:065030834438

Product URL: https://www.pbtech.com/au/product/ADPSTT2902520/StarTech-PEX8S952-8-Port-Native-PCI-Express-RS232
Features

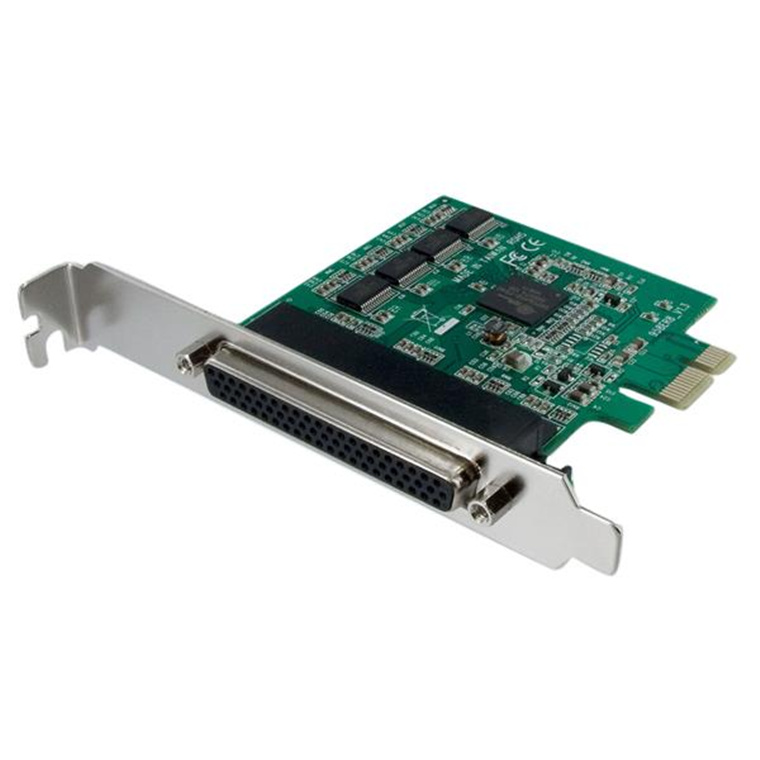

The PEX8S952 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART allows you to turn a PCI Express slot into eight RS232 (DB9) serial connections using the included breakout cable.
The serial card is based on a native chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed, and reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a PCI to PCIe bridge.
The RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS for easy integration into mixed environments.
Specifications
Bus Type
PCI Express
Card Type
Standard Profile
Chipset ID
PLX/Oxford - OXPCIe958
PLX/Oxford - OXPCIe954
Interface
Serial
Port Style
Dongle (Included)
Ports
8
Performance
FIFO
128 Bytes
Max Baud Rate
460.8 Kbps
MTBF
87,600 Hours
Serial Protocol
RS-232
Connector(s)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
8 - DB-9 (9 pin, D-Sub) Male
Environmental
Humidity
5~85% RH
Operating Temperature
-10°C to 80°C (14°F to 176°F)
Storage Temperature
-20°C to 100°C (-4°F to 212°F)
Included in Package
1 - 8 Port Serial Card
1 - 8 Port DB9 Break-out cable
1 - Driver CD
1 - Instruction Manual
