StarTech.com ICUSB23208FD 8-Port USB-to-Serial Adapter Hub
- Brand: StarTech.com
- MPN: ICUSB23208FD
- Part #: ADPSTT3407649
- UPC:065030866705

Product URL: https://www.pbtech.com/au/product/ADPSTT3407649/StarTechcom-ICUSB23208FD-8-Port-USB-to-Serial-Adap
Features

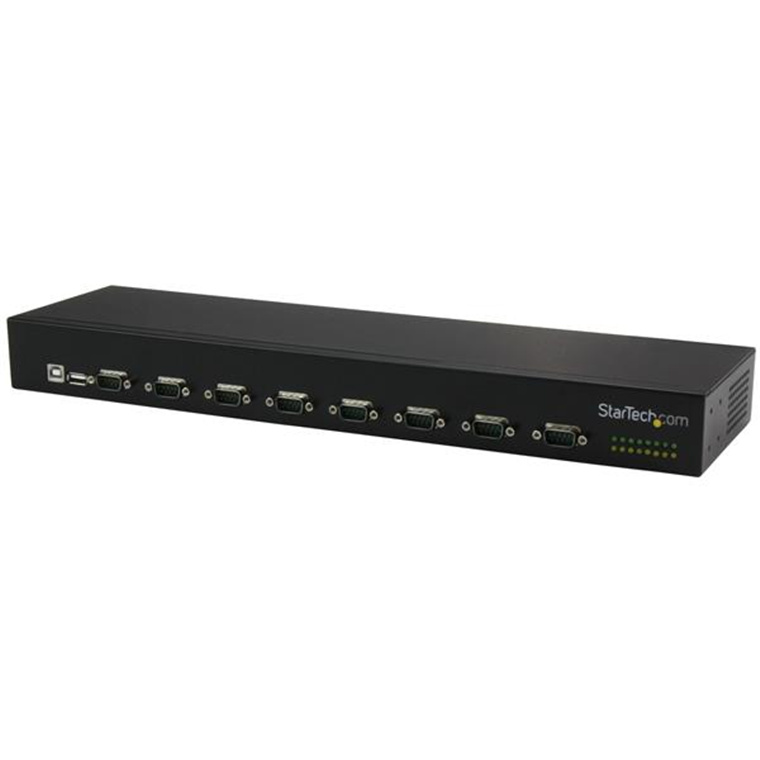

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments

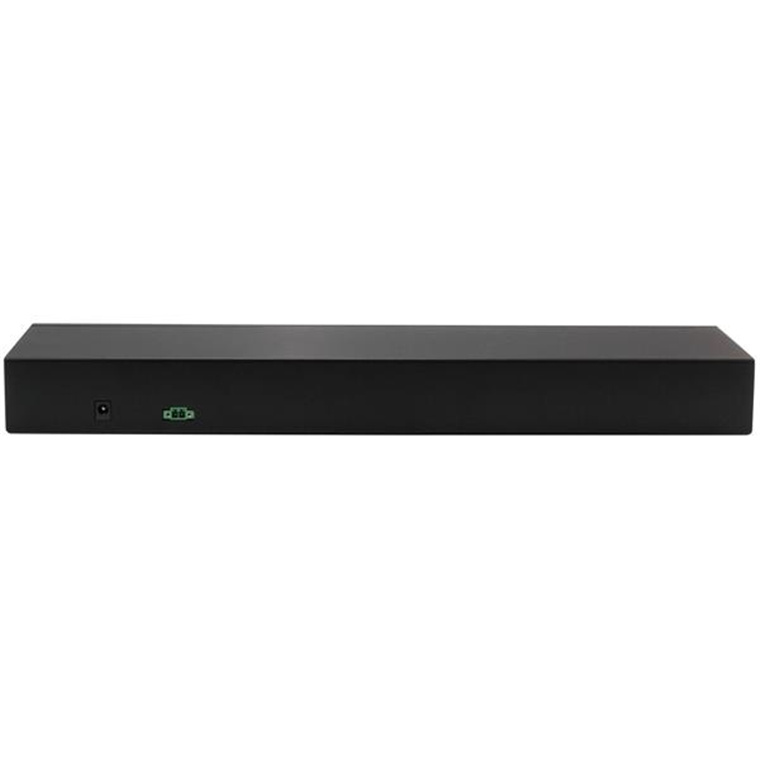

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
Specifications
USB 2.0
Chipset ID
FTDI - FT4232
Interface
Serial
Port Style
External Hub
Ports
8
Data Bits
7, 8
FIFO
256 Bytes
Max Baud Rate
921.6 Kbps
Maximum Data Transfer Rate
480 Mbps
Parity
Odd, Even, Mark, Space, None
Serial Protocol
RS-232
Stop Bits
1, 2
Connector Type(s)
1 - USB B (4 pin) Female
8 - DB-9 (9 pin, D-Sub) Male
LED Indicators
8 - Data Transmit
8 - Data Receive
Center Tip Polarity
Positive
Input Current
1.5 A
Input Voltage
100 ~ 240 AC
Output Current
3 A
Output Voltage
12 DC
Plug Type
B
Power Consumption (In Watts)
36
Humidity
20~80% RH (Non-condensing)
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Storage Temperature
-65°C to 150°C (-85°F to 302°F)
Cable Length
35.4 in [900 mm]
Color
Black
Enclosure Type
Aluminum
Product Height
1.8 in [45 mm]
Product Length
16.9 in [430 mm]
Product Weight
48.2 oz [1365 g]
Product Width
4.7 in [120 mm]
What's in the Box
1 - 8-port USB to RS232 hub
1 - 18 in. [46 mm] USB 2.0 cable
2 - rack-mounting brackets
8 - rack-mounting screws
2 - DIN-rail mounting brackets
4 - DIN-rail mounting screws
4 - washers
4 - nuts
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - driver CD
1 - terminal block plug
1 - quick-start guide
