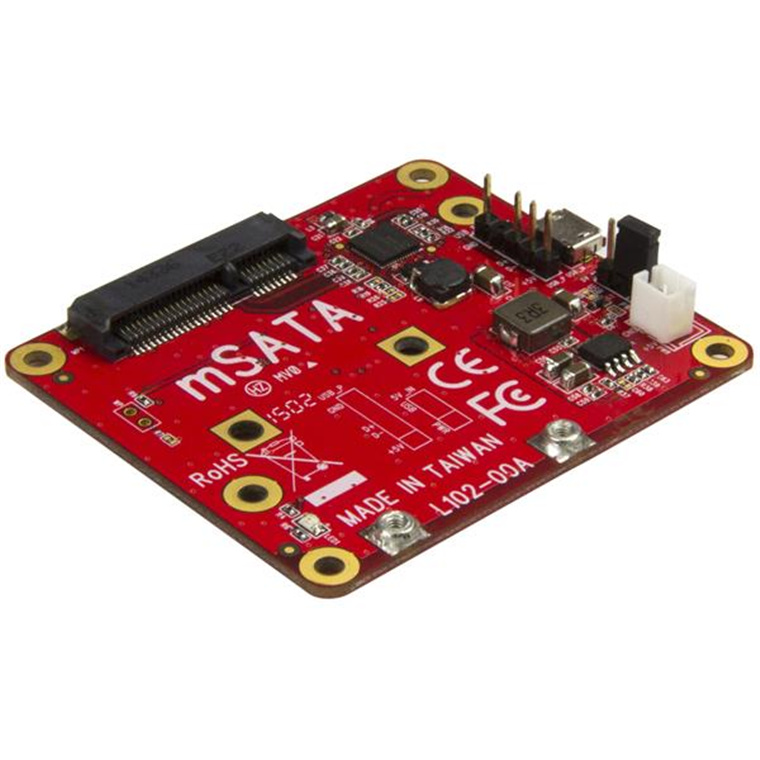

StarTech.com PIB2MS1 USB to mSATA Converter for Raspberry Pi
- Brand: StarTech.com
- MPN: PIB2MS1
- Part #: ADPSTT3572149
- UPC:065030866804

Product URL: https://www.pbtech.com/au/product/ADPSTT3572149/StarTechcom-PIB2MS1-USB-to-mSATA-Converter-for-Ras
Features
Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an mSATA drive. Perfect for custom projects and applications, this USB to mSATA converter supports all models of Raspberry Pi as well as other development boards.
Add storage capacity to your development board
This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your board's USB-A port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing development board. It's the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It allows you to utilize your mSATA drives with your development board, and take advantage of the small form factor of mini-SATA, ideal for applications with space limitations.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install and doesn't require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
Specifications
USB 2.0
Chipset ID
Renesas/NEC - µPD720231A
Compatible Drive Types
mSATA (Mini SATA)
Drive Size
mSATA (Full Size)
Interface
USB 2.0
Number of Drives
1
Maximum Data Transfer Rate
480 Mbps
MTBF
5,077,966 hrs
Type and Rate
USB 2.0 - 480 Mbit/s
SATA III (6 Gbps)
Drive Connectors
1 - mSATA (52 pin, Mini SATA) Slot
Host Connectors
1 - USB Micro-B (5 pin)
Power Source
USB-Powered
Humidity
15% ~ 90% RH
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Color
Red
Included in Package
1 - USB to mSATA converter
1 - USB-A to Micro-B cable
4 - standoffs
4 - nuts
4 - screws
2 - mSATA mounting screws
1 - quick-start guide
