StarTech.com DK30C2DAGPD USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable
StarTech.com DK30C2DAGPD USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable
- Brand: StarTech.com
- MPN: DK30C2DAGPD
- Part #: ADPSTT4349713
- UPC: 065030878746
View all shipping info
- Brand: StarTech.com
- MPN: DK30C2DAGPD
- Part #: ADPSTT4349713
- UPC: 065030878746
What PB Tech customers are saying about this product...
See More Reviews"exactly as promised."
"This is a plug and play DP docking station. All smooth after connecting my 2 monitors. I'm a happy customer!"
"You can’t ask anything better than getting the product ahead of estimated delivery. Plug it in and it works as you expected. A nice slick design and robust unit. An excellent bra ...view more"
COMBO DEALS: Frequently Bought Together
Dynamix C-DP12-2M DisplayPort 1.2 Cable - with Gold Shell Connectors - 2m DDC Compliant - 4K 60Hz
$9.81 +GST
$10.79
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$62.40 +GST
$68.64
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular DisplayPort Adapters
Cruxtec DisplayPort to HDMI Adapter - (1920*1080/60Hz)
Dell 492-BCBE DisplayPort to HDMI 2.0 (4K) ADAPTER Enjoy...
8Ware DP2HDMI DisplayPort to HDMI Adapter 1920x1200 full HD
UGREEN 40360 Mini DP to HDMI Converter 4K (Black) Adapter
Cruxtec DT2H-4K-SG DP 1.4 to 2x HDMI 2.0 Adaptor
StarTech.com DK30C2DAGPD USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable
- Brand: StarTech.com
- MPN: DK30C2DAGPD
- Part #: ADPSTT4349713
- UPC:065030878746
Product URL: https://www.pbtech.com/au/product/ADPSTT4349713/StarTechcom-DK30C2DAGPD-USB-C-Dock---4K-Dual-Monit?is-review=1
Features

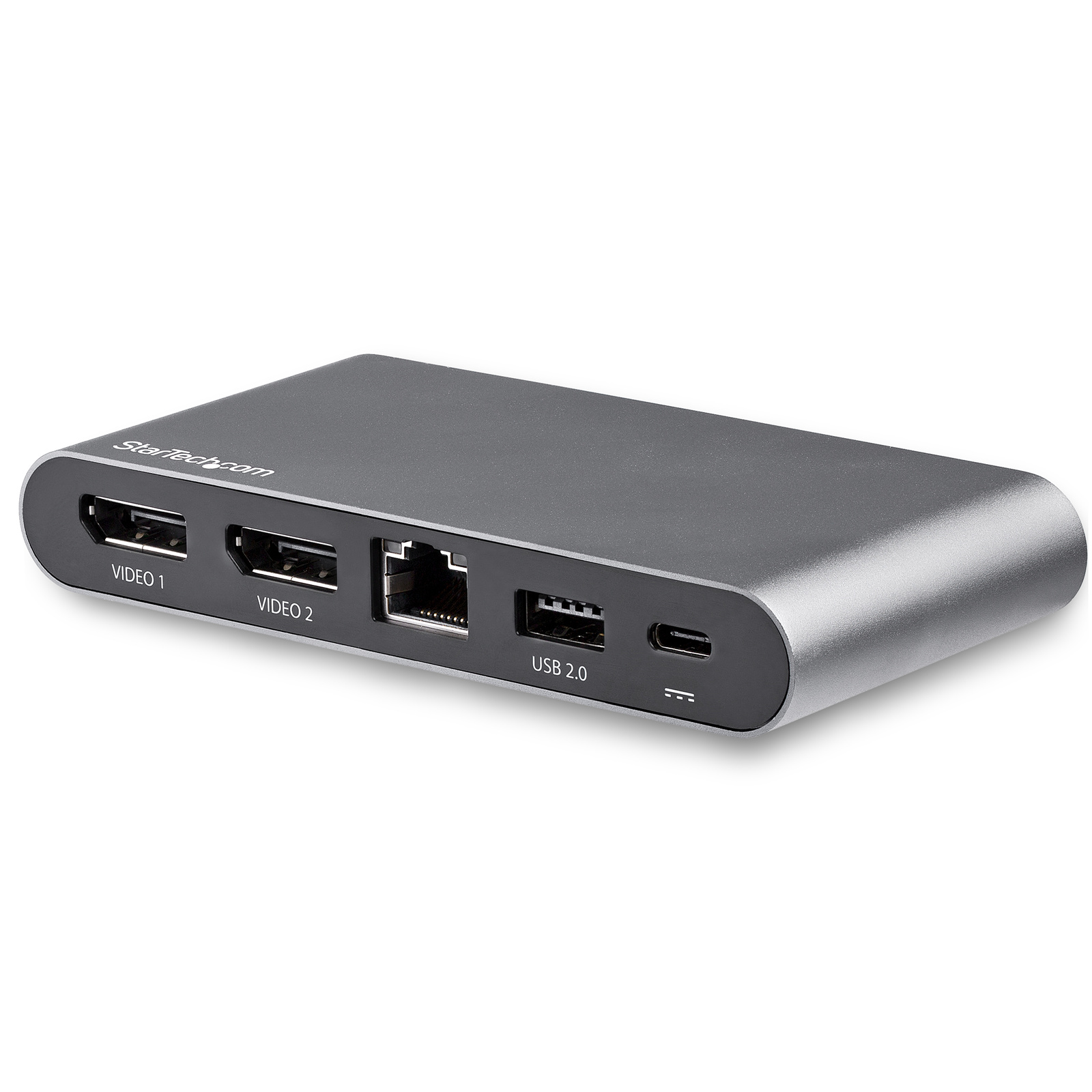

This USB-C multiport adapter turns your Windows® laptop into a portable workstation. The USB-C to dual DisplayPort adapter connects your USB-C laptop to two DisplayPort monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.
Laptop Charging with PD 3.0
Through 100W?Power Delivery?3.0,?the?USB Type-C to DisplayPort adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter.?PD?3.0 features Fast Role Swap to prevent USB data disruption when?you?unplug?the power adapter to?switch?power sources (USB-C?power adapter to?bus power).?
Connect to Dual DP Monitors?with Flexible Resolution Options

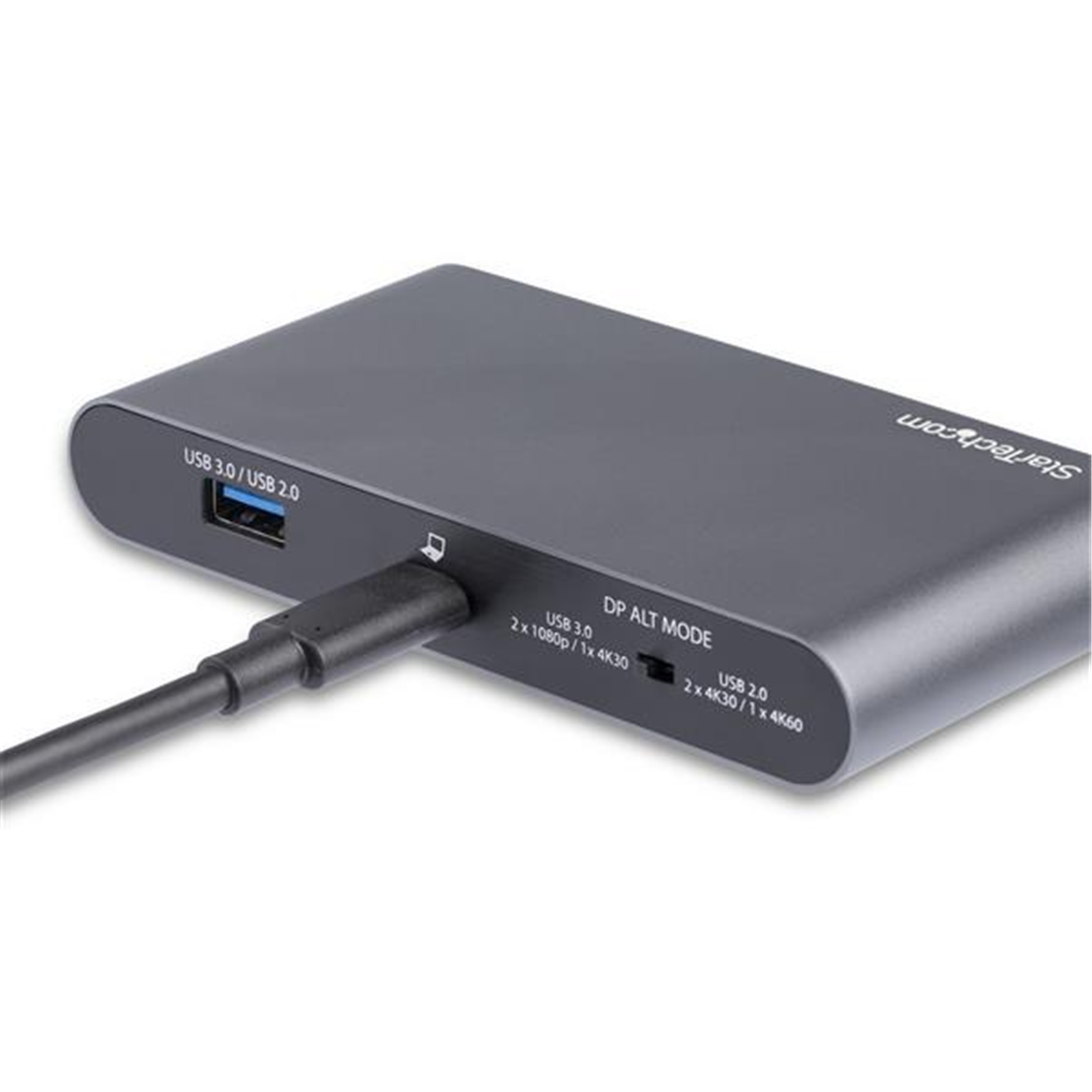

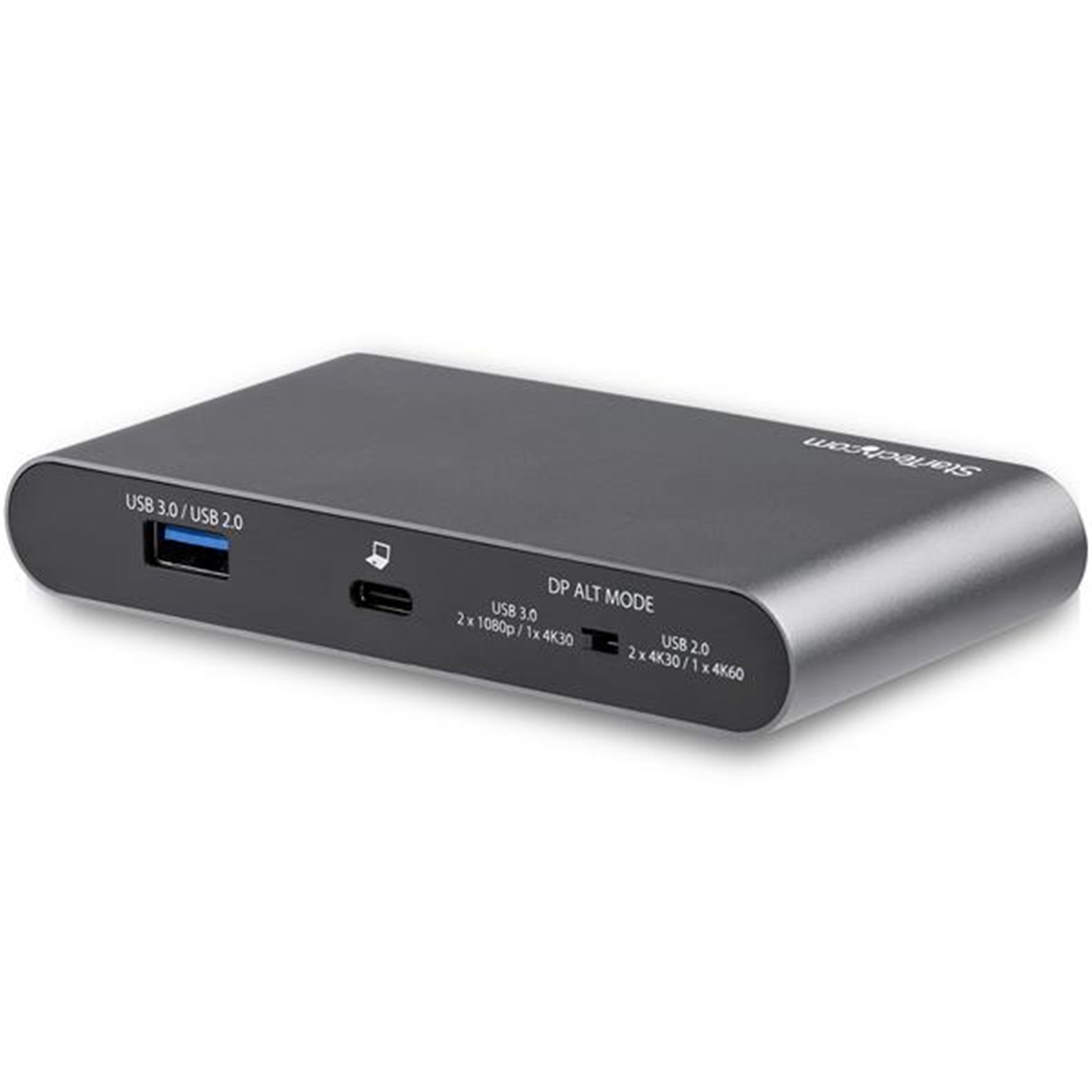

The USB-C video adapter extends your laptop screen to?dual DisplayPort displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.
The maximum Ethernet speed is 1000 Mbps in USB 3.0 mode, and 100 Mbps in USB 2.0 mode.
Connect?USB?Devices?
The?USB-C hub with DisplayPort gives you two?USB-A ports (one USB 3.0/USB 2.0, and one USB 2.0).
Reliable?Network?Connectivity?

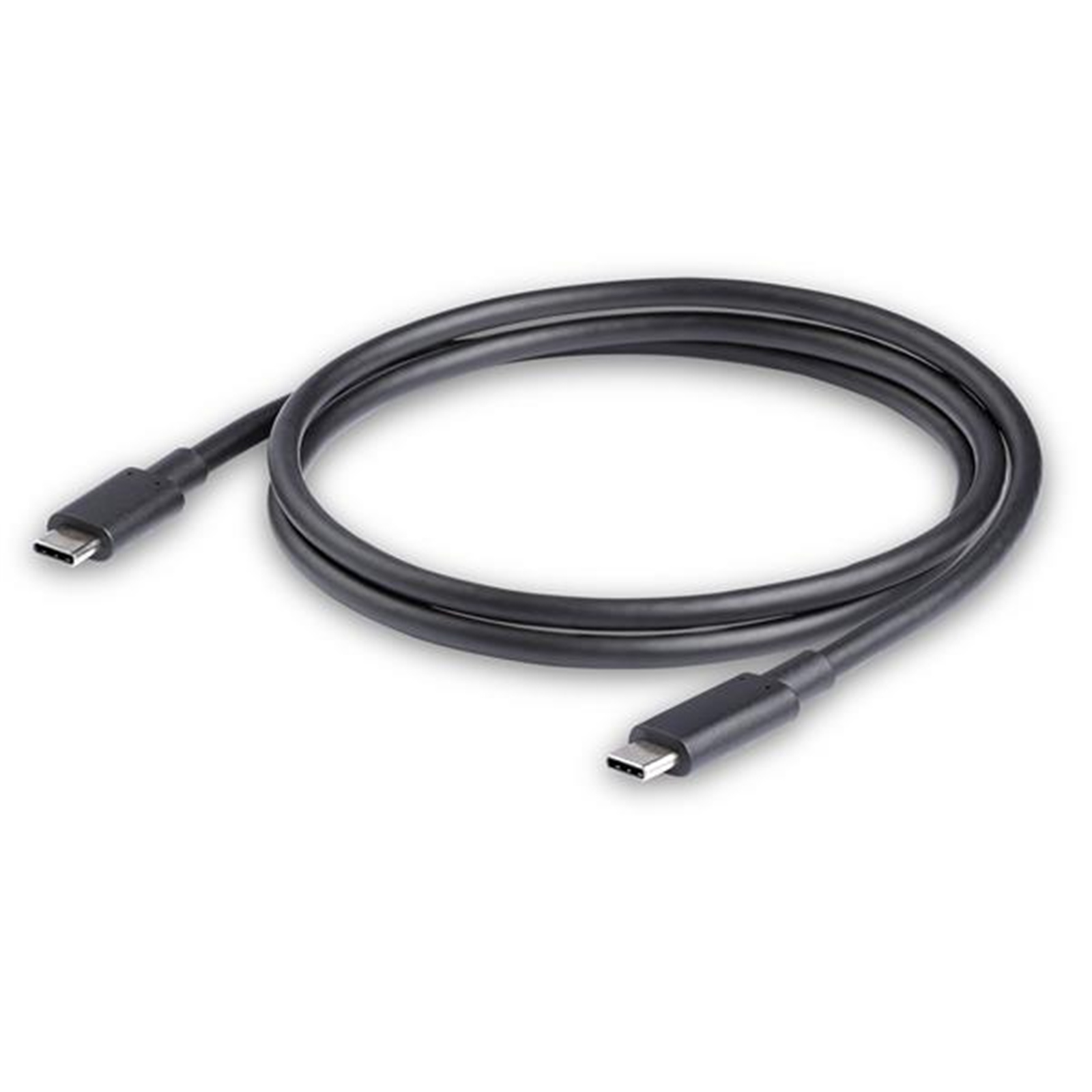

The GbE port ensures reliable network access.?A 1 m USB-C cable is included for set-up flexibility.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.?
Applications
- Boardroom presentations, with two display outputs
- Create a two-monitor workstation, cost-effectively
Specifications
HARDWARE
4K Support
Yes
Bus Type
USB-C
Chipset ID
VIA/VLI - VL102
VIA/VLI - VL170
VIA/VLI - VL817
MegaChips - STDP4320
RealTek - RTL8153
Displays Supported
2
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX
Yes
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz
Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz
Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
CONNECTOR(S)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
1 - USB-C (24 pin) USB Power Delivery only Female
2 - DisplayPort (20 pin) Female
1 - RJ-45 Female
1 - USB Type-A (9 pin) USB 3.0 Female
1 - USB Type-A (4 pin) USB 2.0 Female
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
SPECIAL NOTES / REQUIREMENTS
Note
For a dual-monitor configuration the host laptop must support MST.
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power).
The multiport adapter provides limited Android support (no MST support).
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop's USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop's charging requirements, refer to the manufacturer of your laptop.
Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).
In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps.
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter)
POWER
Laptop Charging via Power Delivery
85W
Power Consumption (In Watts)
15W
Power Delivery
100W
Power Source
Bus Powered and Host USB-C Power Adapter
ENVIRONMENTAL
Humidity
0~95% RH (Non-condensing)
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Plastic
Product Height
18.8 mm [0.7 in]
Product Length
120 mm [4.7 in]
Product Weight
200 g [7.1 oz]
Product Width
60 mm [2.4 in]
