Features
USB-C SINGLE MONITOR ADAPTER
USB-C DP Alt-mode to HDMI 2.0b (4K 60Hz, HDR, 7.1ch Audio, HDCP 2.2) or VGA (1920x1200 60Hz), USB-C PD pass through (100W), and 3.5mm Audio | This USB C Display Adapter supports mirrored HDMI+VGA video output at 1080p
EXTRA LONG CABLE

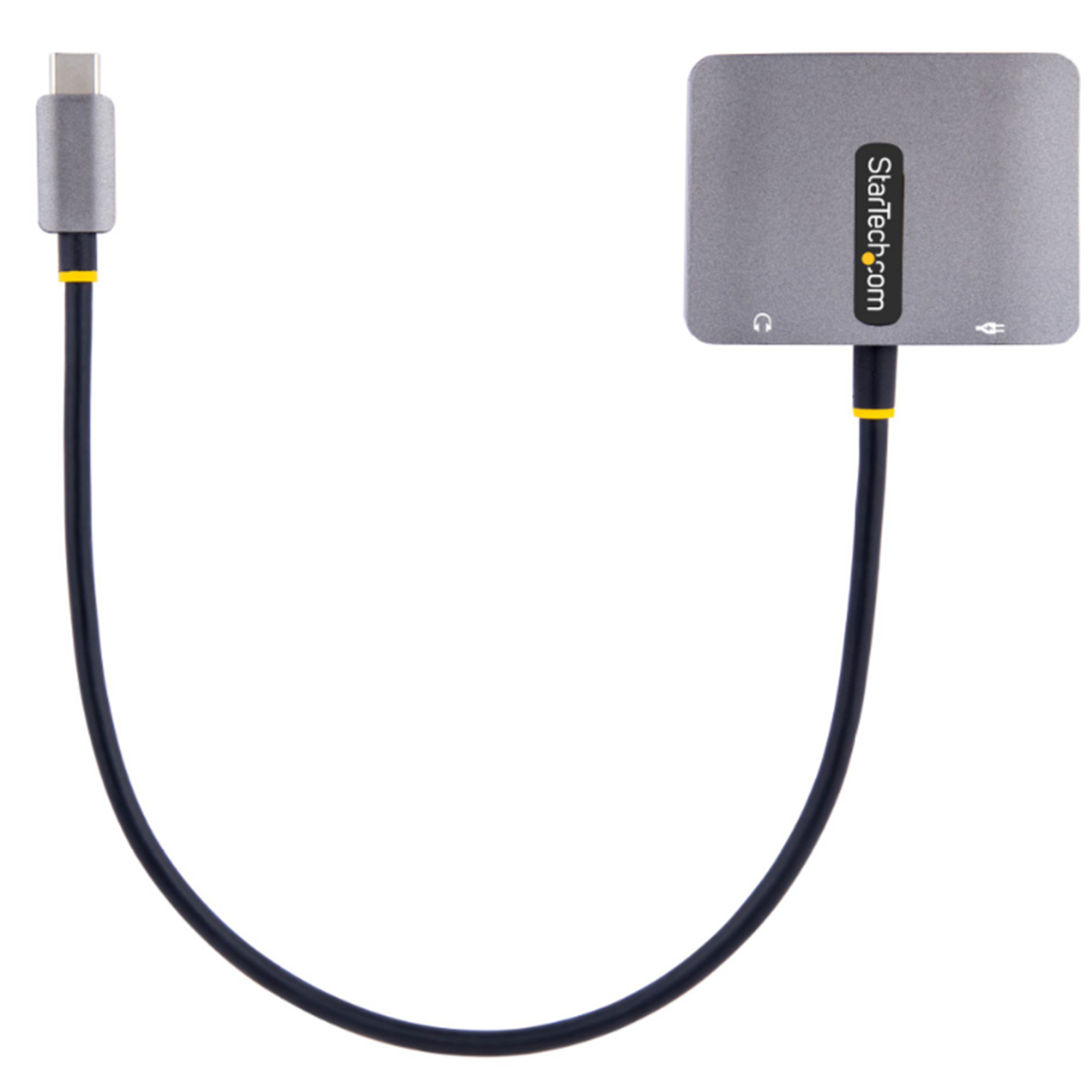

This USB Type C Video Adapter features a 12" (30cm) attached cable, for extended reach and to reduce port/connector strain on devices/tablets such as Surface Pro 7 and up, iPad Pro, HP Elite x2 series, or laptops on riser stands
RELIABLE PERFORMANCE
Bus powered or external USB-C power adapter with up to 100W Power Delivery 3.0 pass through | The USB C Multiport Adapter enables full 100W charging for laptops | Built-in chipset reduces signal loss, providing a crystal clear image
COMPREHENSIVE HOST COMPATIBILITY
USB-C DP Alt-mode, Thunderbolt 3, and Thunderbolt 4 laptops from HP/DELL/Microsoft/Lenovo or Surface/Ultrabook/Chromebook/MacBook (Intel and M1 chip) | Windows, macOS, iPadOS, Linux, Chrome OS and Android
APPLICATIONS
Use the 3.5mm Audio output to add speakers, when connected to a VGA projector | Mirrored HDMI+VGA displays are ideal for presentations | Convenient for on-the-go use in office, home, and business environments
Specifications
Connector(s)
Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode
1 - USB Type-C (24 pin) USB Power Delivery Only

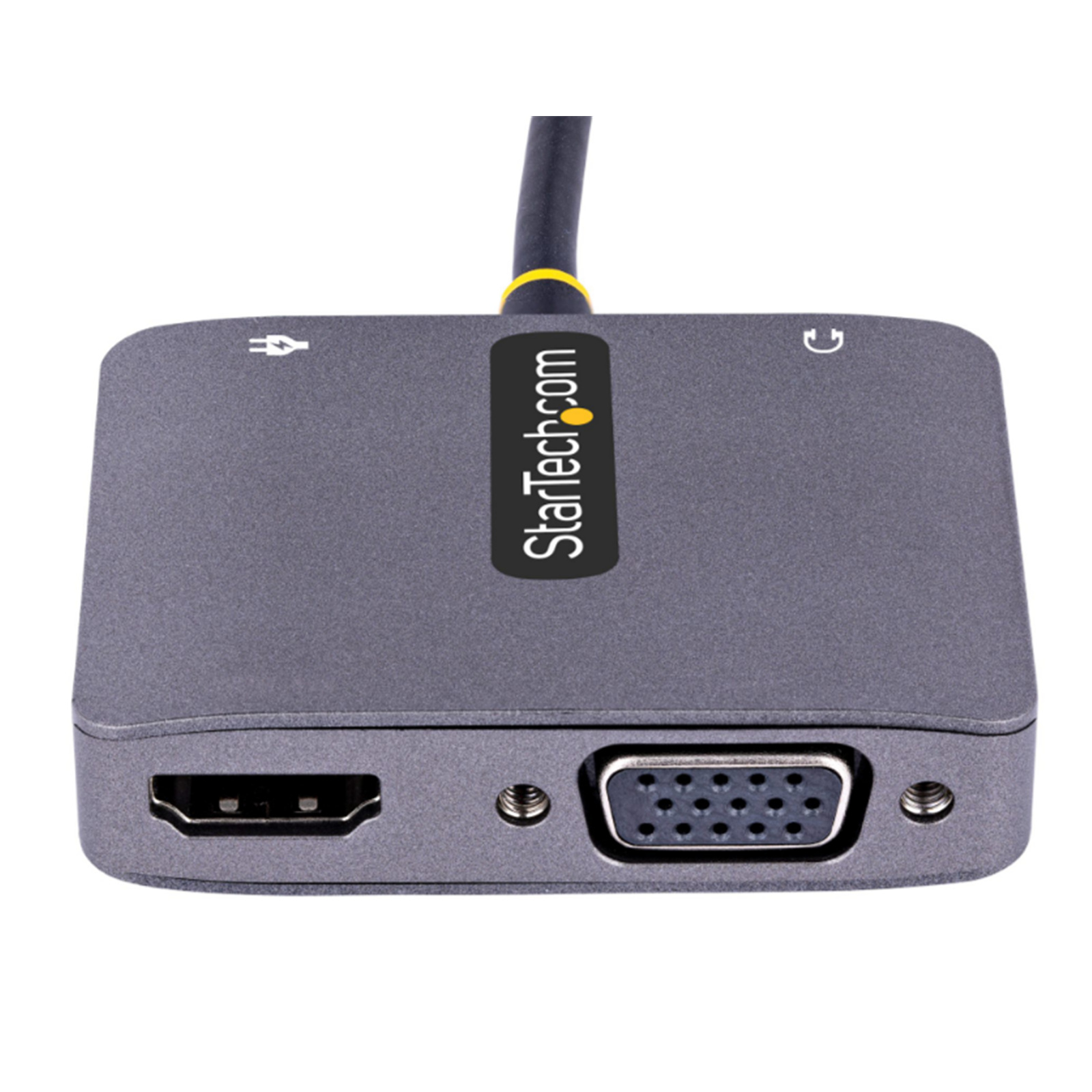

Connector B
1 - HDMI (19 pin)
1 - 15 pin High Density D-Sub (VGA) Female
1 - 3.5mm Stereo Female 3 pos
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10% - 85% RH
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
AV Output
VGA
HDMI
Chipset ID
VIA/VLI - VL103-Q4
ITE - IT6564FN
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
5.7 in [14.5 cm]
Shipping (Package) Weight
3.3 oz [94.0 g]
Package Width
6.9 in [17.5 cm]
Performance
Video Revision
HDMI 2.0b
Maximum Analog Resolutions
1920 x 1200 @ 60 Hz (VGA)
Maximum Digital Resolutions
3840 X 2160 @ 60 Hz (HDMI)
Supported Resolutions
Maximum HDMI output: 3840 X 2160 @ 60Hz
Maximum VGA output: 1920 x 1200 @ 60Hz
Lower resolutions and refresh rates may also be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Analog Stereo - 2 Channel Audio
General Specifications
Maximum Cable Distance To HDMI Display: 7m [22.9ft]
Maximum Cable Distance To VGA Display: 30m [98.4ft]
Physical Characteristics
Color
Gray
Product Height
0.6 in [1.4 cm]
Product Length
1.8 in [4.5 cm]
Weight of Product
1.4 oz [41.0 g]
Product Width
2.4 in [6.0 cm]
