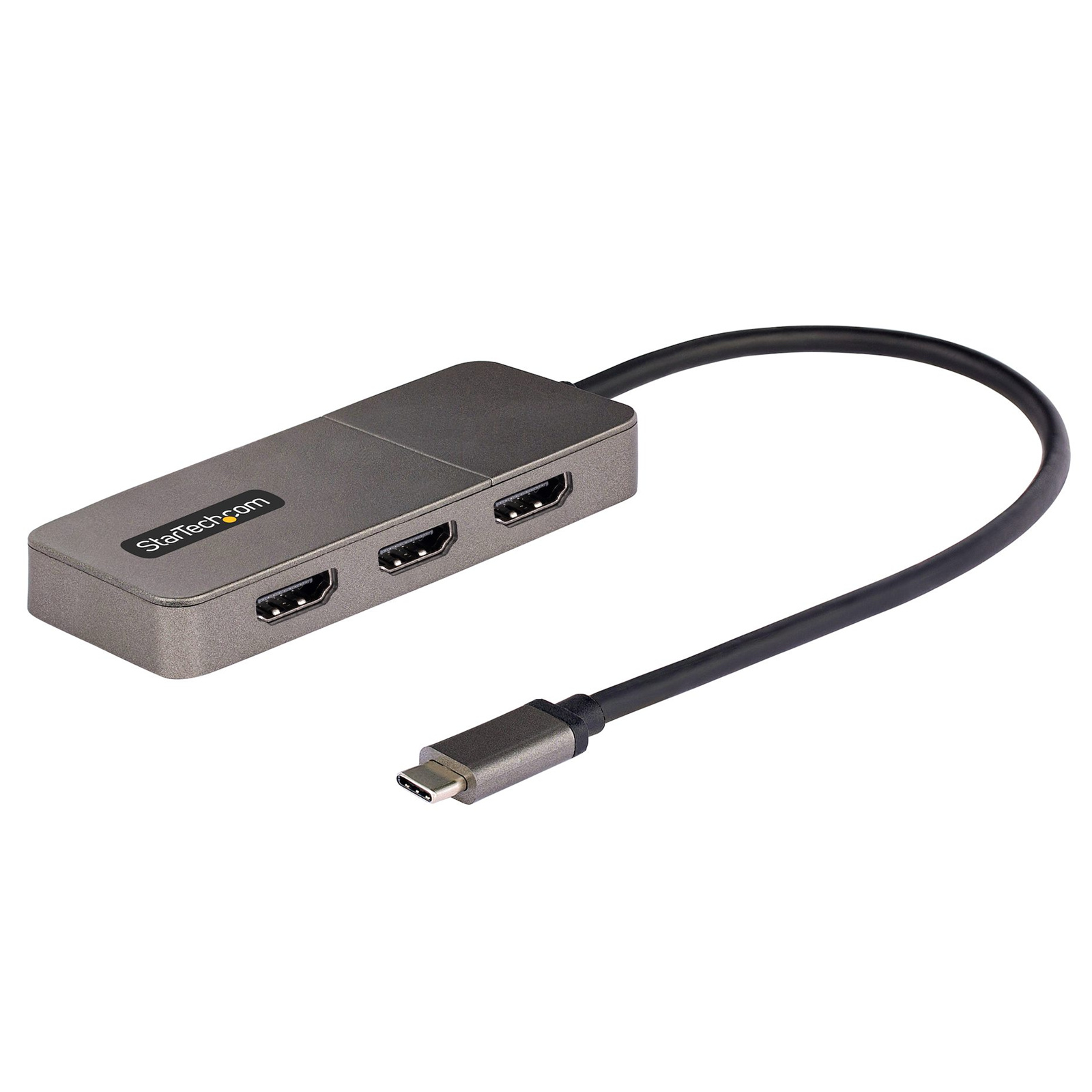

StarTech.com MST14CD123HD 3-Port USB-C to HDMI MST Hub 4K 60Hz
Out of stock
StarTech.com MST14CD123HD 3-Port USB-C to HDMI MST Hub 4K 60Hz
- Brand: StarTech.com
- MPN: MST14CD123HD
- Part #: ADPSTT5666761
- UPC:
View all shipping info
- Brand: StarTech.com
- MPN: MST14CD123HD
- Part #: ADPSTT5666761
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular HDMI Adapters





StarTech.com MST14CD123HD 3-Port USB-C to HDMI MST Hub 4K 60Hz
- Brand: StarTech.com
- MPN: MST14CD123HD
- Part #: ADPSTT5666761

Product URL: https://www.pbtech.com/au/product/ADPSTT5666761/StarTechcom-MST14CD123HD-3-Port-USB-C-to-HDMI-MST
Features
MULTI-MONITOR CONFIGURATION
- USB Type-C to Triple-HDMI MST Hub/Splitter drives up to three 4K 60Hz displays from a USB-C DP 1.4 host with DSC
- USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2
- TB3/TB4/USB4 Compatible
- Not compatible with macOS
NO DRIVERS OR SOFTWARE
Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.
- Increase productivity by adding three extended or mirrored displays to a Windows laptop
- Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
HARDWARE COMPATIBILITY
Configure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.
- Triple 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC
- See resolution chart below for other configurations
- Please verify number of displays supported by your GPU
*Please verify the GPU capabilities and DSC for MST driver support with the OEM of the host device
EXTRA-LONG CABLE
- 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 USB C devices like Surface Pro 7/8, HP Elite x2/laptops on riser stands
- Ideal for on-the-go travel use in office/home office/shared workspaces
Specifications
Connector(s)
Connector A

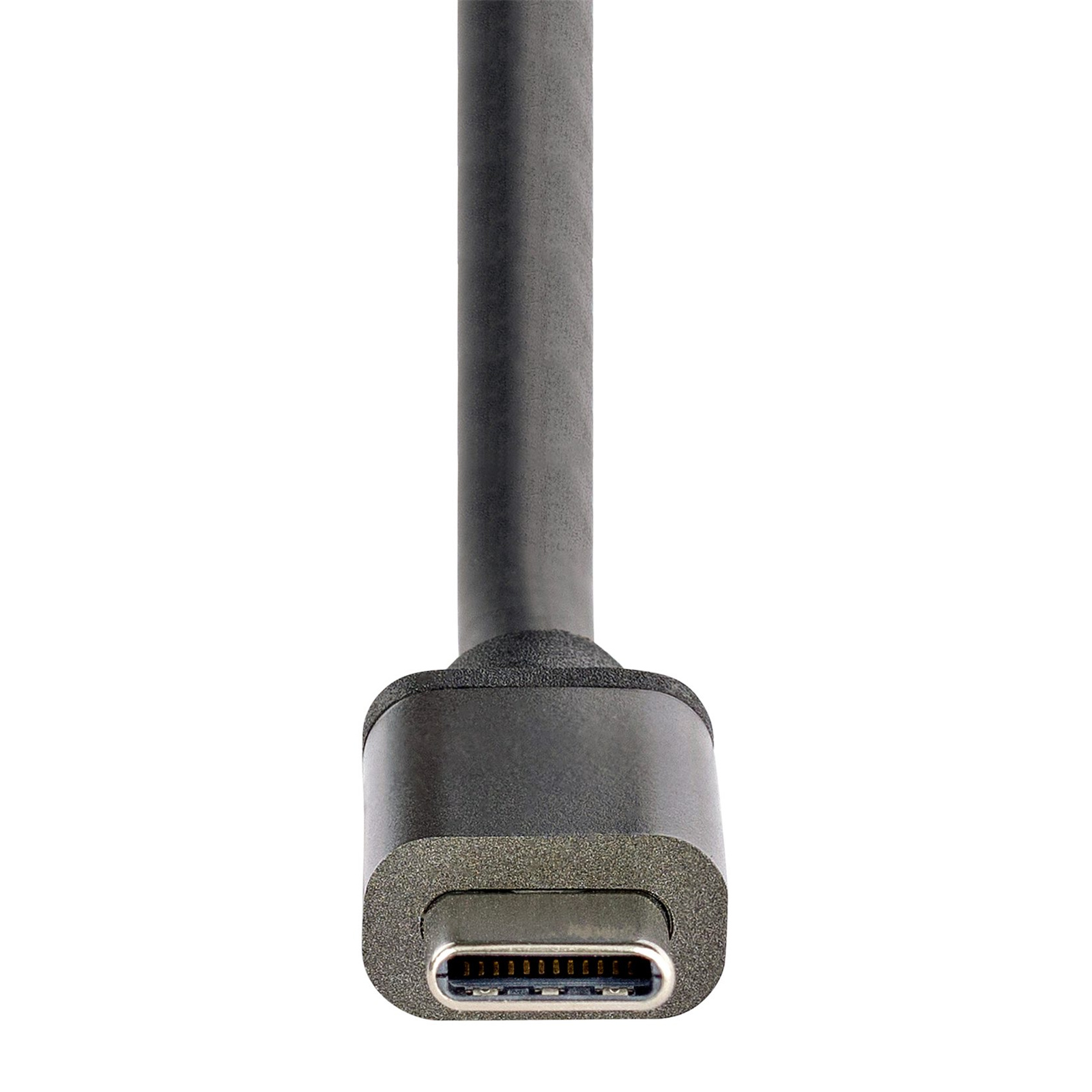

1 - USB-C (24 pin) DisplayPort Alt Mode
Connector B
3 - HDMI
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
Ports
3
AV Output
HDMI - 2.0
Chipset ID
Synaptics VMM5310
Performance
Video Revision
DisplayPort 1.4
Supported Resolutions
HDMI: 3840x2160 (4K) / 60Hz
Wide Screen Supported
Yes
Audio Specifications
HDMI - 2 Channel Audio
Physical Characteristics
Color
Space Gray
Product Length
10.5 cm [4.1 in]
Product Width
4.3 cm [1.7 in]
Product Height
1.4 cm [0.6 in]
Weight of Product
72.0 g [2.5 oz]
Material
Plastic
Cable Length
30 cm[11.8 in]
Power
Power Source
Bus Powered
Software
OS Compatibility
Window 11
Windows 11 ARM
Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
0% to 85% RH (non-condensing)
What's in the Box
Included in Package
1 - USB-C to 3x HDMI MST Hub
