Features

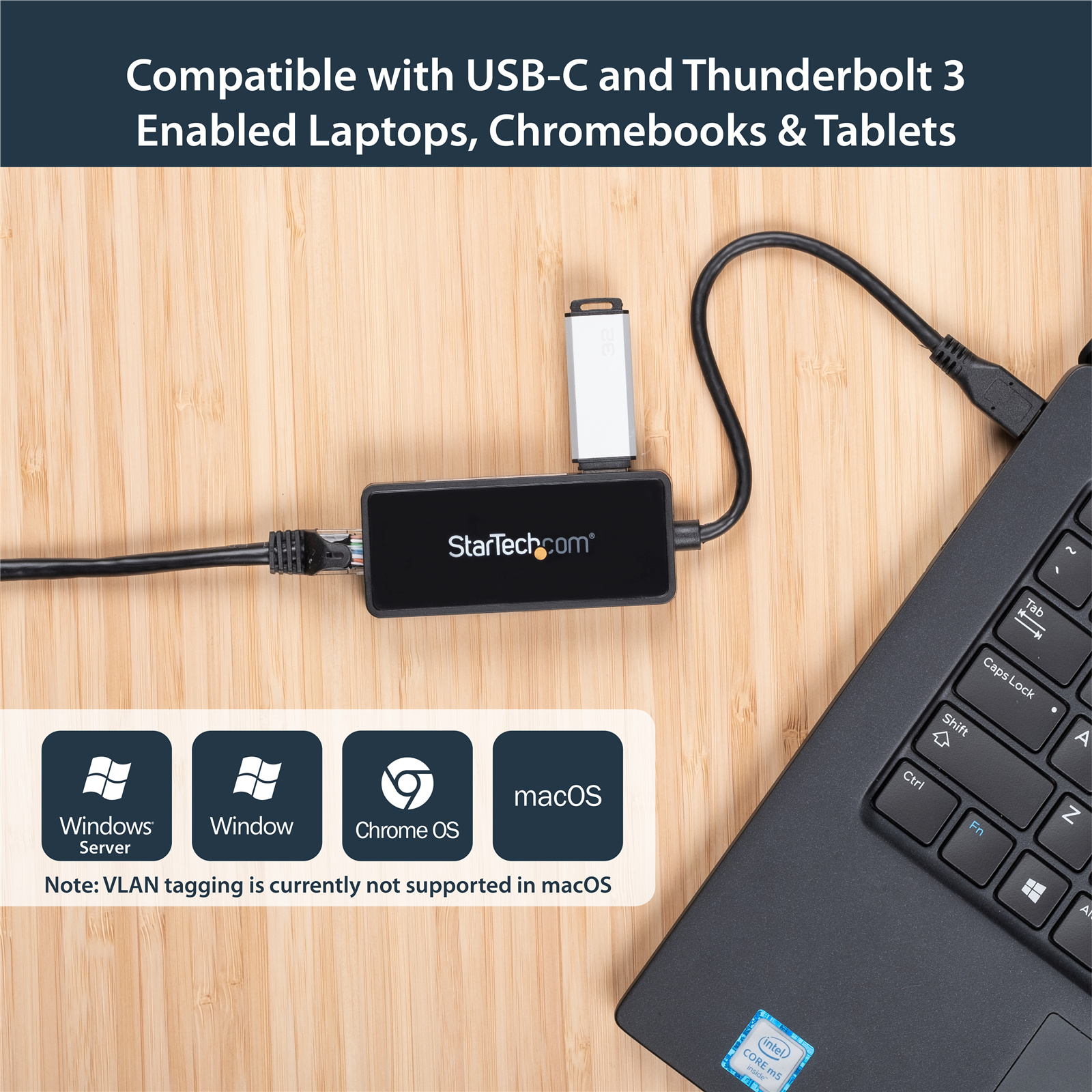

Now, you can easily connect to a Gigabit network through the USB-C or Thunderbolt 3 port on your laptop or desktop computer, and add connectivity for an additional USB (Type-A) peripheral device. This Gigabit Ethernet (GbE) network adapter provides a reliable network connection without having to install drivers. It's ready to go - with native driver support to ensure a quick setup. It's a great companion for your MacBook, Chromebook Pixel, Dell XPS 12, Dell Latitude 12 7000 Series 2-in-1 or other device.
Powerful Gigabit network connections
The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1 (5 Gbps). You can quickly access very large files over the network at Gigabit speed.
Native driver support makes installation easy
Get up and running quickly. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS and Windows 8.1, and supports Mac OSX (10.10) with driver installation.
Trouble-free connections through USB-Type-C

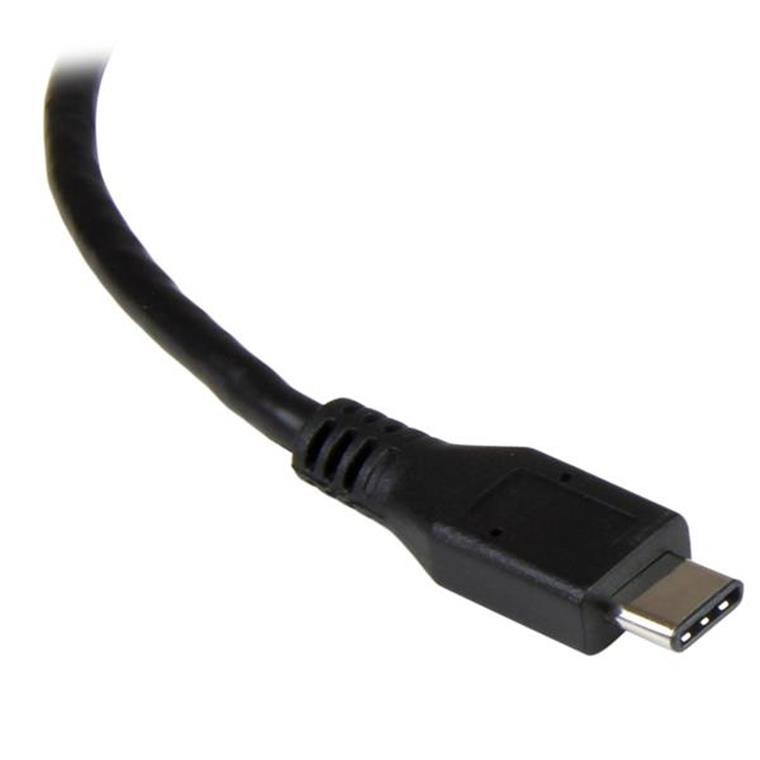

The USB-C connector is smaller and easier to use than previous USB connectors. It's a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.
With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel™. The network adapter is bus-powered which makes it easy to connect when you're on the go.

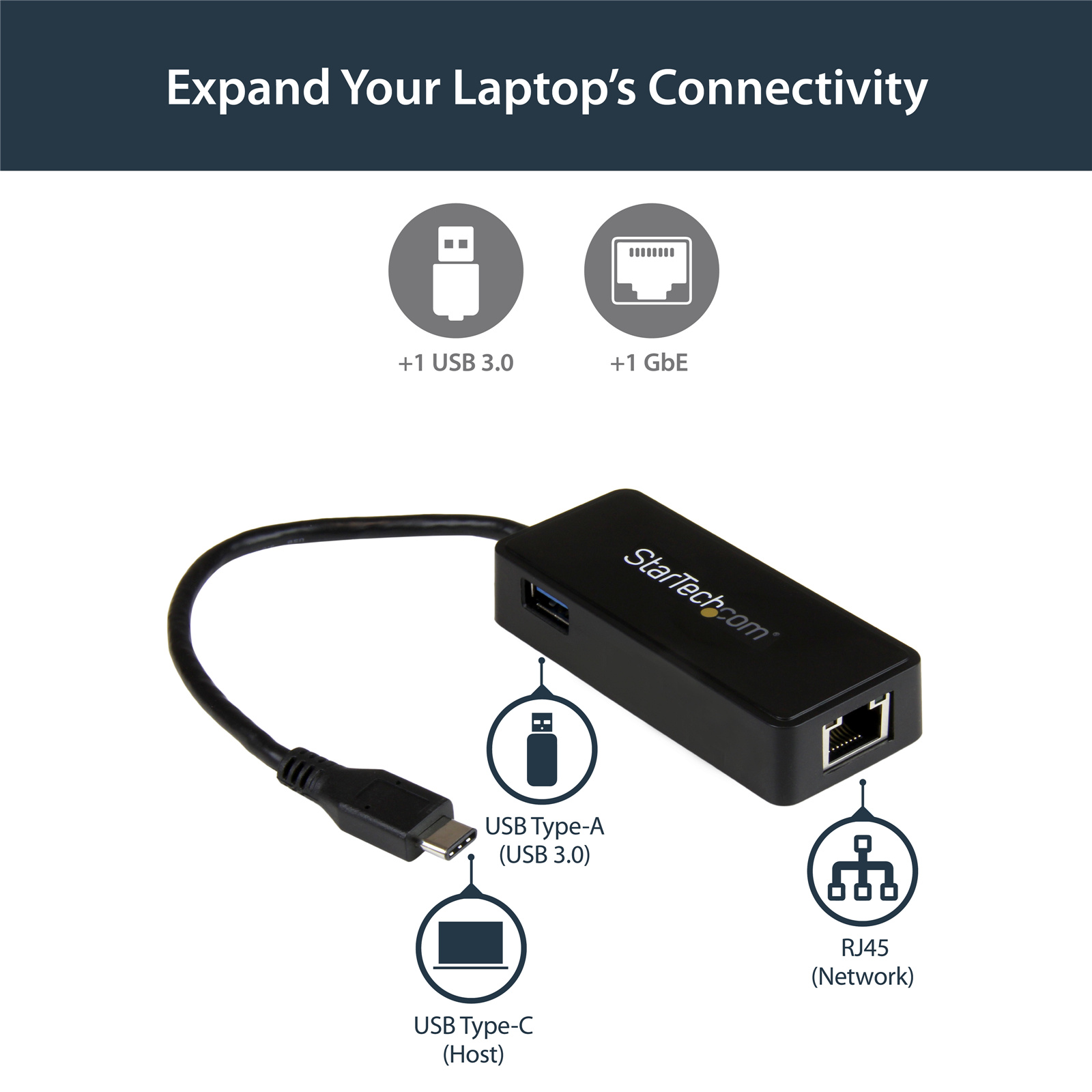

Additional connectivity with an extra USB 3.1 port
Some computers with USB Type-C only offer one port for external connectivity. This Ethernet adapter features a built-in USB Type-A port, giving you the freedom to attach an additional peripheral device, such as a USB mouse.
Specifications
Bus Type
USB 3.1 Gen 1
Interface
RJ45 (Gigabit Ethernet)
Ports
1
USB Pass-Through
Yes
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Jumbo Frame Support
4K max.
Maximum Data Transfer Rate
5 Gbps (USB 3.1 Gen 1)
Type and Rate
USB 3.1 Gen 1 - 5 Gbit/s
Connector Types
1 - USB Type-C (24 pin) USB 3.0 Male
External Ports
1 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female
1 - RJ-45 Latching Female
Software
OS Compatibility Windows XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012
Mac OS 10.6 to 10.12 VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.4.x LTS Versions only
LED Indicators
1 - 1 - 10/100 Link/Activity (Green)
1 - Gigabit Link/Activity (Amber)
Power Source
USB-Powered
Humidity
5% ~ 80% RH
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
Colour
Black
Enclosure Type
Plastic
Form Factor
Attached Cable

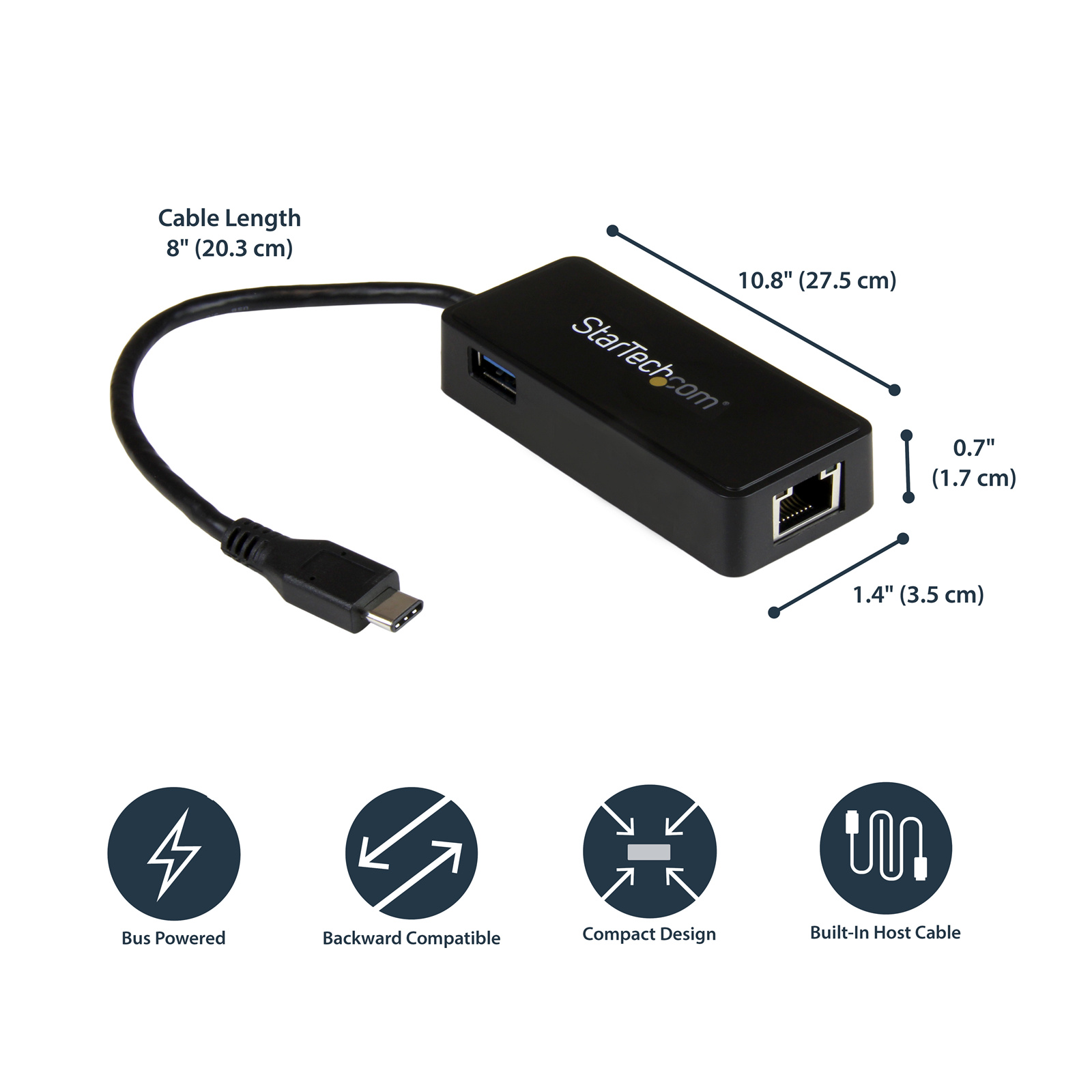

Dimensions
Height
0.7 in (17 mm)
Length
10.8 in (275 mm)
Width
1.4 in (35 mm)
