Adeunis DOUBLE LEVEL SENSOR, Bundle DRY CONTACTS + Double level sensor LoRaWAN EU863-870
Adeunis DOUBLE LEVEL SENSOR, Bundle DRY CONTACTS + Double level sensor LoRaWAN EU863-870
- Brand: Adeunis
- MPN: ARF8170BA-B02
- Part #: ADU1006
- UPC:
View all shipping info
- Brand: Adeunis
- MPN: ARF8170BA-B02
- Part #: ADU1006
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Sensors





Adeunis DOUBLE LEVEL SENSOR, Bundle DRY CONTACTS + Double level sensor LoRaWAN EU863-870
- Brand: Adeunis
- MPN: ARF8170BA-B02
- Part #: ADU1006

Product URL: https://www.pbtech.com/au/product/ADU1006/Adeunis-DOUBLE-LEVEL-SENSOR-Bundle-DRY-CONTACTS--D
Features
LoRaWAN / Sigfox sensor: monitor the evolution of a fluid level

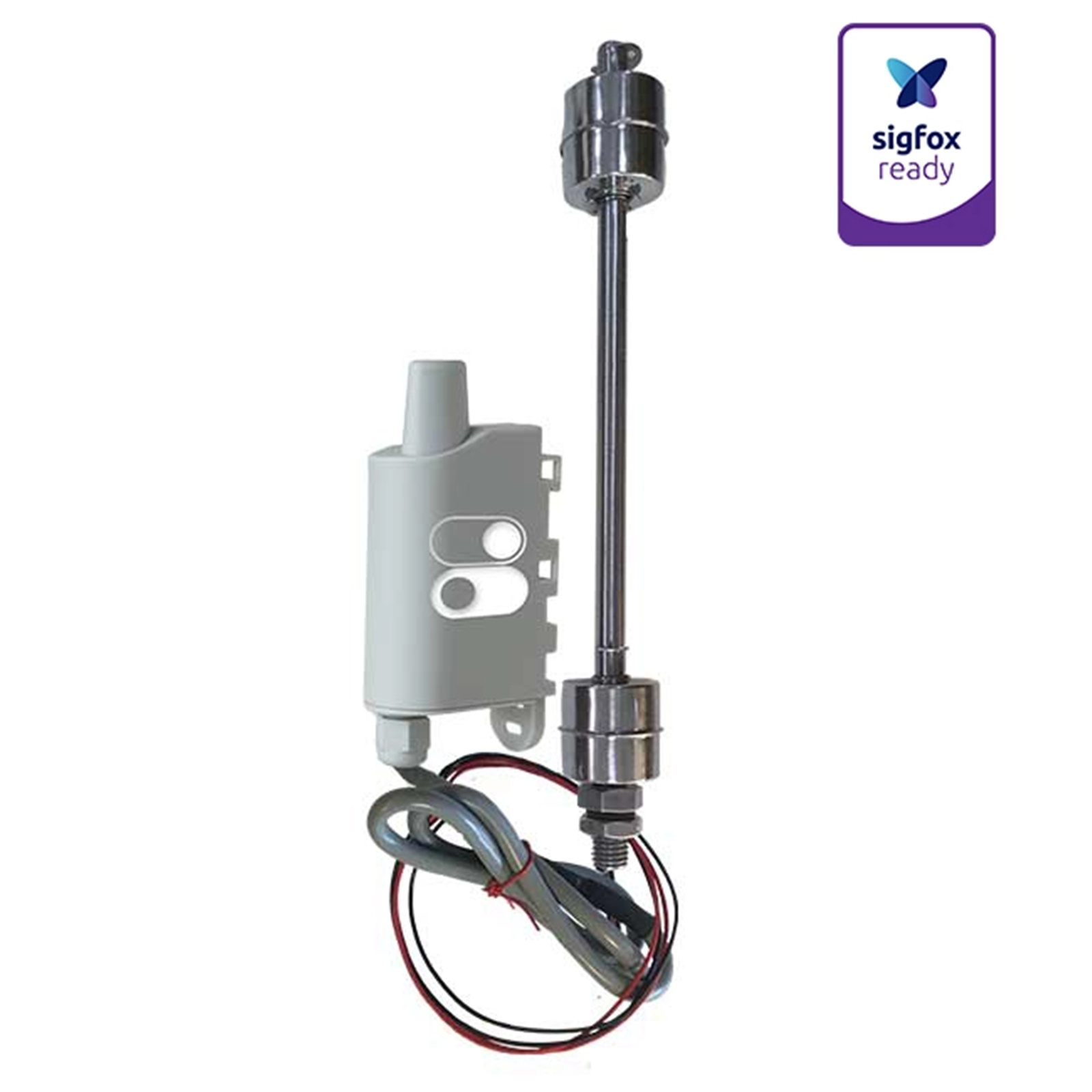

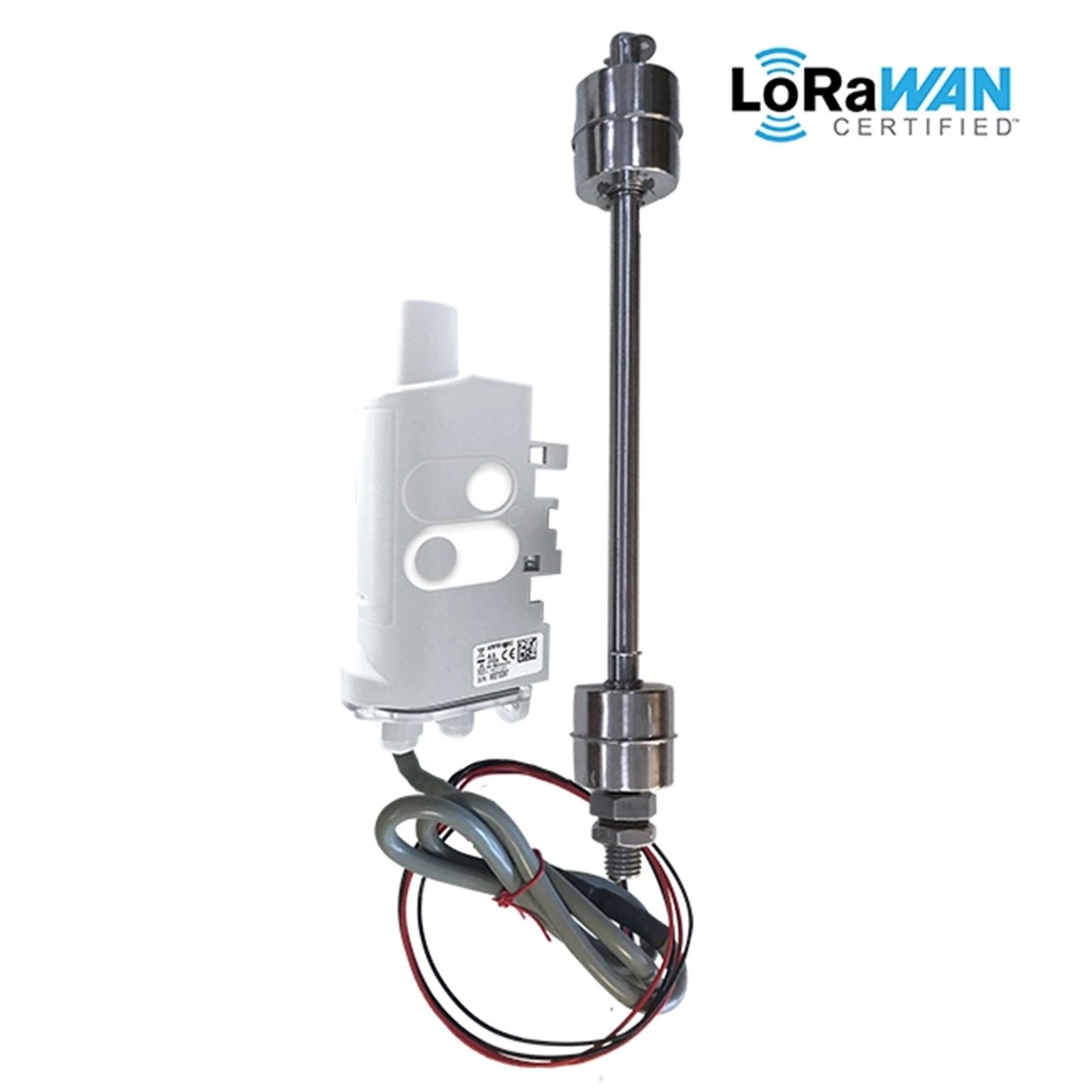

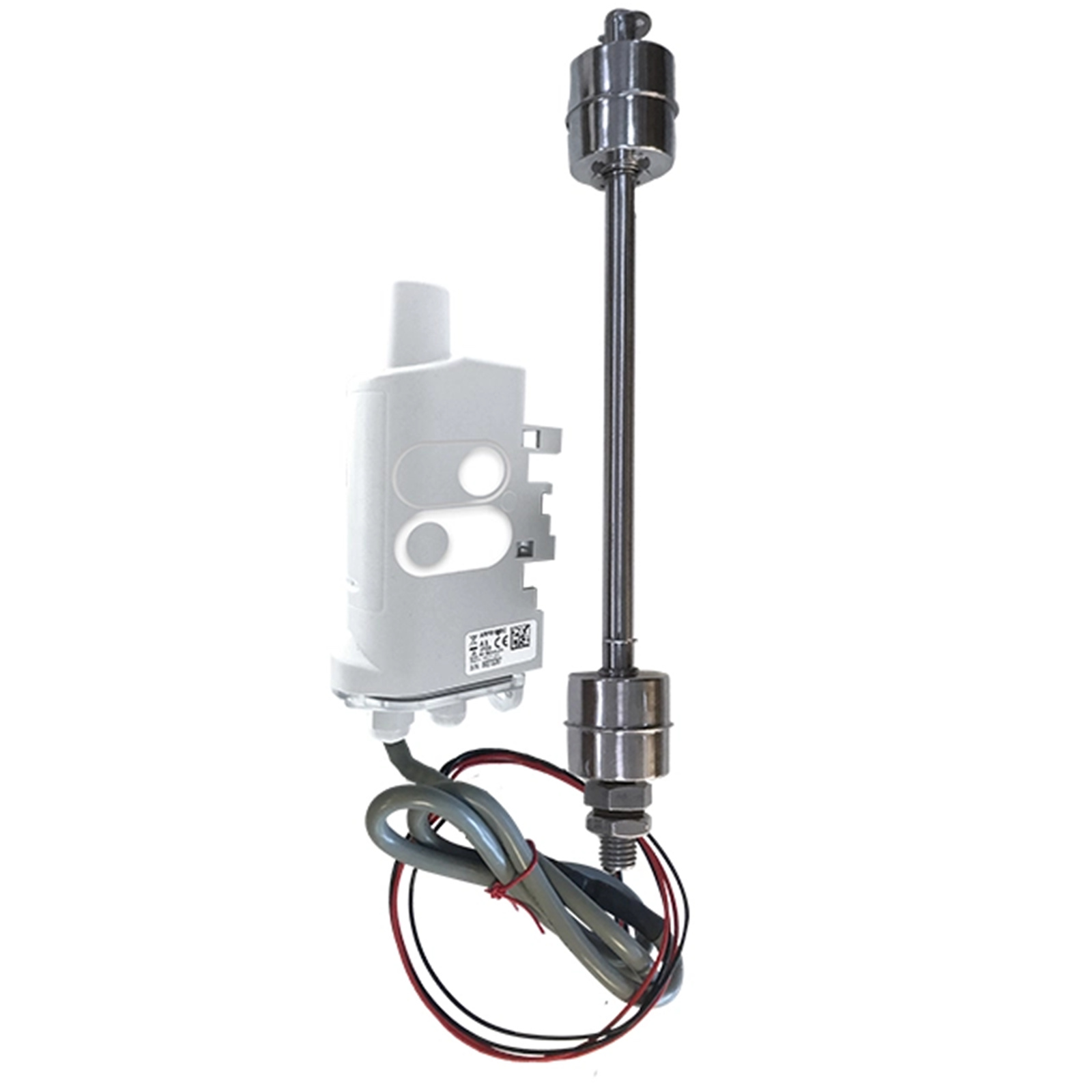

The Double-level-sensor is a ready-to-use product enabling the detection of a double level of liquid.

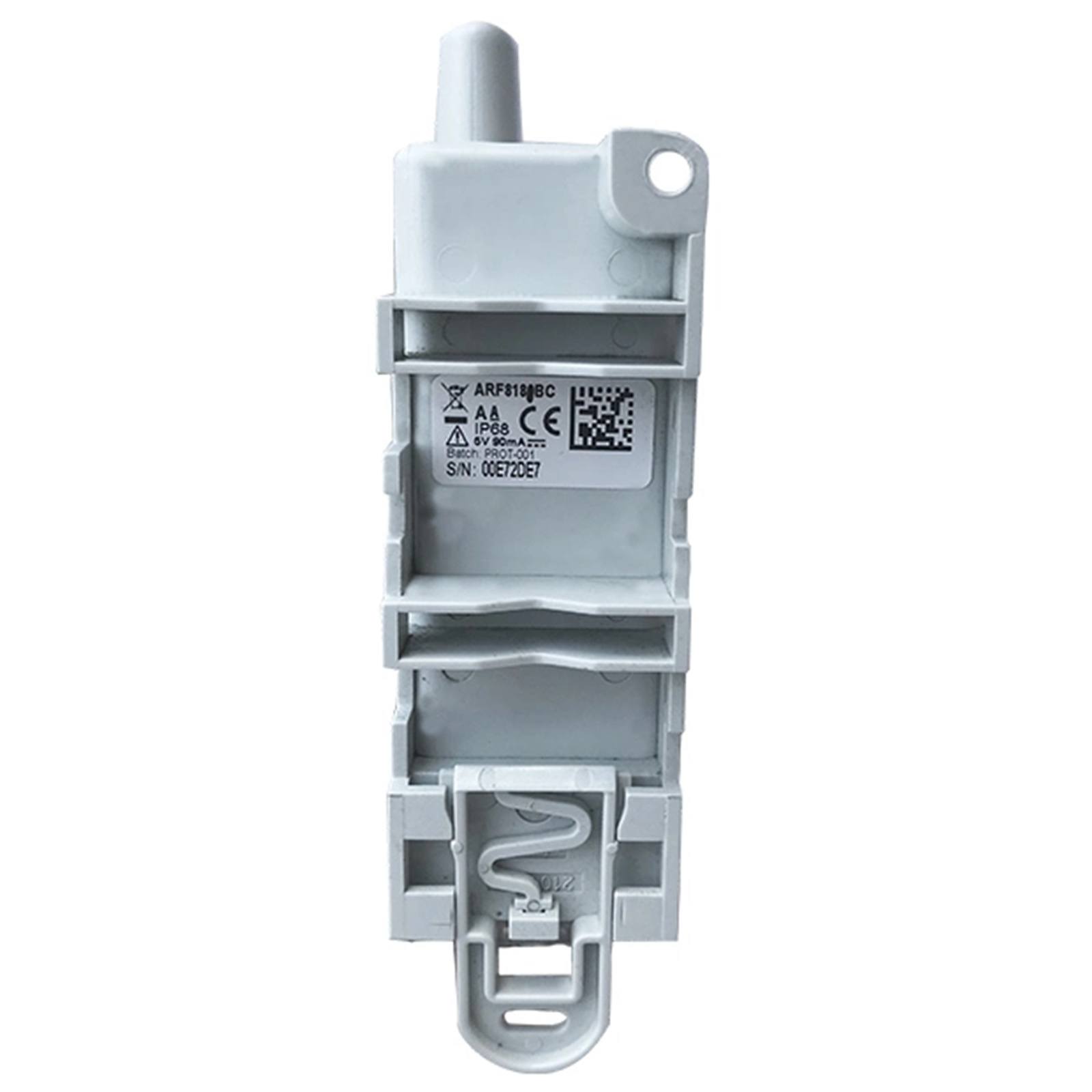

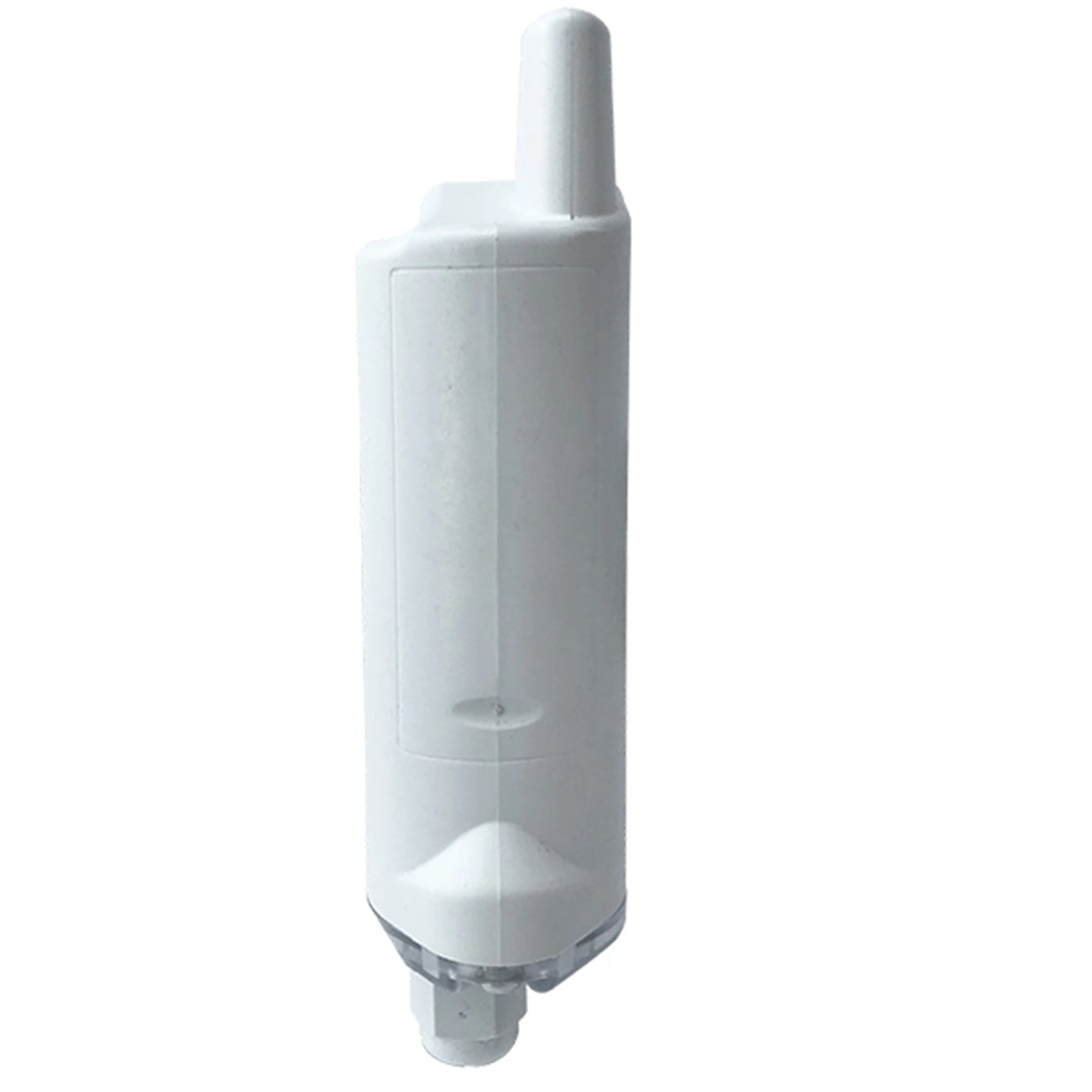

The package is composed of a DRY CONTACTS transceiver and a double-level sensor.
Default settings have been established to simplify product installation by the user.
HIGHLIGHTS OF THE IOT SENSOR
- 4 configurable inputs/outputs:
Control an output based on change in the state of an input
Remote and near-real-time control of output - LoRaWAN Class C
Track the time spent in a given state
- Over 15 years of autonomy (depending on version and configuration)
- Local and remote configuration
- Data transmission modes: periodic and/or event-trigged
- Compatible with KARE
- Available versions:
LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923
Sigfox: RC1 / RC2 / RC4
FEATURES OF THE DOUBLE LEVEL SENSOR
ALERT
Alert on events:
- warn when the level rises or down,
- anticipating an overflow, prevent the end of the tank.
MONITOR
- Count the number of status changes
- Evaluate the time spent in a given state
Specifications
General Information
Manufacturer
Adeunis
Manufacturer's Product Code
ARF8170BA-B02
Dimensions
215 mm total / 200 mm body float
Casing
Stainless steel 304
Operating temperature range
Up to 120°C
Dimensions
215 mm total / 200 mm body float
Cable length
About 1m
Operating pressure
1MPa
Maximal pressure
5MPa
