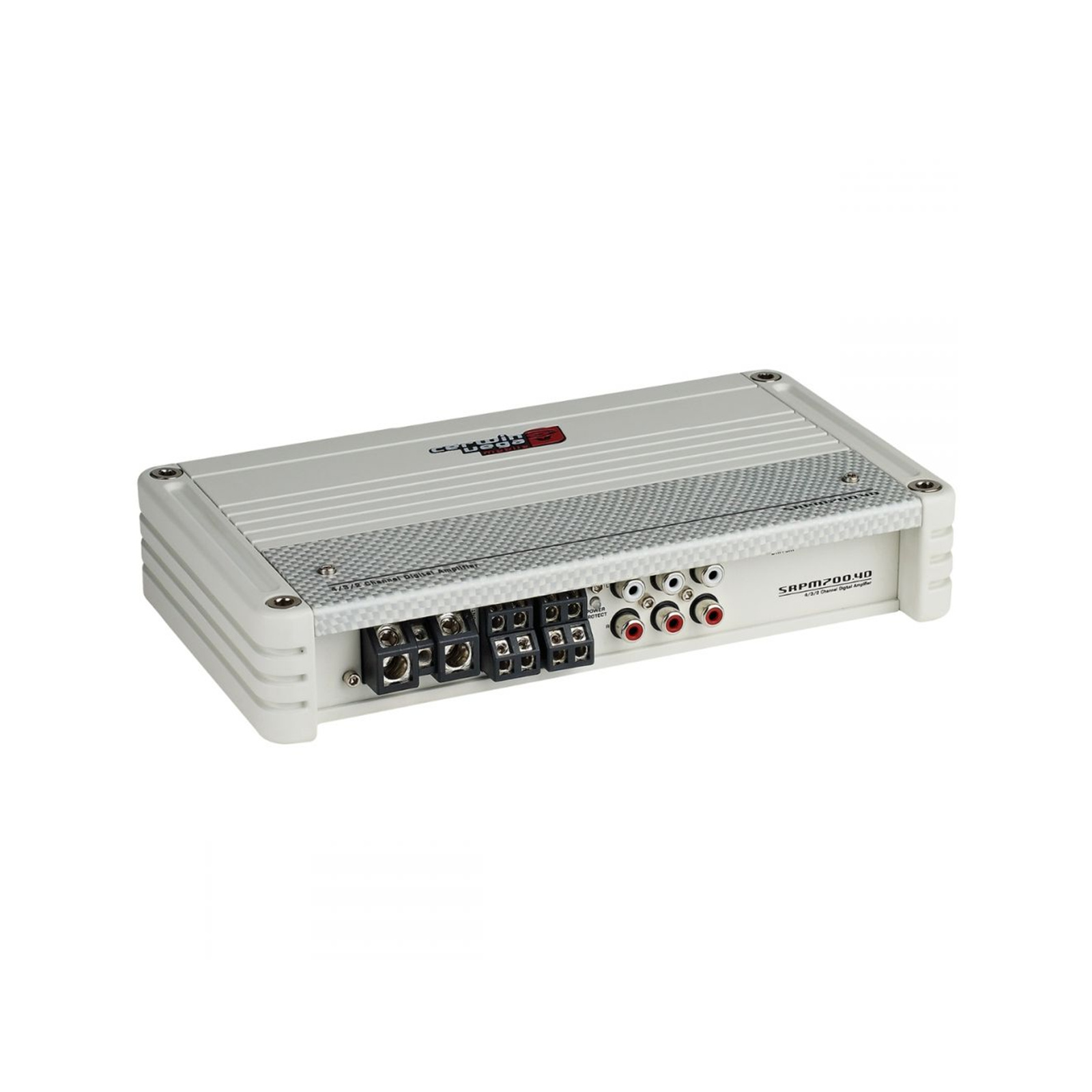

Cerwin-Vega CERWIN VEGA SRPM700.4DW AMPLIFIER 4 CH STROKER MARINE 700W (WHITE)
- Brand: Cerwin-Vega
- MPN: SRPM700.4DW
- Part #: AUDCWV1031

Product URL: https://www.pbtech.com/au/product/AUDCWV1031/Cerwin-Vega-CERWIN-VEGA-SRPM7004DW-AMPLIFIER-4-CH
Features
RMS Power Rating:
4 ohms: 100 watts x 4 channel.
2 ohms: 150 watts x 4 channel.
Bridged, 4 ohms: 300 watts x 1 chan.
Total power output: 700 watts
Conformal coated PCB to protect against dust, vibration, and moisture
Top-mounted controls allow for fast, accurate adjustments
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
4/3/2 channel operation
Speaker-level (high-level) inputs
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy-duty aluminum alloy heat-sink
Advanced rollback heat protection
Color: White
Specifications
RMS Power (4O)
100 W x 4
RMS Bridge (mono 4O)
300 W x 2 (4 O ONLY)
Types
Full Range, Class D
Power Supply
Full PWM
Power Supply (Threshold)
10.0DVC - 17.0DVC
Idle Current
(0.7A)
Distortion - THD(1KHz @ 4O)
(0.07%)
Distortion - S/N Ratio (A weight @ 1W)
-77.4dBA
Distortion - S/N Ratio (A weight @ FP)
-97.4dBA
Input Sensitivity - Hi/Low Input Level
YES / 0.2mV - 10.0V
Input Impedance - Low Input Level
22 KO
Output Impedance
0.047 O
Damping Factor (50Hz @ 4O)
>250
Bandwidth (-3dB)
10Hz-35KHz
Crossover (-12 dB/ Oct) Variable High-Pass
40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Low-Pass
40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic
N/A
FUSE Ratings - ATC
N/A
Dimension - Length x Width x Height - Inches(mm)
8.66 x 5.28 x 1.75 (220 x 134 x 44.5)
