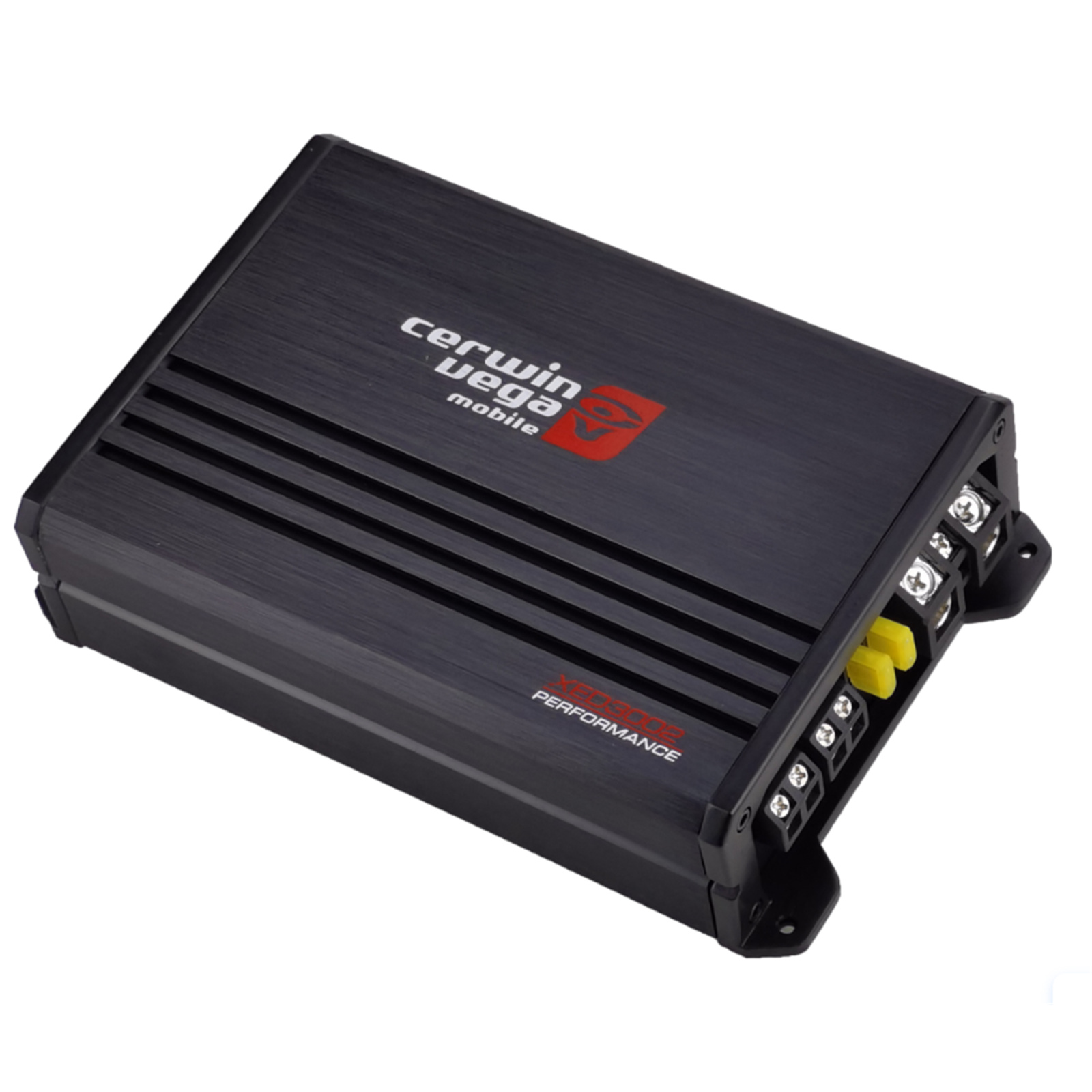

Cerwin-Vega CERWIN VEGA XED3002D AMPLIFIER XED SERIES 2 CH 80W RMS x 2 4OHM / 120W RMS X 2 2OHM
Cerwin-Vega CERWIN VEGA XED3002D AMPLIFIER XED SERIES 2 CH 80W RMS x 2 4OHM / 120W RMS X 2 2OHM
- Brand: Cerwin-Vega
- MPN: XED3002D
- Part #: AUDCWV1058
- UPC: 847169054020
View all shipping info
- Brand: Cerwin-Vega
- MPN: XED3002D
- Part #: AUDCWV1058
- UPC: 847169054020
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Amplifiers





Cerwin-Vega CERWIN VEGA XED3002D AMPLIFIER XED SERIES 2 CH 80W RMS x 2 4OHM / 120W RMS X 2 2OHM
- Brand: Cerwin-Vega
- MPN: XED3002D
- Part #: AUDCWV1058
- UPC:847169054020

Product URL: https://www.pbtech.com/au/product/AUDCWV1058/Cerwin-Vega-CERWIN-VEGA-XED3002D-AMPLIFIER-XED-SER
Features
XED (Xtreme Energy Design) series amplifiers are legitimately just that, extreme to the core! XED series amplifiers deliver insane power output and is clearly designed and engineered to crush the watts per dollar criteria! Utilizing the latest high efficiency Class D topology circuit design encompassed in a compact aluminum chassis, XED series amplifiers will wake up any speaker or subwoofer by delivering pure power and performance for loud continuous play.
- 300W MAX Power
- 2 Channel Amplifier
- 120W x 2 @ 2O RMS
- 80W X 2 @ 4O RMS
- 220W x 1 Bridged
- Crossover: 35Hz~250Hz (LP/HP)
- Frequency Response: 10Hz~30KHz
- Dimensions: 6.3"x 4.7" x 1.8" ( 160.02mm x 119.38mm x 45.72mm )
Specifications
Amplifier
2 Channel
Description
XED Series 250W RMS 2 Channel Amplifier
Amplifier Power
250w MAX
RMS Power(2O)
2 x 120W
RMS Power (4O)
2 x 80W
RMS Bridge (mono 4O)
1 x 220W
Types
2-Channel
Topology
Class D
Frequency Response
10Hz~30KHz
Power Supply
Full PWM
Power Supply (Threshold)
10.0VDC - 16.0VDC
Idle Current
(0.5A)
Distortion - THD (1KHz@4O)
<0.1%
Distortion - S/N Ratio (A weight @ 1W)
-85dBA
Distortion - S/N Ratio (A weight @ FP)
-101.1dBA
Input Sensitivity Low
250mV - 6.0V
Input Sensitivity High
1.3V ~>20.0V
Input Impedance - Low Input Level
20 KO
Input Impedance - High Input Level
100 O
Output Impedance
2O/4O
Damping Factor (50Hz@4O)
>70
Bandwidth (-3dB)
10Hz-30KHz
Crossover (-12 dB/ Oct) Variable High-Pass
35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Low-Pass
35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic
N/A
FUSE Ratings - ATC
20A
Dimension - Length x Width x Height - Inches(mm)
6.3"x 4.7" x 1.8" (160 x 120 x 46.5mm)
