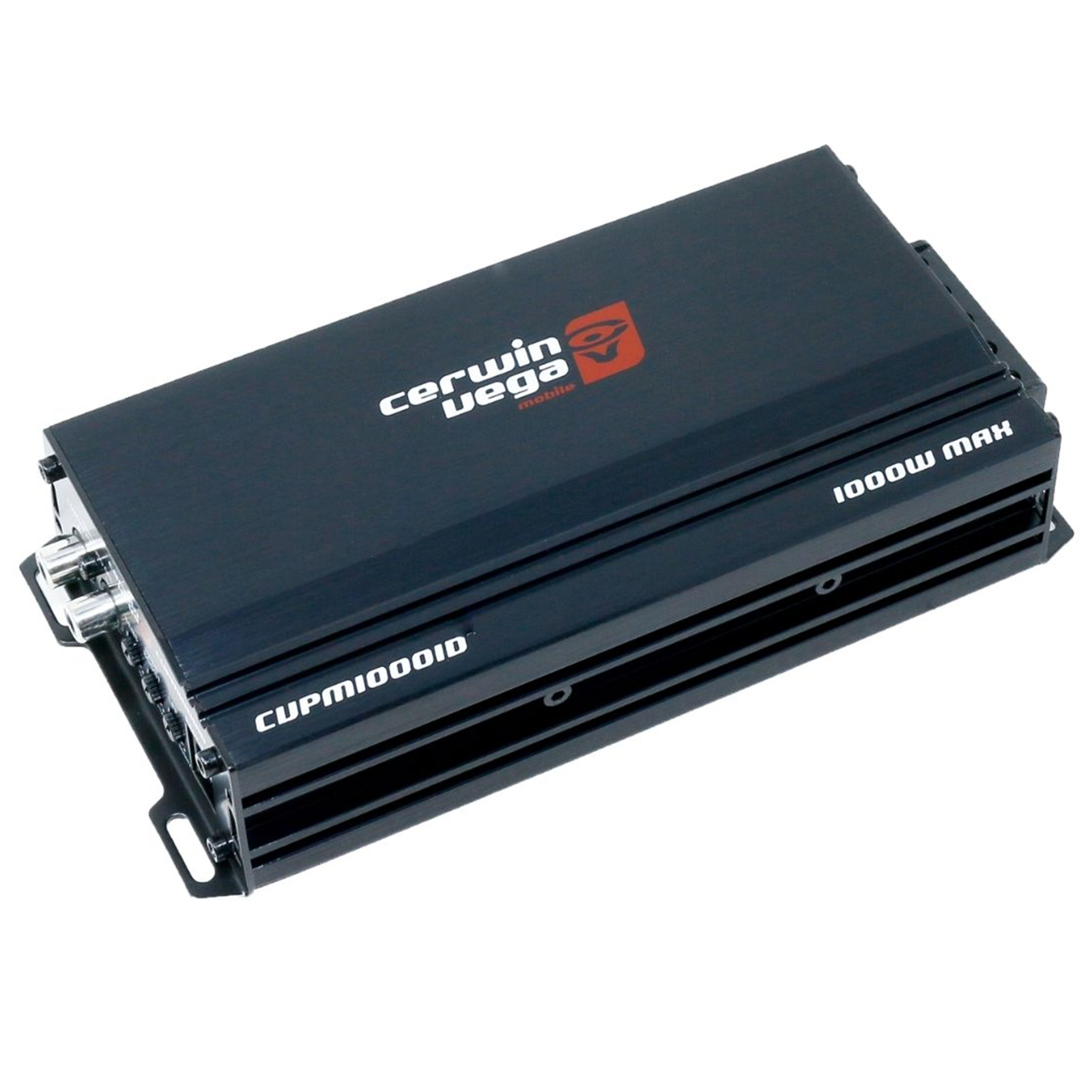

Cerwin-Vega CERWIN VEGA CVPM1000.1D AMPLIFIER CVP SERIES MONO 350W RMS 4OHM / 500W RMS 2OHM
Cerwin-Vega CERWIN VEGA CVPM1000.1D AMPLIFIER CVP SERIES MONO 350W RMS 4OHM / 500W RMS 2OHM
- Brand: Cerwin-Vega
- MPN: CVPM1000.1D
- Part #: AUDCWV1073
- UPC:
View all shipping info
- Brand: Cerwin-Vega
- MPN: CVPM1000.1D
- Part #: AUDCWV1073
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Amplifiers





Cerwin-Vega CERWIN VEGA CVPM1000.1D AMPLIFIER CVP SERIES MONO 350W RMS 4OHM / 500W RMS 2OHM
- Brand: Cerwin-Vega
- MPN: CVPM1000.1D
- Part #: AUDCWV1073

Product URL: https://www.pbtech.com/au/product/AUDCWV1073/Cerwin-Vega-CERWIN-VEGA-CVPM10001D-AMPLIFIER-CVP-S
Features
CVP Performance series products make owning a Cerwin-Vega Mobile sound system very affordable for those that are budget-conscious. With a numerous amount of mono and multi-channel amplifiers to select from at a tremendous value for the performance, enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products!
- MINI 1-Channel
- 500W x 1 @ 2 ohm RMS
- 350W x 1 @ 4 ohm RMS
- 15-500Hz Frequency Response
- IRS2092 Main Power Chip
- Low Pass Crossover 30Hz~500Hz
- 12dB Crossovers Slope
Specifications
Amplifier
1 Channel
MAX Power Rating
1000W MAX
RMS Bridge (mono 2 ohm)
500W x 1 @ 2 ohm RMS
RMS Bridge (mono 4 ohm)
310W x 1 @ 4 ohm RMS
Types
1-Channel
Topology
Full-Range Class D
Power Supply
Full PWM
Power Supply (Threshold)
10.0VDC - 17.0VDC
Idle Current
(0.7A)
Distortion - THD (1KHz @ 4 ohm)
0.1%
Distortion - S/N Ratio (A weight @ 1W)
-85dBA
Distortion - S/N Ratio (A weight @ FP)
-101.1dBA
Input Sensitivity
0.15V - 6.0V
Input Impedance - Low Input Level
20 K ohm
Output Impedance
0.0297 ohm
Damping Factor (50Hz @ 4 ohm)
>70
Bandwidth (-3dB)
10Hz-45KHz
Crossover (-12 dB/ Oct) Variable High-Pass
N/A
Crossover (-12 dB/ Oct) Variable Low-Pass
35Hz-500Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic
N/A
FUSE Ratings - ATC
2 x 30A
Dimension - (Length x Width x Height)
7.64" x 3.7" x 1.47" ( 194 x 95 x 37.3mm)
