DBX DI1 PERFORMANCE GRADE ACTIVE DI BOX
DBX DI1 PERFORMANCE GRADE ACTIVE DI BOX
- Brand: DBX
- MPN: DI1
- Part #: AUDDBX1010
- UPC:
View all shipping info
- Brand: DBX
- MPN: DI1
- Part #: AUDDBX1010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Audio Accessories





DBX DI1 PERFORMANCE GRADE ACTIVE DI BOX
- Brand: DBX
- MPN: DI1
- Part #: AUDDBX1010

Product URL: https://www.pbtech.com/au/product/AUDDBX1010/DBX-DI1-PERFORMANCE-GRADE-ACTIVE-DI-BOX
Features

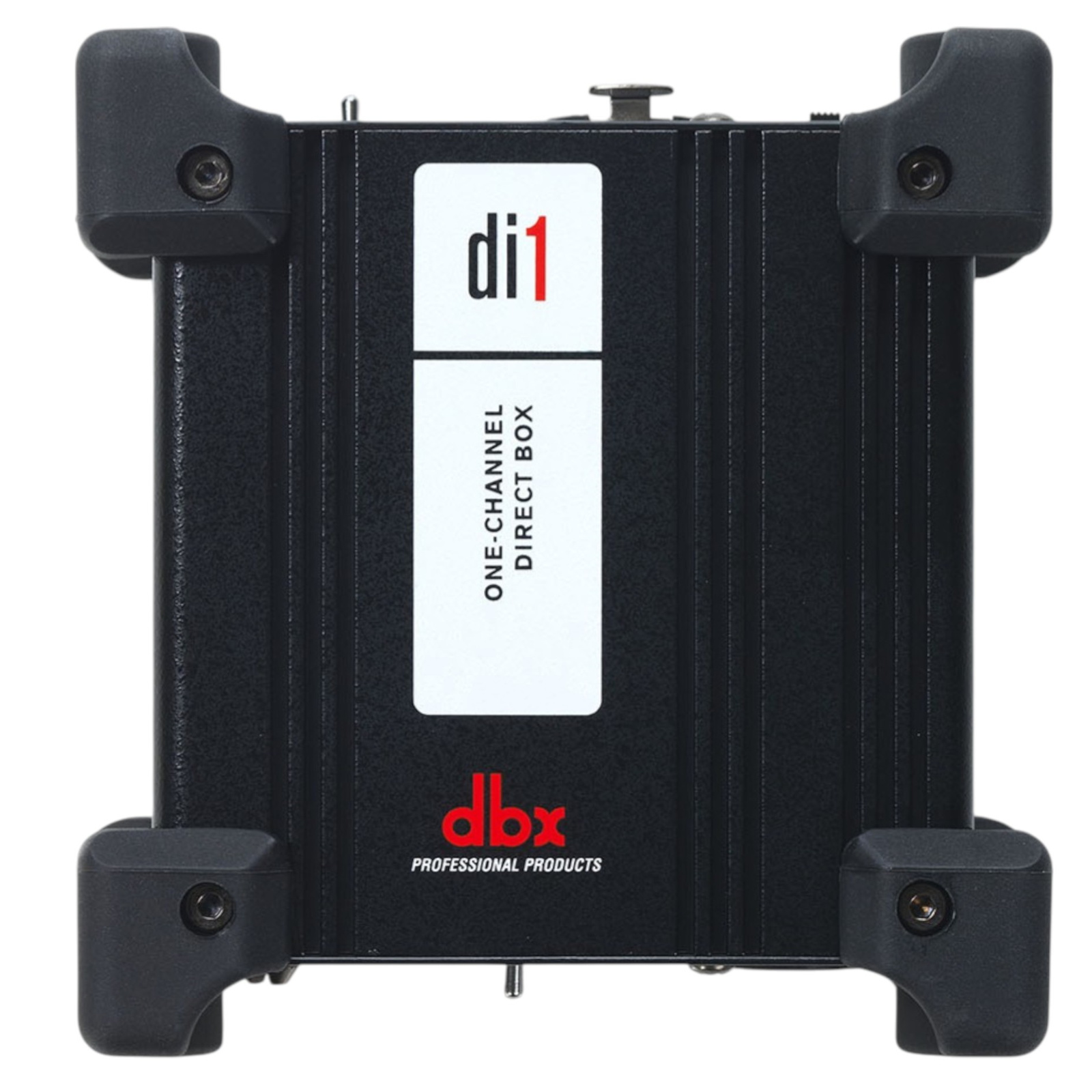

The dbx DI1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the DI1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.
Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.
Built for toughness and reliability, the DI1 has all the features of a fully featured gig-ready workhorse DI unit.
- Robust build, ideal for both studios and on the road
- Accepts Phantom Power or 9 Volt battery
- Phantom/Battery LED indicator
- Matches unbalanced line level signals to balanced mic level
Specifications
Function
Level and impedance matching

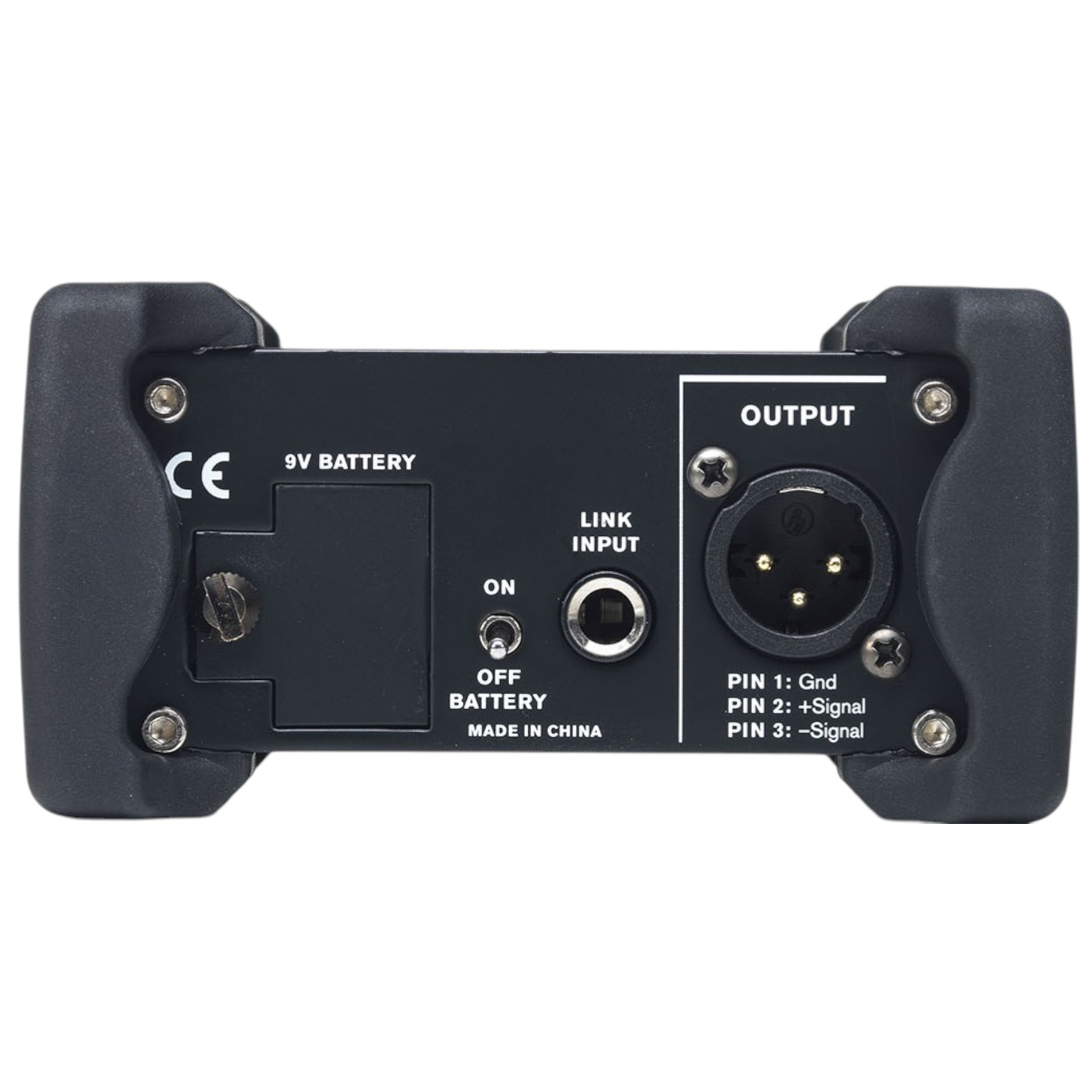

Input Connectors
TS and XLR
Output Connector
XLR balanced
Signal Pass-Through
Yes
Attenuation Control
Included
Input Impedance
>250kohm
Output Impedance
>600ohm
Maximum Input Levels
+12 dBu (at 0 dB)
+32 dBu (at -20 dB)
+52 dBu (at -40 dB)
Frequency Response
10 Hz - 70 kHz, +0 dB / -3 dB
Distortion (THD)
<0.005% at 1 kHz, 0 dBu
Output Noise
< -100 dB (unweighted)
Phantom Power Range
+18 V DC to +48 V DC
Power Supply
9V battery (Main/Standby)
Indicators
Battery status LED
Phantom power LED
Ground Lift Switch
Yes
Construction
Durable metal chassis
