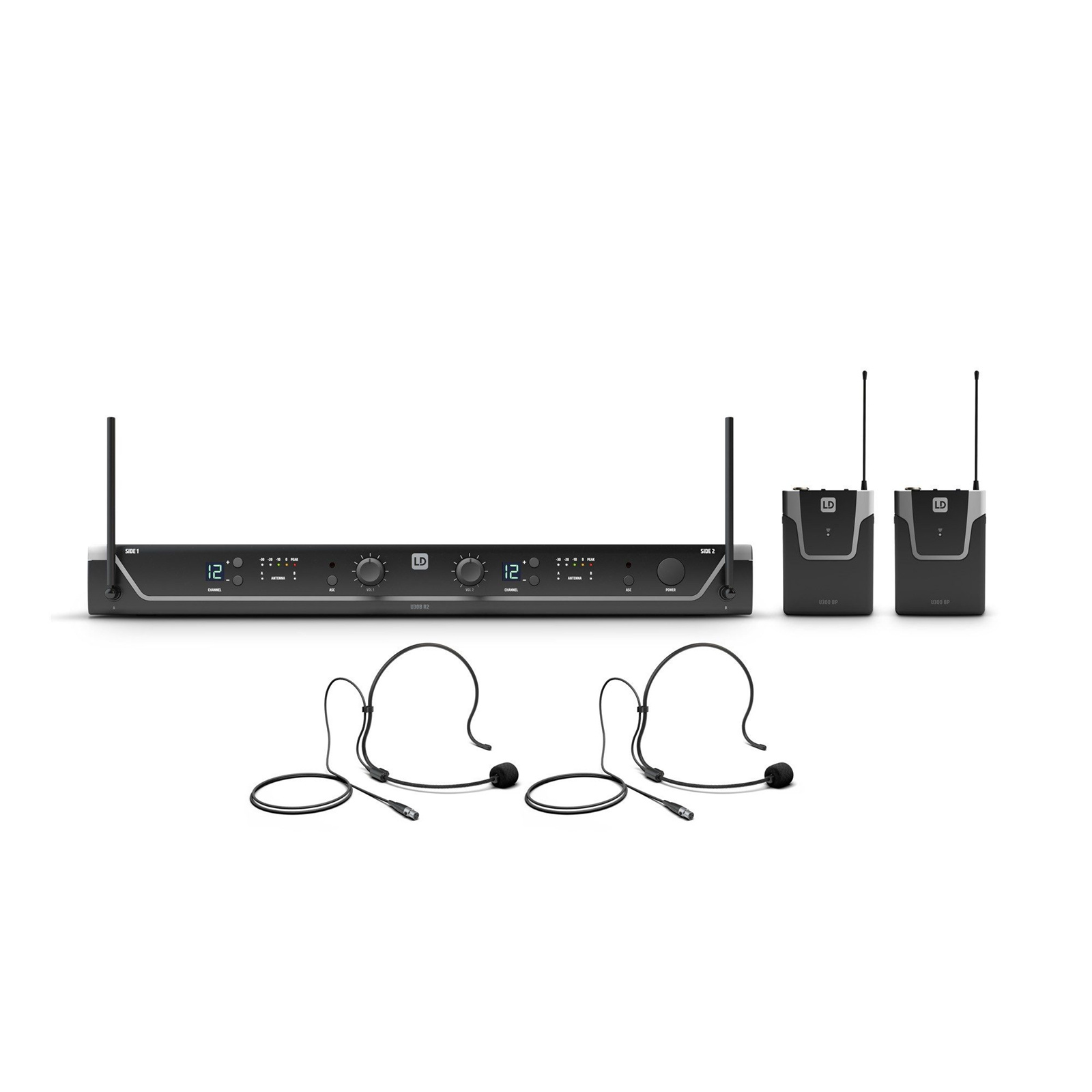

LD system LDU306BPH2INT DUAL WIRELESS MIC SYS 2 X BODY PK & 2 HEAD SETS
LD system LDU306BPH2INT DUAL WIRELESS MIC SYS 2 X BODY PK & 2 HEAD SETS
- Brand: LD system
- MPN: LDU306BPH2INT
- Part #: AUDLDS1024
- UPC:
View all shipping info
- Brand: LD system
- MPN: LDU306BPH2INT
- Part #: AUDLDS1024
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Microphones





LD system LDU306BPH2INT DUAL WIRELESS MIC SYS 2 X BODY PK & 2 HEAD SETS
- Brand: LD system
- MPN: LDU306BPH2INT
- Part #: AUDLDS1024

Product URL: https://www.pbtech.com/au/product/AUDLDS1024/LD-system-LDU306BPH2INT-DUAL-WIRELESS-MIC-SYS-2-X
Features
Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone's frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack's input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.
Specifications

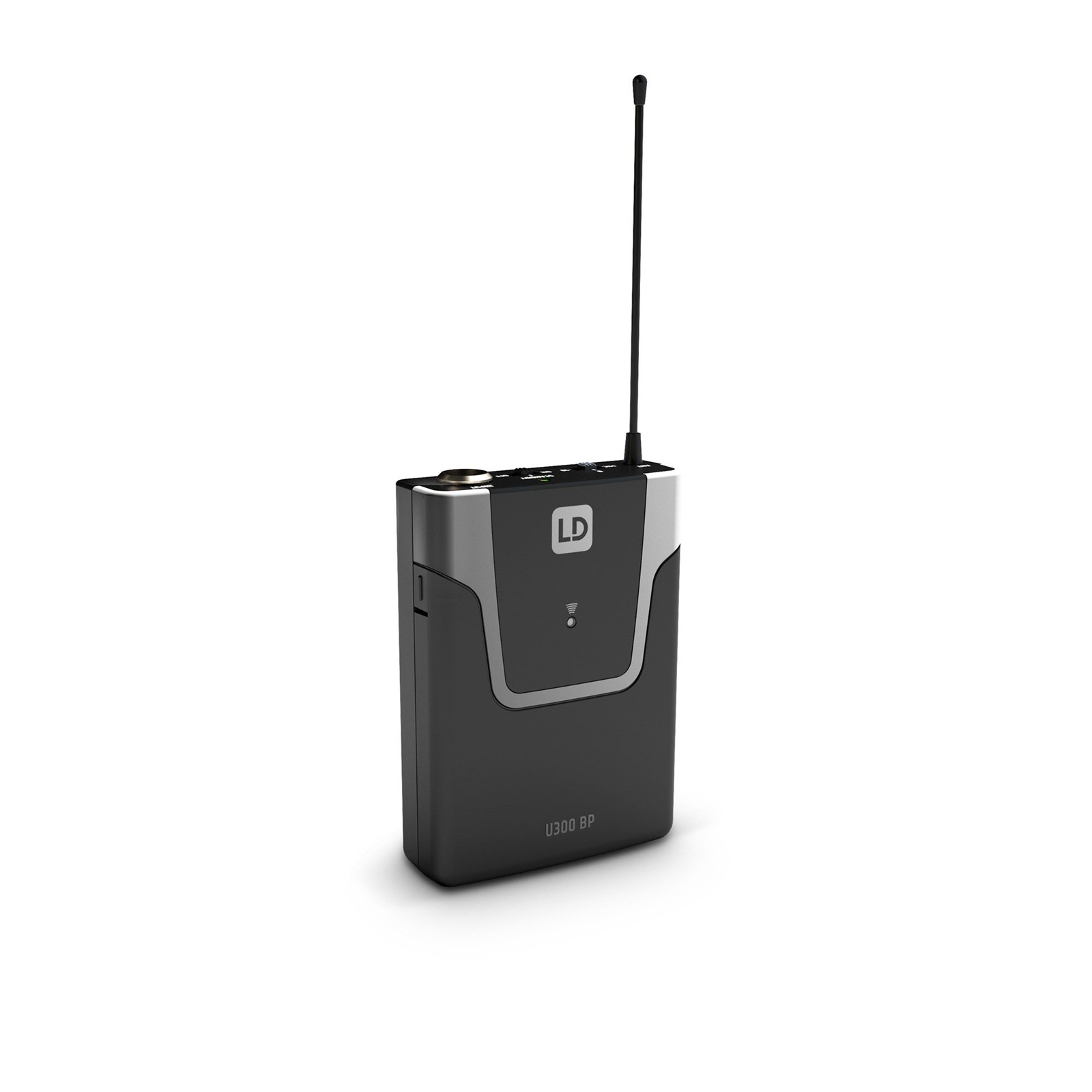

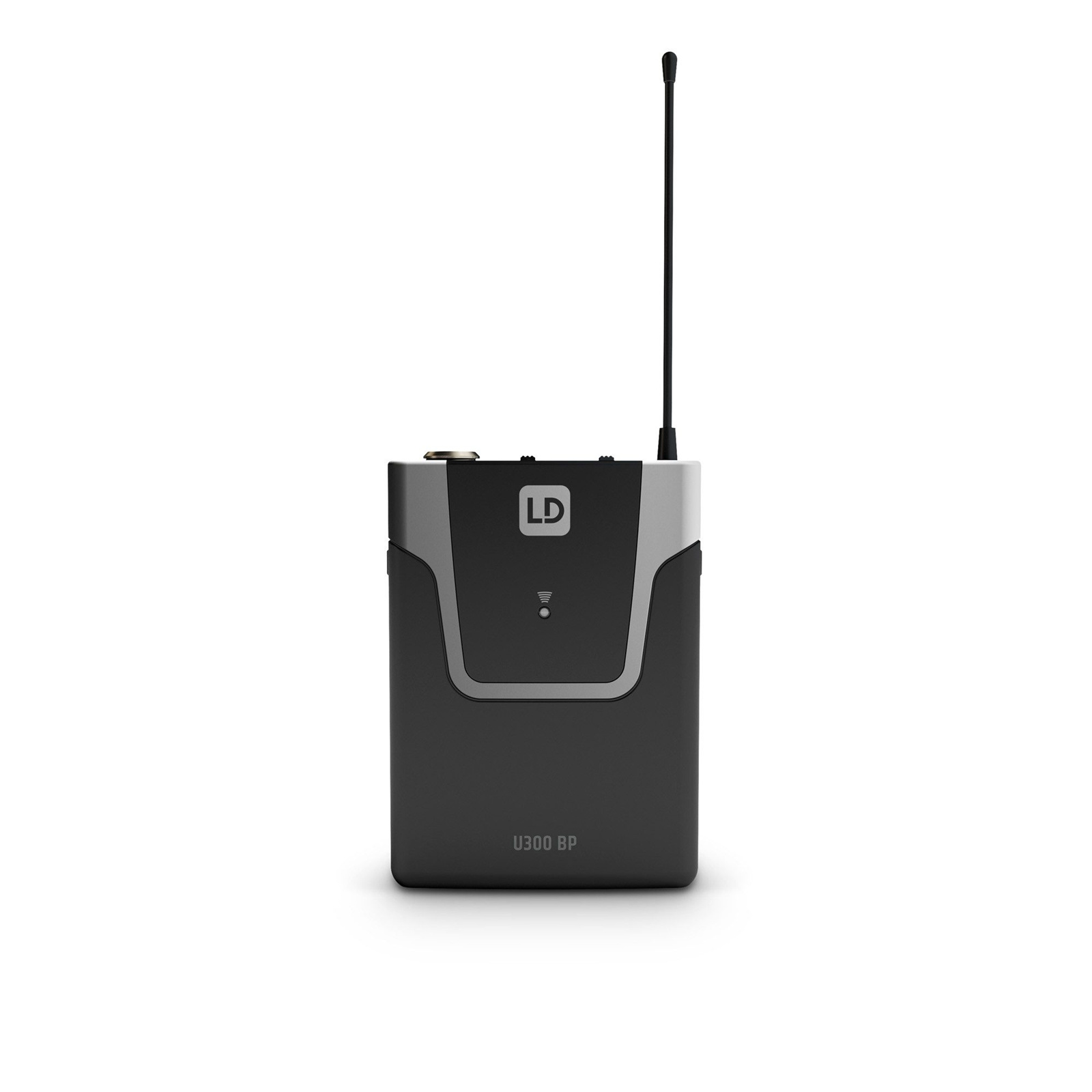

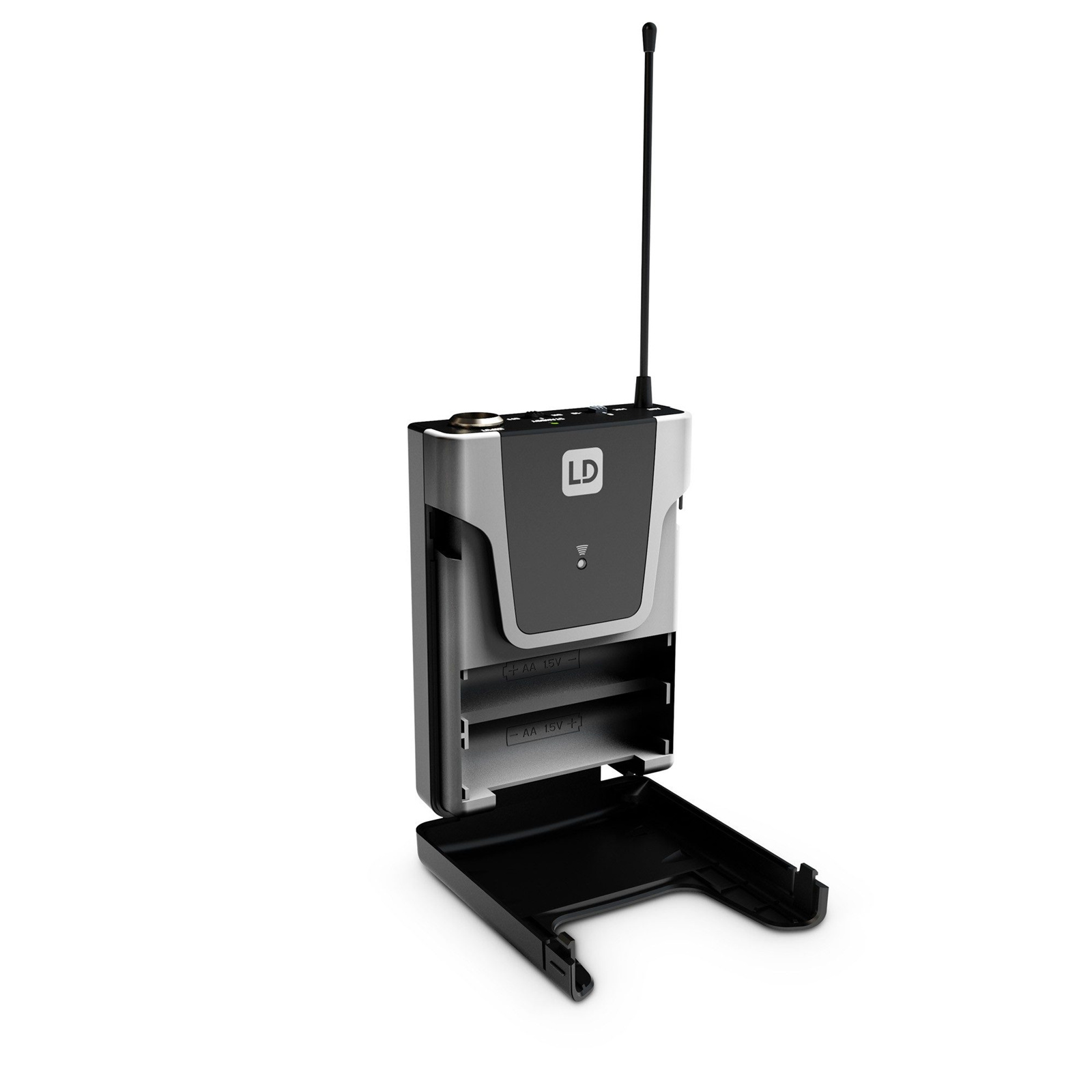

LD Systems U306 BP Bodypack transmitter
Type
Bodypack
Frequency response
25 - 16,000
Transmission frequency range
655 - 679 MHz
Channels
12
Groups
1
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power
10 mW
Signal-to-noise ratio
104 dB
Operating voltage
2 x AA battery
Operating time
> 10 h
Weight
0.085 kg
Controls
Gain (3-way switch), Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Width
65 mm
Height
91 mm
Depth
25 mm
Other features
Belt clip, IR frequency synchronisation, Pilot tone

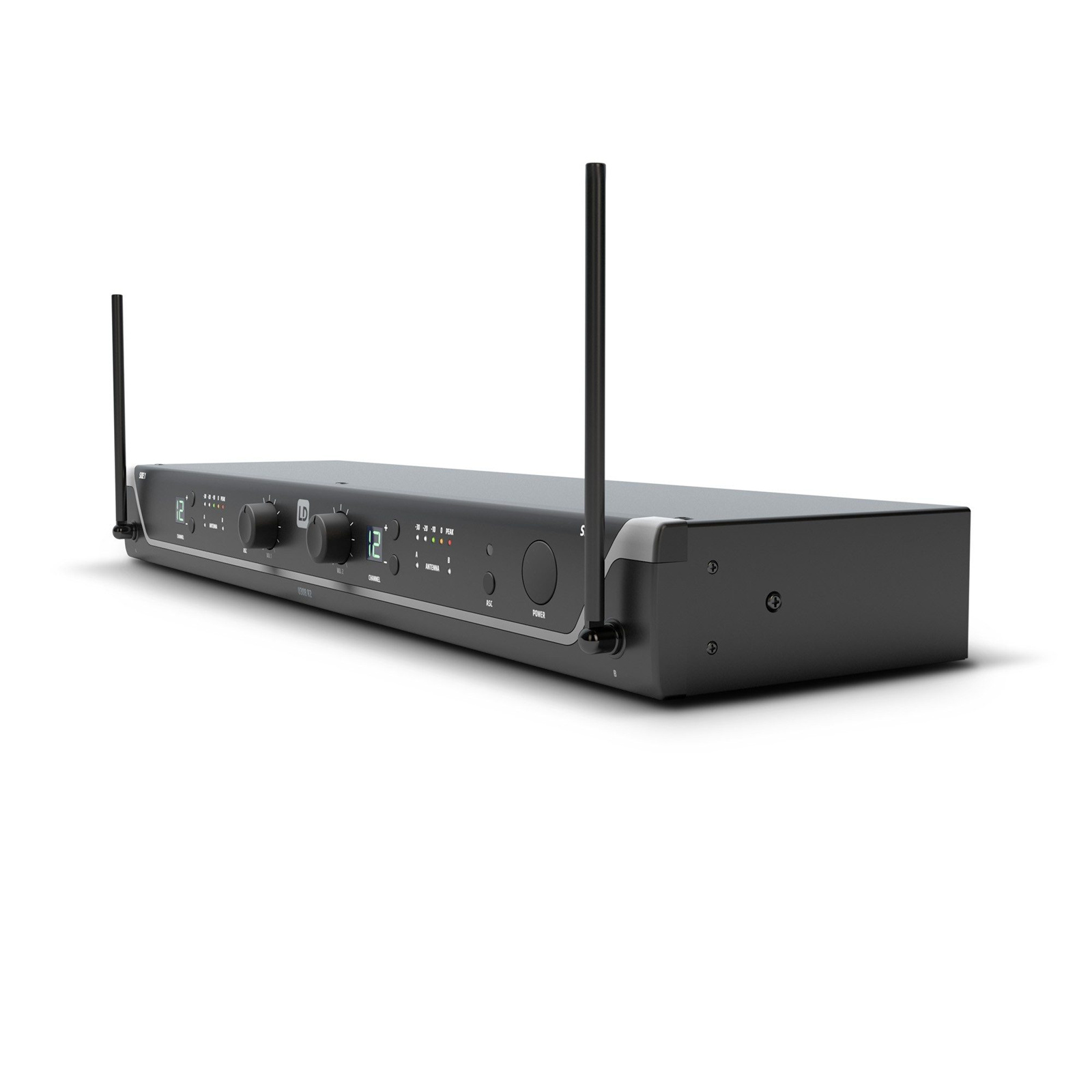

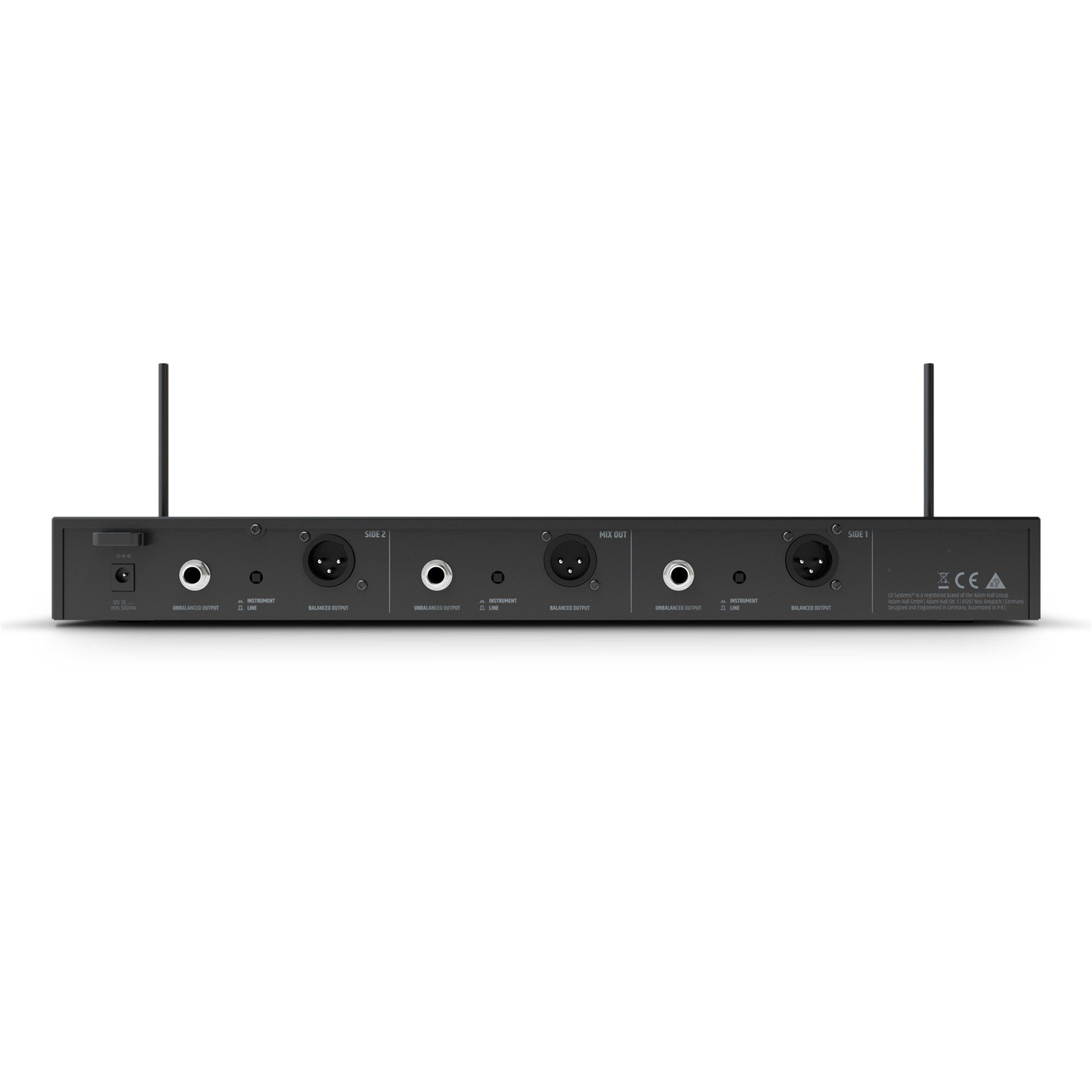

LD Systems U306 R2 Dual Receiver
Type
Receivers
Modulation Type
FM
Frequency response
35 - 16000
Transmission frequency range
655 - 679 MHz
Channels
12
Groups
1
Antenna inputs
2 x fixed
Noise reduction
Squelch
Transmission optimisation
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Audio output, balanced
3 x XLR
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level ( Line/Instrument )
Audio mix output, balanced
XLR
Accessories (included)
2 x AA batteries, Power supply
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Weight
1,265 kg
Controls
2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/Off
Indicators
5-LED VU-Meter, Antenna A/B, LC display
Operating voltage
12 V DC, 500 mA
Width
410 mm
Height
43 mm
Depth
120 mm
Other features
IR frequency synchronisation, Pilot tone
LD Systems WS 100 MH 1 Headset
Type
Headsets
Frequency response
20 - 20.000
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requirements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0.049 k
