RF VENUE COMBINE4 4CH IN-EAR MONITOR RF ANTENNA COMBINER
- Brand: RF VENUE
- MPN: COMBINE4
- Part #: AUDRFV1012

Product URL: https://www.pbtech.com/au/product/AUDRFV1012/RF-VENUE-COMBINE4-4CH-IN-EAR-MONITOR-RF-ANTENNA-CO
Features

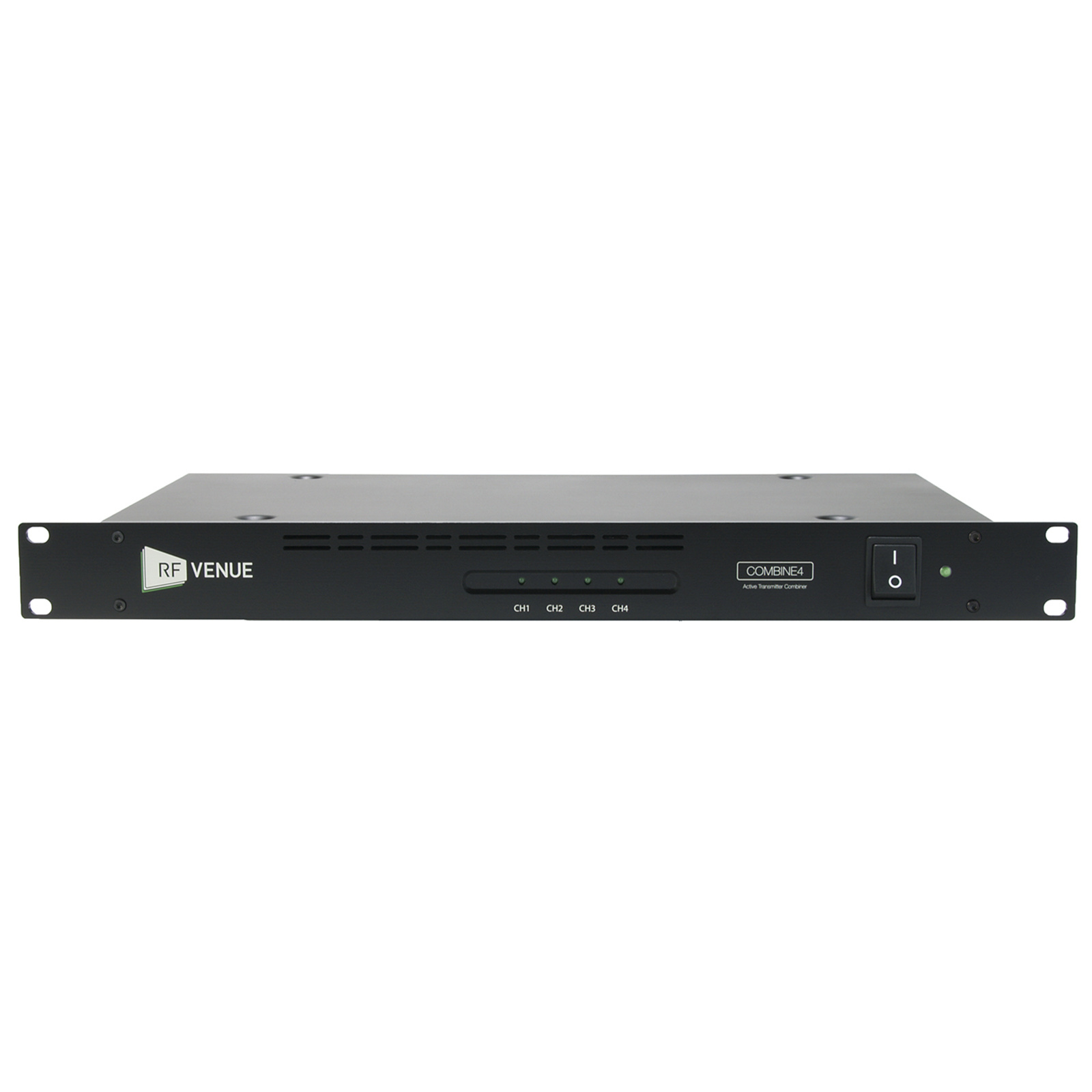

The COMBINE4 IEM transmitter combiner brings together up to four in-ear monitor transmitter signals into a single rear panel mounted antenna connector.
Any brand IEM may be used, as well as any type of directional antenna. It also provides DC power to up to four IEM transmitters to reduce cable clutter and wall warts.
IEM transmitter combination is important for multi-channel systems to minimize intermodulation products arising from multiple adjacent transmitters interfering with one another.
Specifications
Brand
RF VENUE
Manufacturer Part Number
COMBINE4
Frequency range
470-960 MHz
Input connectors
4X BNC
Full system gain
0 dB (±2 dB)
Maximum RF input power
+20 dBm (100 mW)
LED indicator (input signal threshold)
> +5 dBm [Threshold power]
Power consumption
60 W
I / O

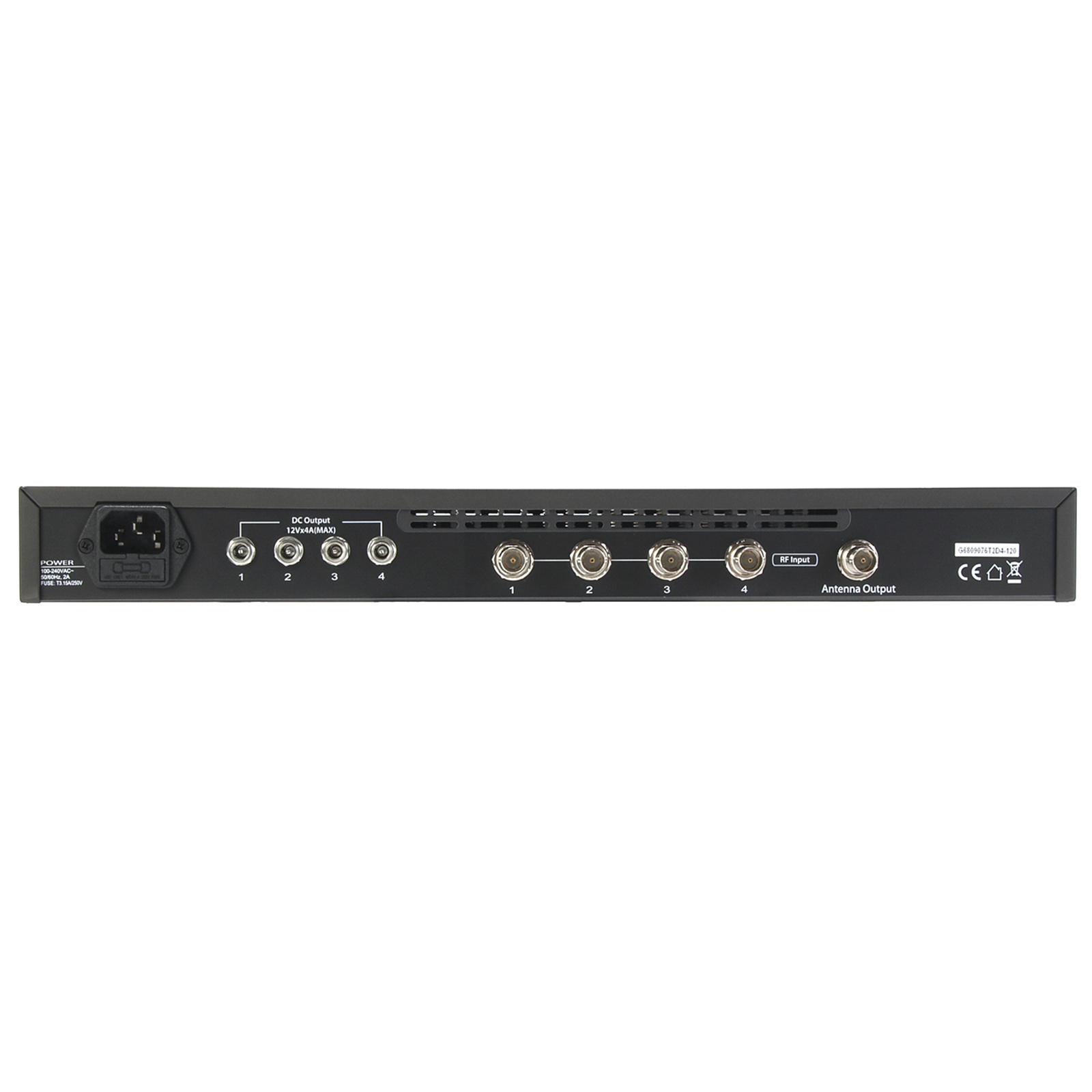

4X RF inputs. 1 antenna out. 4 DC outputs
Input AC voltage
100-240 VAC, 50/60 Hz, Max 2A
Output DC voltage
+12 V. 1 A max (4 outputs total 48 W)
Output DC connectors
5.5mm OD, 2.1mm ID
Dimensions
480(W) x 45(H) x 260(D) mm
Weight
2.3 kg
