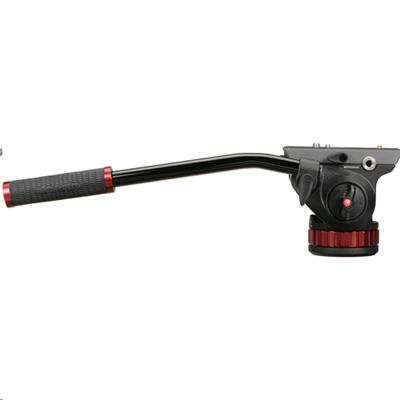

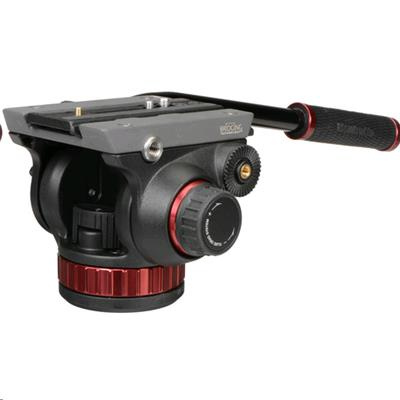

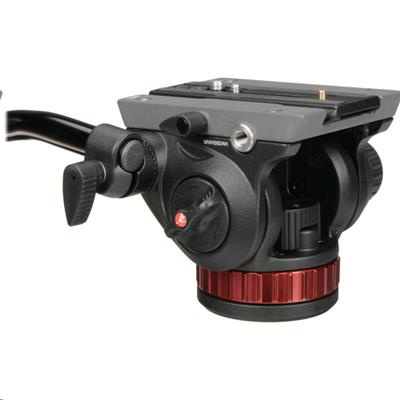

Manfrotto 502HD Pro Video Head with Flat Base (3/8"-16 Connection)
- Brand: Manfrotto
- MPN: MVH502AH
- Part #: CAAMFT14502
- UPC:719821334651

Product URL: https://www.pbtech.com/au/product/CAAMFT14502/Manfrotto-502HD-Pro-Video-Head-with-Flat-Base-38-1
Features
Weight capacity is 15.4 lb and counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads that might be due to matte boxes or exotic DSLR rig configurations.
The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are of course independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
- Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick-release place secured by secondary safety system
Specifications
15.43 lb / 7.0 kg
Counterbalance supports
8.8 lb / 4 kg
Head to Tripod Mounting Thread
3/8"-16 thread
Counter Balance System
Spring-loaded
Counter Balance Range
One fixed spring for 8.8 lb (4 kg) camera weight
Quick Release/Wedge Plate
504PLONG plate with 1/4"-20 & 3/8"-16 screws
Balance Plate
504PLONG plate slides 3.27" (83.0 mm)
Tilt Drag
Continuously adjustable from 0 to max level
Tilt Range
-80° to +90° tilt range front to back
Tilt Lock
Yes
Spring Loaded Counter Balance
Yes
Pan Drag
Continuously adjustable from 0 to max level
Pan Range
360°
Pan Lock
Yes
Pan Bar
1 included
2 possible positions
Leveling Bubble
Yes
Material
Aluminum
Color
Black
Temperature Range
-4 to 104 °F (-20 to 40 °C)
Height
5.12 in (13.0 cm)
Weight
3.53 lb (1.6 kg)
