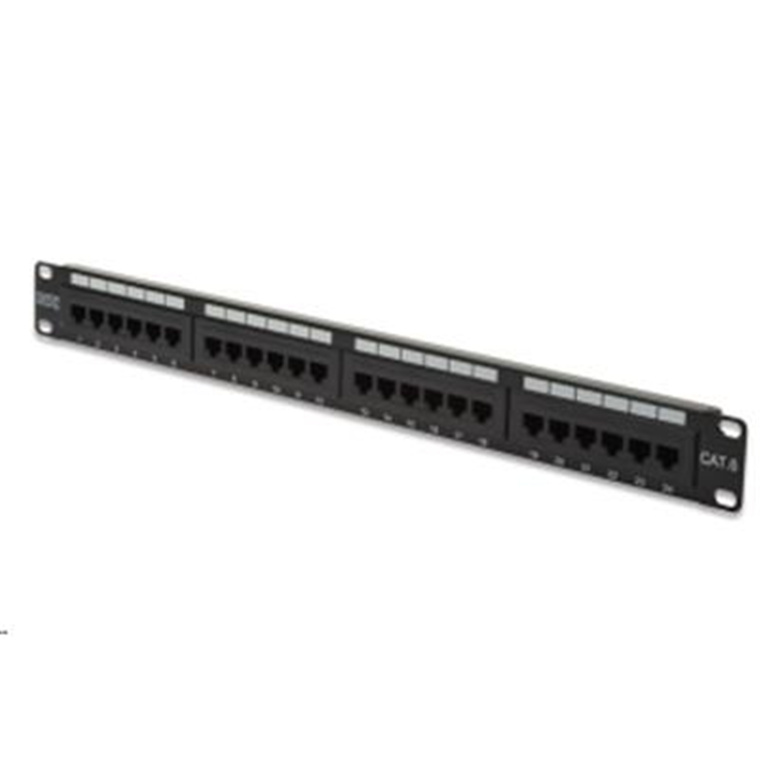

Digitus DN-91624U 24 Port CAT6 Patch Panel Unshielded

PB Tech price
PB Tech price
$ 58 .97
 +GST
$ 64 .86
 inc GST
$58.97  +GST
$64.86

Digitus DN-91624U 24 Port CAT6 Patch Panel Unshielded

  • Brand: Digitus
  • MPN: DN-91624U
  • Part #: CABDIG699435
  • UPC:
PB Tech price
$ 58 .97 $ 64 .86
 +GST  inc GST


Delivery: Order now and it ships on 16 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$58.97  +GST
$64.86

Features

CAT 6 Patch Panel, unshielded, 24-port RJ45 24-port RJ45, 8P8C, LSA, 1U, bl, 482x44x109 mm, bl

Future-oriented standards and high-end quality for your network.

The unshielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units). It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801. It is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack mounting.

Specifications

  • Transmission properties: Category 6
  • Area of application: Up to 250 MHz, 1GBase-T, PoE
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 483 mm (19") cabinet mounting
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Cable fixing with smart cable ties
  • Mechanical properties:
  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
  • Ground wire: Not included
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 - 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Mounting method: 482.6 mm (19 inch) mounting
  • Colour: Black
  • Width: 482
  • Height: 44
  • Depth: 109
  • RAL-number: 9005
  • Connection type: LSA
  • Screened: no
  • Suitable for number of connectors: 24
  • Category: 6
  • Type of connector: RJ45 8(8)
  • Number of height units: 1
  • Number of buses/couplings: 24
Manufacturer Part No:
DN-91624U
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.785 kg
PB Part No:
CABDIG699435
Product Model:
DN-91624U
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
