Dynamix LTPM-RJ45 Network Cable Tester RJ45 - Continuity - Resistance - Port Mapping
- Brand: Dynamix
- MPN: LTPM-RJ45
- Part #: CABDNX0813

Product URL: https://www.pbtech.com/au/product/CABDNX0813/Dynamix-LTPM-RJ45-Network-Cable-Tester-RJ45---Cont
Features
DYNAMIX 3-in-1 Continuity, Resistance and Port Mapping RJ45
The DYNAMIX 3-in-1 Micro RJ45 Network Cable Tester combines resistance testing, continuity testing, & port mapping in a single, portable, & user-friendly device. Engineered for efficiency & precision, this versatile tester supports high-end applications in the communication, financial, & security industries. Offering professional-grade performance at a cost-effective price point, it ensures reliability & accuracy without compromising on quality

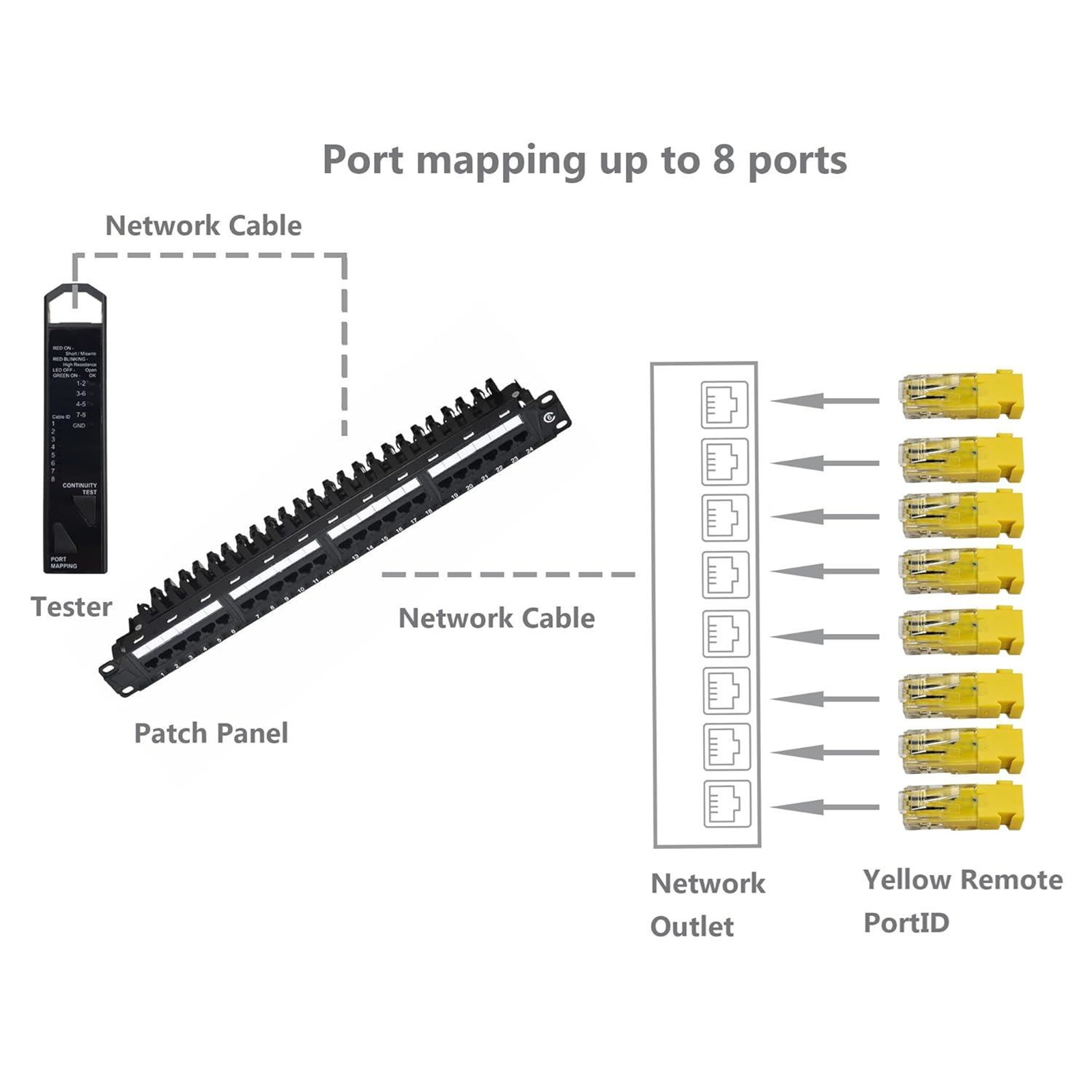

- Comes with remote 8-port mapping function
- Fast 0.5s test cycle
- Slim compact design with simple 2 button design
- Low battery consumption
- Indicates power transmission capability for PoE application
- Supports high resistance testing function
- Easy to read LED display

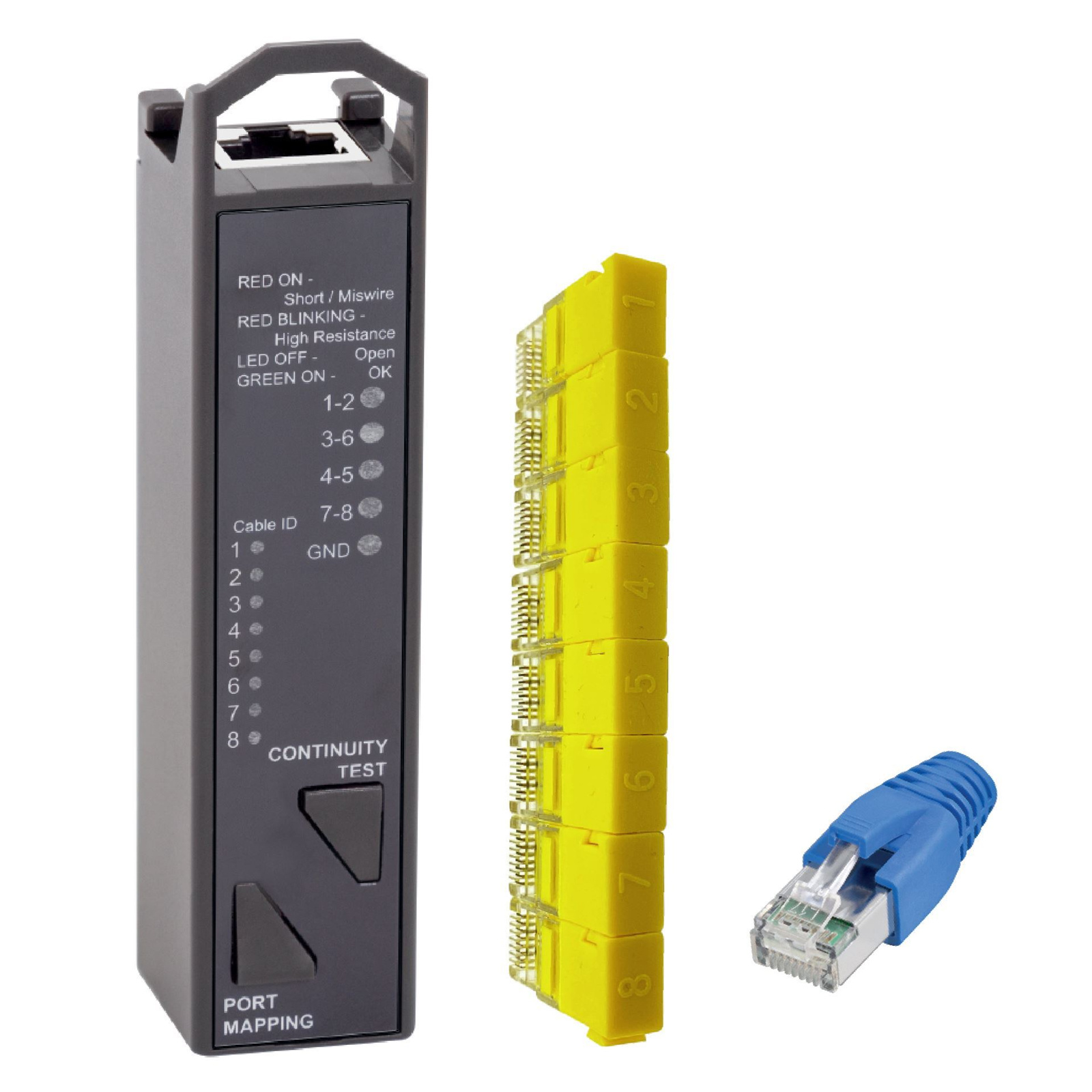

- 8x Yellow stackable cable identification plugs included
- Powered by 1x AA battery (Not included)
Specifications
Application
UTP/STP CAT5e/6/6A/8 Cables
Powered
1x AA Battery (20s Auto Power-Off)
Compliance
CE, FCC, ROHS, REACH
ISO/IEC 11801, EIA/TIA 568
Dimensions (LxWxH)
25 x 27 x 111mm
Main Tester Weight
35g (Exclude battery)
Packaged Weight
220g
Material
ABS Housing, Dark Grey
