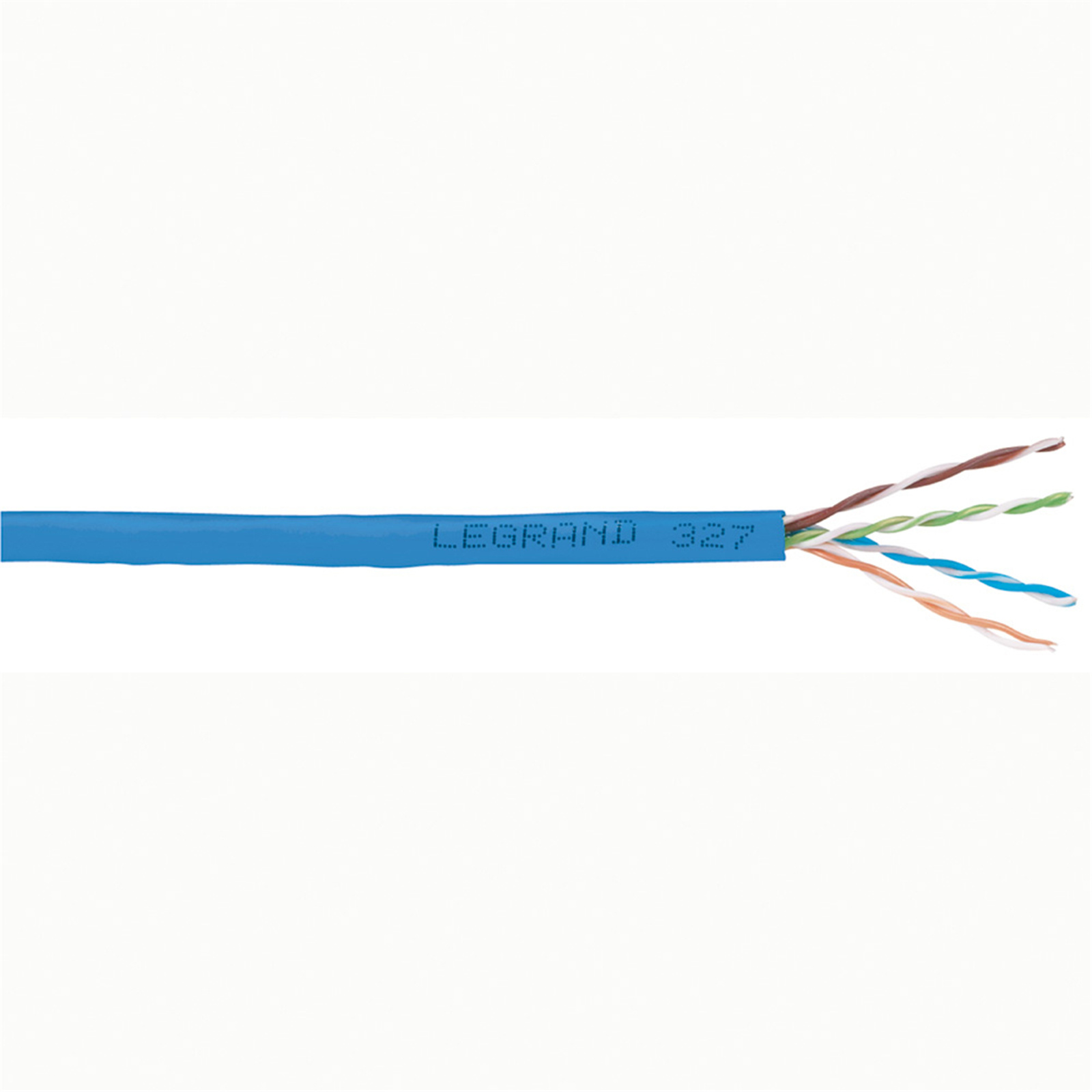

Legrand 32829 Cat6 Cable - 500m UTP - Gel Filled - PE Jacket
- Brand: Legrand
- MPN: 032829
- Part #: CABLGD32829

Product URL: https://www.pbtech.com/au/product/CABLGD32829/Legrand-32829-Cat6-Cable---500m-UTP---Gel-Filled
Features
Cable category 6 U/UTP 4 pairs LSZH Euroclass Dca 305 meters blue
This category 6 U/UTP 4 pairs cable supports data transmission in a structured cabling system.
Product charateristics
- Category 6 U/UTP : for up to 1 Gigabit per second data rate, unshielded cable
- 4 pairs cable
- Low Smoke Zero Halogen materials that emit limited smoke and no halogen when exposed to high sources of heat.
- Euroclass Dca offers adequate reaction to fire with a certification of compliance from an independent laboratory.
- Power over Ethernet : 802.3 bt PoE++ applications compatible according to installation standards ISO/IEC 14763-2 (final draft) and EN 50174-2 : 2018
- Recommendation / Restriction
- Compliant with ISO/IEC 11801 and ANSI/TIA 568 standards
The product's benefits
Usage
For the safety of people , Low Smoke Zero Halogen materials emit limited smoke and no halogen when exposed to high sources of heat. For the safety of goods, Euroclass Dca offers adequate reaction to fire with a certification of compliance from an independent laboratory.
Specifications
Cable type
U/UTP
Duplex
No
Conductor material
Copper
Conductor surface
Bare
Diameter conductor
0.56 mm
Nominal cross section conductor
0.25 mm²
AWG size
23
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification according to HD 308 S2
No
Core identification
Colour
Screen over stranding element
None
Screen over stranding
None
Longitudinal water blocking cable
No
Radial water blocking cable
Yes
Suitable for underground installation
No
Approved type of underground installation
Other
Protective sheath
None
Material outer sheath
Other
Specification material outer sheath
Polyethylene (PE)
Colour outer sheath
Blue
Armouring/reinforcement
None
Cable geometry
Round
Flame retardant according to IEC 60332-1-2
Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
No
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-23 (Cat B)
No
Flame retardant according to IEC 60332-3-24 (Cat C)
No
Flame retardant according to IEC 60332-3-25 (Cat D)
No
Low smoke according to EN IEC 61034-2
Yes
Halogen free according to EN IEC 60754-1
Yes
Halogen free according to EN IEC 60754-2
Yes
Halogen free according to EN IEC 60754-3
No
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d2
Reaction-to-fire according to EN 13501-6: Acidity
a1
Circuit integrity according to IEC 60331-23
No
Oil resistant according to EN IEC 60811-404
No
Outer diameter approx.
6.2 mm
Min. permitted bending radius, moving application with forced guidance
50 mm
Min. permitted bending radius, moving application/free movement
25 mm
Permitted cable outer temperature during assembling/handling
0-50 °C
Permitted cable outer temperature after assembling without vibration
-20-60 °C
Category
6
NVP value
66 %
UV resistant
No
Certified for shipboard application
No
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
No
Suitable for use as security alarm cable
No
Drain wire
No
With rip cord
No
Cable width approx.
5.8 mm
Cable height approx.
5.8 mm
Weight
43 kg/km
Characteristic impedance
100 Ohm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Storage temperature
-20-60 °C
RAL-number
5015
