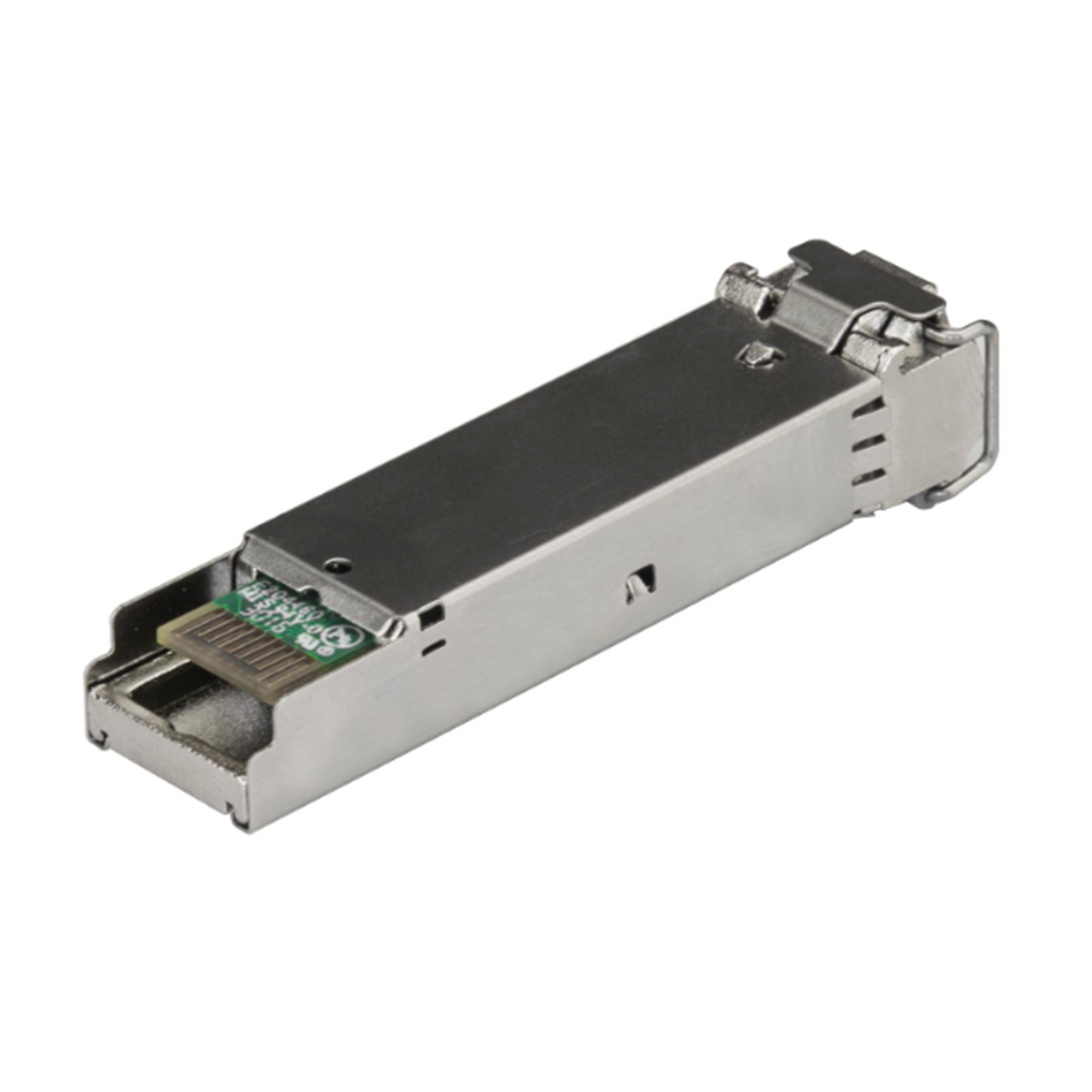

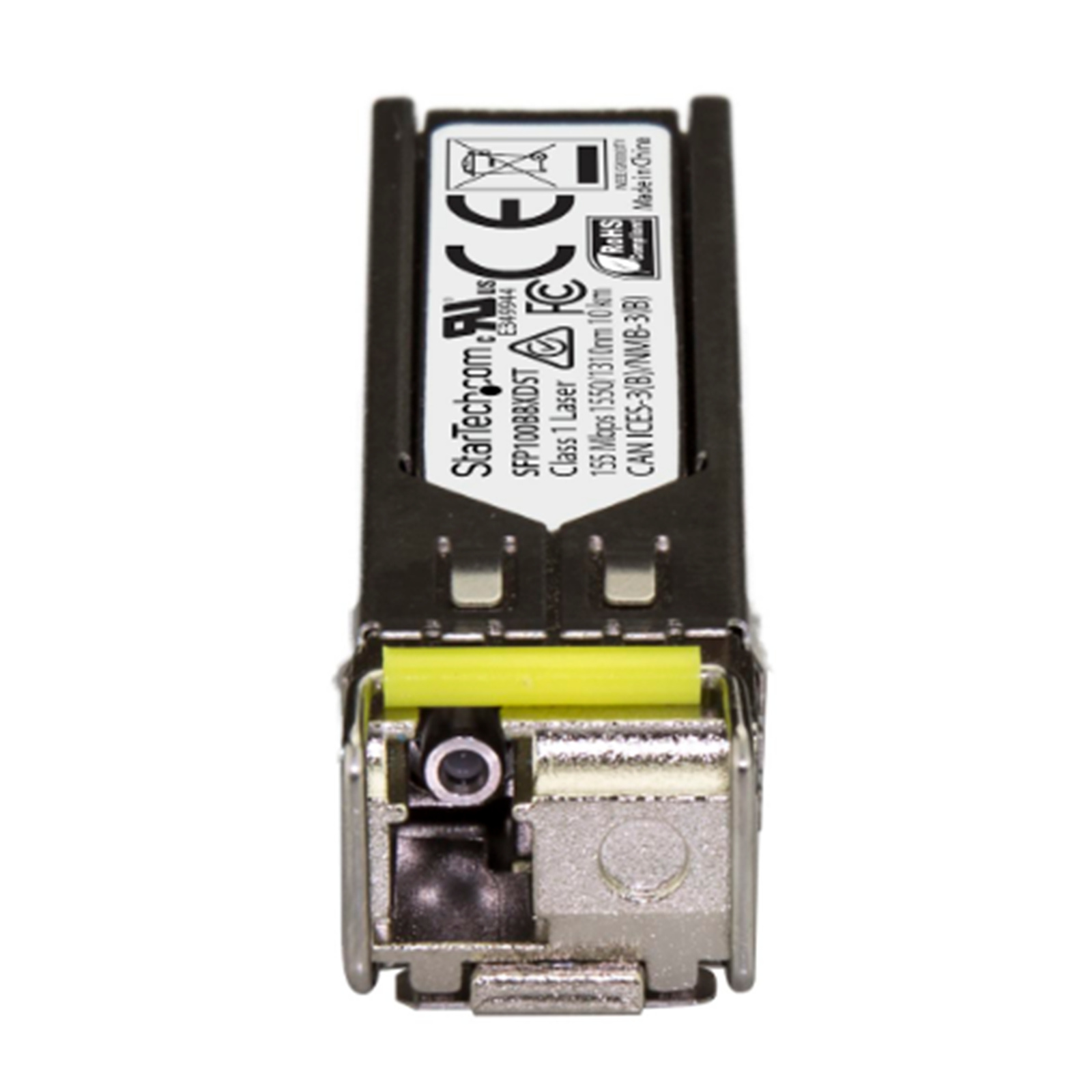

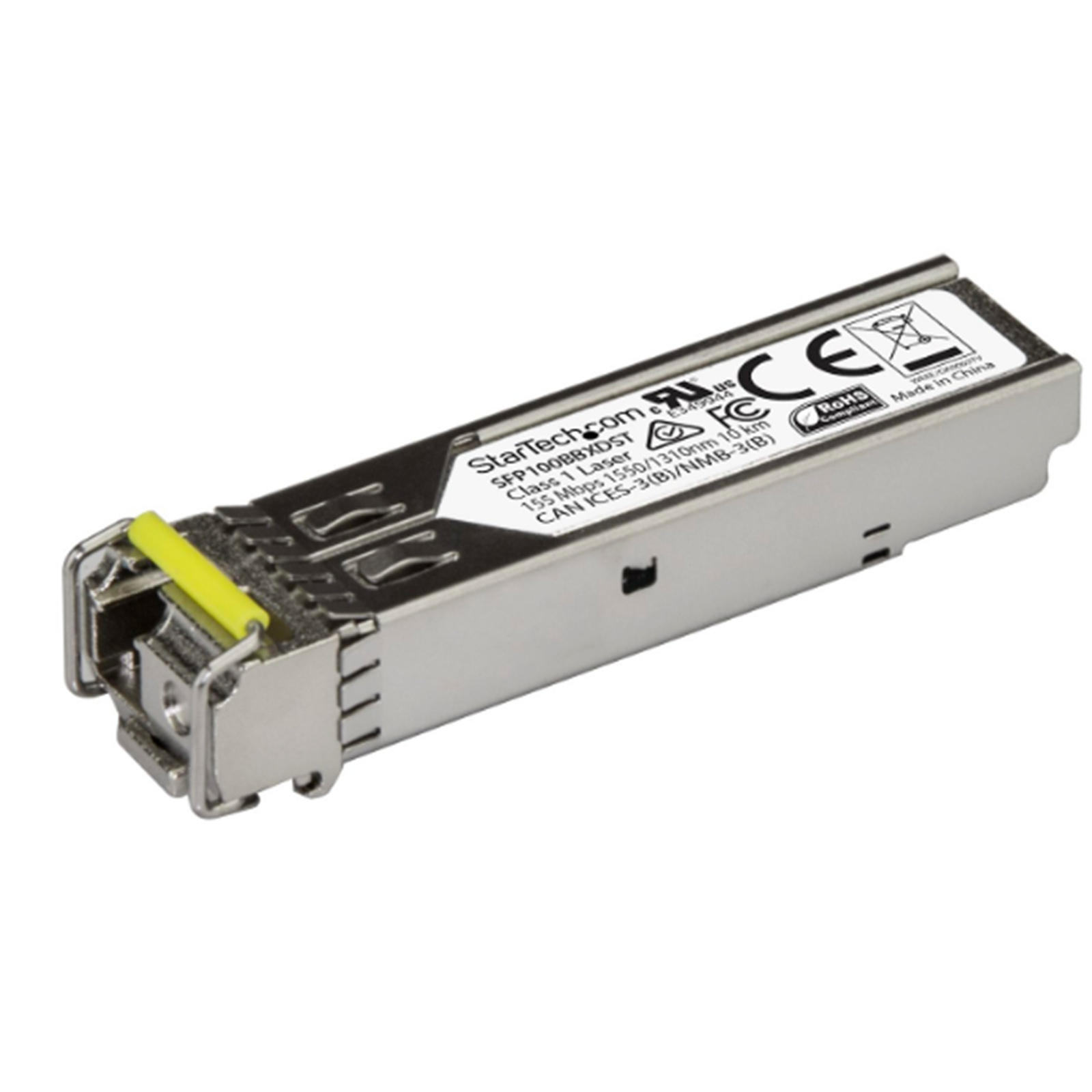

StarTech.com 100BASE-BX - 100MbE - BiDi SFP Module - 10km
MSA Uncoded SFP Module - 100BASE-BX - 100Mb Ethernet BiDi Fiber Single Strand SFP Transceiver / LC / MSA Compliant
Out of stock
StarTech.com 100BASE-BX - 100MbE - BiDi SFP Module - 10km
MSA Uncoded SFP Module - 100BASE-BX - 100Mb Ethernet BiDi Fiber Single Strand SFP Transceiver / LC / MSA Compliant
- Brand: StarTech.com
- MPN: SFP100BBXDST
- Part #: CABSTT3715536
- UPC:
View all shipping info
- Brand: StarTech.com
- MPN: SFP100BBXDST
- Part #: CABSTT3715536
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular SFP Cables





StarTech.com 100BASE-BX - 100MbE - BiDi SFP Module - 10km MSA Uncoded SFP Module - 100BASE-BX - 100Mb Ethernet BiDi Fiber Single Strand SFP Transceiver / LC / MSA Compliant
- Brand: StarTech.com
- MPN: SFP100BBXDST
- Part #: CABSTT3715536

Product URL: https://www.pbtech.com/au/product/CABSTT3715536/StarTechcom-100BASE-BX---100MbE---BiDi-SFP-Module
Features
The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1550nmTx/1310nmRx
Maximum Data Transfer Rate: 155 Mbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
MSA UNCODED SFP TRANSCEIVER: 100Mb Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 100MbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
TECHNICAL SPECS: 100BASE-BX | 100Mbps | 100Mb Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1550nmTx/1310nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi).
WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Specifications
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5~95% RH
Hardware
Compatible Brand
MSA Compliant
WDM
Yes
Industry Standards
IEEE 802.3u 100BASE-BX
Packaging Information
Package Length
4.6 in [11.7 cm]
Package Width
3.6 in [92.0 mm]
Package Height
1.2 in [30.0 mm]
Shipping (Package) Weight
1.7 oz [47.0 g]
Performance
Maximum Data Transfer Rate
155 Mbps
Max Transfer Distance
10 km (6.2 mi)
Type
Single Mode
Wavelength
1550nmTx/1310nmRx
Fiber Operating Mode
Half/Full-Duplex
DDM
Yes
Compatible Networks
100 Mbps
Power Consumption (In Watts)
< 1 W
Physical Characteristics
Product Length
2.4 in [60.0 mm]
Product Width
0.6 in [16.0 mm]
Product Height
0.4 in [1.1 cm]
Weight of Product
0.6 oz [18.0 g]
What's in the Box
Included in Package
1 - SFP transceiver
