Features

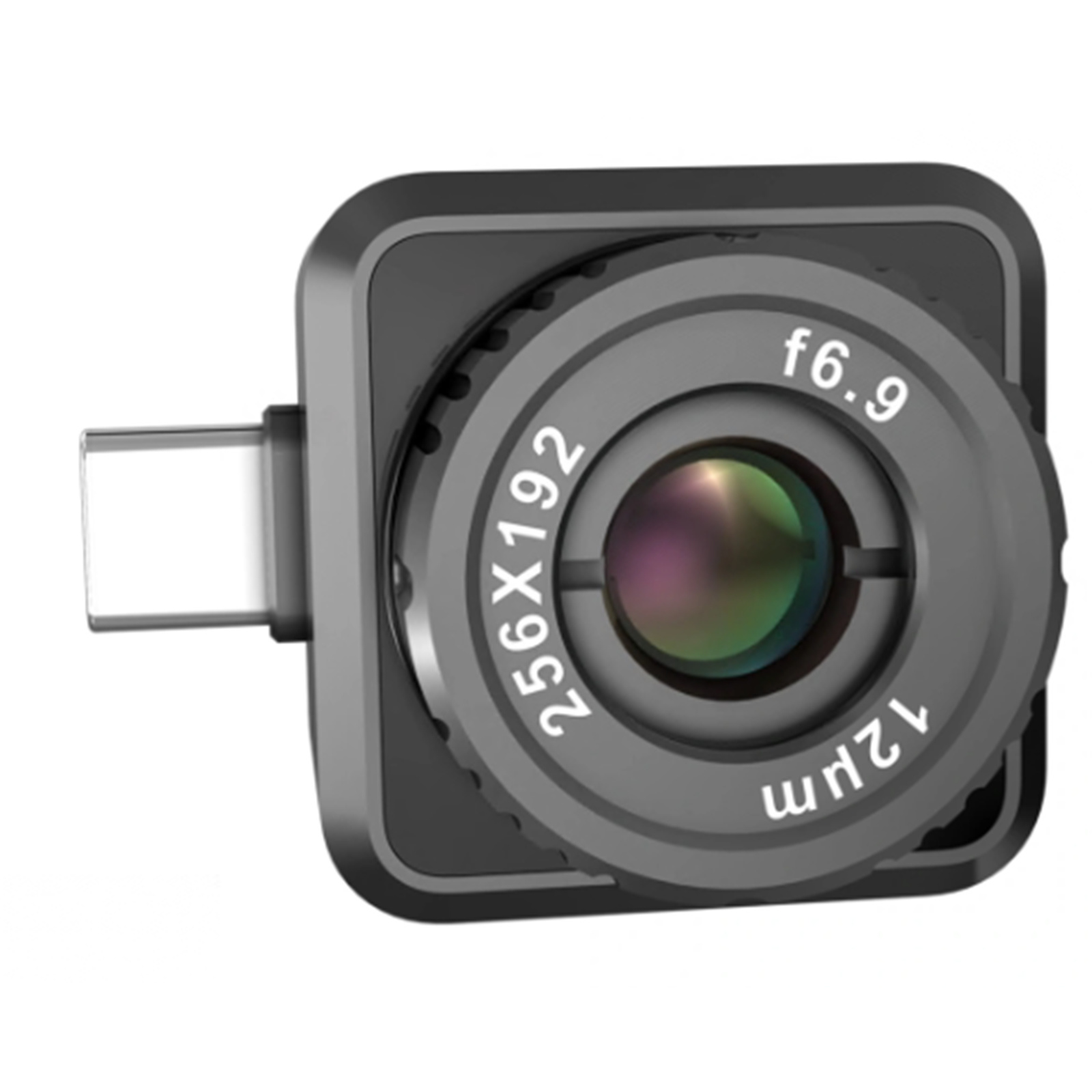

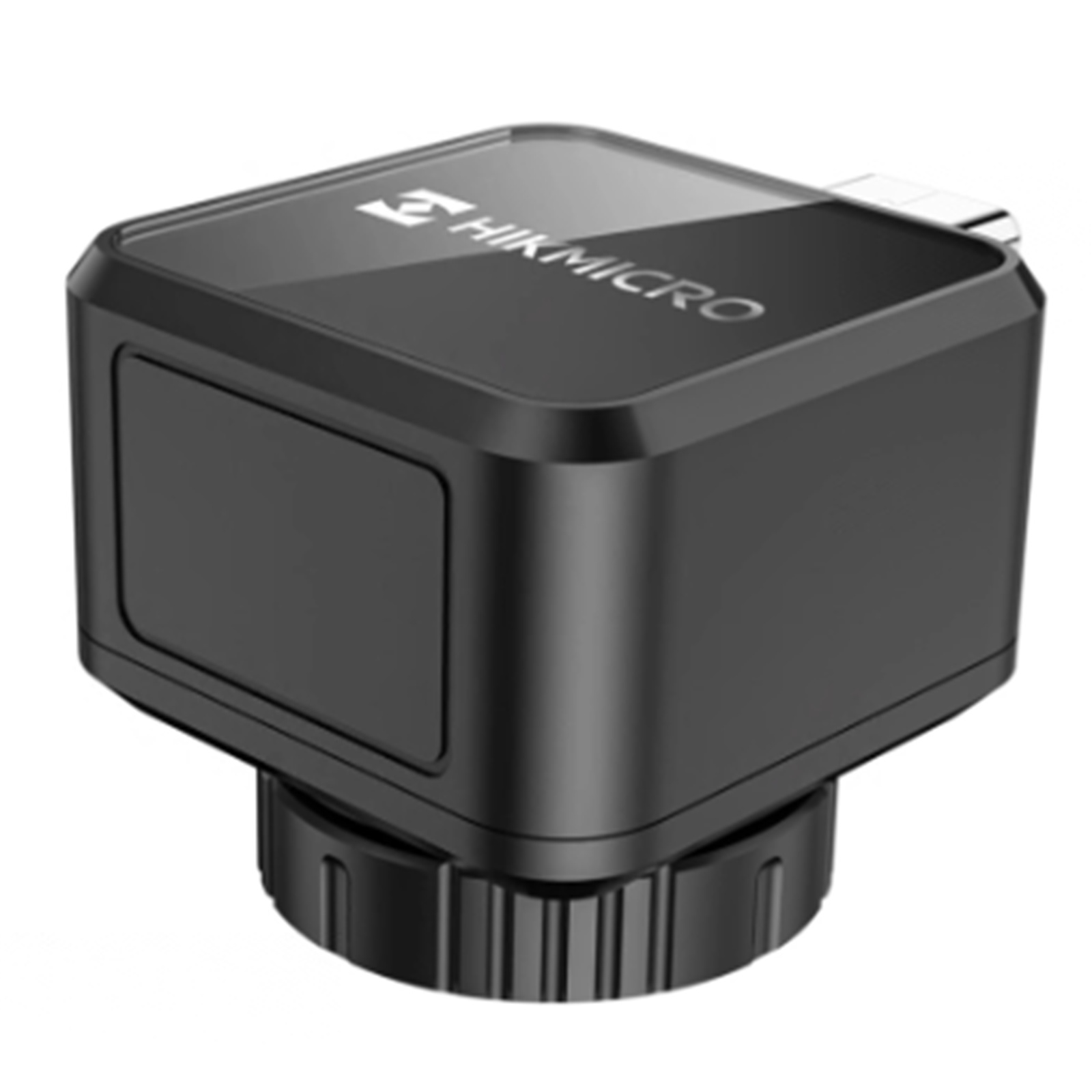

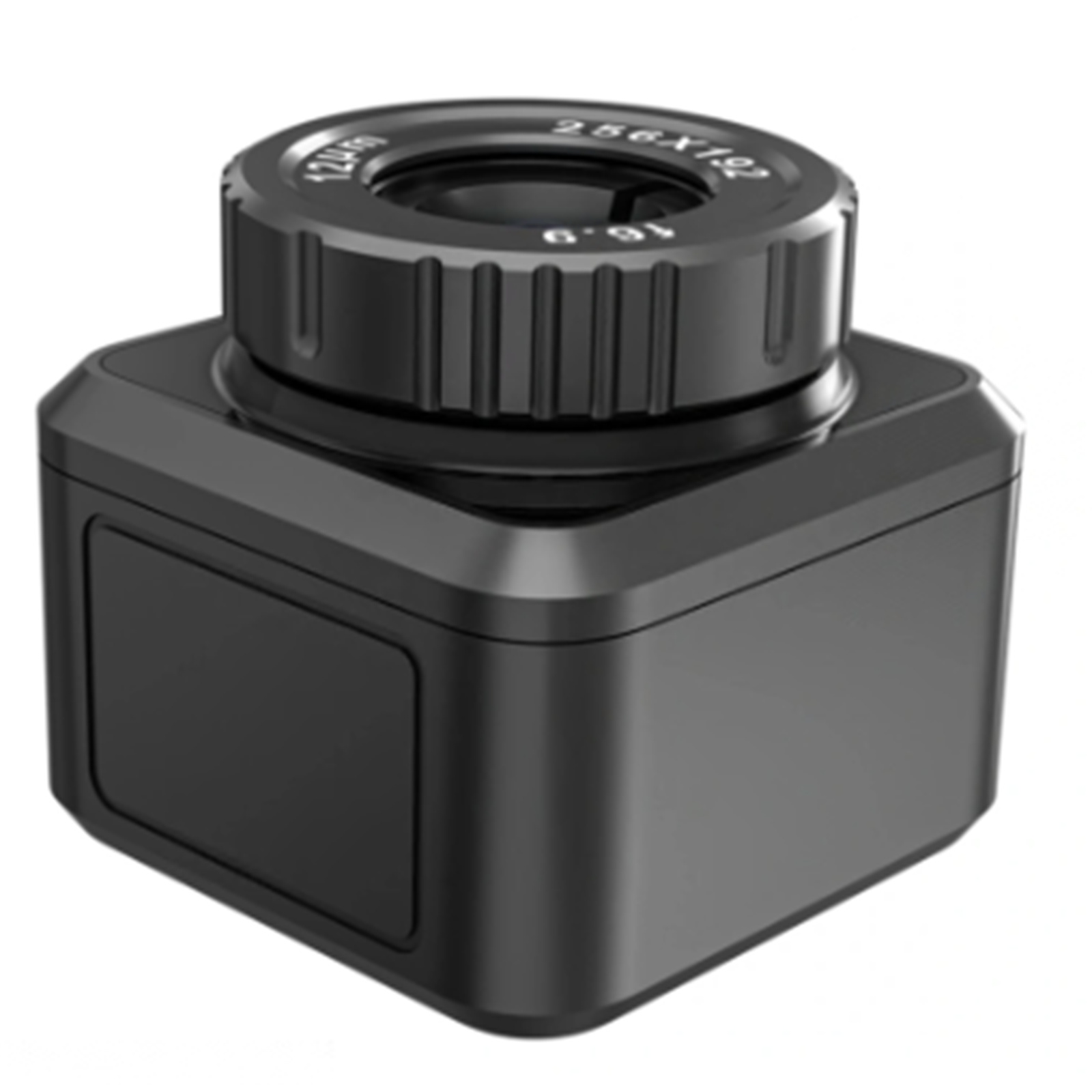

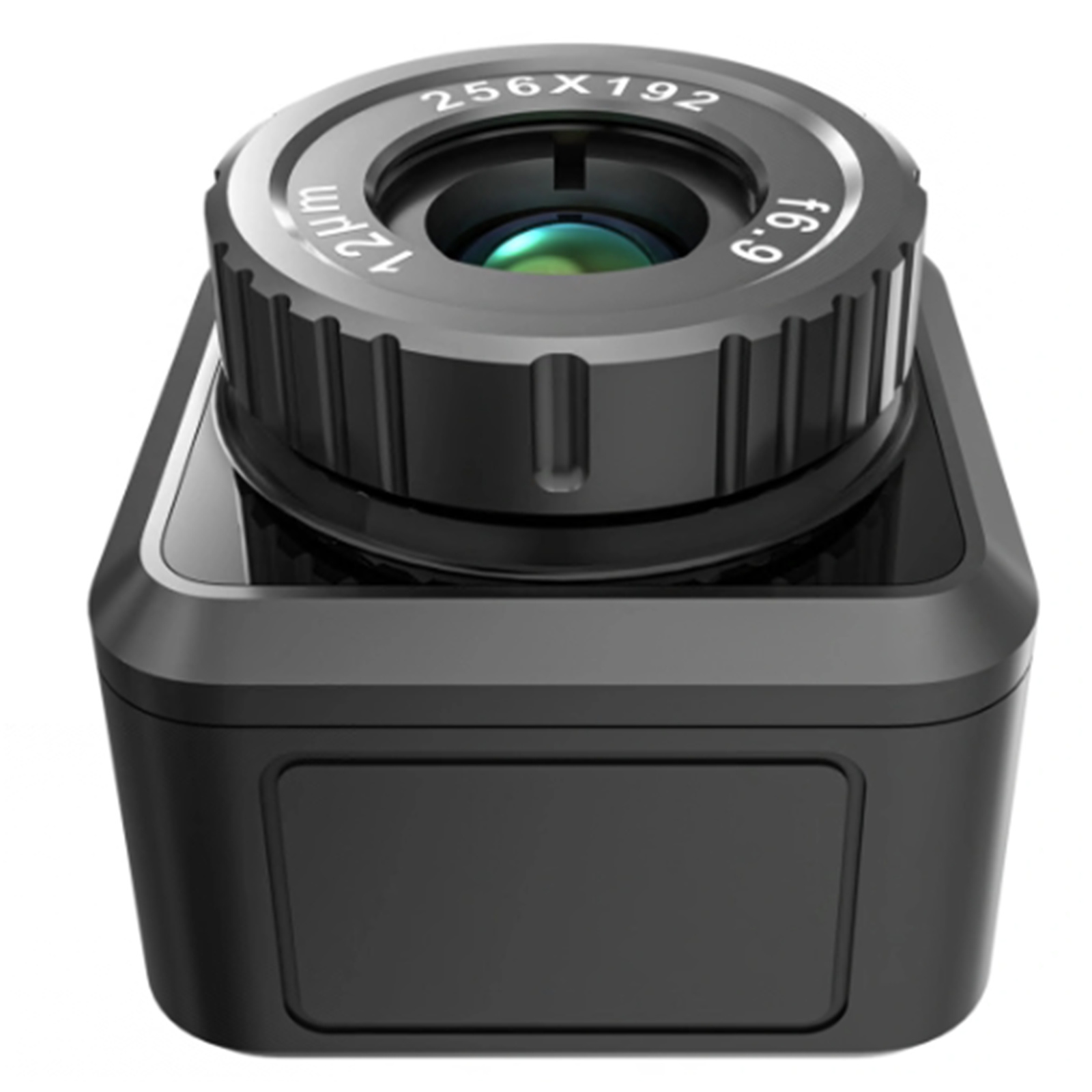

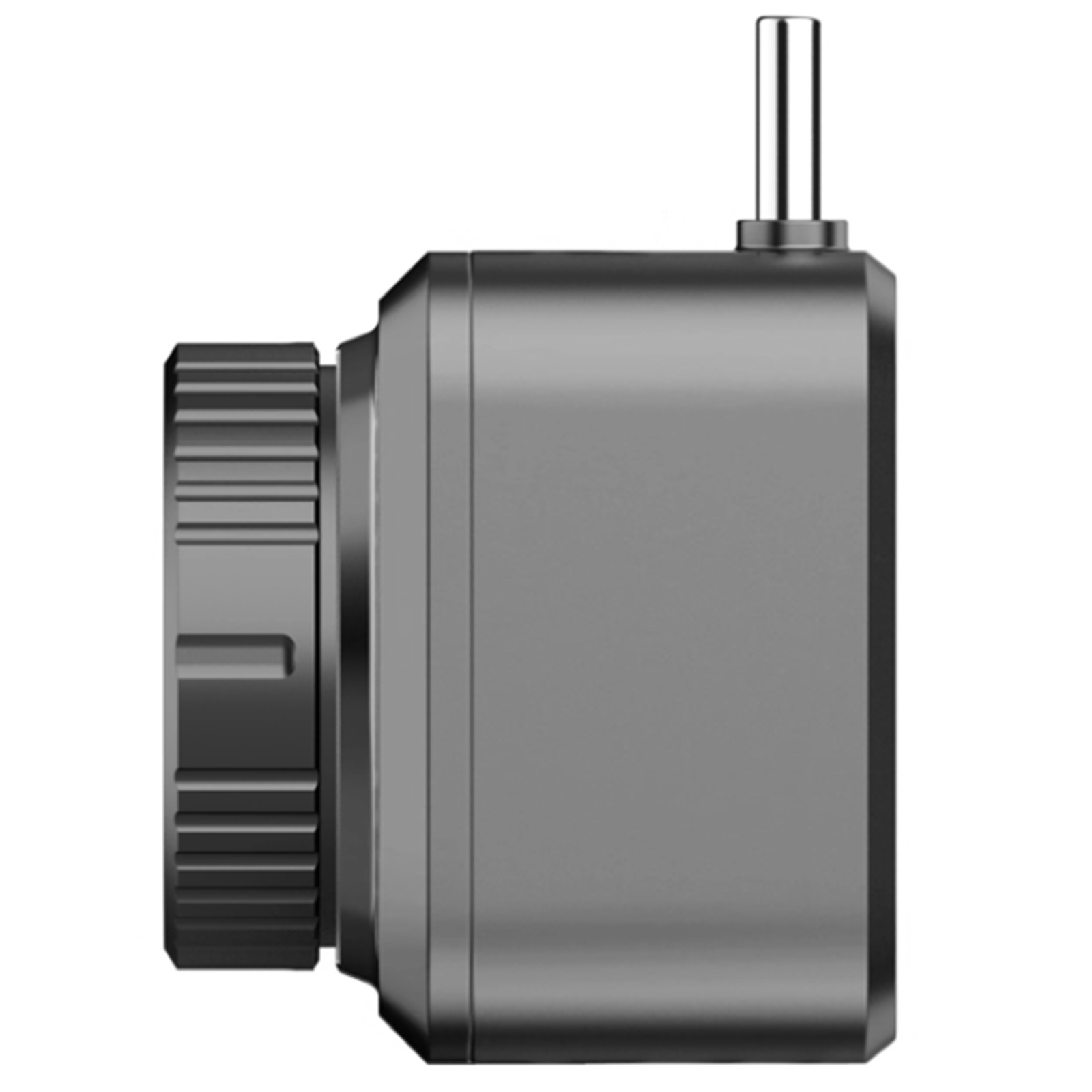

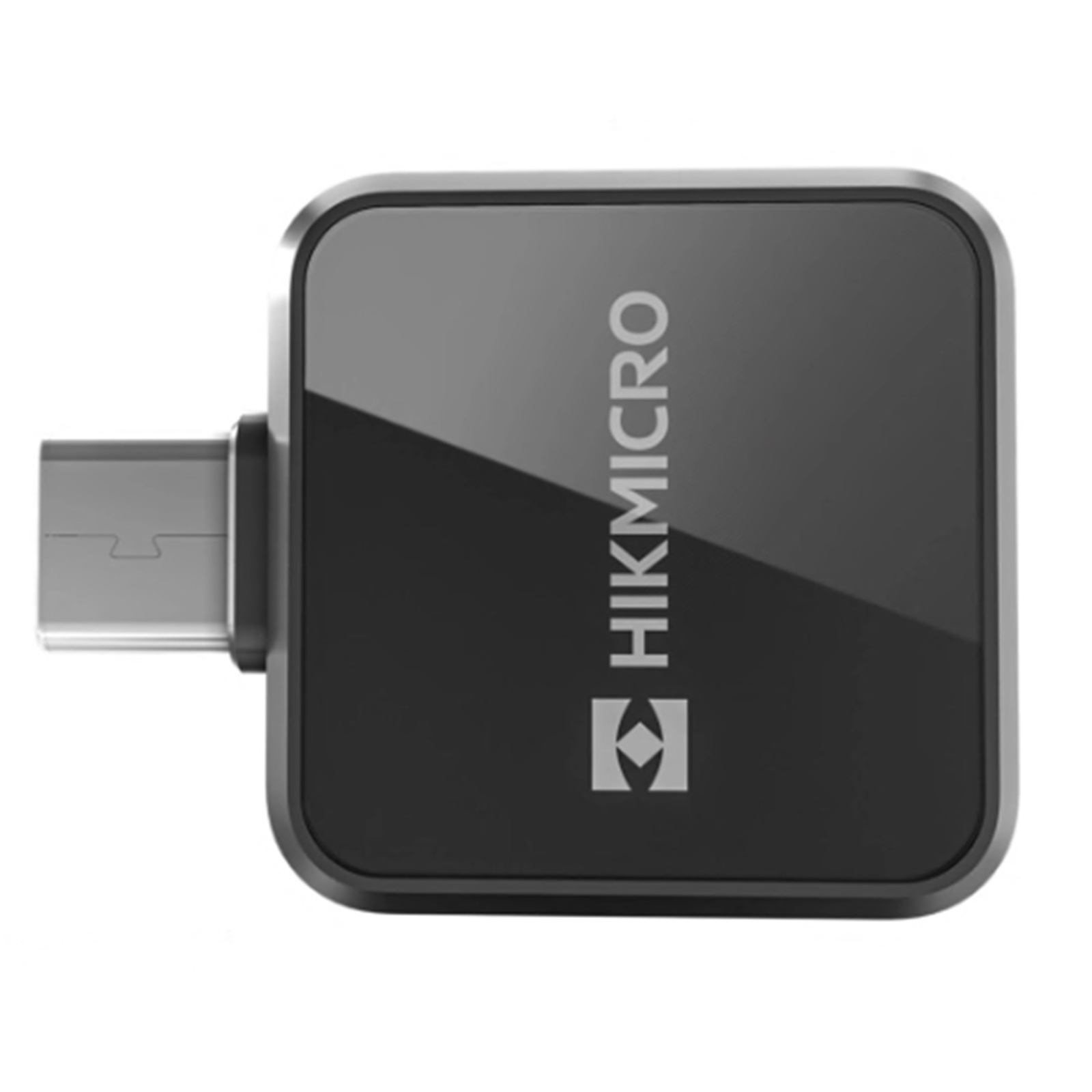

HIKMICRO Mini2Plus Smartphone Module Thermal Imaging Camera. Manual Focus.Thermal & Fusion Image Modes. Thermal Resolution: 49,152 Pixels. NETD: Less than 40 mK. Android Only.
The Smartphone Module is designed to inspect electrical equipment, troubleshooting HVAC problems. Equipped with a functional thermal App for smartphones, the Smartphone Module enables you to get thermal imaging on your phone.
- Thermal resolution: 256 x 192 (49,152 pixels)
- NETD: < 40mK ( @ 25°C, F#=1.0)
- Accuracy: ± 2°C (-20°C to 100°C); ± 2 % (100°C to 350°C)
- USB Type-C Interface (Android)
- 24g Weight
Accurate Temperature Measurements
Mini2Plus accurately measures temperatures from -20°C to 350°C, with a temperature accuracy up to ±2°C / ± 2 %.
Mini Size
At just 26.6 x 26.6 x 25mm and weighing only 24g, it'll fit in your pocket, tool bag, or anywhere convenient for quick and easy access.
Battery-Free
Mini2Plus is battery-free so you'll never need to charge it up or find a charger cable. It's powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.
Durable And Rugged
Designed for where you work, live or relax, the Mini2Plus features IP40-rated aluminium alloy housings, pass strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.
Different Color Palettes
Find invisible problems more easily.
Specifications
Infrared Image
IR Resolution
256 × 192 (49,152 pixels)
NETD
< 40 mK (@ 25°C, F#=1.0)
Image Frequency
25 Hz
Detector Pitch
12 µm
Spectral Range
7.5 to 14 µm
Focal Length
6.9 mm
F-number
F1.0
Field of View (FOV)
25° × 18.8°
Min. Focus Distance
0.1 m (0.33 ft)
Focus Mode
Manual Focus
Image Display
Color Palettes
White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Image Modes
Thermal/Fusion
Measurement and Analysis
Object Temperature Range
-20°C to 350°C(-4°F to 662°F)
Accuracy
Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools
Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots, and 3 rectangles.
Level and Span Mode
Auto/Manual
General
Power Consumption
360 mW
Protection Level
IP40
Drop Test Height
1 m (3.28 ft)
Working Temperature Range
-10°C to 50°C (14°F to 122°F )
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F )
Weight Approx.
24 g (0.053 lb)
Dimension
26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)
