Vaddio RoboSHOT 20 UHD System WHITE
Vaddio RoboSHOT 20 UHD System WHITE
- Brand: Vaddio
- MPN: 999-9950-009W
- Part #: CAMVDO0020
- UPC:
View all shipping info
- Brand: Vaddio
- MPN: 999-9950-009W
- Part #: CAMVDO0020
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Video Conferencing





Vaddio RoboSHOT 20 UHD System WHITE
- Brand: Vaddio
- MPN: 999-9950-009W
- Part #: CAMVDO0020

Product URL: https://www.pbtech.com/au/product/CAMVDO0020/Vaddio-RoboSHOT-20-UHD-System-WHITE
Features
RoboSHOT 40 UHD System AUS, White
Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.
- Back-illuminated 8.51 Megapixel, ultra-high definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840 x 2160) video
- 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
- Genlock signal for multi-camera synchronization
The RoboSHOT 40 UHD broadcast-quality PTZ camera is ideal for these applications:
- Broadcast TV, corporate broadcast, local TV stations, campus news
- Churches, houses of worship
- Live events
- Sporting events such as high school football or soccer
- Large auditoriums
- Concert halls
This Package Includes:
- RoboSHOT 40 UHD camera (black or white)
- Quick-Start Guide
- 12V power supply with AC cord set(s)

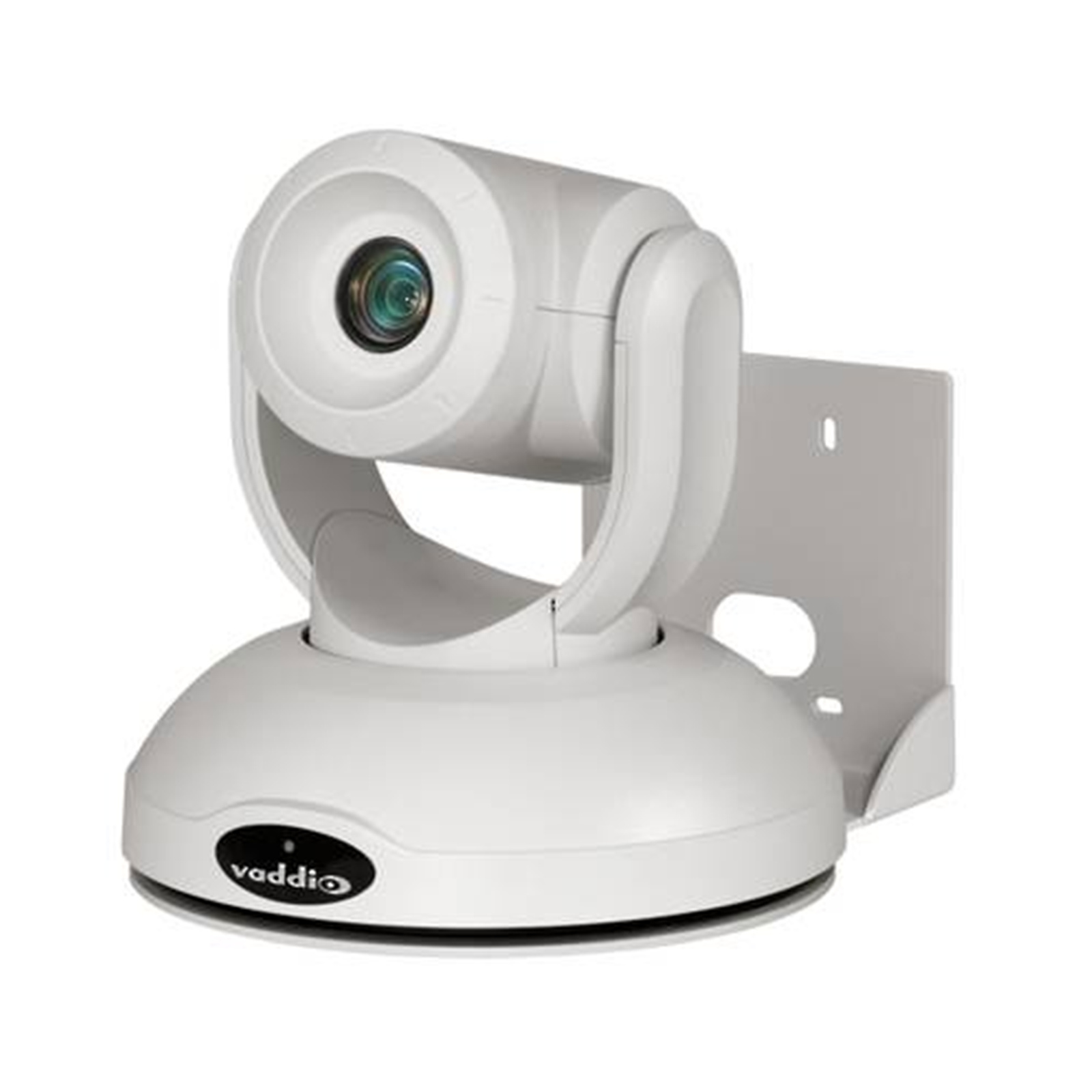

- Thin Profile Wall Mount (black or white) with mounting hardware
- Vaddio IR Remote Commander
- EZCamera RS-232 Control Adapter
Specifications
Colour
White
Certifications
CE Approved, FCC Approved
Product Width
8" (20.32 cm)
Product Height
7.9" (20.07 cm)
Product Depth
5.5" (13.97 cm)
Product Weight
6 lbs (2.72 kg)
Signal Type
3G-SDI, HDMI, HDbT, IP-Streaming
Power Type
Local Power, PoE++
Output Ports
3G-SDI, HDMI, HDbT, IP-Streaming
Zoom
40x at 1080p/60; 30x at 4k/30
Max Resolution
2160p/29.97
Image Sensor
1/2.5-type Exmor® CMOS sensor, 4K
Field of View
70.2° Wide End to 4.1° Tele End
Estimated Room Size
Large Venue, Large Conference Room
Minimum Illumination
1.6 Lux (F2.0), 100+ Lux Recommended
Browser-based User Interface for Remote Control
Built-in
Control Method
Joystick, Web UI, Touch Screen, Telnet, RS-232 and IR Remote
OneLINK Compatibility
Native
OneLINK HDMI adds
328 ft (100 M) Power, Video, Control Extension
OneLINK Bridge adds
328 ft (100 M) Power, Video, Control Extension, Audio Mixer, USB 3.0
PTZ Motors
Silent BLDC Direct Drive Motors
Tri-Sync Motion
Yes
Pan and Tilt Range
Pan: ±160°, Tilt: +90· to -30°
Pan and Tilt Speed
0.35°/sec to 120°/sec
Image Sensor Type
1/2.5-type Exmor® CMOS sensor, 4K
Top Resolution
2160p/29.97
Invertible
Yes
Video S/N Ratio
>50 dB
Focus System
Auto, Manual
Gain
Auto, Manual
Operating Temperature
32° to 104°F (0° to 40°C)
Preset Positions
16 + Custom Home Position
White Balance
ATW, Auto, Indoor, Outdoor, One-Push, Manual
Power Supply
PoE++
Quick-Connect Compatibility
No
