FUSION 010-01516-01 Marine Stereo MS-RA70

PB Tech price
PB Tech price
$ 407 .18
 +GST
$ 447 .90
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

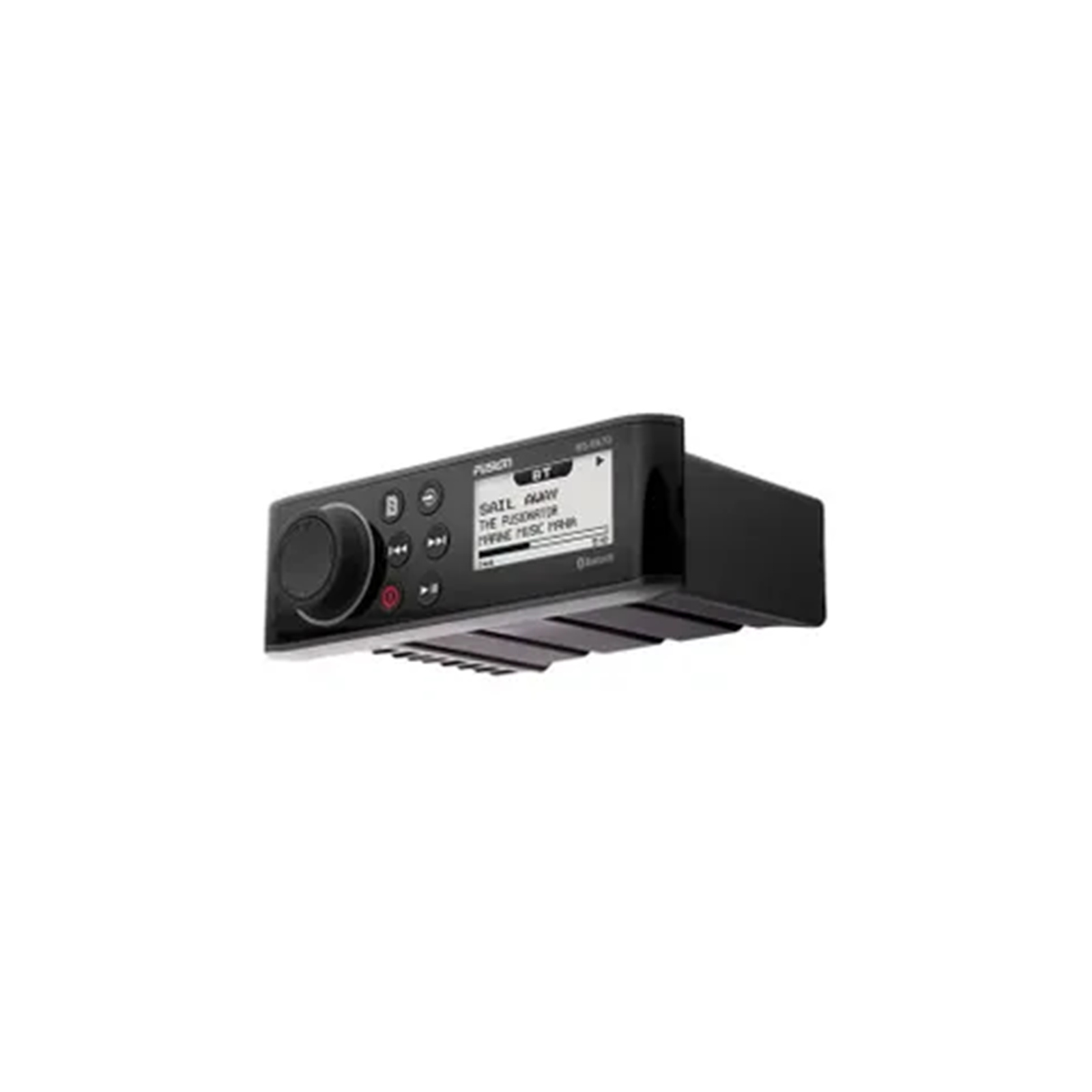

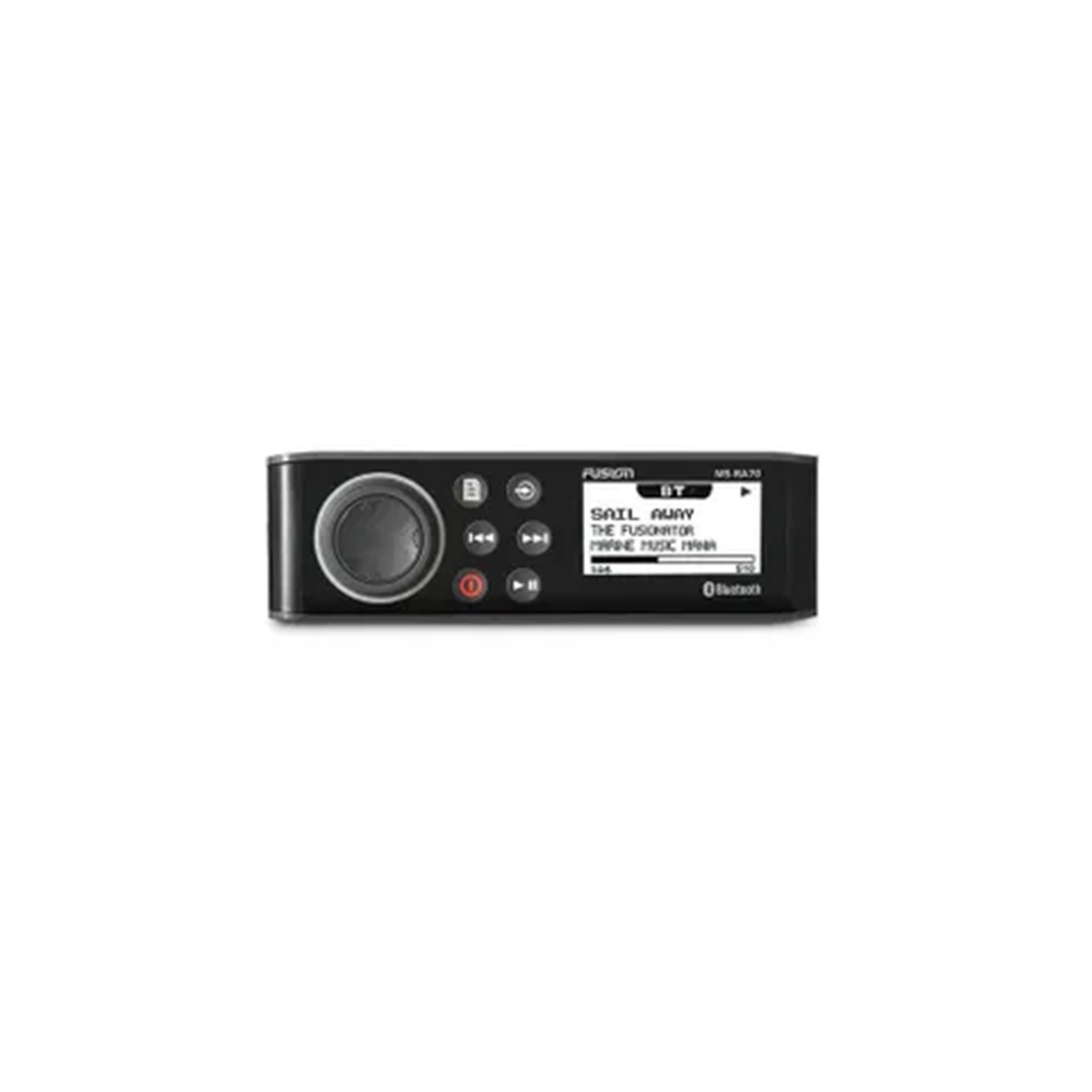

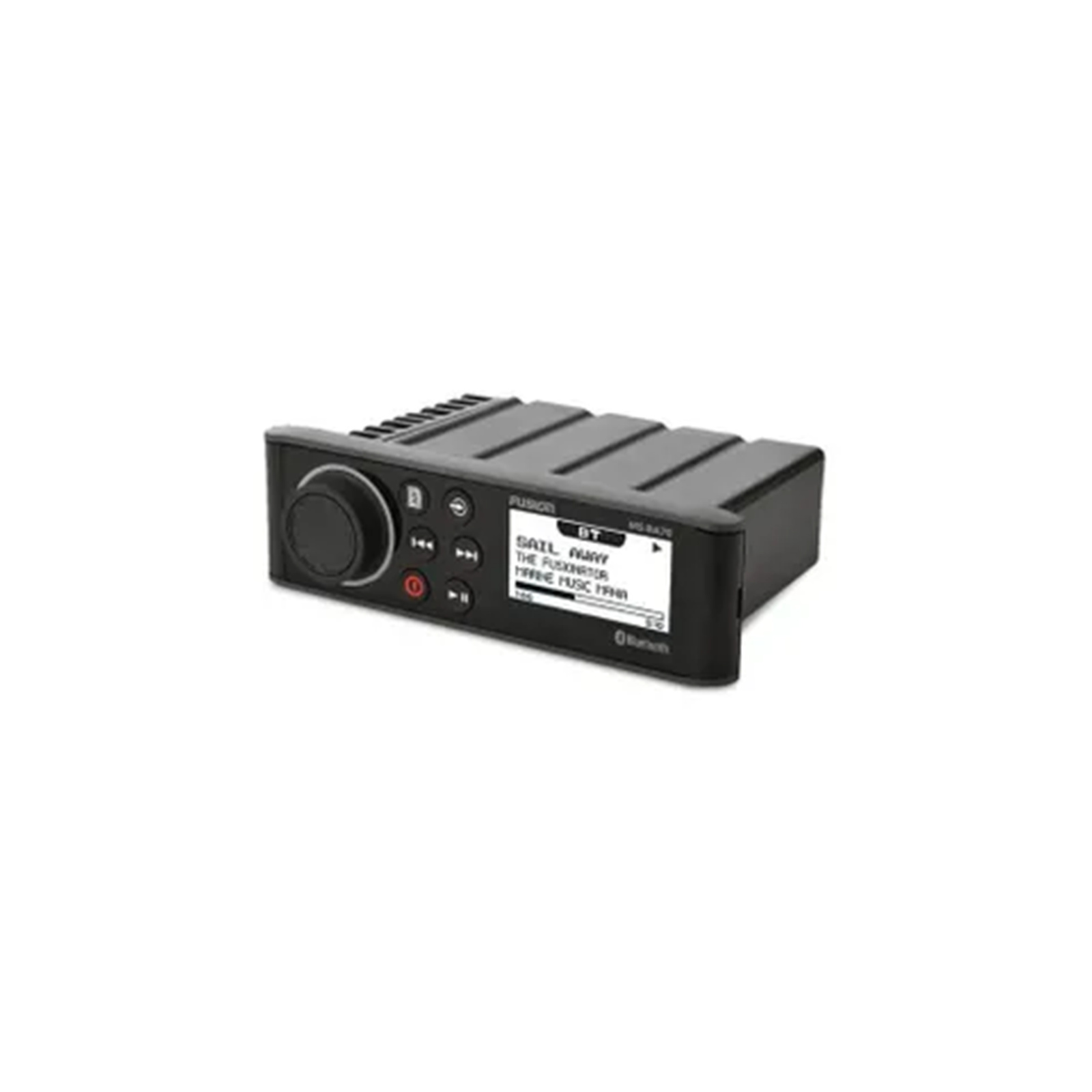

FUSION 010-01516-01 Marine Stereo MS-RA70

  • Brand: FUSION
  • MPN: 010-01516-01
  • Part #: CARFSN1019
  • UPC:
PB Tech price
$ 407 .18 $ 447 .90
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Features

Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®.

Fusion Marine Stereo Ms-RA70 with BT/USB/iPhone/Android/AM/FM and Fusion Link App Control

- Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space
- Optically bonded monochrome LCD improves screen visibility
- Built-in Class-AB amplifier delivers efficiency with reduced distortion
- Multi-Zone™ Technology gives you control of two separate audio zones
- Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch

Specifications

General

Physical dimensions (HxWxD)

60 x 188 x 123.5 mm

Weight

556 g

Water rating

IPX7 (front panel only, when properly installed)

Power input

10.8-16 VDC

Operating temperature range

0° to 50° C

Current (max)

15 A

NMEA 2000 LEN

1 (50 mA)

Bluetooth wireless range

10 metres

ANT wireless range

3 metres

Wireless frequencies/protocols

Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal

Compass-safe distance

150 mm

Stereo features

Display

128 x 64 optically bonded monochrome LCD

Built-in amplifier

Class-AB

Peak power

200 W

Rated power output (4 Ohm)

26 W rms x 4 @ 14.4 V input < 10% THD

Fusion-Link™ control

MS-RA70: Yes (smartphone and Garmin watch)
MS-RA70N: Yes (MFD, smartphone and Garmin watch)

Multi-Zone™ technology

2 zones

Bluetooth wireless technology

Yes

ANT wireless technology

Yes

DAB+ ready

MS-RA70 and MS-RA70N only; (requires DAB100A antenna module)

NRX remote compatibility

MS-RA70N only

Multi-language interface

Dutch / English / French / German / Italian / Spanish

Fits DIN-sized cutout

Yes

Software updates

USB

Sources

Sources

AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / AOA
MS-RA70 and MS-RA70N only: DAB+ ready (available in Europe and Australia only)

Connectivity

Auxiliary input

One RCA input (AUX)

NMEA 2000

MS-RA70N : 1 port

USB 2.0

One USB 2.0 port

AM/FM radio

One Motorola antenna connector port

Speaker

2 x speaker connections (2 zone amplified)

RCA Pre-out (left, right and subwoofer)

2 zones (requires external amplification)

Line out

2 (1 x L + R per zone, requires external amplification)

Subwoofer out

1 x mono output (requires external amplification)

Manufacturer Part No:
010-01516-01
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
CARFSN1019
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
