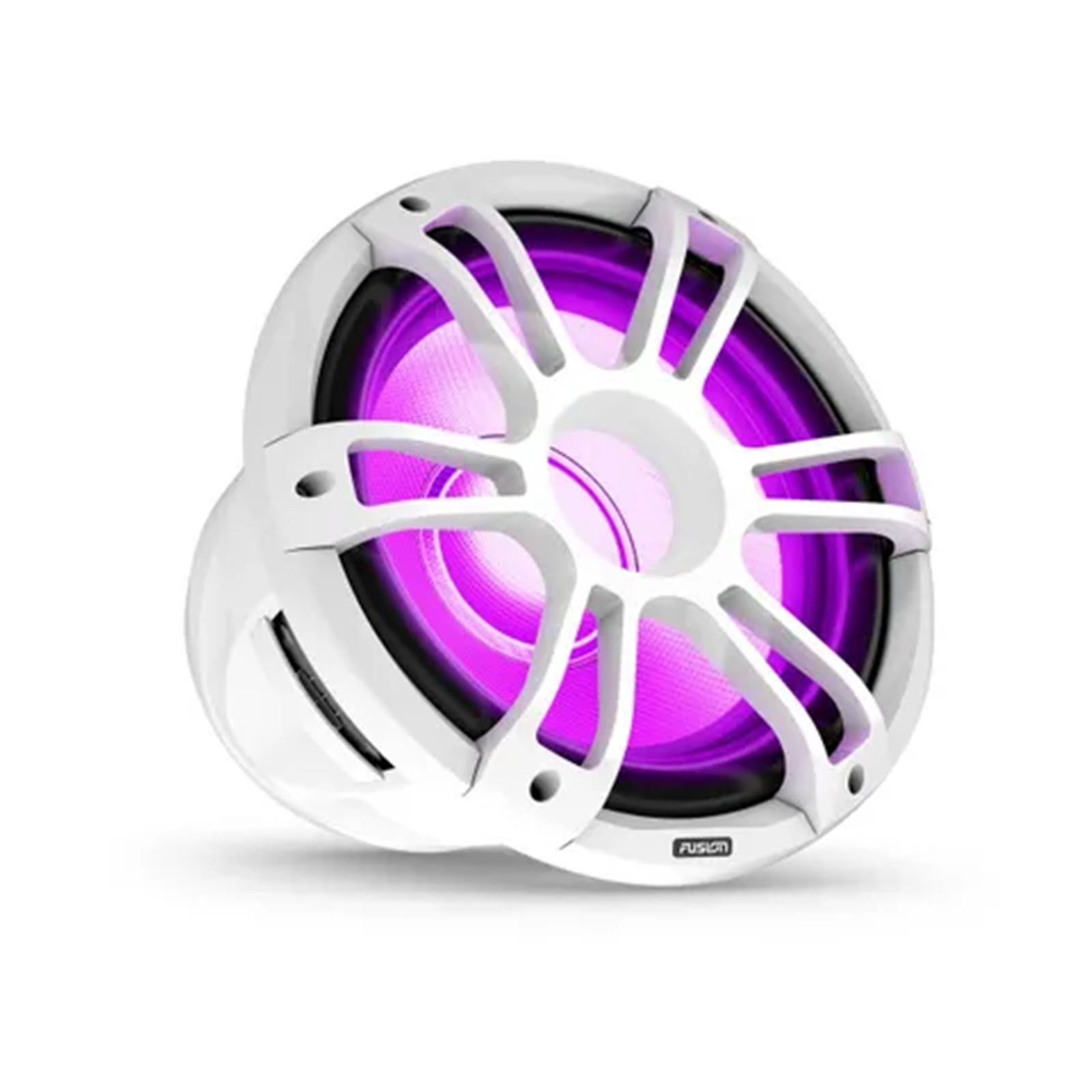

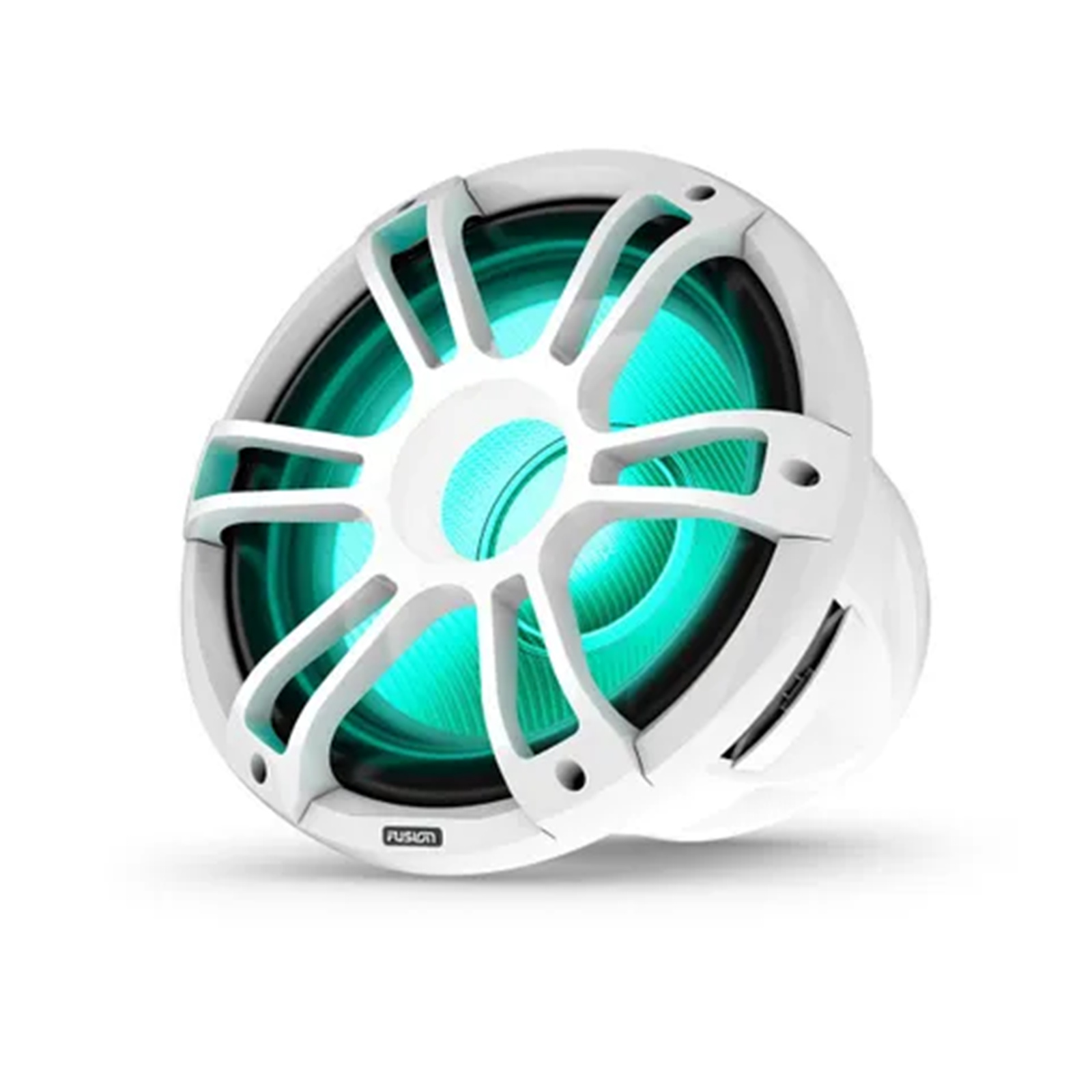

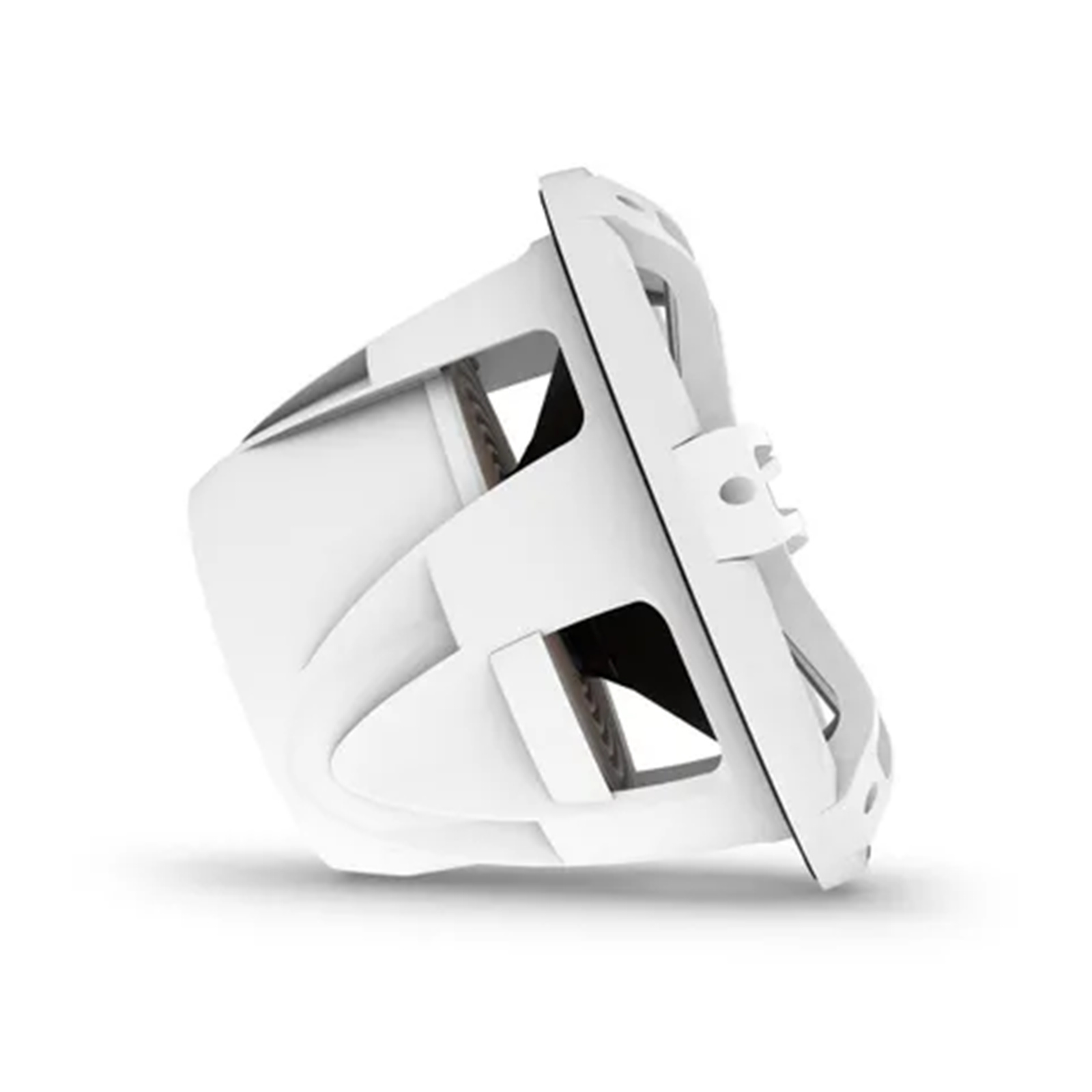

FUSION SG-SL123SPW SERIES 3I 12" CRGBW SPORTS SUBWOOFER - WHITE
FUSION SG-SL123SPW SERIES 3I 12" CRGBW SPORTS SUBWOOFER - WHITE
- Brand: FUSION
- MPN: 010-02775-10
- Part #: CARFSN1080
- UPC:
View all shipping info
- Brand: FUSION
- MPN: 010-02775-10
- Part #: CARFSN1080
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Subwoofers





FUSION SG-SL123SPW SERIES 3I 12" CRGBW SPORTS SUBWOOFER - WHITE
- Brand: FUSION
- MPN: 010-02775-10
- Part #: CARFSN1080

Product URL: https://www.pbtech.com/au/product/CARFSN1080/FUSION-SG-SL123SPW-SERIES-3I-12-CRGBW-SPORTS-SUBWO
Features
Specifications
General
Water and dust rating
IP65
Peak power (watts)
1400 watts
RMS power rating (watts)
700 watts
Sensitivity (1 watt @ 1 meter)
86 dB
Magnetic structure
114 oz
Frequency response
20 Hz-2 kHz
Nominal impedance
4 ohm
Recommended amplifier power (watts RMS)
200-1000 watts
LED lighting
yes, CRGBW (sports style with LED models only)
LED supply voltage
10.8-16 VDC (sports style with LED models only)
LED load current @14.4 VDC (max)
300 mA (sports style with LED models only)
Operating temperature range
32-122 degrees F (0-50 degrees C)
Voice coil diameter
4"
Cone material
Polypropylene cone with rubber surround
Compass-safe distance
181" (460 cm)
Subwoofer connection
Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
LED connection (sports style with LED models only)
Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
Mounting Dimensions
Mounting diameter clearance
12.05" (306 mm)
Mounting depth clearance
8.15" (207 mm)
Optimum Enclosure Recommendations
Sealed enclosure volume (fully filled with absorption material)
2.12 cubic ft (60 L)
Ported (vented) enclosure volume (lined with absorption material)
8.83 cubic ft (250 L)
Port diameter
4" (101.6 mm)
Port length
5" (127 mm)
