FUSION APOLLO SRX400 MARINE ENTERTAINMENT SYSTEM WITH DSP
- Brand: FUSION
- MPN: 010-01983-00
- Part #: CARFSN1090

Product URL: https://www.pbtech.com/au/product/CARFSN1090/FUSION-APOLLO-SRX400-MARINE-ENTERTAINMENT-SYSTEM-W
Features

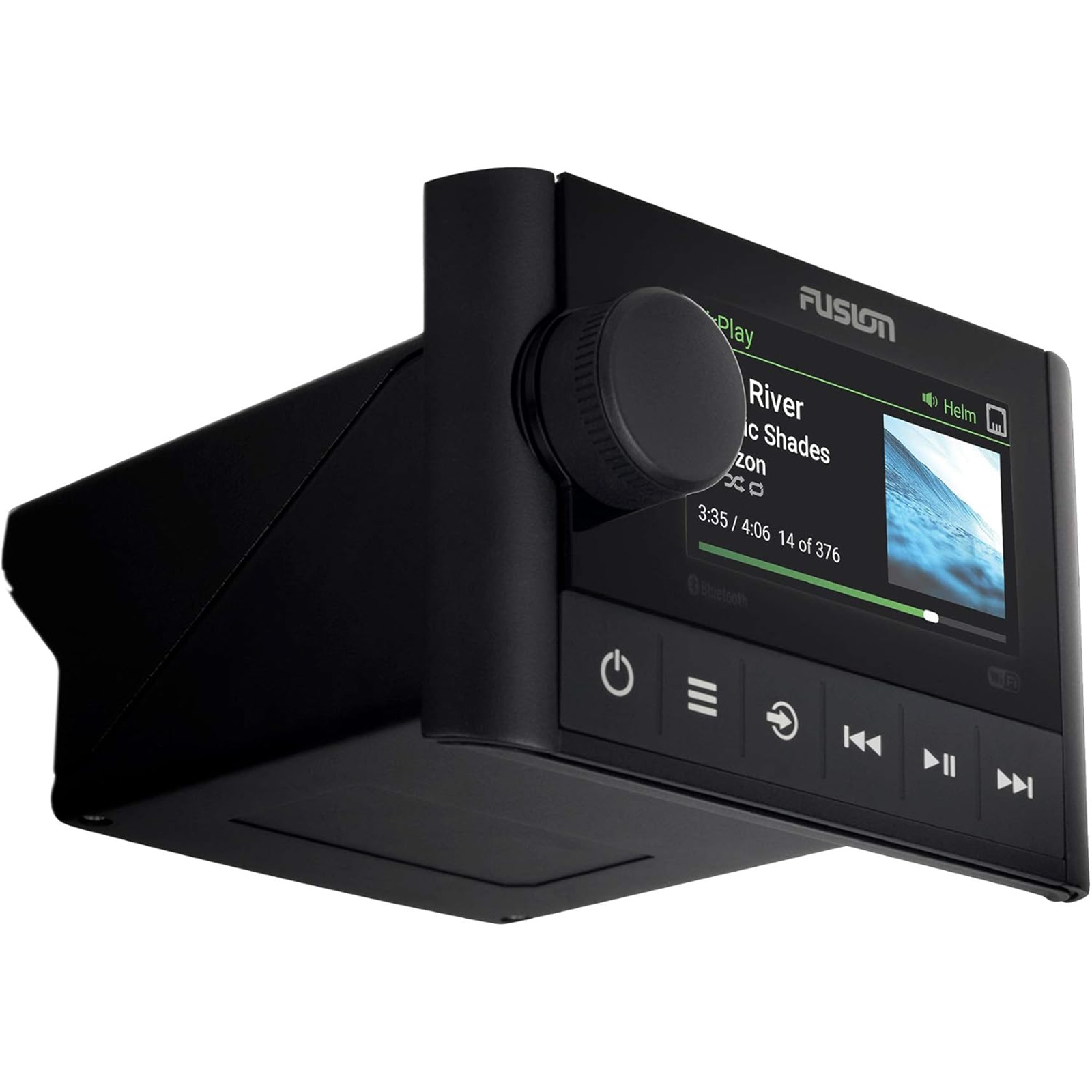

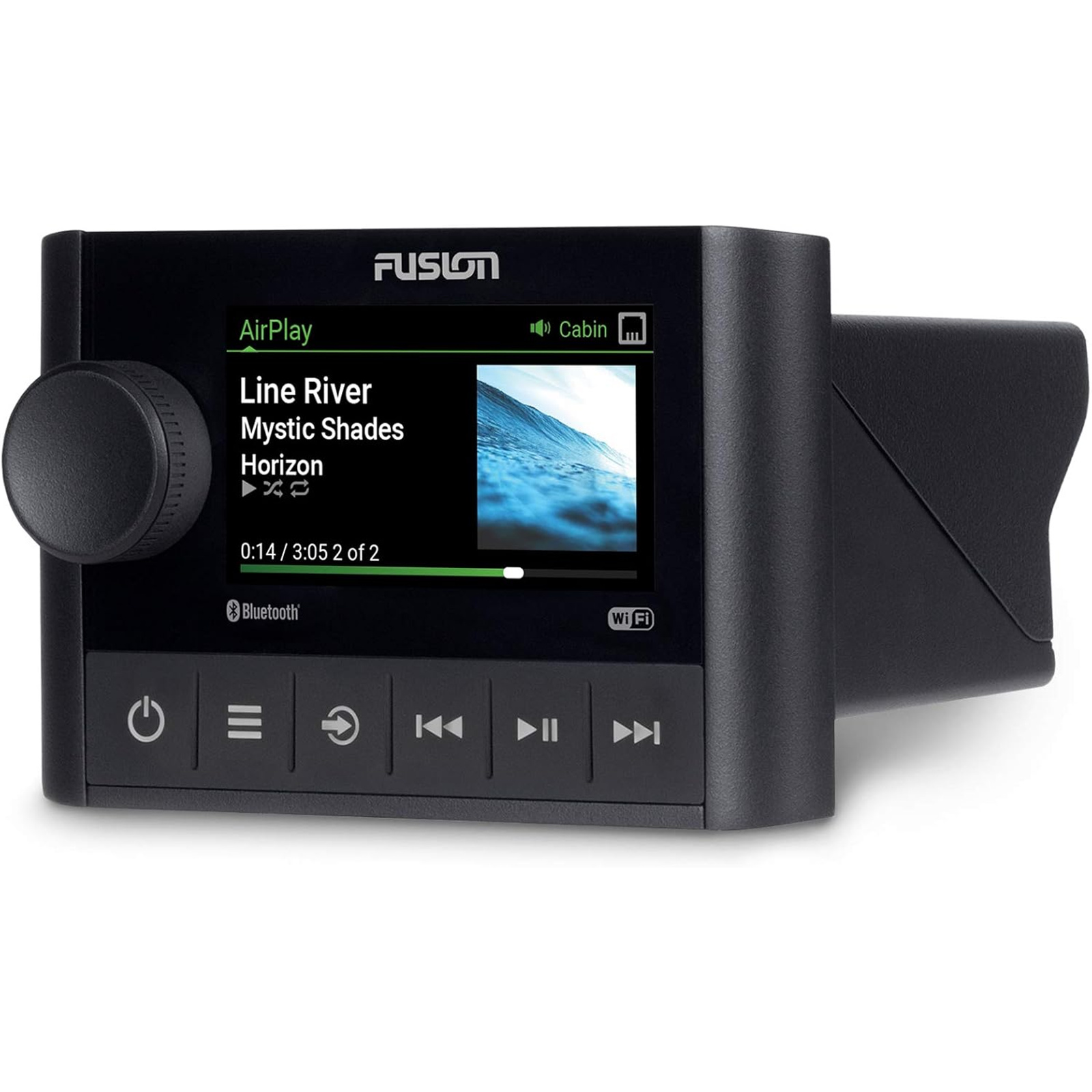

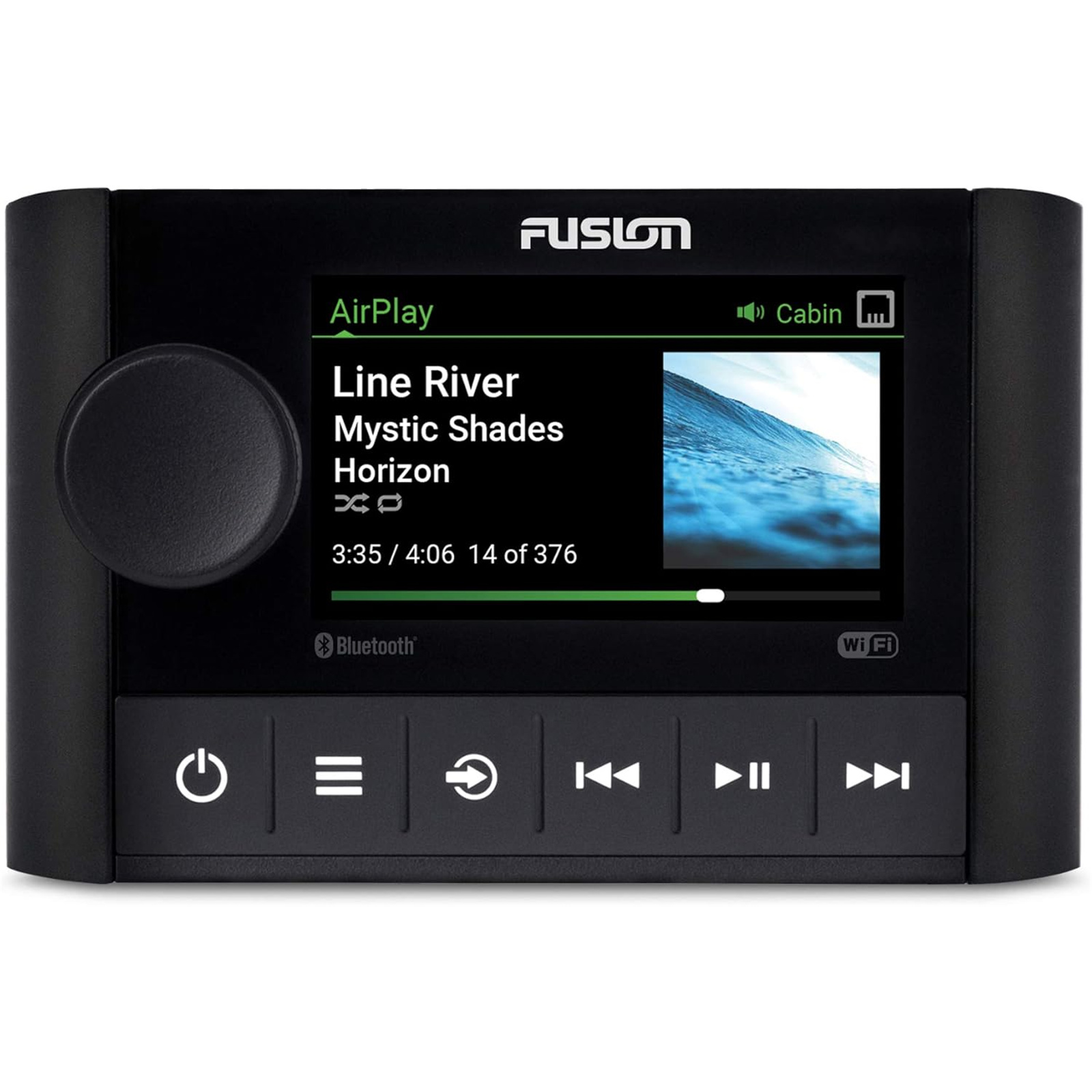

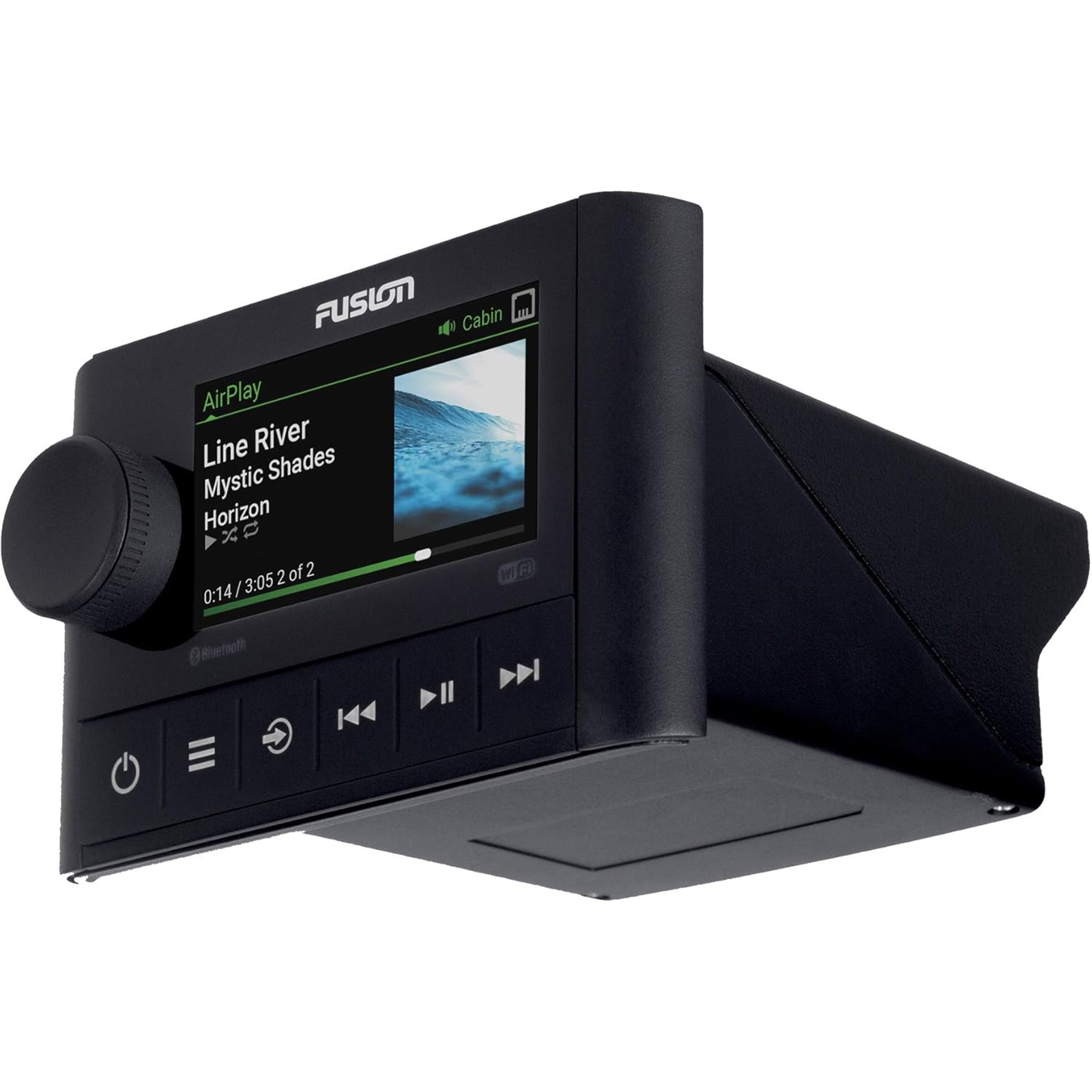

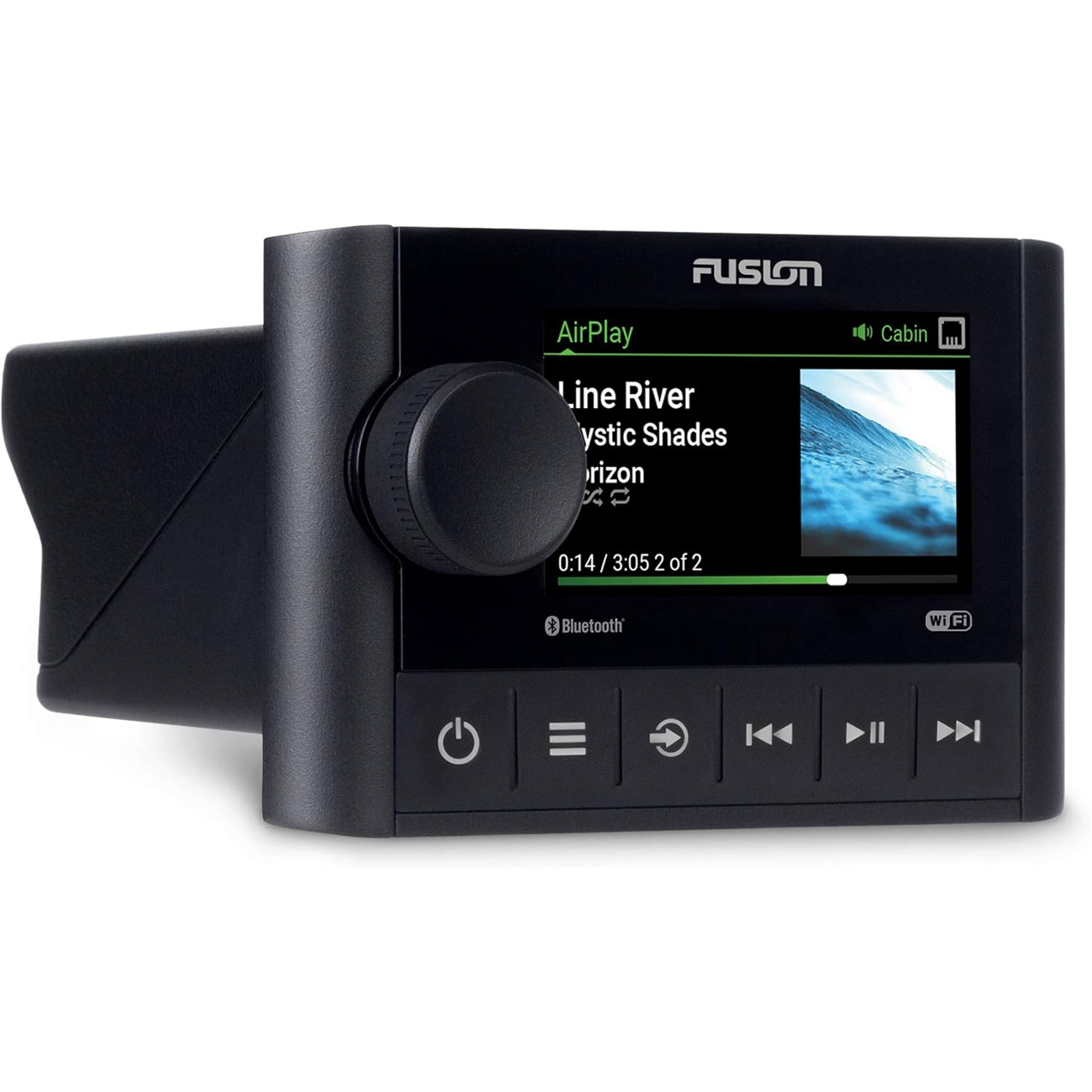

Fusion® Apollo™ SRX400
Apollo Marine Zone stereo with built-in Wi-Fi
THE APOLLO RA770 STEREO'S PERFECT COMPANION
A perfect companion to Apollo RA770, the Apollo SRX400 zone stereo combines premium design and superior sound in a compact form factor.
- Custom audio profiles for each zone on your boat to deliver superior quality audio.
- Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate.
- Experience seamless high-quality audio streaming from your music app via the AirPlay® 2 software feature1.
- Enjoy the freedom of musical choice with Fusion's PartyBus™-Network technology1.
- Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Apollo SRX400 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
SUPERIOR SOUND QUALITY IN EVERY ENVIRONMENT.

FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion® Audio app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
THE WORLD'S FIRST MARINE STEREO WITH WI-FI TECHNOLOGY

AUDIO STREAMING WITH WI-FI
In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple® and universal plug-and-play (UPnP)1.

APOLLO RA770 WITH SRX400
Designed with Wi-Fi onboard, the Apollo RA770 and its perfect companion SRX400 can be connected without running any wires - reducing installation time, cost and complexity.
OVER-THE-AIR SOFTWARE UPDATES
Updates are now available from your compatible smartphone or device, via the free Fusion® Audio app. The Apollo Series is intelligently simple and easy to keep up to date.
ENJOY FREEDOM OF MUSICAL CHOICE ACROSS THE ENTIRE BOAT

STEREO GROUPING
Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronised across all stereos.
VOLUME CONTROL
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.

POWER OPTIONS
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the PartyBus™-Network remotely from another Apollo Series stereo.
HOME ZONE
Home Zone is the physical zone on board your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
Specifications
General
Physical dimensions
Stereo dimensions (H x W x D): 70 x 110 x 122 mm
Weight
340 g
Water rating
IPX6 and IPX7 (front panel only, when properly installed)
Power input
10.8-16 VDC
Operating temperature range
0° to 50° C
Current (max.)
8 A
Bluetooth wireless range
Up to 10 metres)
Wireless frequencies/protocols
Wi-Fi 2.4 GHz @ +15 dBm nominal
Bluetooth 2.4 GHz @ +10 dBm nominal
Compass-safe distance
100 mm
Stereo features
Display
2.7-inch optically bonded colour LCD
Built-in amplifier
Class-D (2 Ohm stereo-stable)
Peak power
140 W
Rated power output (2 Ohm)
43 W rms x 2 @ 14.4 V input < 10% THD
Rated power output (4 Ohm)
26 W rms x 2 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing
Yes (with preconfigured DSP profiles)
t*{v5}PartyBus™-Network capabilities
Yes (wired or wireless)
Fusion-Link™ control
Yes (with MFD and smartphone)
Multi-Zone™ technology
1 zone
Built-in Wi-Fi
Yes
Bluetooth wireless technology
Yes
Multi-language interface
Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Software updates
Over-the-air software updates via the Fusion-Link app
Sources
Sources
AM / FM / Bluetooth / Apple AirPlay 2 / UPnP
Connectivity
Ethernet
One Ethernet port
AM/FM radio
One Motorola antenna connector port
Speaker
2 x speaker connections (1 zone amplified)
RCA Pre-out (left, right and subwoofer)
1 zone (requires external amplification)
Line out
1 (1 x L + R per zone, requires external amplification)
Subwoofer out
1 x mono output (requires external amplification)
