FUSION 010-02405-61 Marine Stereo Kit MS-RA60 with EL Sports Speakers
FUSION 010-02405-61 Marine Stereo Kit MS-RA60 with EL Sports Speakers
- Brand: FUSION
- MPN: 010-02405-61
- Part #: CARFSN1132
- UPC:
View all shipping info
- Brand: FUSION
- MPN: 010-02405-61
- Part #: CARFSN1132
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Speakers





FUSION 010-02405-61 Marine Stereo Kit MS-RA60 with EL Sports Speakers
- Brand: FUSION
- MPN: 010-02405-61
- Part #: CARFSN1132

Product URL: https://www.pbtech.com/au/product/CARFSN1132/FUSION-010-02405-61-Marine-Stereo-Kit-MS-RA60-with
Features
EVERYTHING YOU NEED TO AMPLIFY THE MOMENT

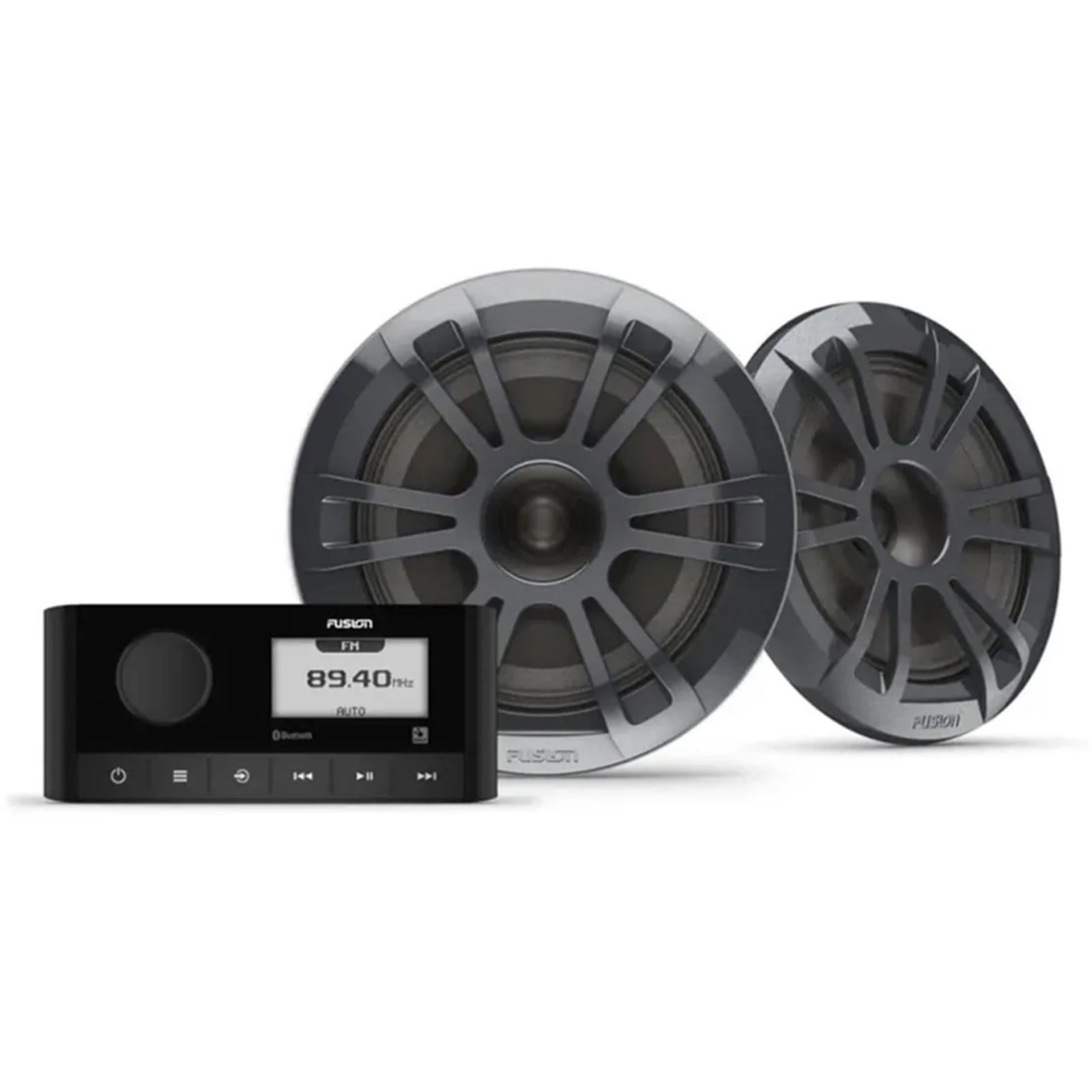

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD[1], smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology[2] from the Fusion® Audio app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
World-class stereos optimise your audio.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

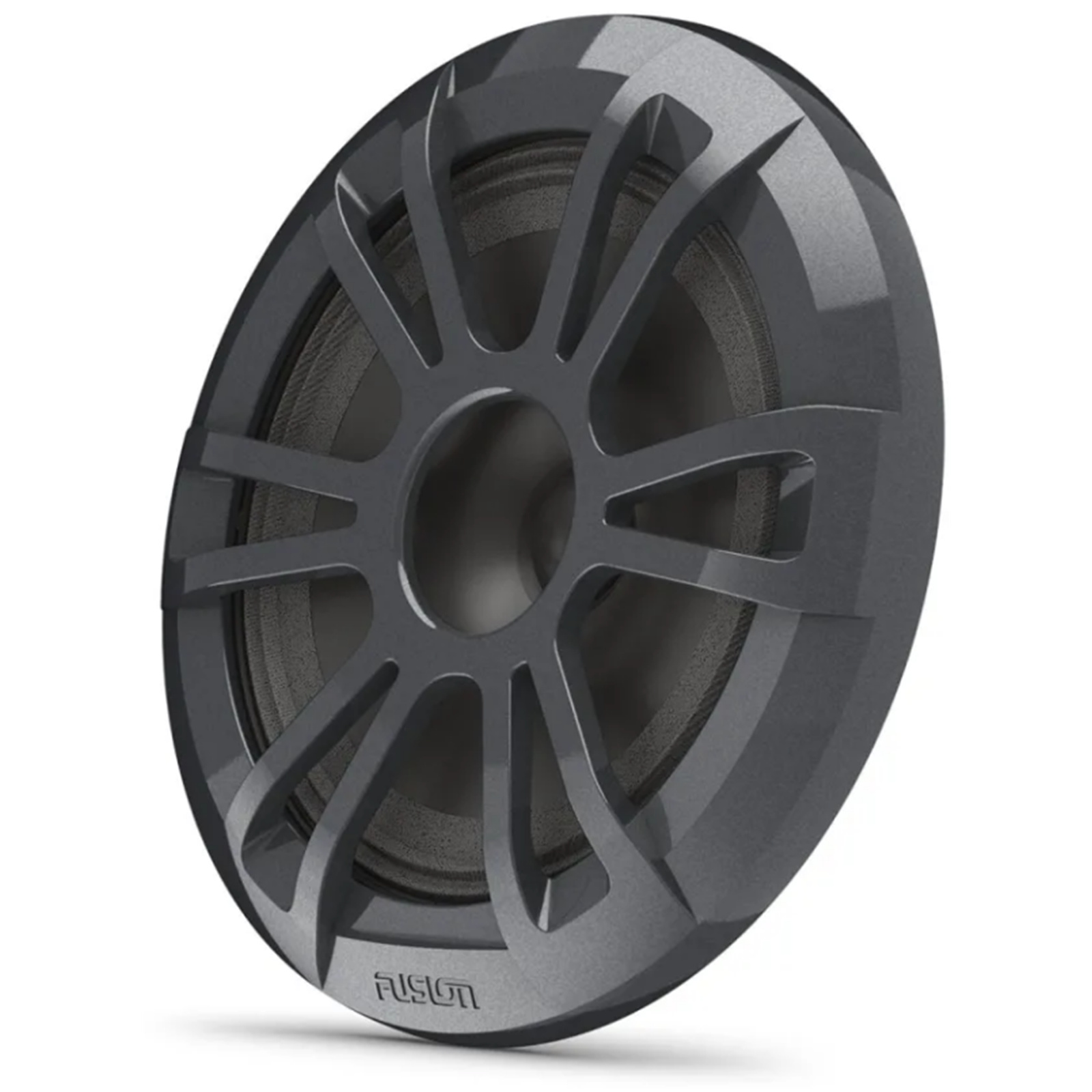

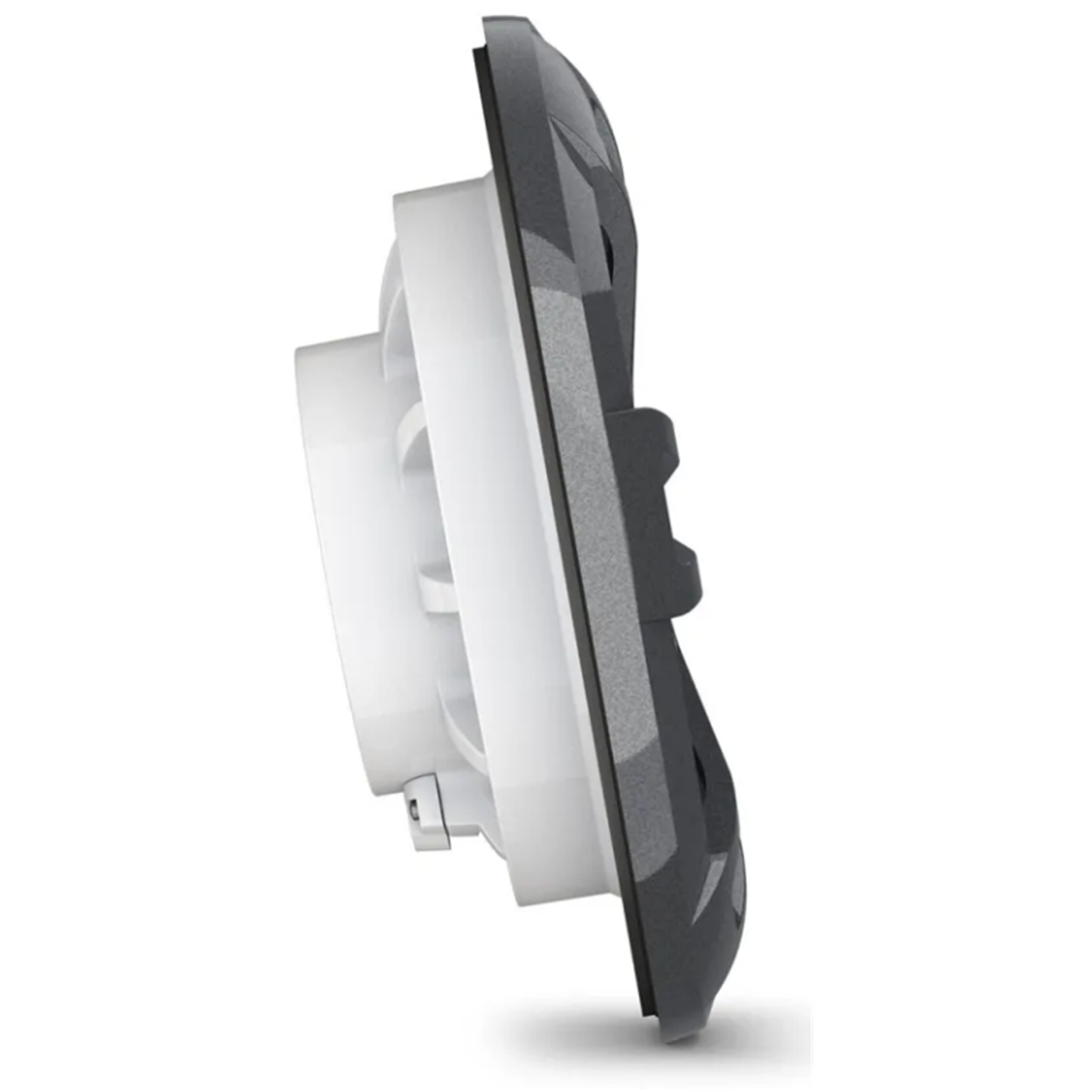

6.5" Fusion speakers produce quality sound on the water.
[1]Only compatible with MS-RA210.
[2]Only compatible with MS-RA60.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specifications
Physical dimensions (HxWxD)
2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
Weight
11.1 oz (316 g)
Water rating
IPX6 and IPX7 (front panel only, when properly installed)
Power input
10.8-16 VDC
Operating temperature range
32° to 122° F (0° to 50° C)
Current (max.)
15 A
Bluetooth® wireless range
Up to 30 ft (10 metres)
ANT wireless range
Up to 10 ft (3 metres)
Wireless frequencies/protocols
Bluetooth 2.4 GHz @ +12 dBm nominal
ANT
2.4 GHz @ +7 dBm nominal
Compass-safe distance
5.9" (150 mm)
Display
2.3" perimeter bonded monochrome dot matrix LCD
Built-in amplifier
Class-D (minimum 4 Ohm impedance)
Peak power
180 W
Rated power output (4 Ohm)
22 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control
Yes (with smartphone and Garmin watch)
Multi-Zone™ technology
2 zones
Bluetooth wireless technology
Yes
ANT wireless technology
Yes
DAB+ ready
Yes (DAB tuner built in)
Multi-language interface
Dutch, English, French, German, Italian, Spanish
Software updates
Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
Sources
AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
Auxiliary input
One RCA input (AUX)
AM/FM radio
One Motorola antenna connector port
Speaker
4 x speaker connections (2 zone amplified)
RCA Pre-out
(left, right and subwoofer) 1 zone (requires external amplification)
RCA Pre-out
(left, right and subwoofer) 1 zone (requires external amplification)
Line out Zone
1 (L + R, requires external amplification)
Subwoofer out Zone
1 (requires external amplification)
