HEATSHIELD ARMOUR 1/4" X 25MM X 50MM

PB Tech price
PB Tech price
$ 141 .58
 +GST
$ 155 .74
 inc GST
$141.58  +GST
$155.74

HEATSHIELD ARMOUR 1/4" X 25MM X 50MM

  • Brand: HEATSHIELD
  • MPN: 170102
  • Part #: CARHSD170102
  • UPC:
PB Tech price
$ 141 .58 $ 155 .74
 +GST  inc GST


Delivery: Order now and it ships on 23 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$141.58  +GST
$155.74
  • Brand: HEATSHIELD
  • MPN: 170102
  • Part #: CARHSD170102
  • UPC:

Features

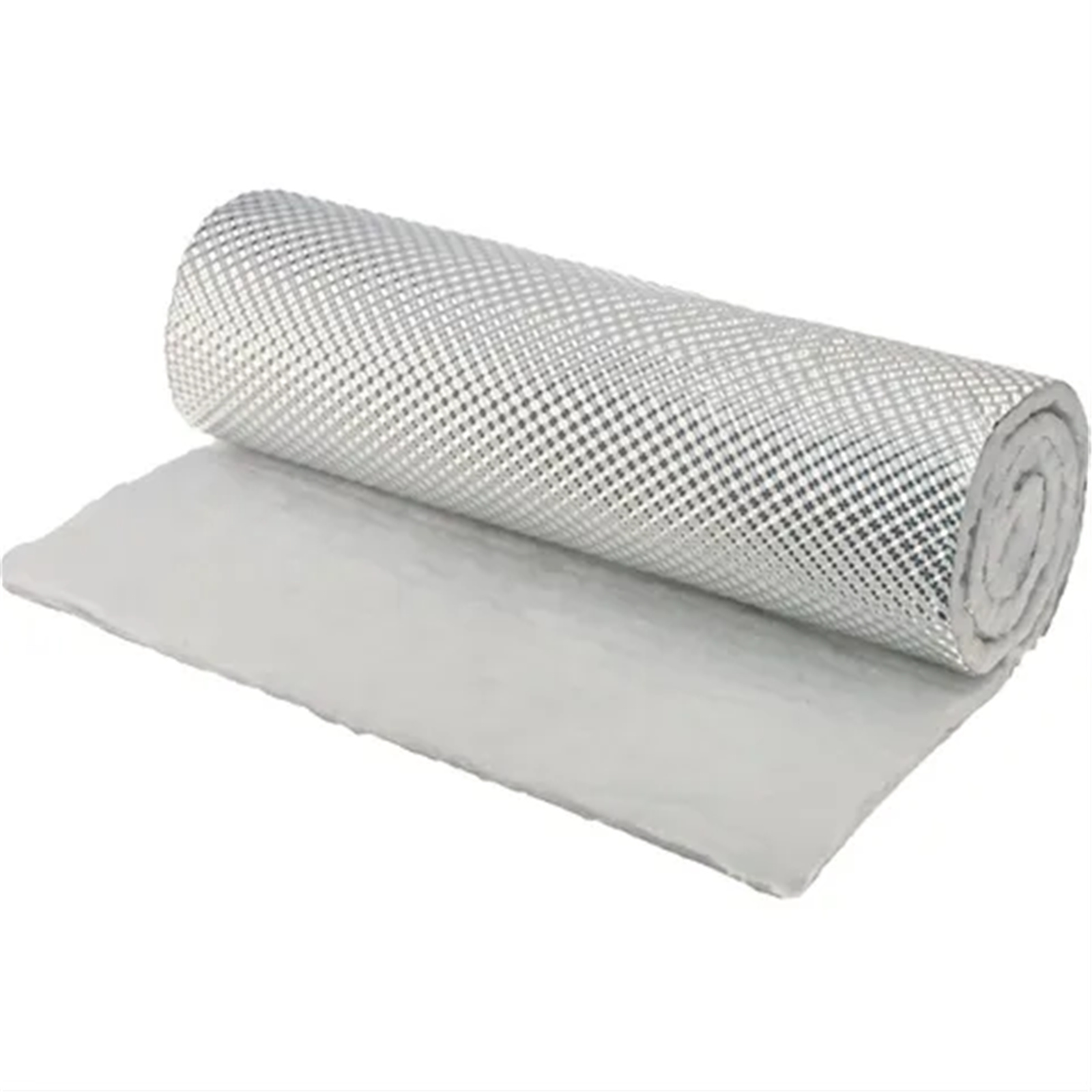

HEATSHIELD ARMOUR 1/4" X 250MM X 500MM

This heat shield insulation material is easier to install than exhaust wrap, it also reduces more heat from your exhaust pipes and components. Heatshield Armor™ which can stop exhaust heat up to 70 percent.

The outer armor of Heatshield Armor is resistant to the elements is a 4 mil this aluminium, gives the exhaust heat shield a long life. Our exclusive BioCool insulation material as the inner pad, bonded to a heavy-duty foil outer layer using a proprietary process. This makes it capable of withstanding 982 degrees continuously, which allows this heatshield to be placed directly on exhaust systems, turbo manifolds, downpipes and diesel particulate filters (check with state regulations regarding usage on DPF). Because this heat shield installs directly on the exhaust system components, it performs better than the clamp-on standoff heatshields that allow heat to escape because they are set above the pipe and not directly insulating it.

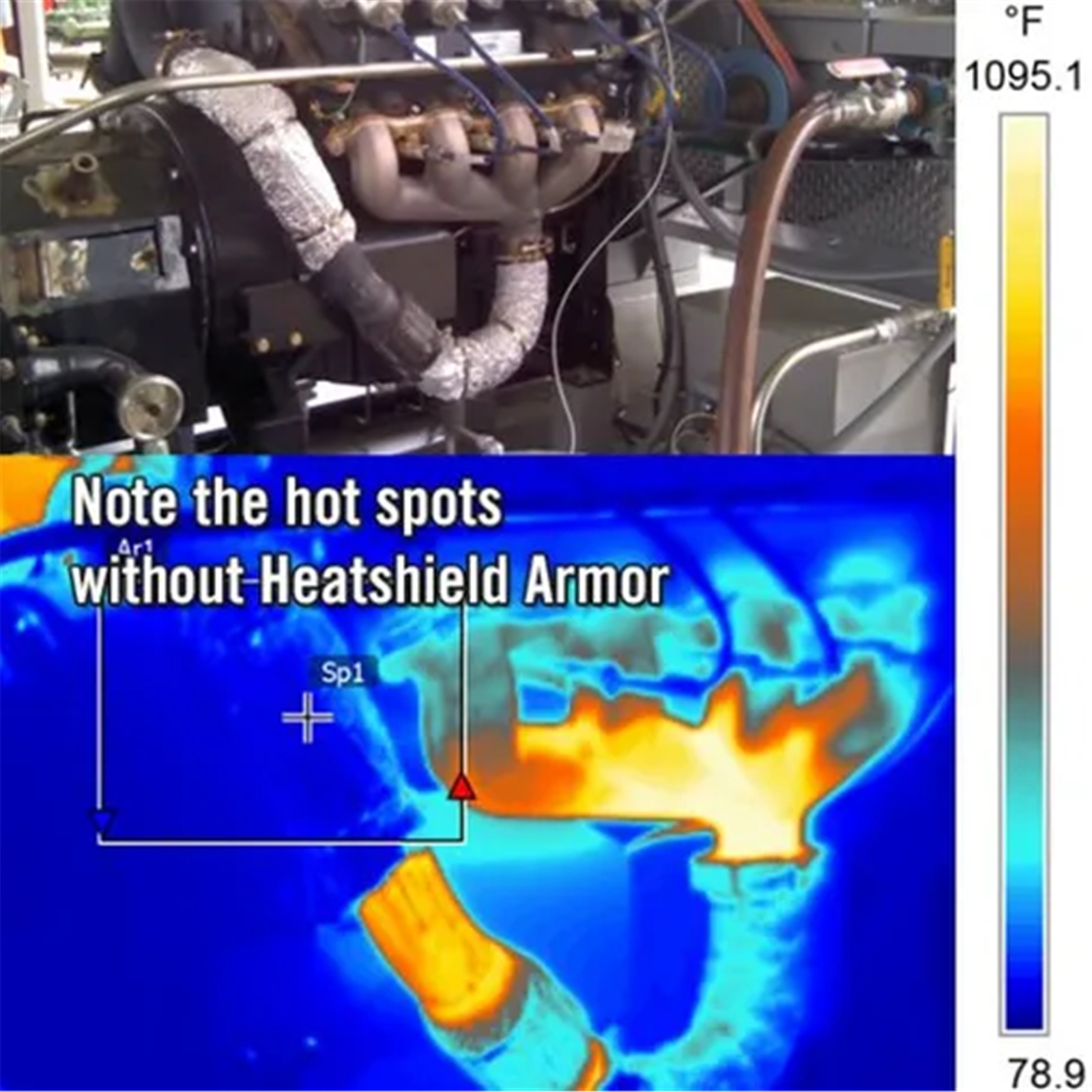

Heatshield Armor offers superior performance over all metal exhaust heat shields. The metal heat shields have conduction with one hot side and one cold side: There is no metal-to-metal contact layer it uses a thermal break to create a real cold side.

BioCool is a non-caustic, non-flammable bio-soluble silica thermal insulation material. It doesn't cause itching and won't smoke/smell the first time it is heat-cycled. This exhaust heat shield material is flexible, easy to cut and may be cleaned after installation. Heatshield Armor is available in two thicknesses: 1/4-inch for most naturally aspirated applications and 1/2-inch for forced-induction and racing applications.

Features

- Reduces radiant heat up to 70%
- 4 mil thick armor layer, can be cleaned after installation
- Simple installation, install in minutes
- The ideal heat shield insulation for your down pipe, DPF, or high-performance application.

https://youtu.be/ZgIwRg0HRok

Specifications

Appearance

Off White

Odor

Odorless

Physical State

Fibrous

pH in water

7.75-8.00

Vapor Density

Not Applicable

Melting Point

>2179

Vapor Pressure

Not Applicable

Freezing Point

Not Applicable

Specific Gravity

>1

Solubility

Nil

Odor Threshold

Not Applicable

Boiling Point

Not Applicable

Evaporation Rate

Not Applicable

Coefficient of Water/Oil Distribution

Not Applicable

Manufacturer Part No:
170102
Brand:
HEATSHIELD
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
CARHSD170102
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
